Model # RP1816RS3 Official WC Wood upright freezer

Here are the diagrams and repair parts for Official WC Wood RP1816RS3 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Light Bulb 1-34291-002
#3

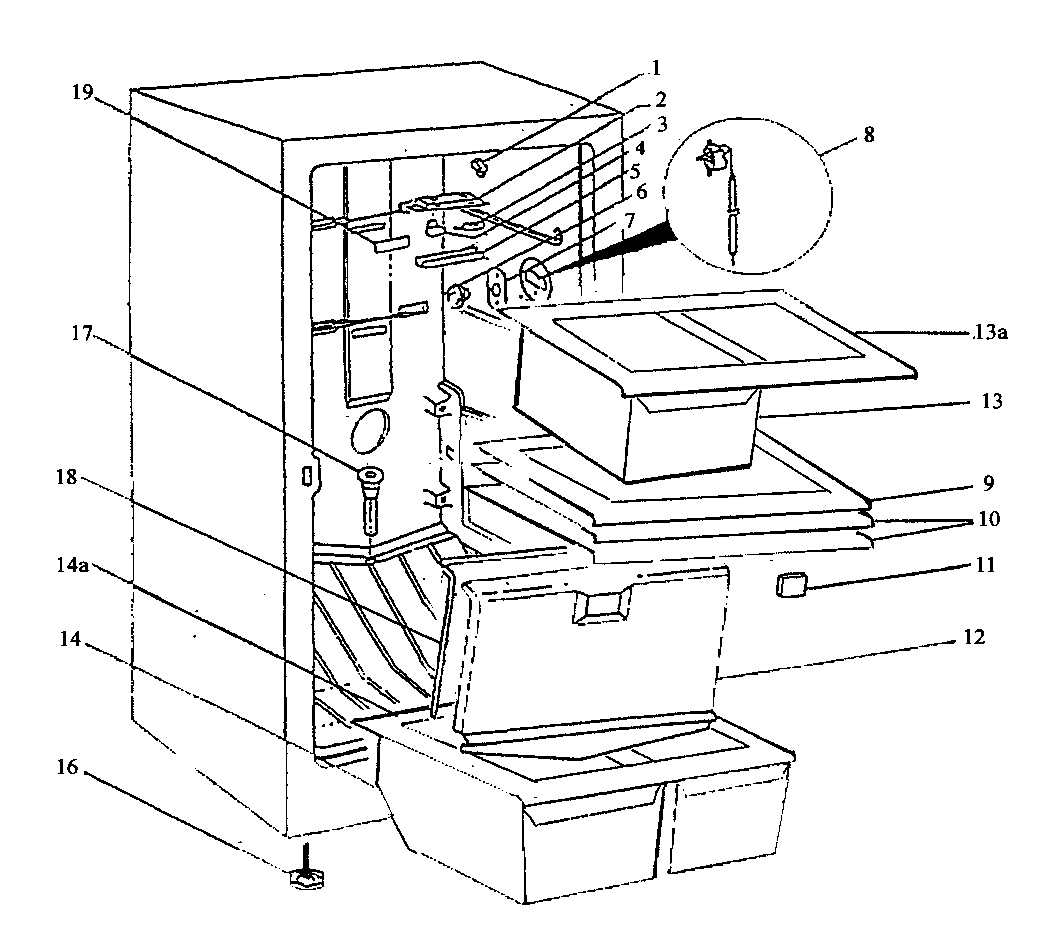

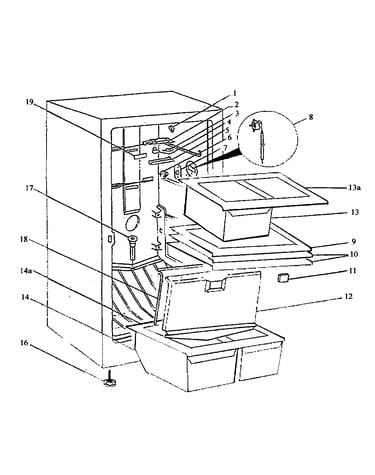

Cabinet parts diagram

Light bulb

Part #1-34291-002

The manufacturer no longer makes this part, and there's no substitute part

Switch 2-32164-001
#1

Cabinet parts diagram

Switch

Part #2-32164-001

The manufacturer no longer makes this part, and there's no substitute part

Drier 3-34960-001
#5

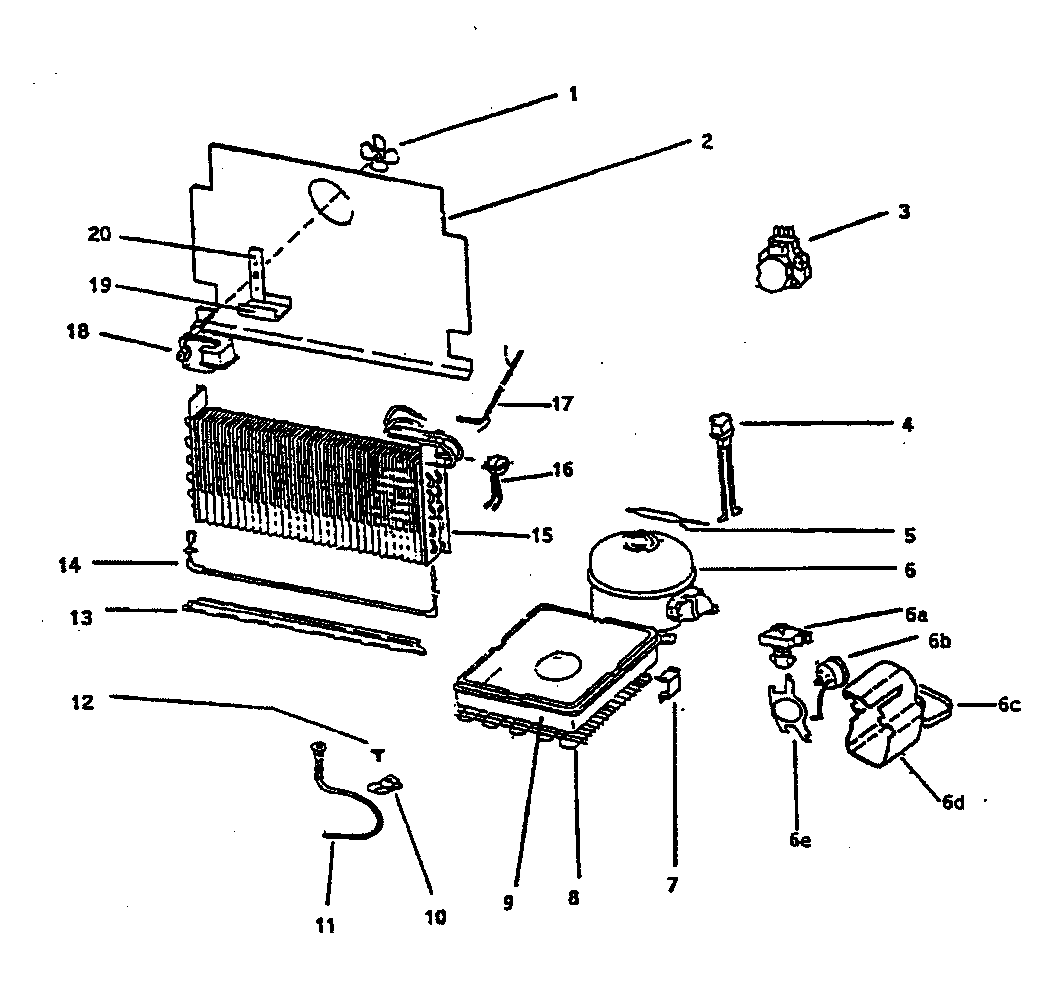

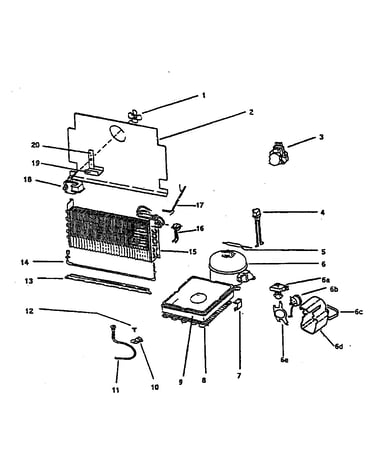

Refrigerator unit compartment system diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Defrost Timer 3-81329
#3

Refrigerator unit compartment system diagram

Defrost timer

Part #3-81329

The manufacturer no longer makes this part, and there's no substitute part

Defrost Heater 3-80405-101
#14

Refrigerator unit compartment system diagram

Defrost heater

Part #3-80405-101

The manufacturer no longer makes this part, and there's no substitute part

Cover 3-35171-001
#6D

Refrigerator unit compartment system diagram

Cover

Part #3-35171-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 3-24004-126
#12B

Cabinet parts diagram

Screw

Part #3-24004-126

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-80271-104
#20B

Refrigerator unit compartment system diagram

Screw

Part #1-80271-104

The manufacturer no longer makes this part, and there's no substitute part

Crisper 4-60040-004
#13

Cabinet parts diagram

Crisper

Part #4-60040-004

The manufacturer no longer makes this part, and there's no substitute part

Gasket Assembly 0-90000-103
#5

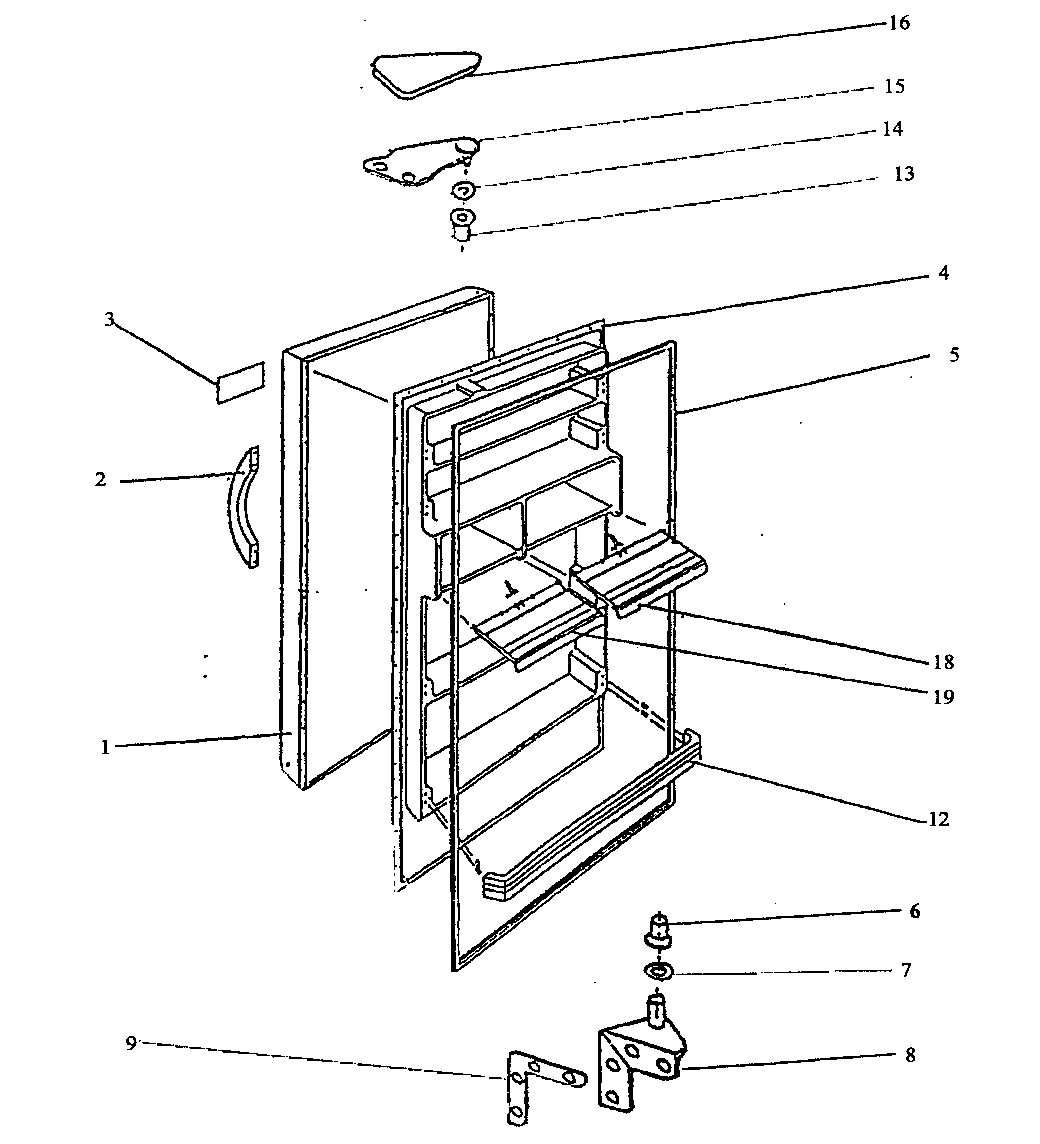

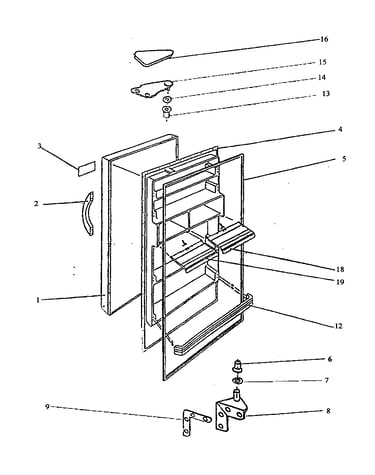

Door assy diagram

Gasket assembly

Part #0-90000-103

The manufacturer no longer makes this part, and there's no substitute part
