Model # ELFE4222AW Official Electrolux dryer

Here are the diagrams and repair parts for Official Electrolux ELFE4222AW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

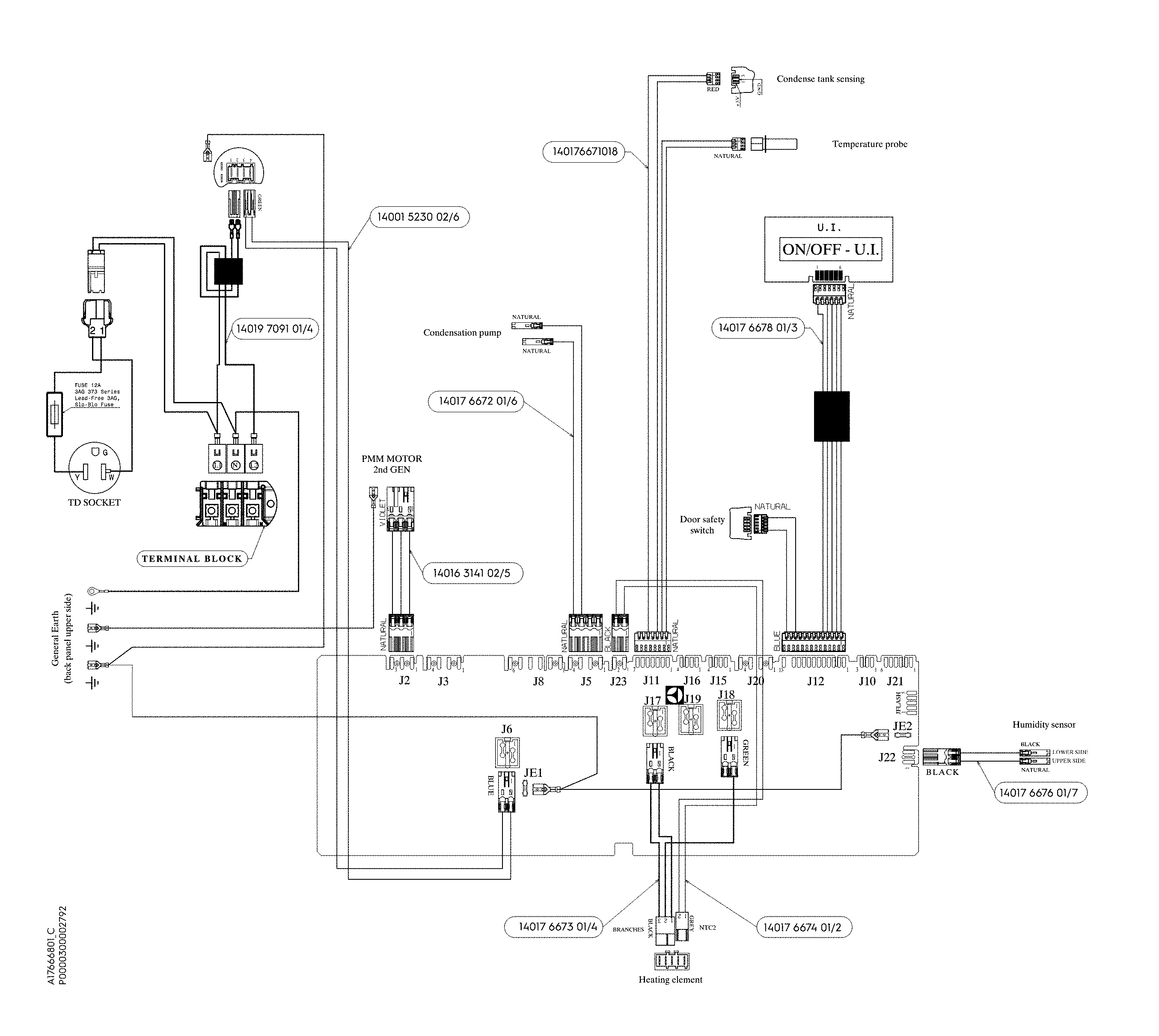

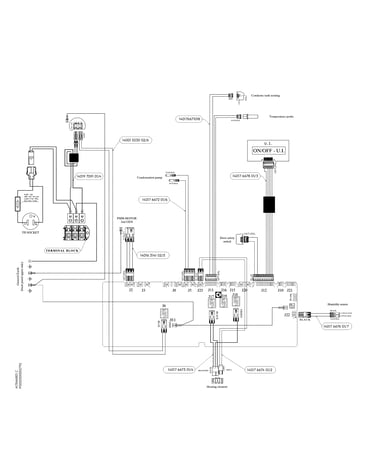

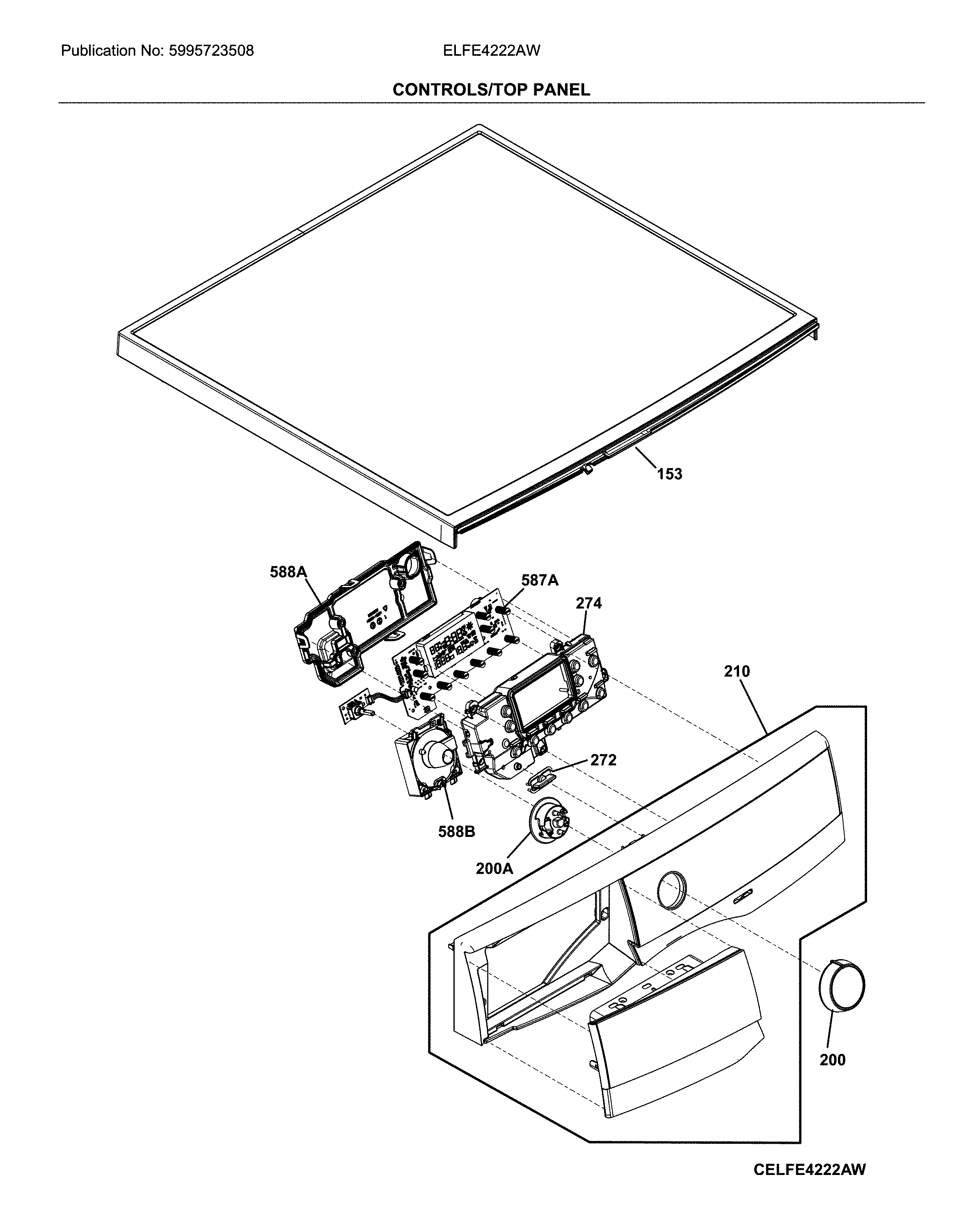

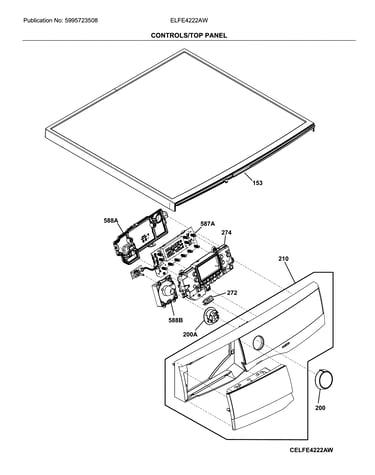

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Dryer Heating Element Assembly 136611032
#510

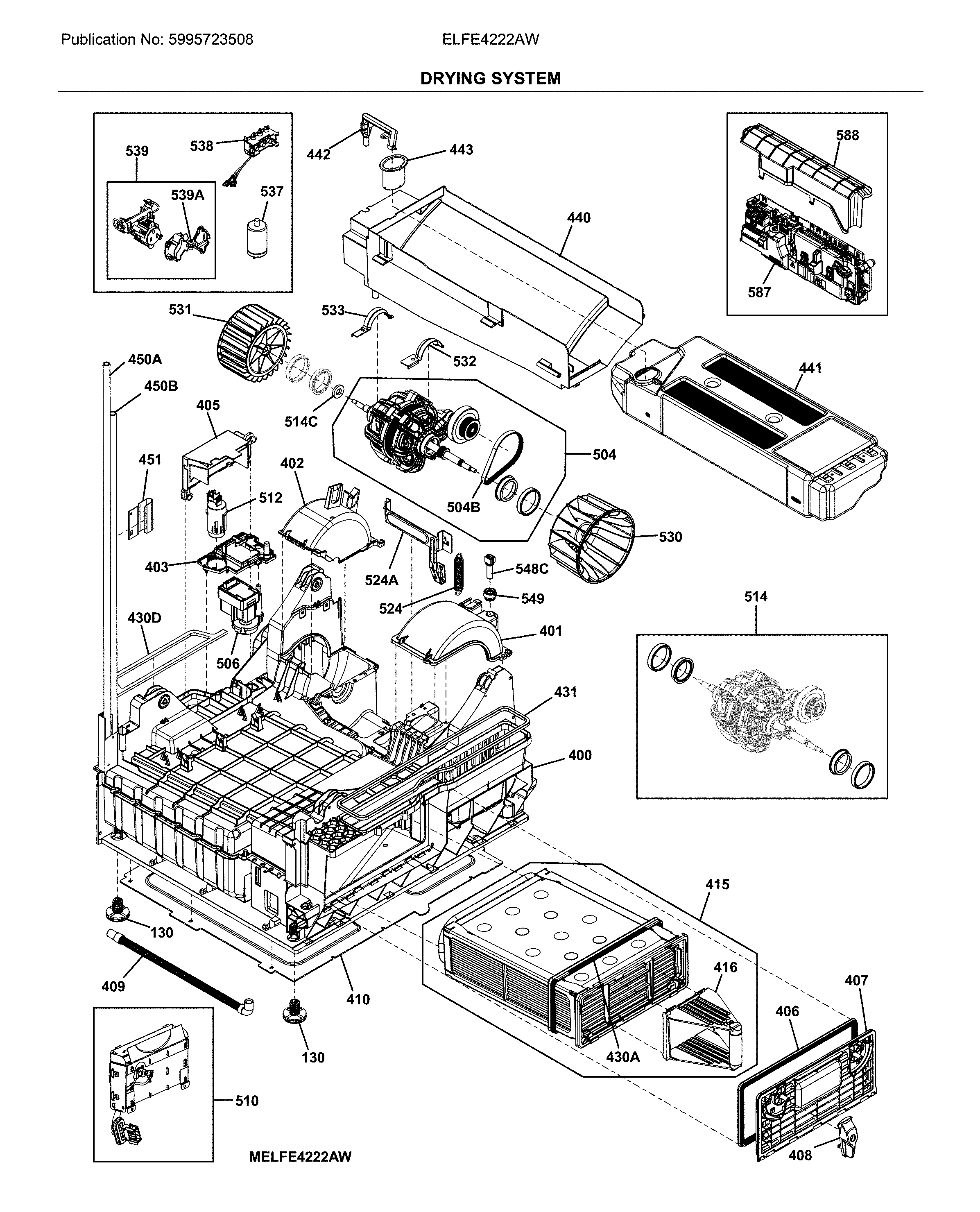

Drying system diagram

Dryer heating element assembly

Part #136611032

BEST SELLER
$100.43 |
11% OFF Phone Price : $112.43
In Stock
Dryer Water Pump 136402403
#506

Drying system diagram

Dryer water pump

Part #136402403

$67.56 |
8% OFF Phone Price : $73.56
In Stock
Dryer Lint Screen 136601901
#607

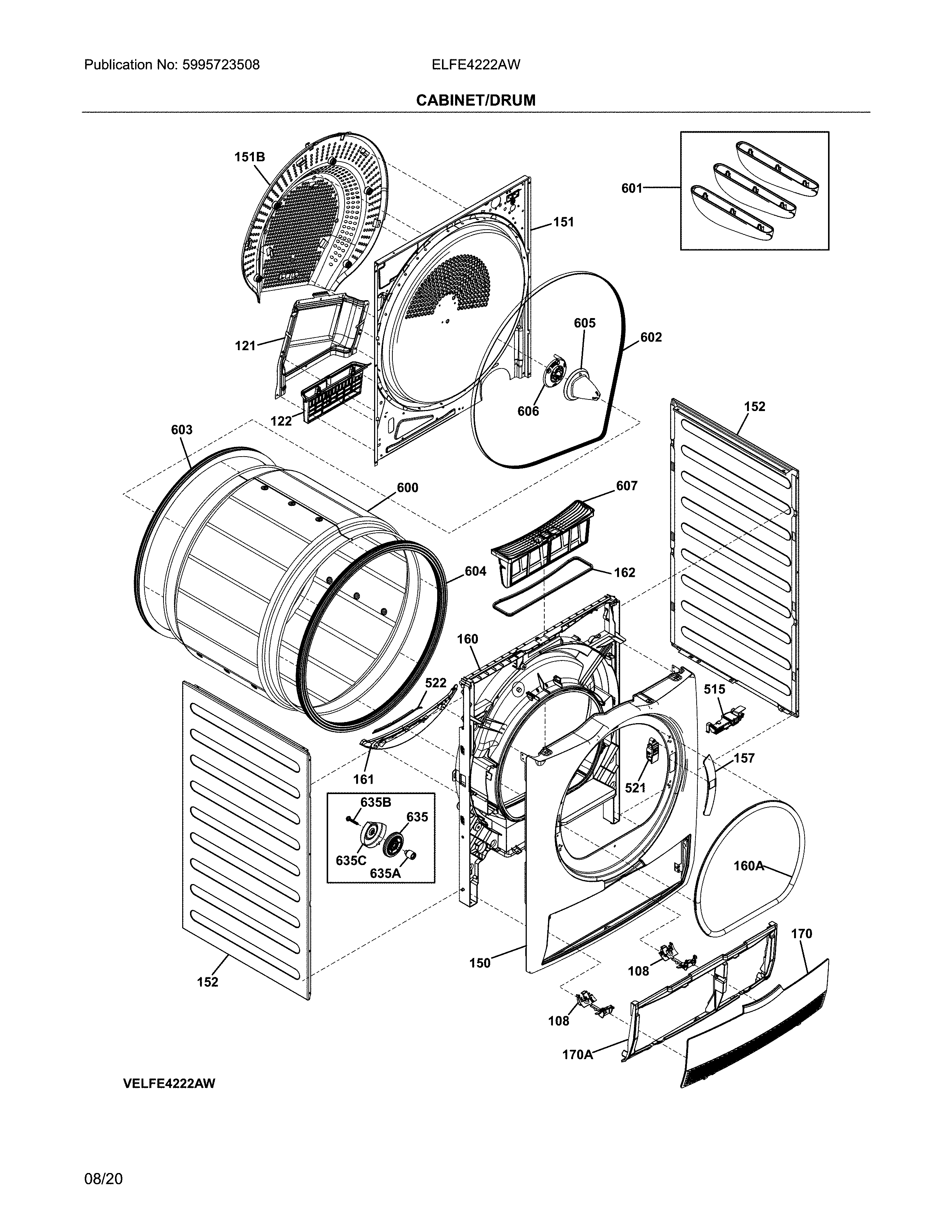

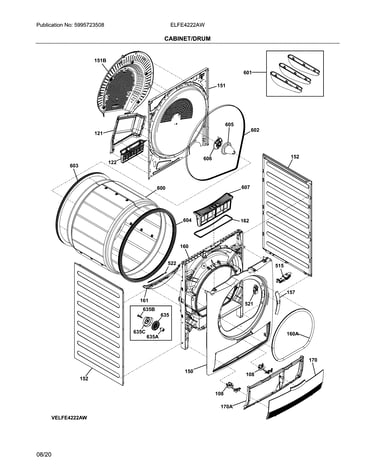

Cabinet/drum diagram

Dryer lint screen

Part #136601901

$134.28 |
8% OFF Phone Price : $146.28
In Stock
Catch 808681114
#370

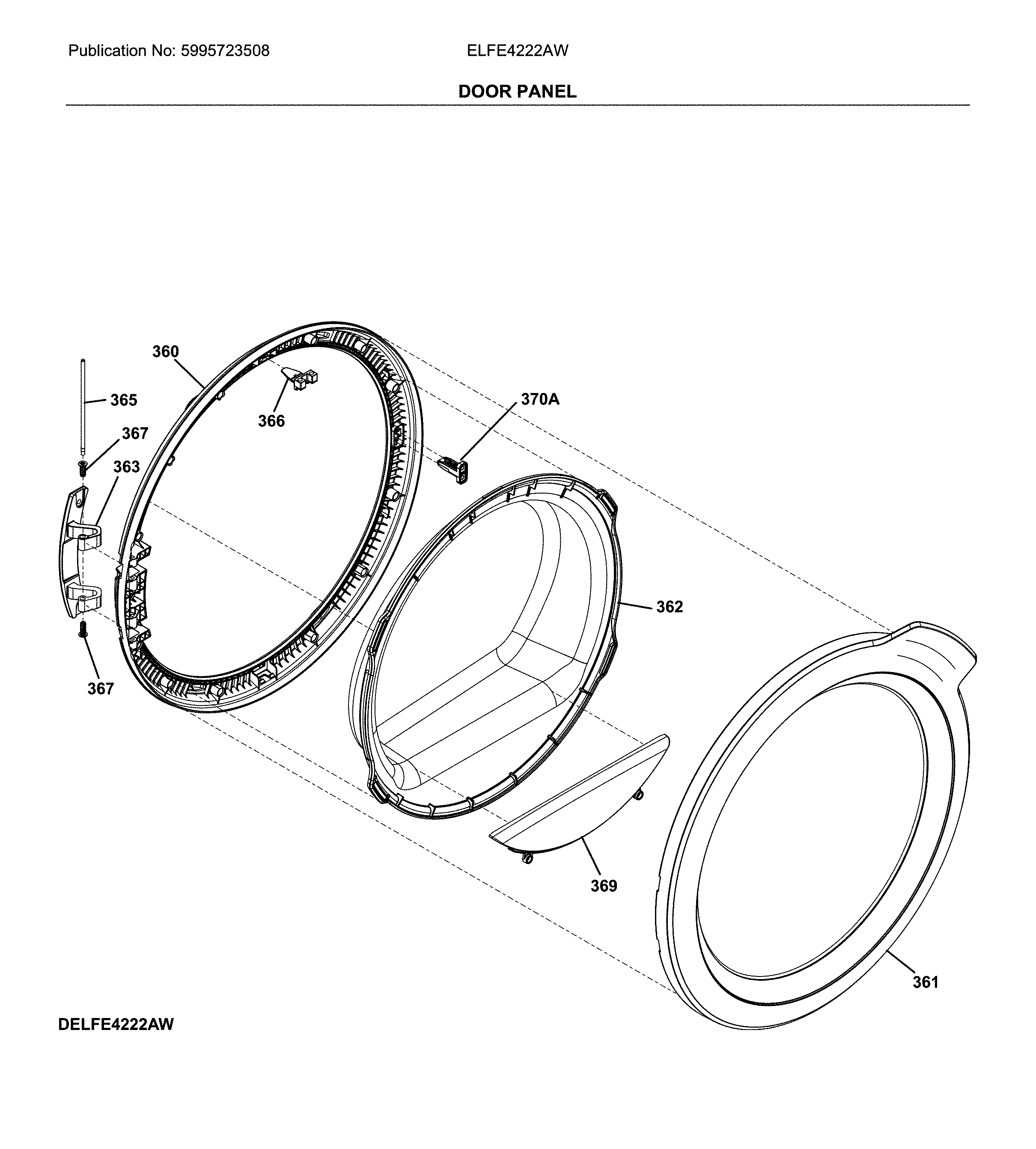

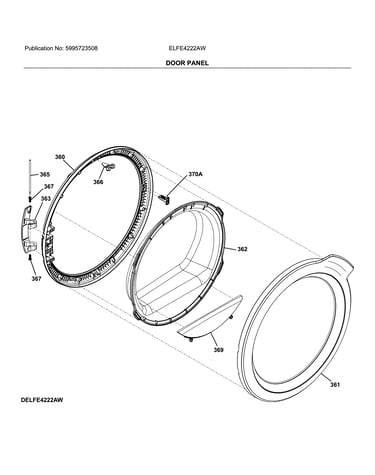

Door panel diagram

Catch

Part #808681114

$11.71 |
15% OFF Phone Price : $13.71
In Stock
Bushing Kit,motor ,front & Rear 405549614
#514

Drying system diagram

Bushing kit,motor ,front & rear

Part #405549614

$17.49
In Stock
Dryer Drum Seal 136424300
#603

Cabinet/drum diagram

Dryer drum seal

Part #136424300

$120.49 |
9% OFF Phone Price : $132.49
In Stock
Wheel 136609301
#530

Drying system diagram

Wheel

Part #136609301

Replaced by #136609300

?
Manufacturer substitution
This part replaces 136609301. Substitute parts can look different from the original.
$45.49 |
12% OFF Phone Price : $51.49
In Stock
Door Frame,grey ,front A04449207
#361

Door panel diagram

Door frame,grey ,front

Part #A04449207

$182.68
In Stock
Window A18041201
#362

Door panel diagram

Window

Part #A18041201

$92.56
In Stock
Dryer Condenser Door Gasket 136607300
#406

Drying system diagram

Dryer condenser door gasket

Part #136607300

$54.98
In Stock
