Whirlpool
Microwave/Hood Combo

Model # GH4184XSS1 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool GH4184XSS1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

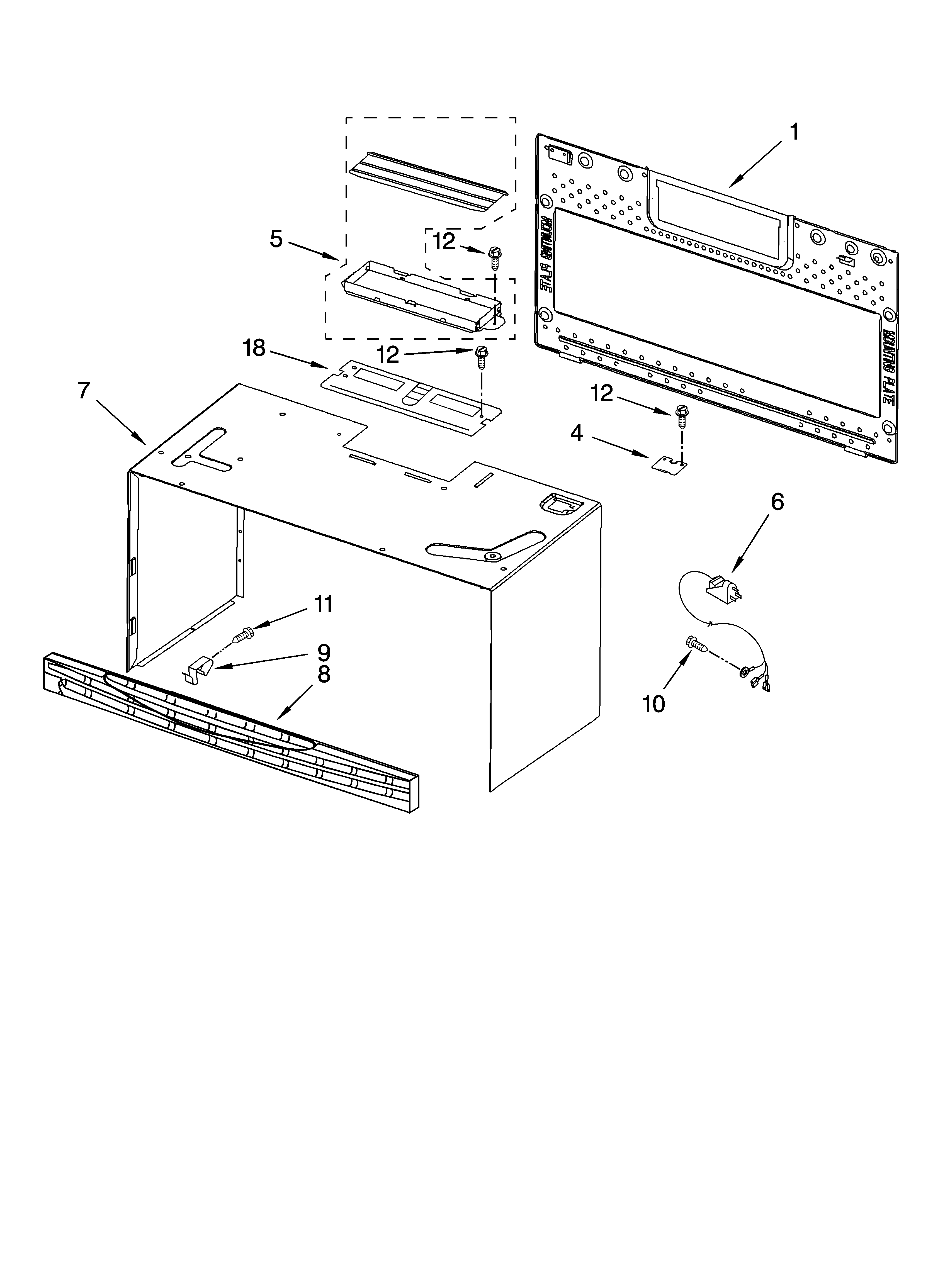

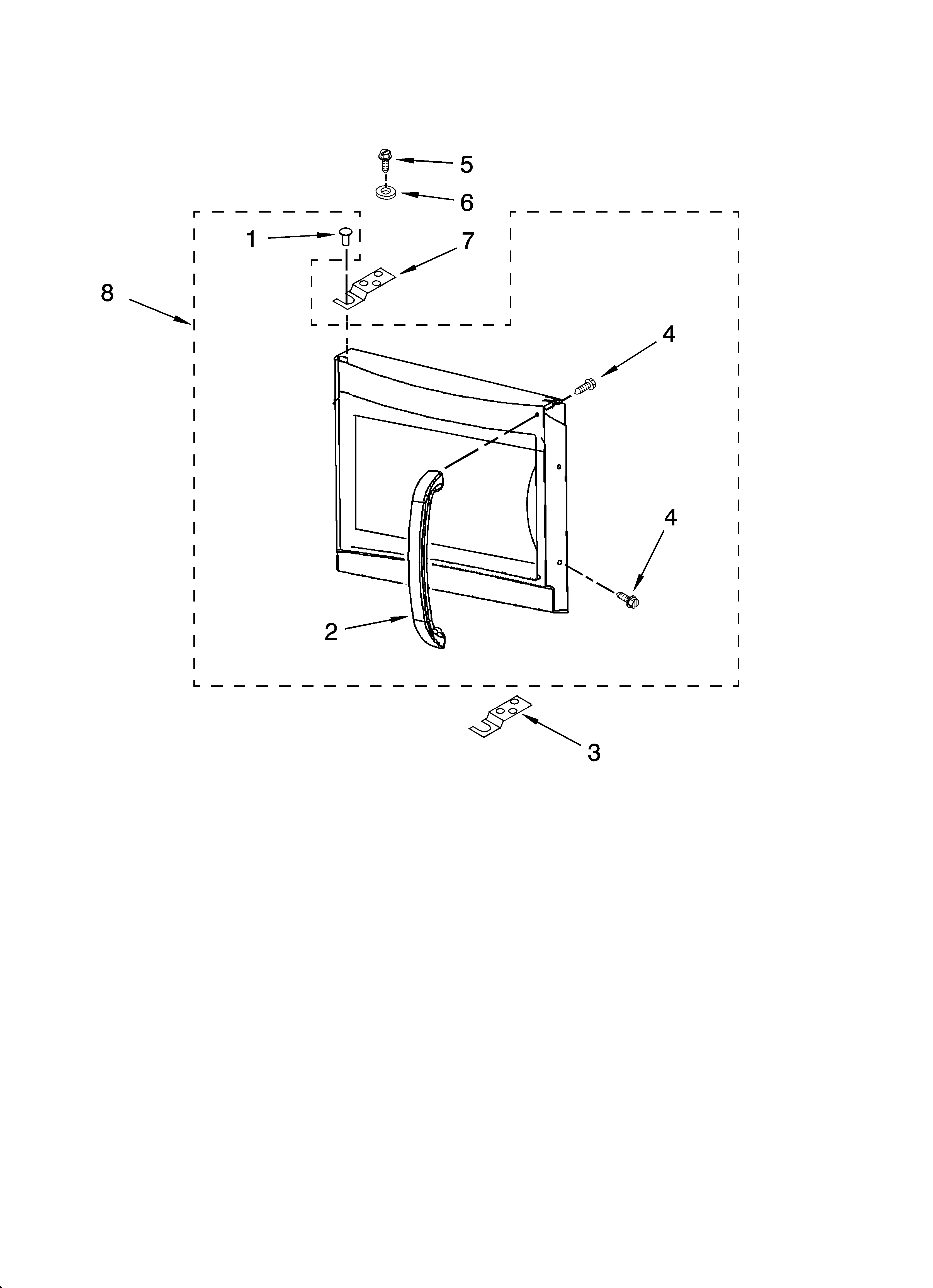

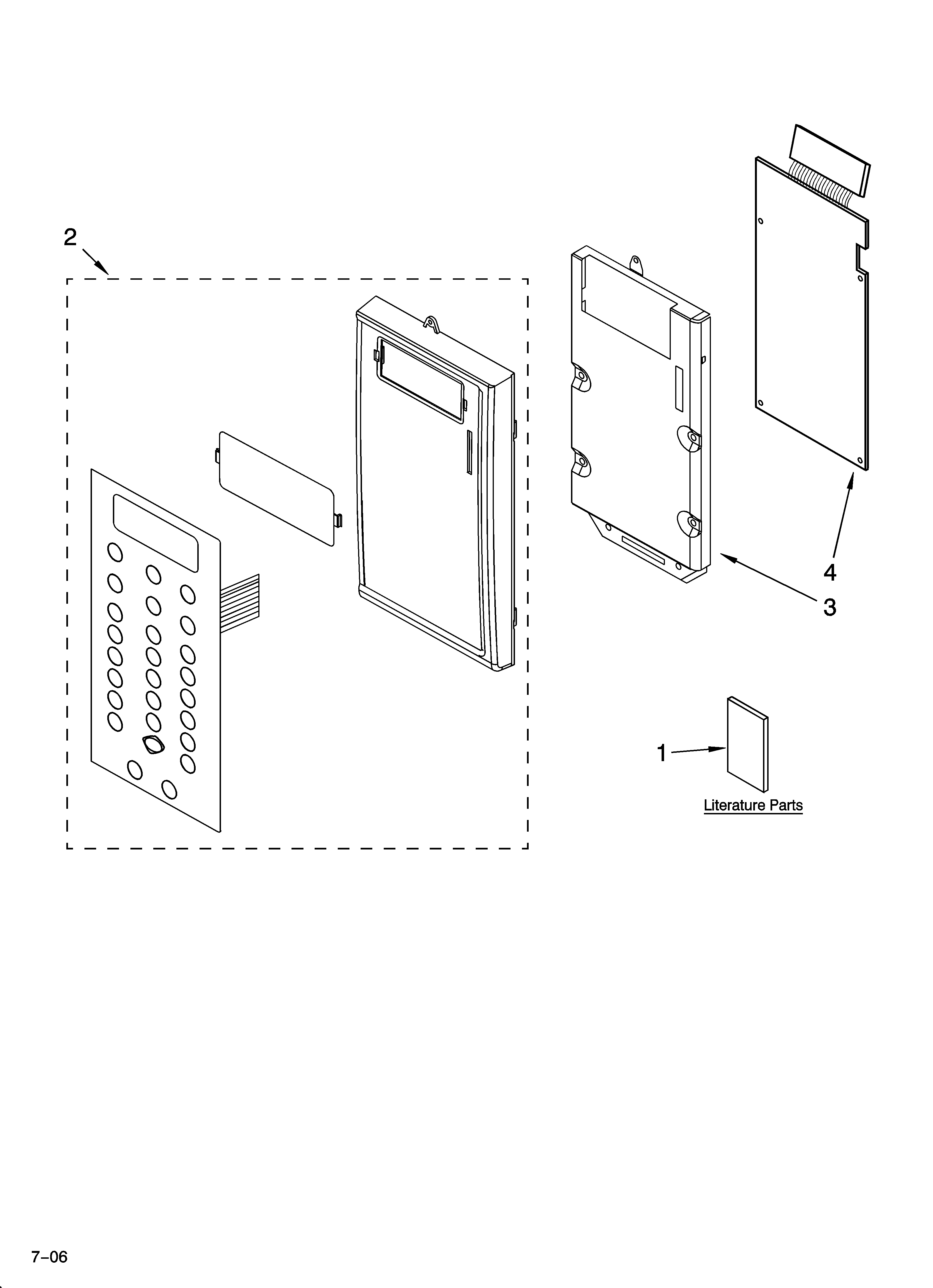

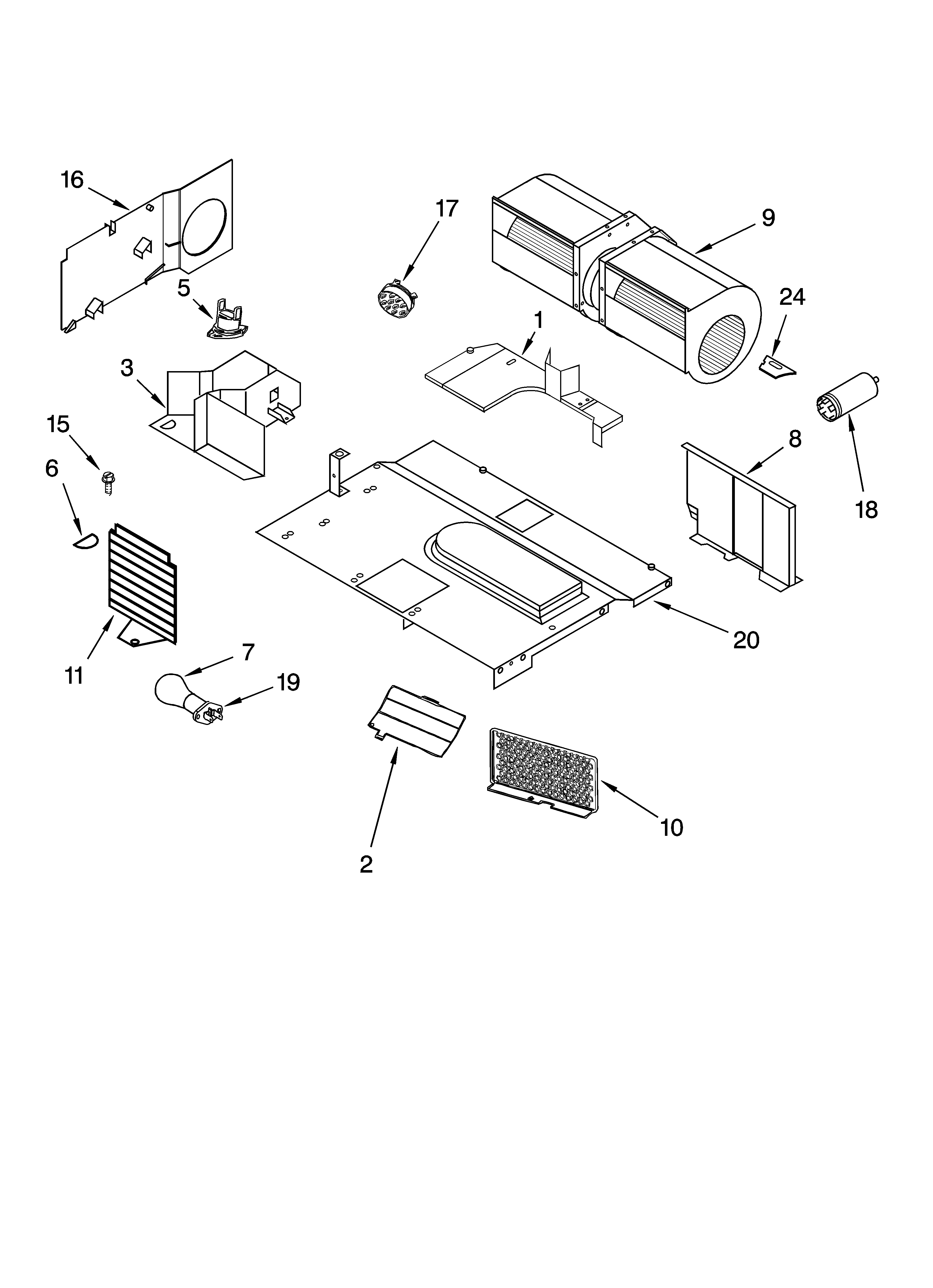

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Diode 8205361
#41

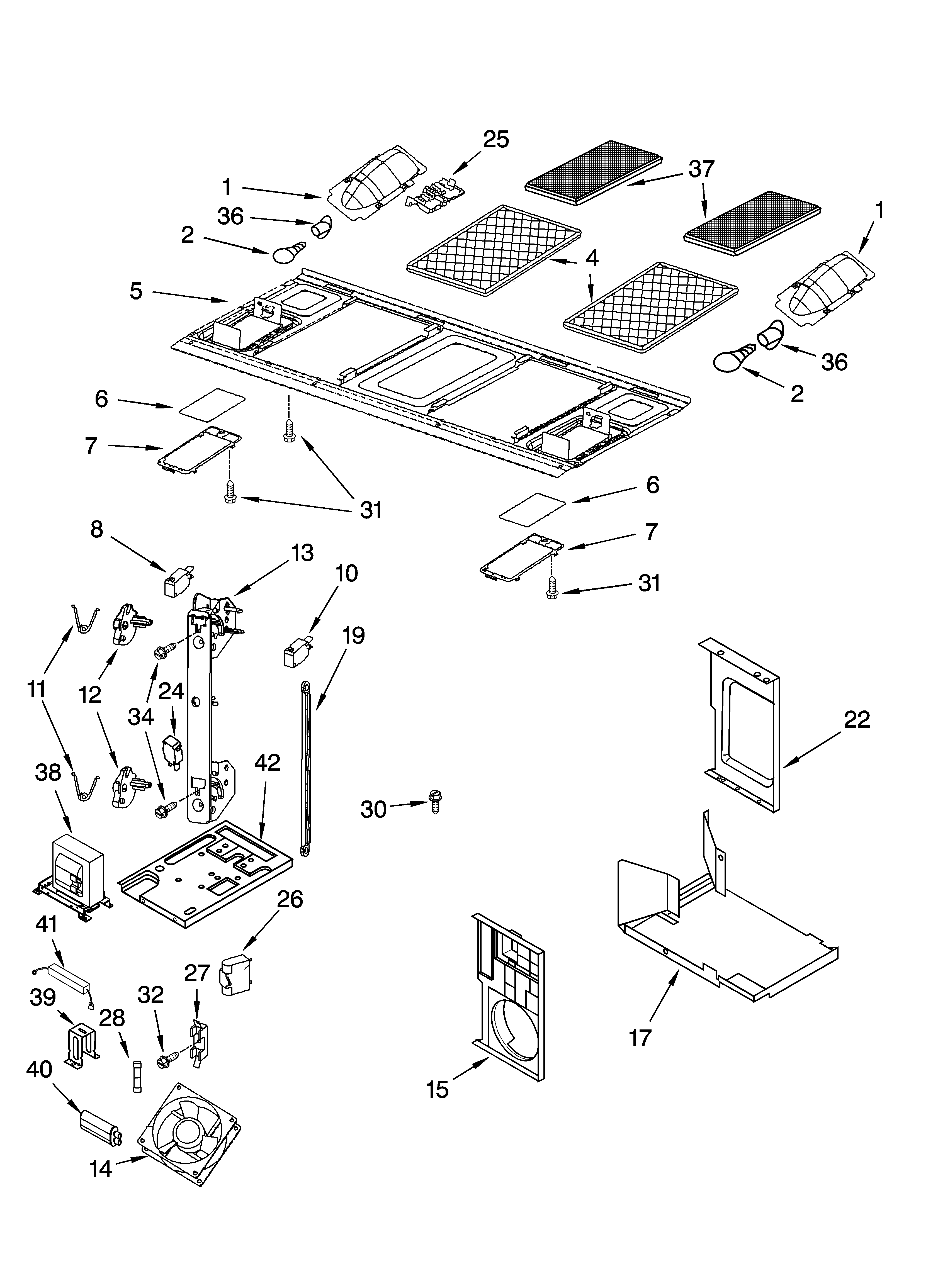

Interior and ventilation parts diagram

Diode

Part #8205361

Replaced by #W11256462

?
Manufacturer substitution
This part replaces 8205361. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave/hood Micro-switch 8206347
#24

Interior and ventilation parts diagram

Microwave/hood micro-switch

Part #8206347

Replaced by #W10269458

?
Manufacturer substitution
This part replaces 8206347. Substitute parts can look different from the original.
BEST SELLER
$23.43 |
20% OFF Phone Price : $29.43
In Stock
Microwave Surface Light Bulb 8183993
Microwave surface light bulb

Part #8183993

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8183993. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Microwave/hood Switch 8206352
#10

Interior and ventilation parts diagram

Microwave/hood switch

Part #8206352

Replaced by #W10211974

?
Manufacturer substitution
This part replaces 8206352. Substitute parts can look different from the original.
BEST SELLER
$31.20 |
16% OFF Phone Price : $37.20
In Stock
Thermal Fuse 4393308
#28

Interior and ventilation parts diagram

Thermal fuse

Part #4393308

Replaced by #W11707984

?
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
$23.80
In Stock
Support 8206228
#11

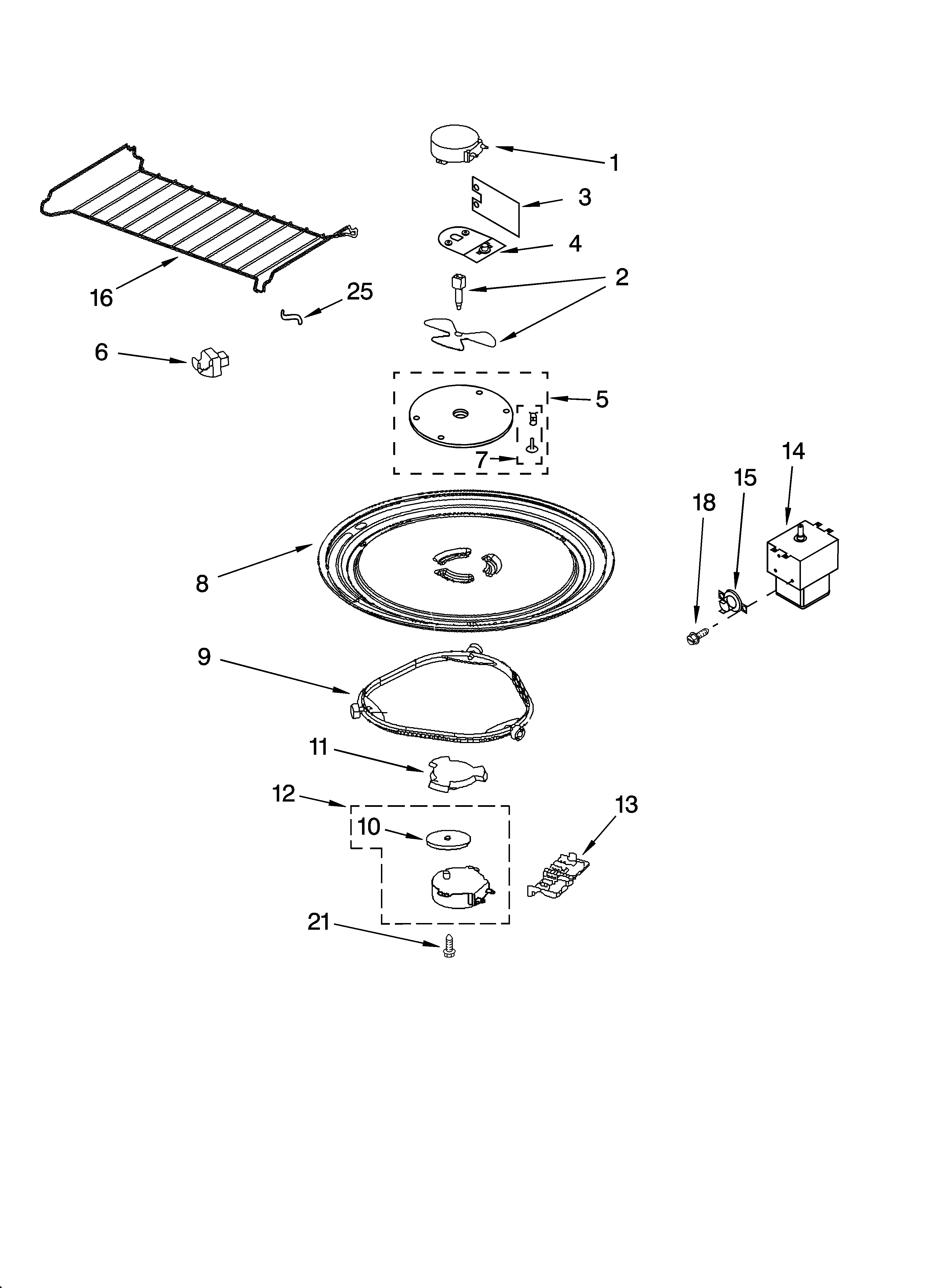

Magnetron and turntable parts diagram

Support

Part #8206228

Replaced by #W10435116

?
Manufacturer substitution
This part replaces 8206228. Substitute parts can look different from the original.
This item is not returnable
$22.09 |
21% OFF Phone Price : $28.09
In Stock
Magnetron 8205363
#14

Magnetron and turntable parts diagram

Magnetron

Part #8205363

The manufacturer no longer makes this part, and there's no substitute part

Shelf 8205039
#25

Magnetron and turntable parts diagram

Shelf

Part #8205039

Replaced by #W10315274

?
Manufacturer substitution
This part replaces 8205039. Substitute parts can look different from the original.
This item is not returnable
$27.29 |
18% OFF Phone Price : $33.29
In Stock
Shelf Bushing W10107780
#10

Magnetron and turntable parts diagram

Shelf bushing

Part #W10107780

Replaced by #W10315274

?
Manufacturer substitution
This part replaces W10107780. Substitute parts can look different from the original.
This item is not returnable
$27.29 |
18% OFF Phone Price : $33.29
In Stock
Support 8206118
#6

Magnetron and turntable parts diagram

Support

Part #8206118

Replaced by #W10315274

?
Manufacturer substitution
This part replaces 8206118. Substitute parts can look different from the original.
This item is not returnable
$27.29 |
18% OFF Phone Price : $33.29
In Stock
