Kenmore
Electric Range

Model # 6289437910 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 6289437910 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

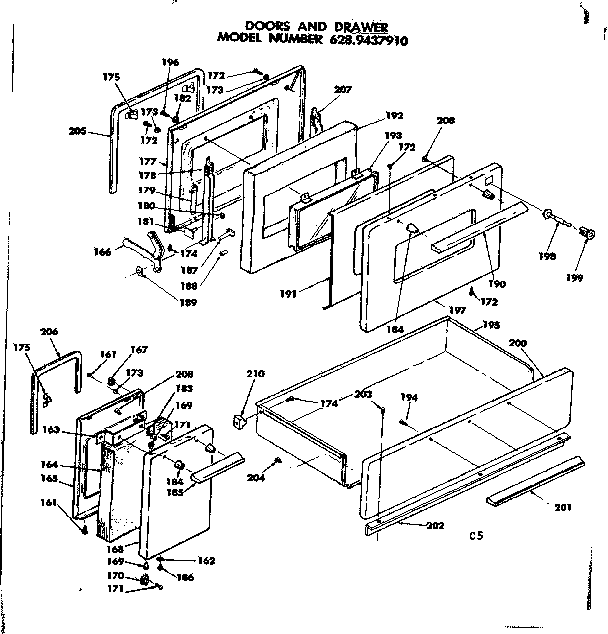

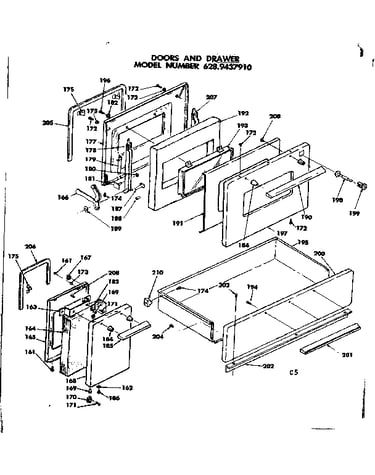

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 240 parts  |
Oven Lamp STD372401
#113

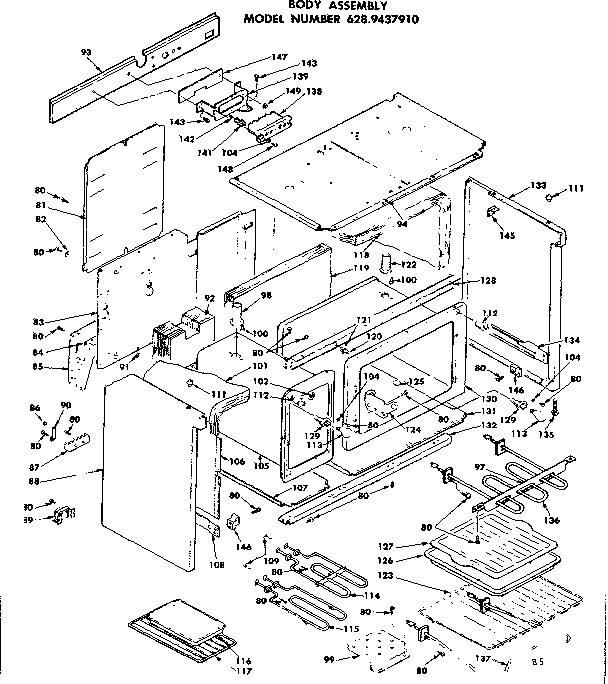

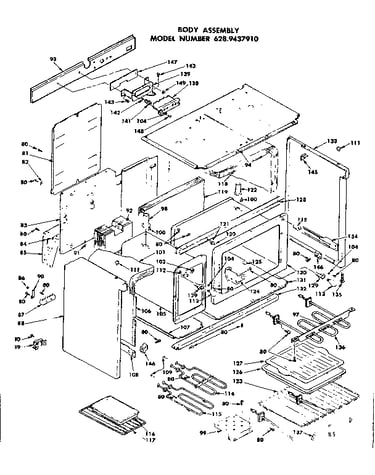

Body assembly diagram

Oven lamp

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Terminal Block 1167204
#42

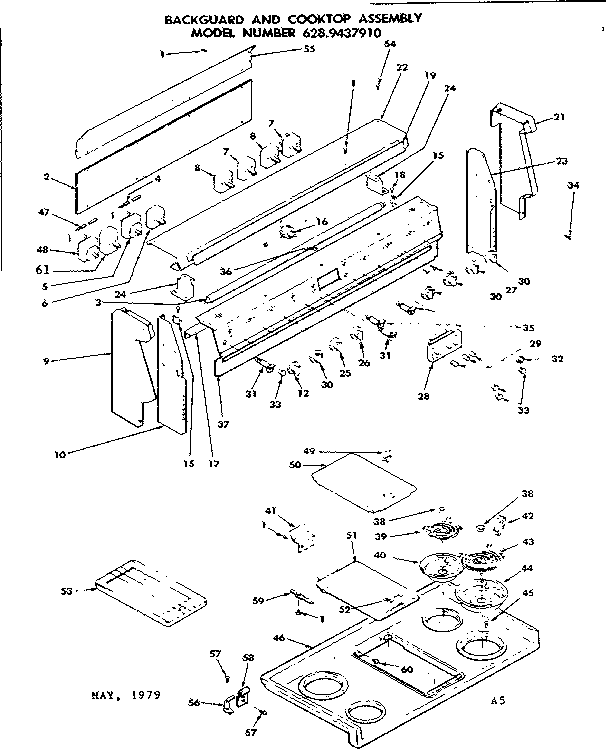

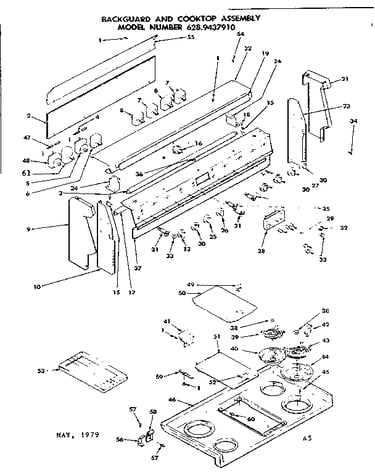

Backguard and cooktop assembly diagram

Terminal block

Part #1167204

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 1167204. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Pan 1307596
#44

Backguard and cooktop assembly diagram

Pan

Part #1307596

Replaced by #316048413

?
Manufacturer substitution
This part replaces 1307596. Substitute parts can look different from the original.
BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Terminal Block 1189558
#87

Body assembly diagram

Terminal block

Part #1189558

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 1189558. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Surface Unit 1314952
#43A

Backguard and cooktop assembly diagram

Surface unit

Part #1314952

Replaced by #316442300

?
Manufacturer substitution
This part replaces 1314952. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Surface Unit 1314950
#39A

Backguard and cooktop assembly diagram

Surface unit

Part #1314950

Replaced by #318372210

?
Manufacturer substitution
This part replaces 1314950. Substitute parts can look different from the original.
BEST SELLER
$26.22 |
19% OFF Phone Price : $32.22
In Stock
Bake Unit 1312853
#137A

Body assembly diagram

Bake unit

Part #1312853

Replaced by #5303051519

?
Manufacturer substitution
This part replaces 1312853. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Oven Rack 1315374
#117

Body assembly diagram

Oven rack

Part #1315374

Replaced by #318345206

?
Manufacturer substitution
This part replaces 1315374. Substitute parts can look different from the original.
$61.87 |
9% OFF Phone Price : $67.87
In Stock
Switch 1314211
#112

Body assembly diagram

Switch

Part #1314211

Replaced by #5301314211

?
Manufacturer substitution
This part replaces 1314211. Substitute parts can look different from the original.
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Range Screw 1164479
#80

Body assembly diagram

Range screw

Part #1164479

This item is not returnable
$2.91
In Stock
