KitchenAid
Electric Cooktop

Model # KECC667BSS01 Official KitchenAid 30" electric built-in cooktop

Here are the diagrams and repair parts for Official KitchenAid KECC667BSS01 30" electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Terminal Block 7401P038-60
#6

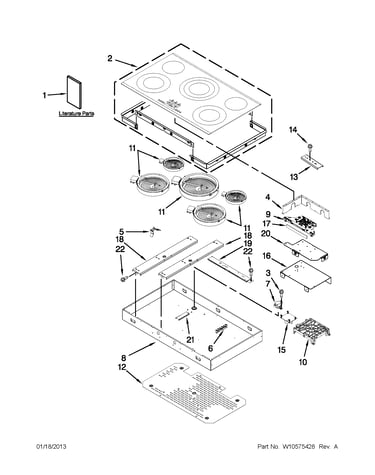

Cooktop parts diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Range Radiant Surface Element 8273994
#11

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$105.41 |
10% OFF Phone Price : $117.41
In Stock
Cooktop Surface Element W10187839
#11B

Cooktop parts diagram

Cooktop surface element

Part #W10187839

Replaced by #W11563195

?
Manufacturer substitution
This part replaces W10187839. Substitute parts can look different from the original.
BEST SELLER
$116.17 |
9% OFF Phone Price : $128.17
In Stock
Electronic Control Board W10260060
#15

Cooktop parts diagram

Electronic control board

Part #W10260060

Replaced by #WPW10260060

?
Manufacturer substitution
This part replaces W10260060. Substitute parts can look different from the original.
$282.12 |
10% OFF Was : $313.47
In Stock
Terminal Nut 7103P027-60
#NI

Optional parts diagram

Terminal nut

Part #7103P027-60

Replaced by #WP7103P027-60

?
Manufacturer substitution
This part replaces 7103P027-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Main Top W10528444
#2

Cooktop parts diagram

Main top

Part #W10528444

Replaced by #W10524409

?
Manufacturer substitution
This part replaces W10528444. Substitute parts can look different from the original.
$365.39 |
$12.00 OFF Phone Price : $377.39
In Stock
Range Broil Pan Assembly W10123240
#NI

Optional parts diagram

Range broil pan assembly

Part #W10123240

$62.06 |
9% OFF Phone Price : $68.06
Back Order
Cooktop Electronic Control Board W10387653
#10

Cooktop parts diagram

Cooktop electronic control board

Part #W10387653

Replaced by #WPW10387653

?
Manufacturer substitution
This part replaces W10387653. Substitute parts can look different from the original.
$279.99 |
$12.00 OFF Phone Price : $291.99
In Stock
Cooktop Touch Control Board W10545371
#9

Cooktop parts diagram

Cooktop touch control board

Part #W10545371

Replaced by #WPW10545371

?
Manufacturer substitution
This part replaces W10545371. Substitute parts can look different from the original.
$314.83 |
$12.00 OFF Phone Price : $326.83
In Stock
Thermostat W10464566
#7

Cooktop parts diagram

Thermostat

Part #W10464566

$74.71
In Stock
