Model # 502455630 Official Sears 24" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502455630 24" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

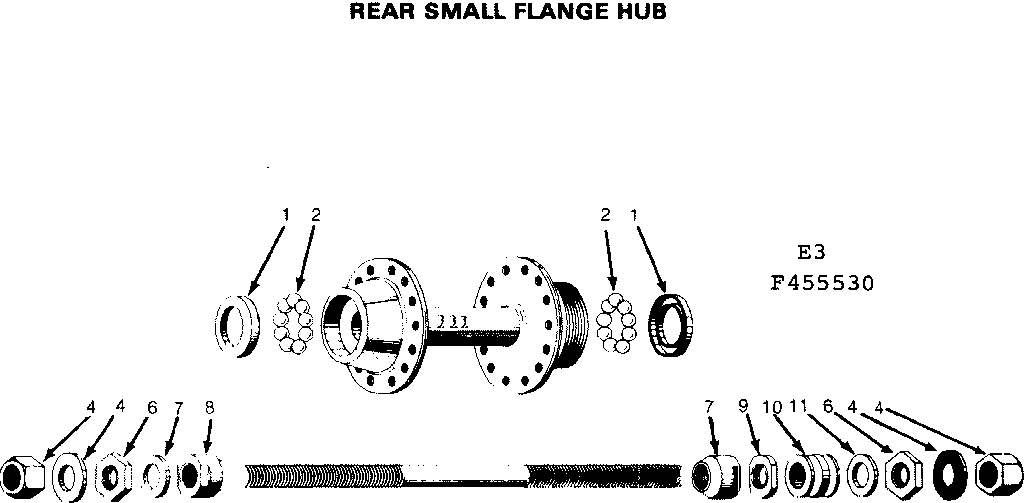

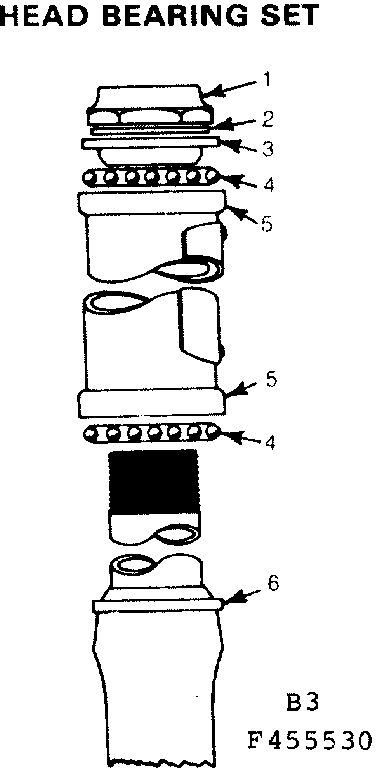

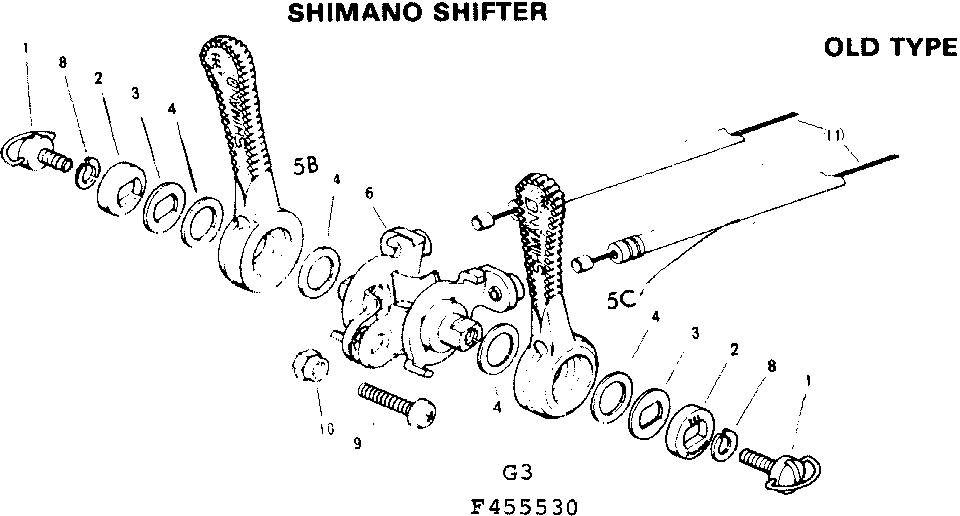

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Mech Asm 300533
#3

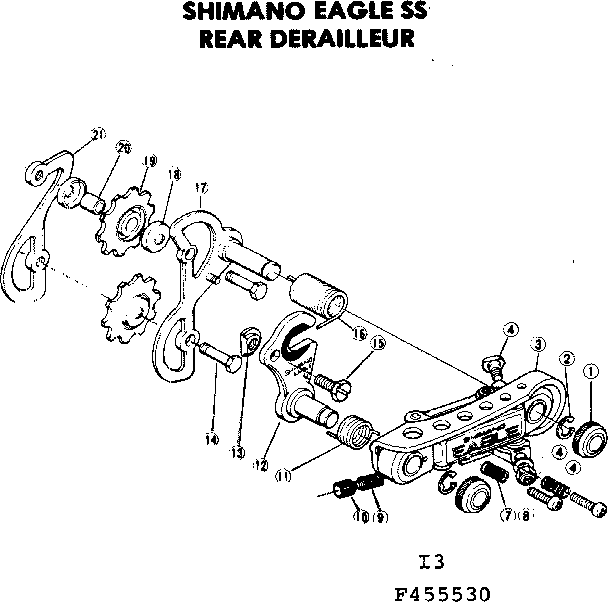

Shimano eagle ss rear derailleur diagram

Mech asm

Part #300533

The manufacturer no longer makes this part, and there's no substitute part

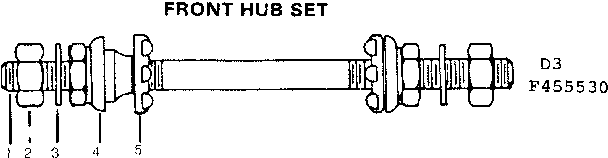

F Axle Set 303518

#NI

All parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Derailleur 300547

#NI

All parts diagram

Derailleur

Part #300547

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#2

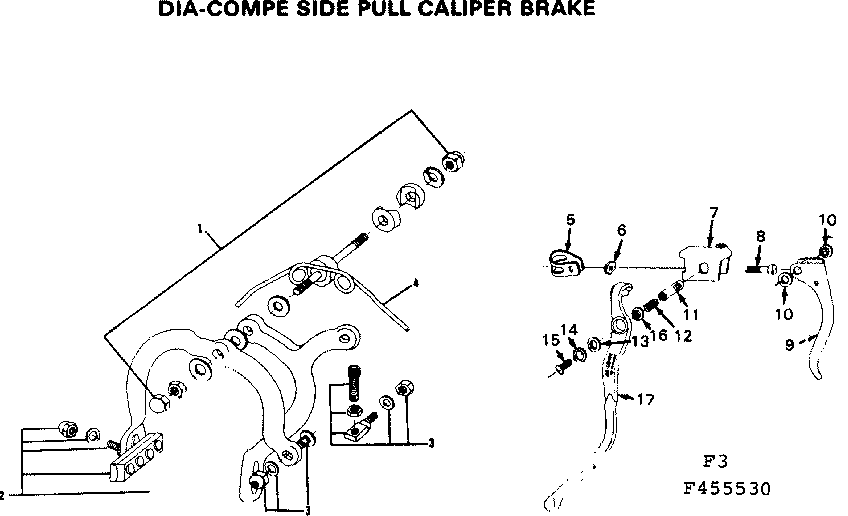

Dia-compe side pull caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Spring 300507
#7

Shimano eagle ss rear derailleur diagram

Spring

Part #300507

The manufacturer no longer makes this part, and there's no substitute part

Trap 303466
#15

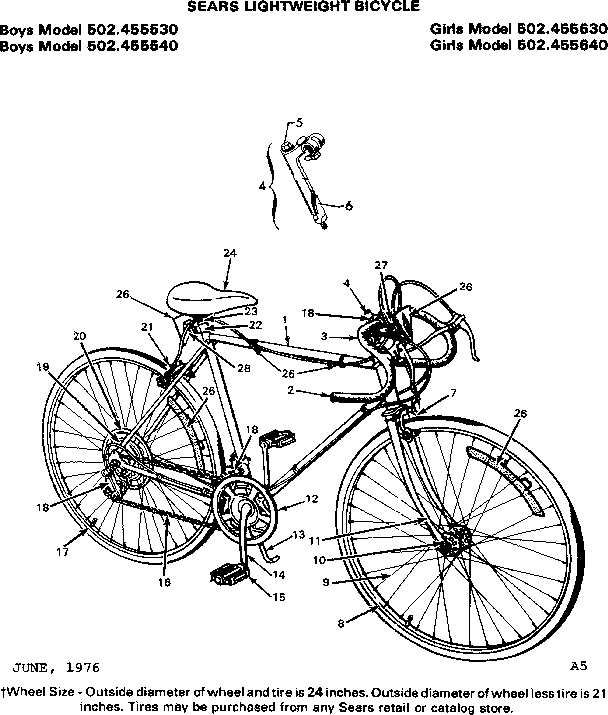

Unit parts diagram

Trap

Part #303466

The manufacturer no longer makes this part, and there's no substitute part

Screw 300501
#15

Shimano eagle ss rear derailleur diagram

Screw

Part #300501

The manufacturer no longer makes this part, and there's no substitute part

Cone 10282
#4

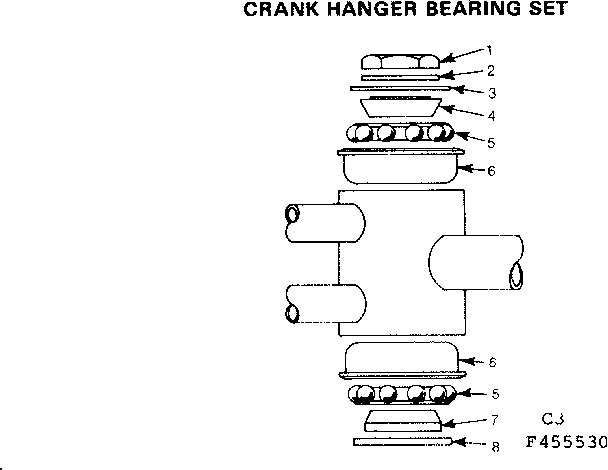

Crank hanger bearing set diagram

Cone

Part #10282

The manufacturer no longer makes this part, and there's no substitute part

Frt Derail 300615
#1A

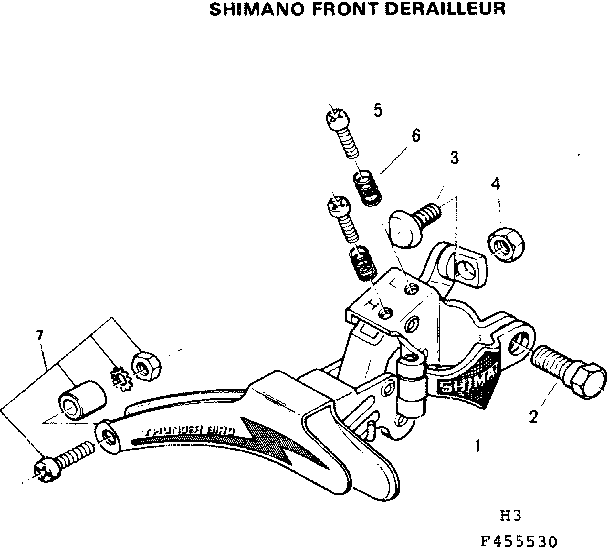

Shimano front deraulleur diagram

Frt derail

Part #300615

The manufacturer no longer makes this part, and there's no substitute part

Bar Stem 27160
#4

Unit parts diagram

Bar stem

Part #27160

The manufacturer no longer makes this part, and there's no substitute part
