Frigidaire
Upright Freezer

Model # LFFH21F7HWA Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire LFFH21F7HWA freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Filter Drier 216987500
#4

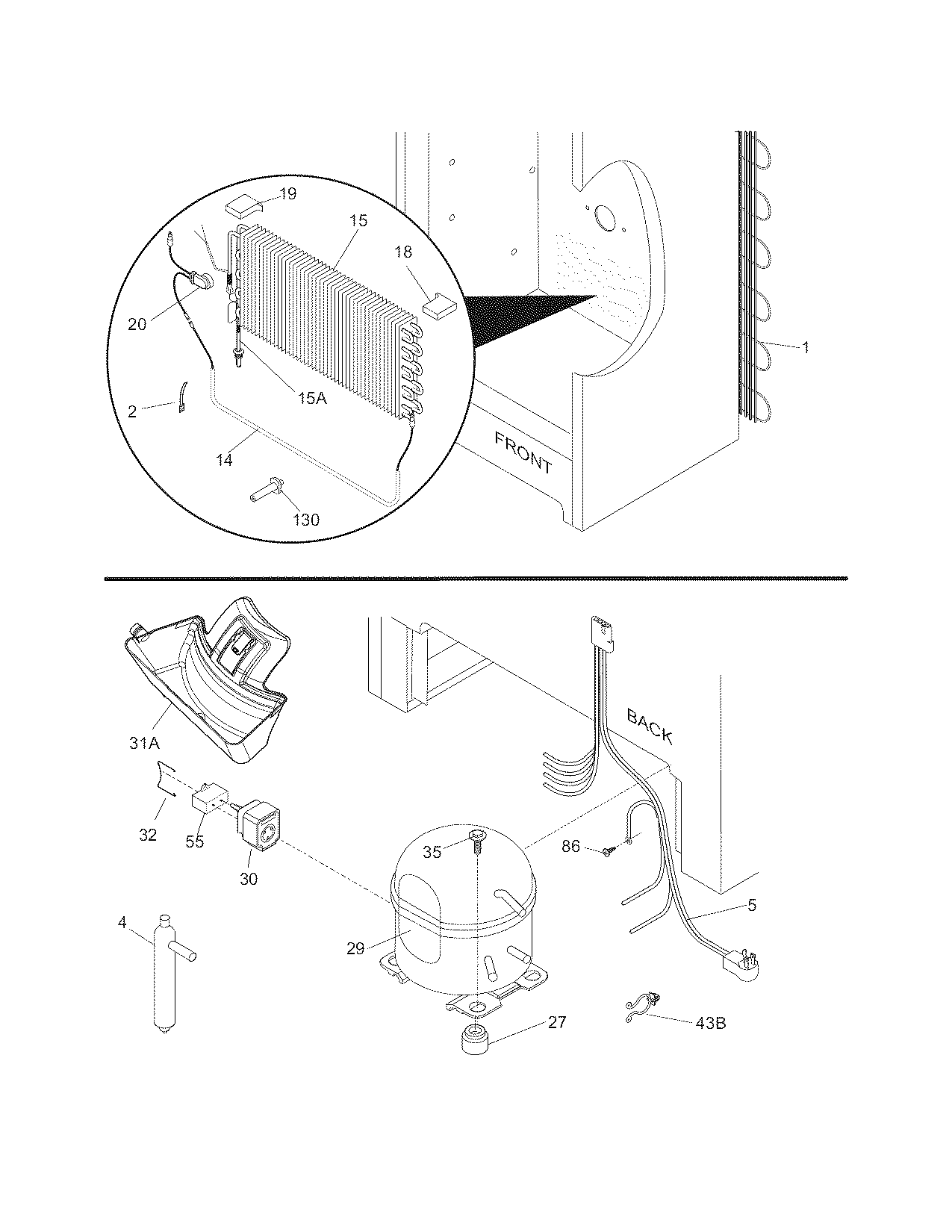

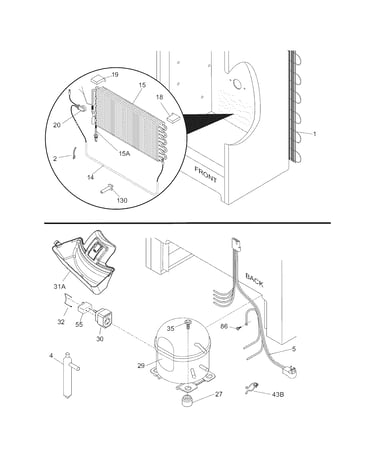

System diagram

Filter drier

Part #216987500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Evaporator 216997300
#15

System diagram

Freezer evaporator

Part #216997300

Replaced by #297414901

?
Manufacturer substitution
This part replaces 216997300. Substitute parts can look different from the original.
BEST SELLER
$87.43 |
6% OFF Phone Price : $93.43
In Stock
Freezer Door Gasket 216522312
#1

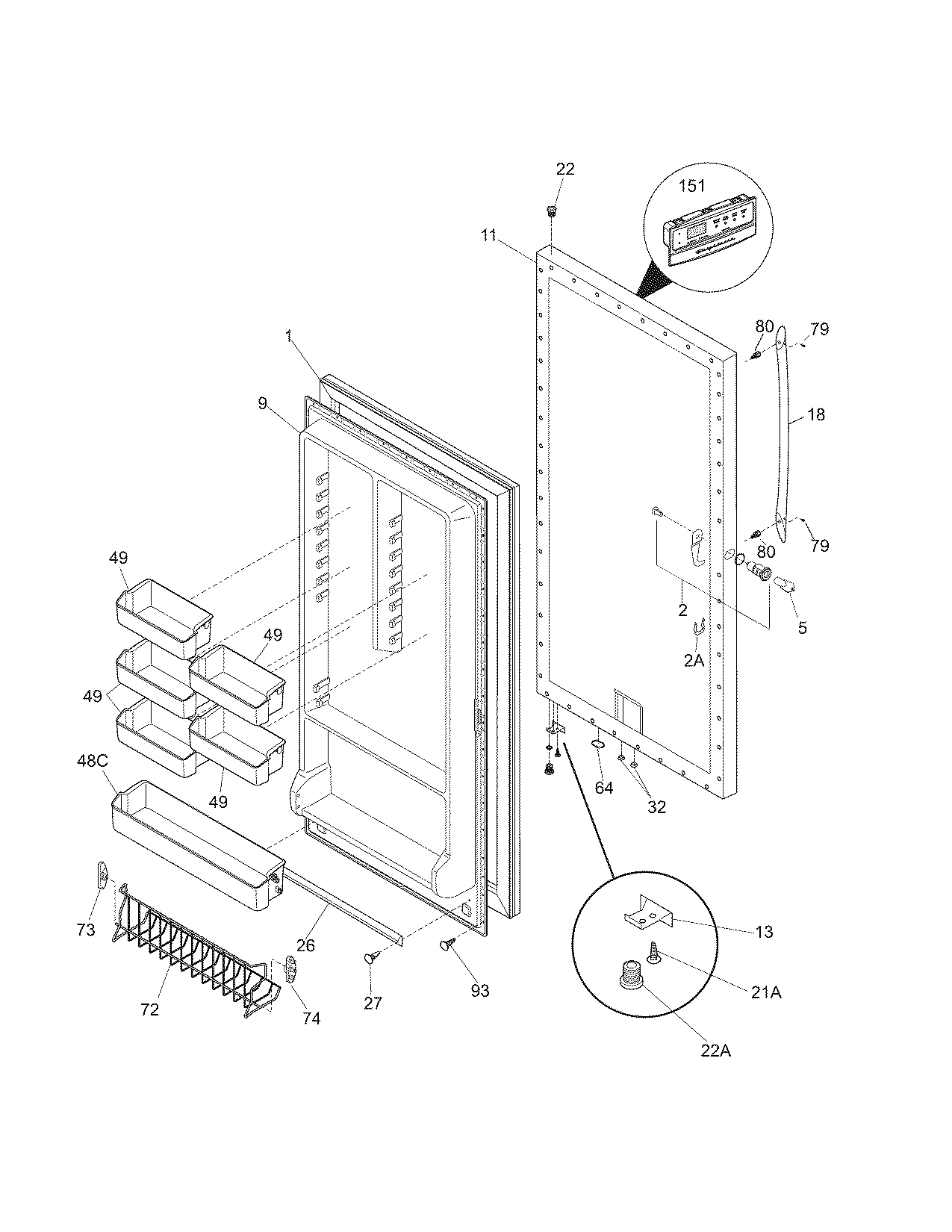

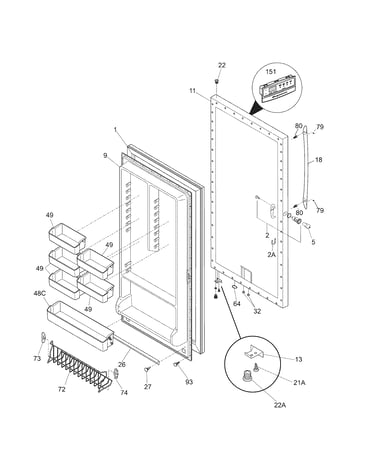

Door diagram

Freezer door gasket

Part #216522312

Replaced by #5304507199

?
Manufacturer substitution
This part replaces 216522312. Substitute parts can look different from the original.
BEST SELLER
$103.47 |
10% OFF Phone Price : $115.47
In Stock
Blade 216325600
#5

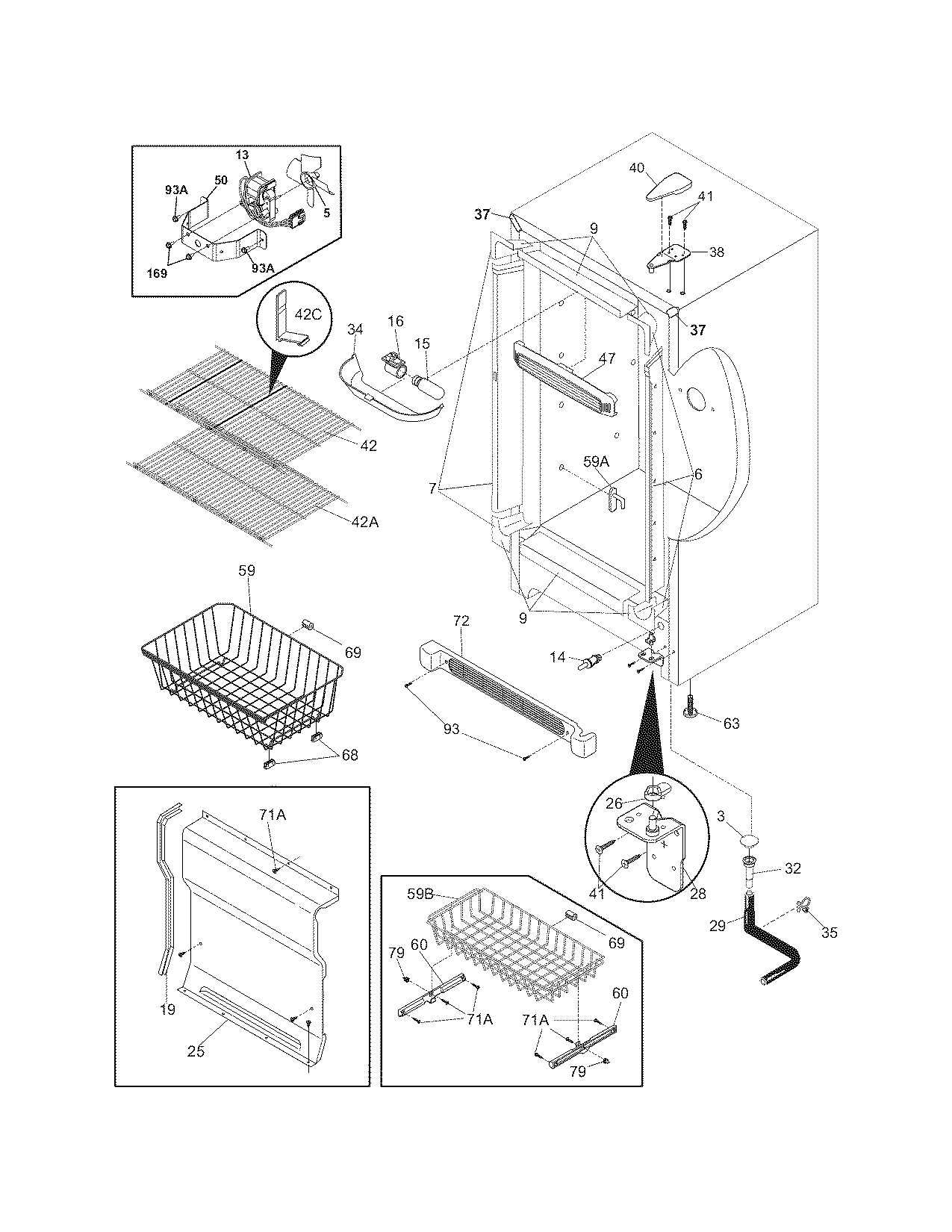

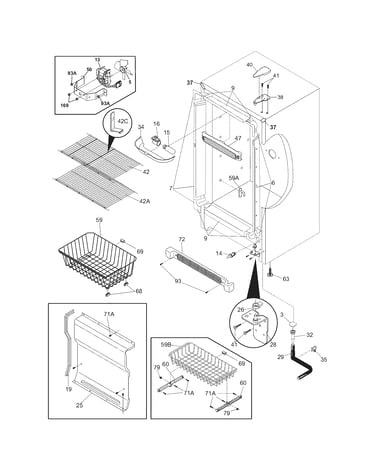

Cabinet diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Motor 216934100
#13

Cabinet diagram

Motor

Part #216934100

Replaced by #297309000

?
Manufacturer substitution
This part replaces 216934100. Substitute parts can look different from the original.
BEST SELLER
$58.41 |
9% OFF Phone Price : $64.41
In Stock
Chest Freezer Defrost Thermostat 216872200
#20

System diagram

Chest freezer defrost thermostat

Part #216872200

Replaced by #297216600

?
Manufacturer substitution
This part replaces 216872200. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Freezer Gasket And Liner Fastener Kit 5304406520
#NI

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$33.42 |
15% OFF Phone Price : $39.42
In Stock
Compressor 297223500
#29

System diagram

Compressor

Part #297223500

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 297223500. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Light Bulb 216988100
#15

Cabinet diagram

Light bulb

Part #216988100

Replaced by #5304517886

?
Manufacturer substitution
This part replaces 216988100. Substitute parts can look different from the original.
BEST SELLER
$54.91 |
10% OFF Phone Price : $60.91
In Stock
