Model # PVM9179SF1SS Official GE microwave

Here are the diagrams and repair parts for Official GE PVM9179SF1SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

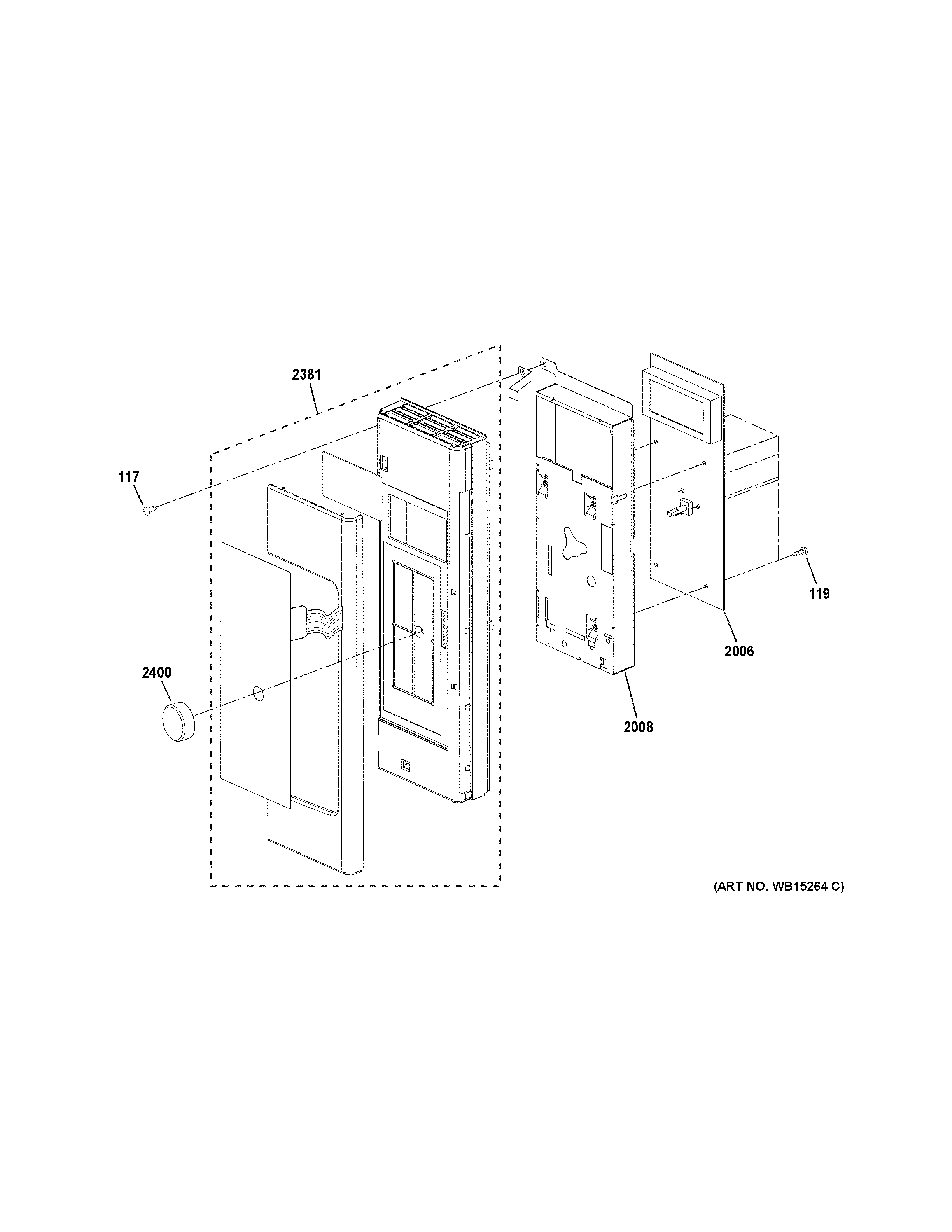

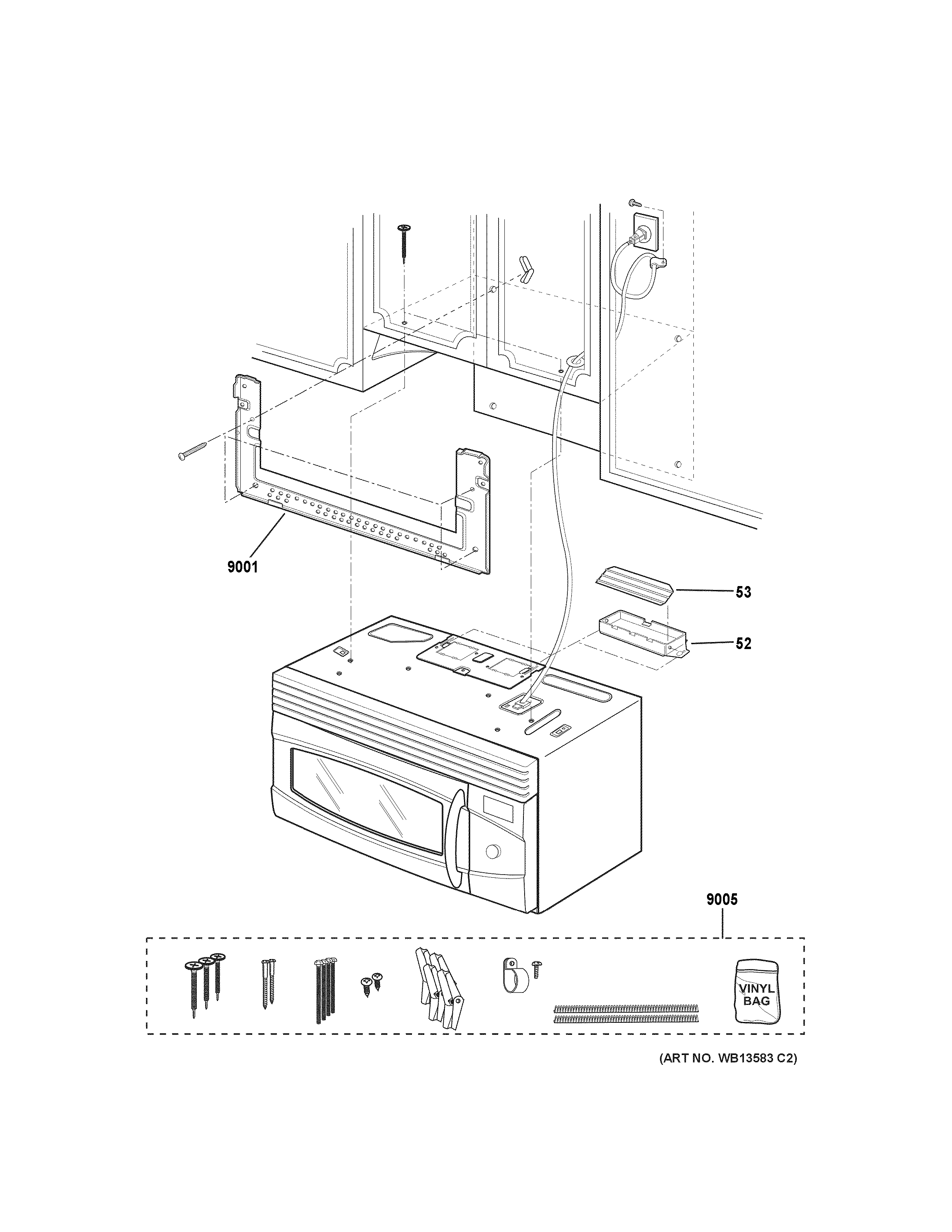

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Microwave Fuse WB27X10388
#47

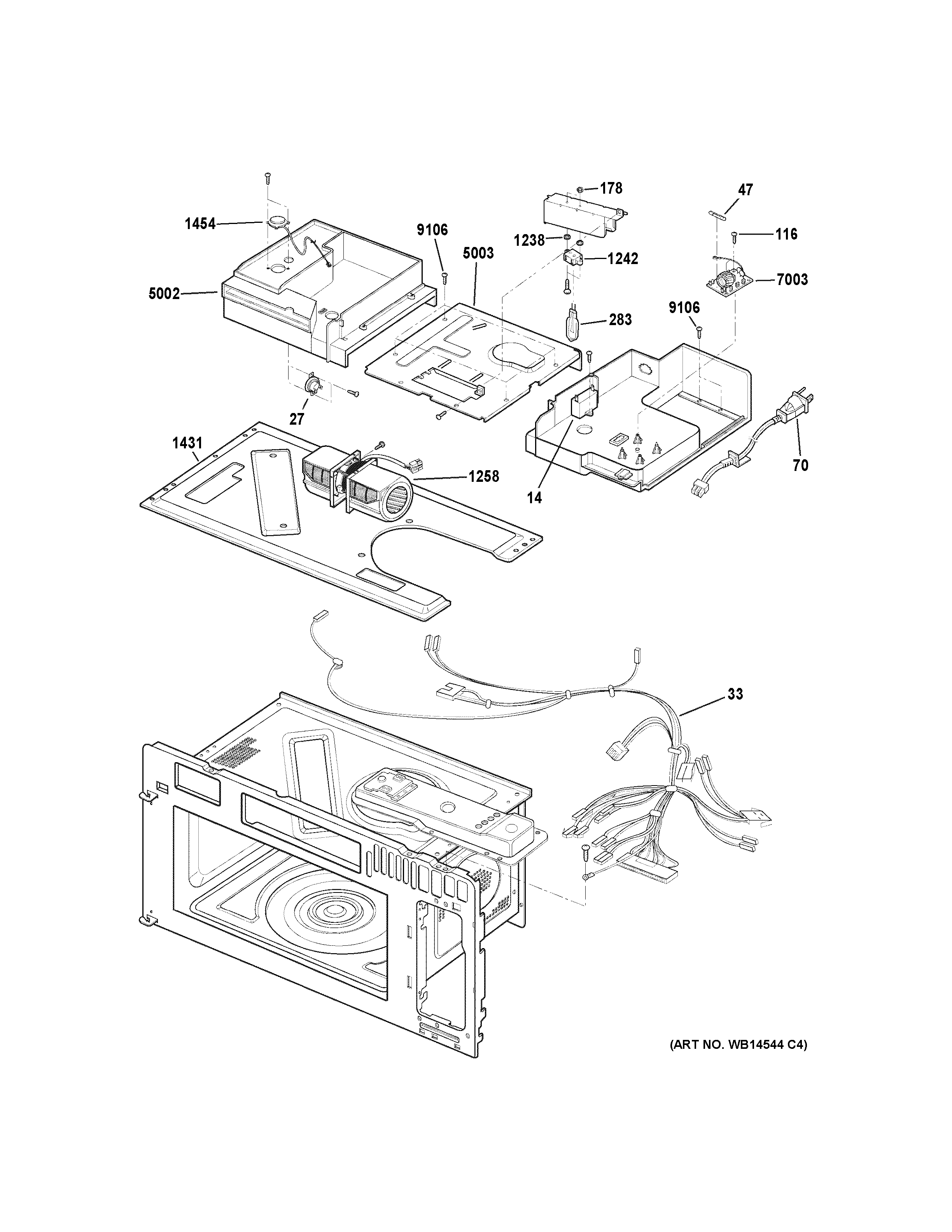

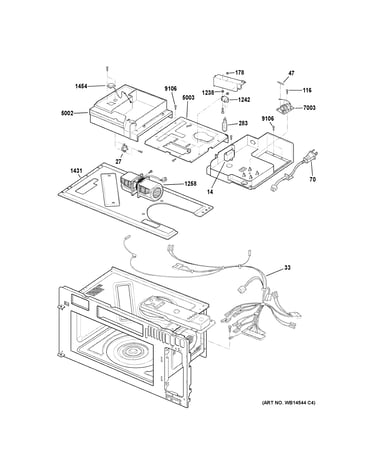

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Cable WB18X10286
#50

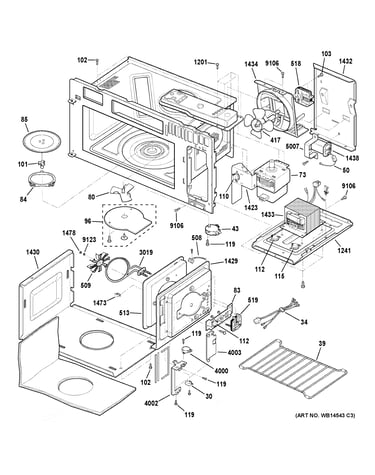

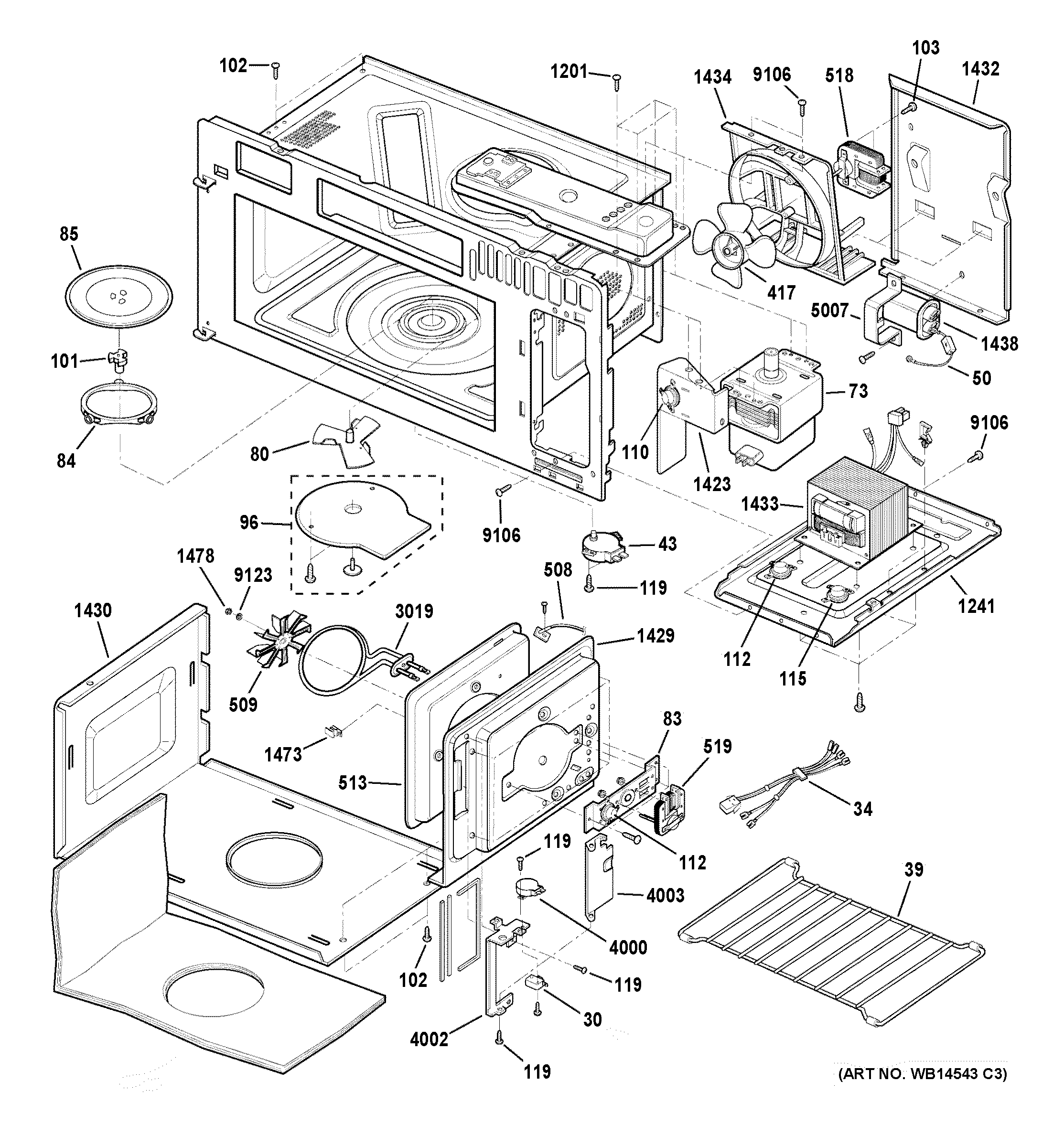

Interior parts (1) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Thermostat WB20X10048
#112

Interior parts (1) diagram

Microwave thermostat

Part #WB20X10048

BEST SELLER
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Microwave Thermal Cut-off (replaces Wb27x10788) WB21X10148
#110

Interior parts (1) diagram

Microwave thermal cut-off (replaces wb27x10788)

Part #WB21X10148

BEST SELLER
$21.10 |
22% OFF Phone Price : $27.10
In Stock
Microwave Light Bulb (replaces Wb08x10051, Wb25x21248, Wb25x25393) WB08X10057
#282

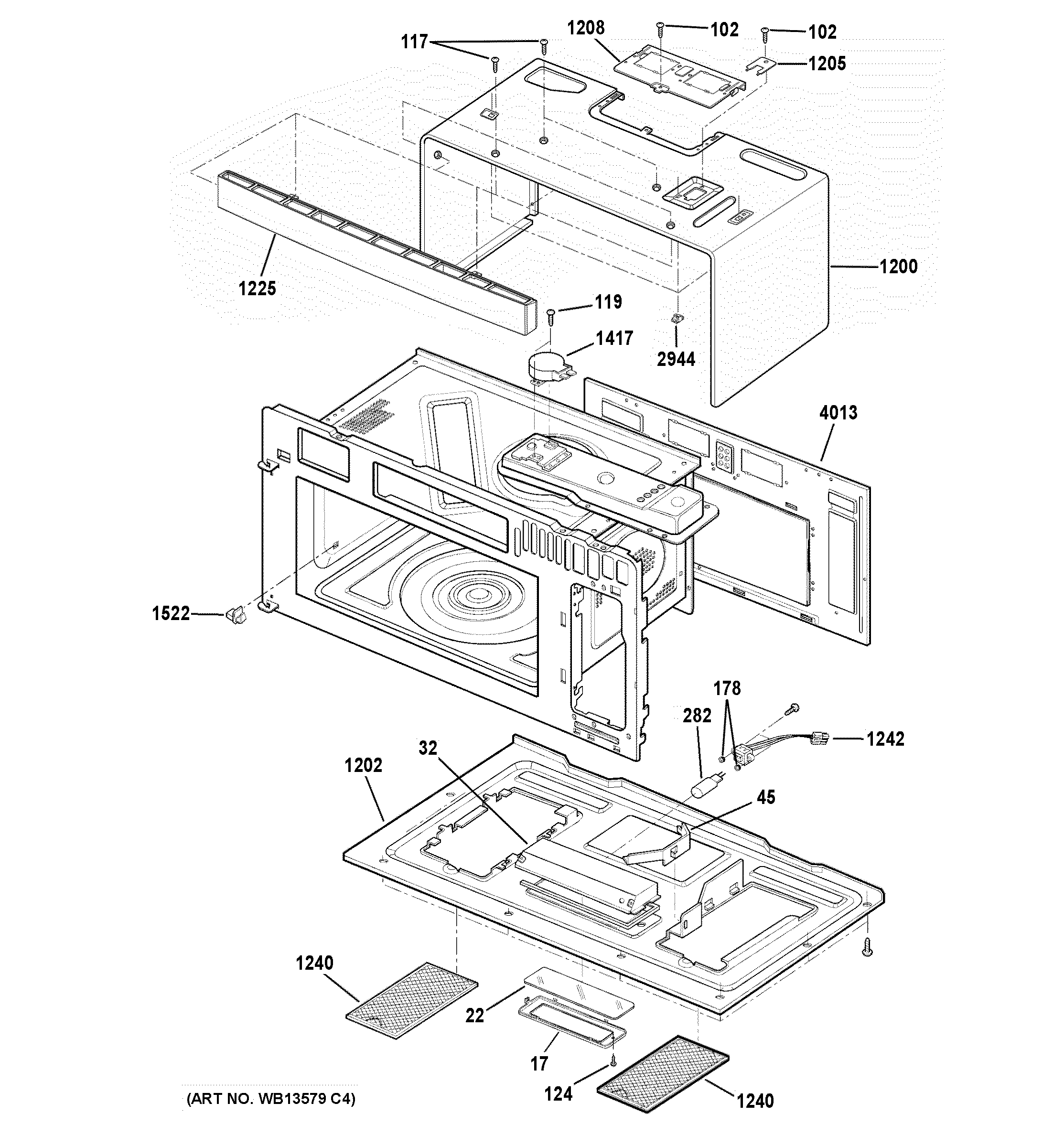

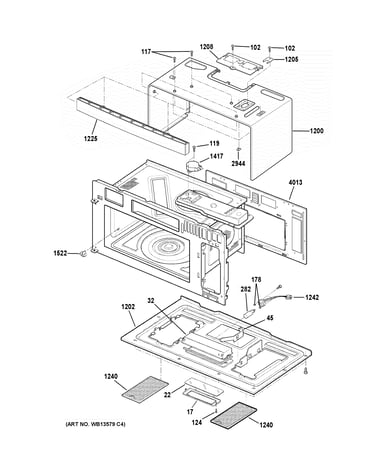

Oven cavity parts diagram

Microwave light bulb (replaces wb08x10051, wb25x21248, wb25x25393)

Part #WB08X10057

BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Microwave High-voltage Capacitor WB27X11031
#1438

Interior parts (1) diagram

Microwave high-voltage capacitor

Part #WB27X11031

$39.54 |
13% OFF Phone Price : $45.54
In Stock
Circulating Motor WB26X10186
#43

Interior parts (1) diagram

Circulating motor

Part #WB26X10186

Replaced by #WB26X10226

?
Manufacturer substitution
This part replaces WB26X10186. Substitute parts can look different from the original.
$28.69 |
17% OFF Phone Price : $34.69
In Stock
Holder WB06X10857
#28

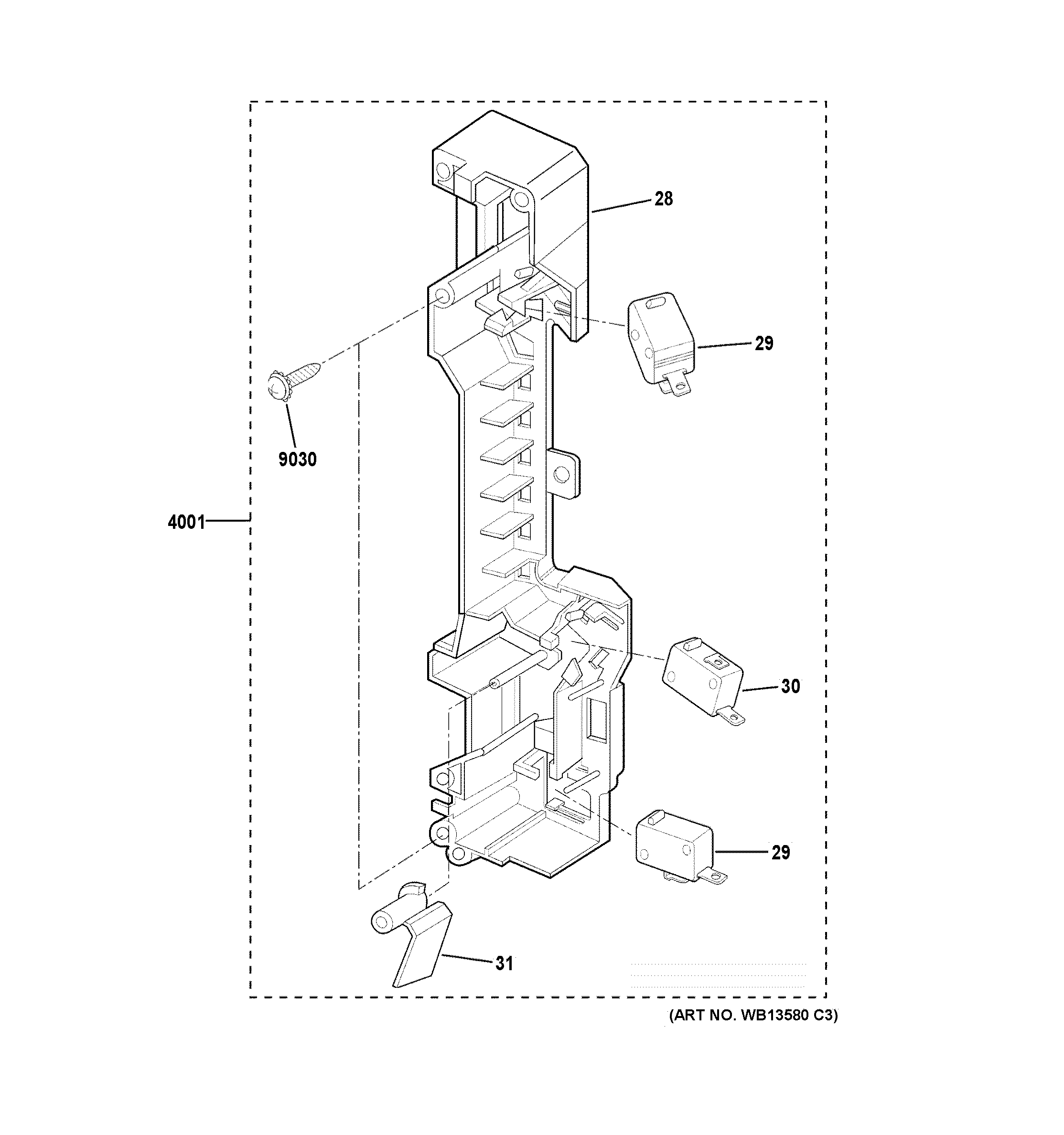

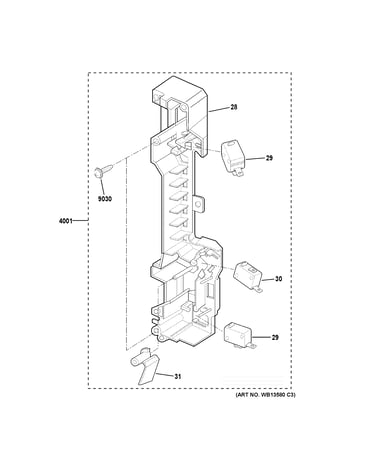

Latch board parts diagram

Holder

Part #WB06X10857

Replaced by #WB02X32720

?
Manufacturer substitution
This part replaces WB06X10857. Substitute parts can look different from the original.
This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Microwave Charcoal Filter WB02X10943
#9999

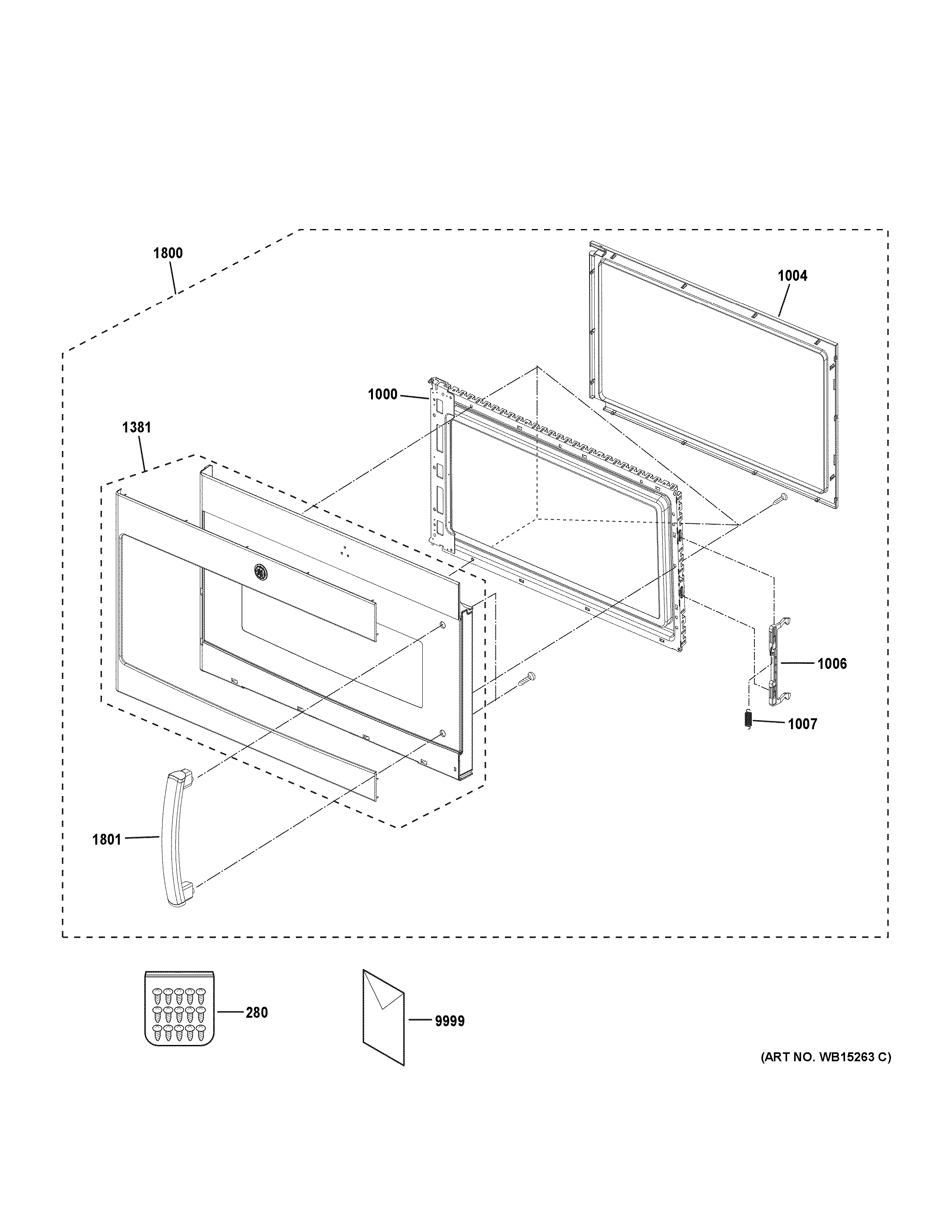

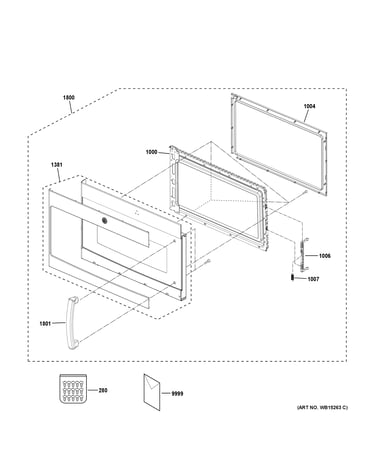

Door parts diagram

Microwave charcoal filter

Part #WB02X10943

Replaced by #WB02X35607

?
Manufacturer substitution
This part replaces WB02X10943. Substitute parts can look different from the original.
$21.16 |
22% OFF Phone Price : $27.16
In Stock
Microwave Door Handle (stainless) WB15X21101
#1801

Door parts diagram

Microwave door handle (stainless)

Part #WB15X21101

$81.75 |
7% OFF Phone Price : $87.75
In Stock
