Model # DSC-T10 Official Sony camera

Here are the diagrams and repair parts for Official Sony DSC-T10 camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 37 parts |

#104

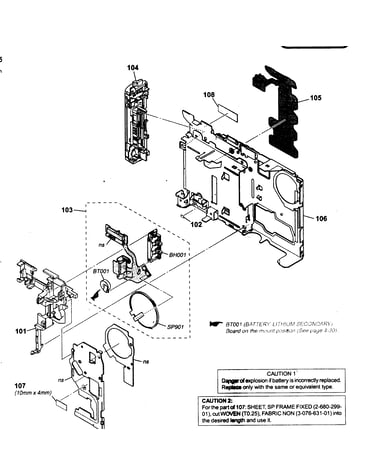

Frame section diagram

Sony lid(s)assy

Part #X21482691

$25.27

In Stock

Qty

#NI

Overal section diagram

Sony wrst strap

Part #268588211

$8.26

In Stock

Qty

#NI

Overal section diagram

Diode

Part #650114101

This item is not returnable

$6.36

In Stock

Qty

Overal section diagram

Sony control switch

Part #147952331

$83.07

In Stock

Qty

#10

Overal section diagram

Sony lcd window

Part #269741301

$32.57

In Stock

Qty

#55

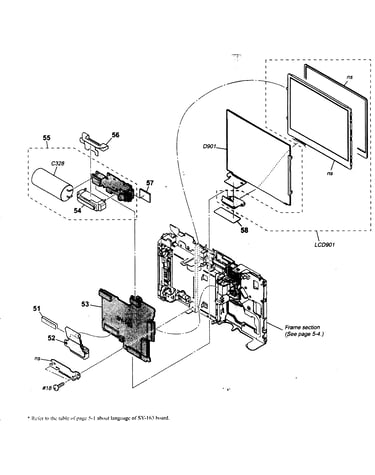

Sy board assy diagram

St-131 pcb

Part #A1151830A

The manufacturer no longer makes this part, and there's no substitute part

#NI

Overal section diagram

Integrated circuit

Part #670755501

The manufacturer no longer makes this part, and there's no substitute part

#BT01

Frame section diagram

Battery,li

Part #175656611

The manufacturer no longer makes this part, and there's no substitute part

#NI

Overal section diagram

Transformer

Part #144388011

Replaced by #144388011

$11.90

In Stock

Qty

#8A

Overal section diagram

Cabinet assembly

Part #X21484031

The manufacturer no longer makes this part, and there's no substitute part
