Model # ERD48 Official Dacor dual-fuel range

Here are the diagrams and repair parts for Official Dacor ERD48 dual-fuel range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

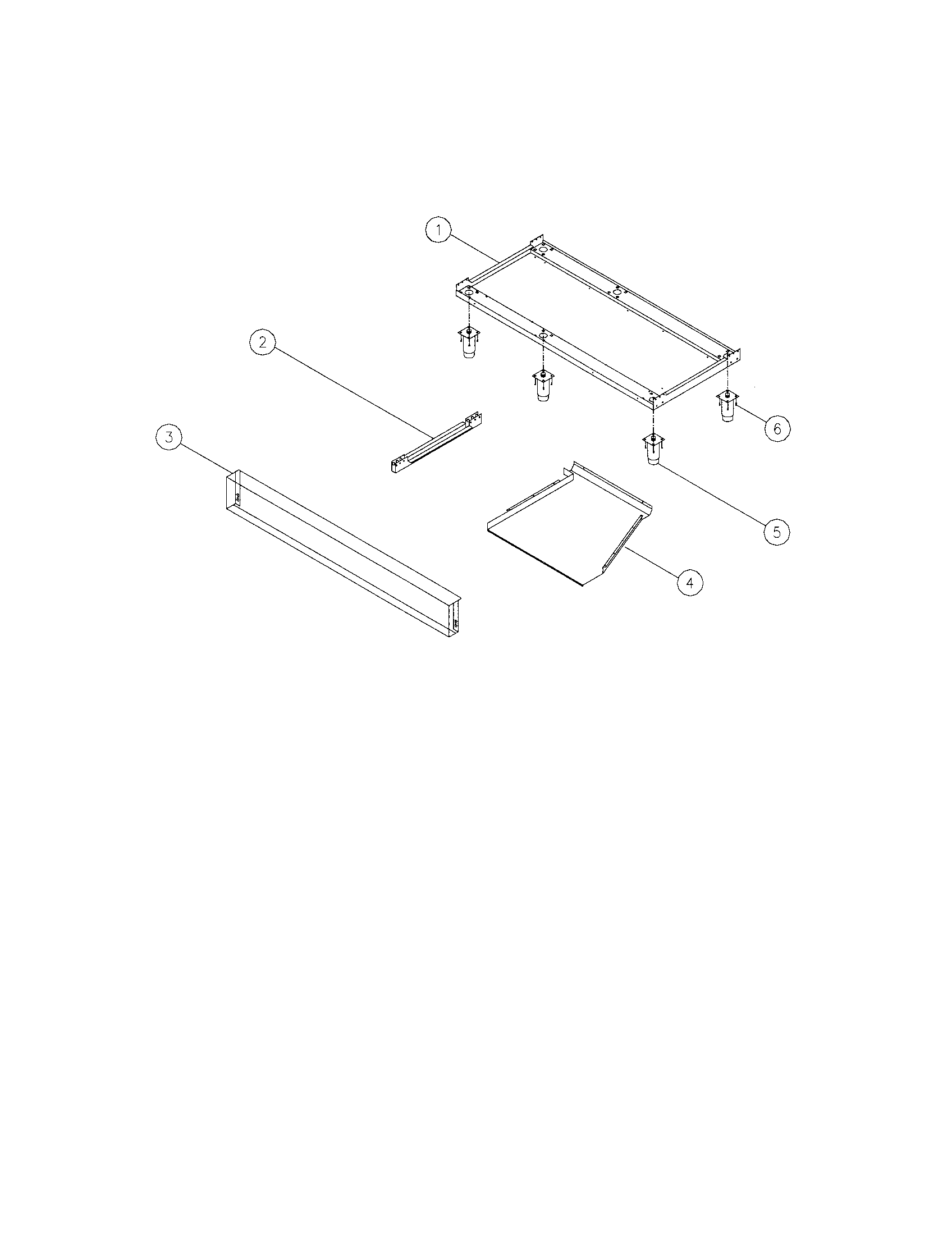

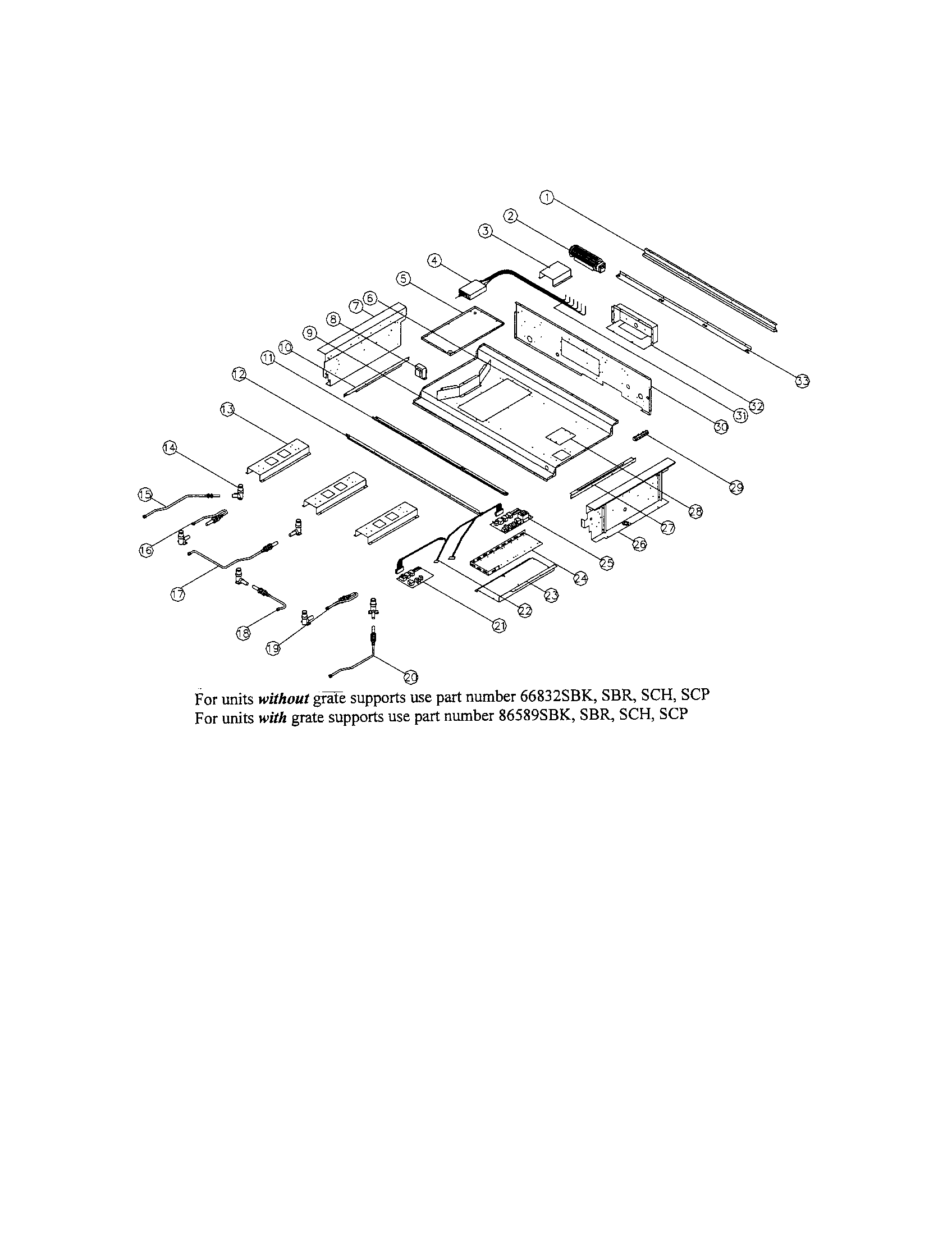

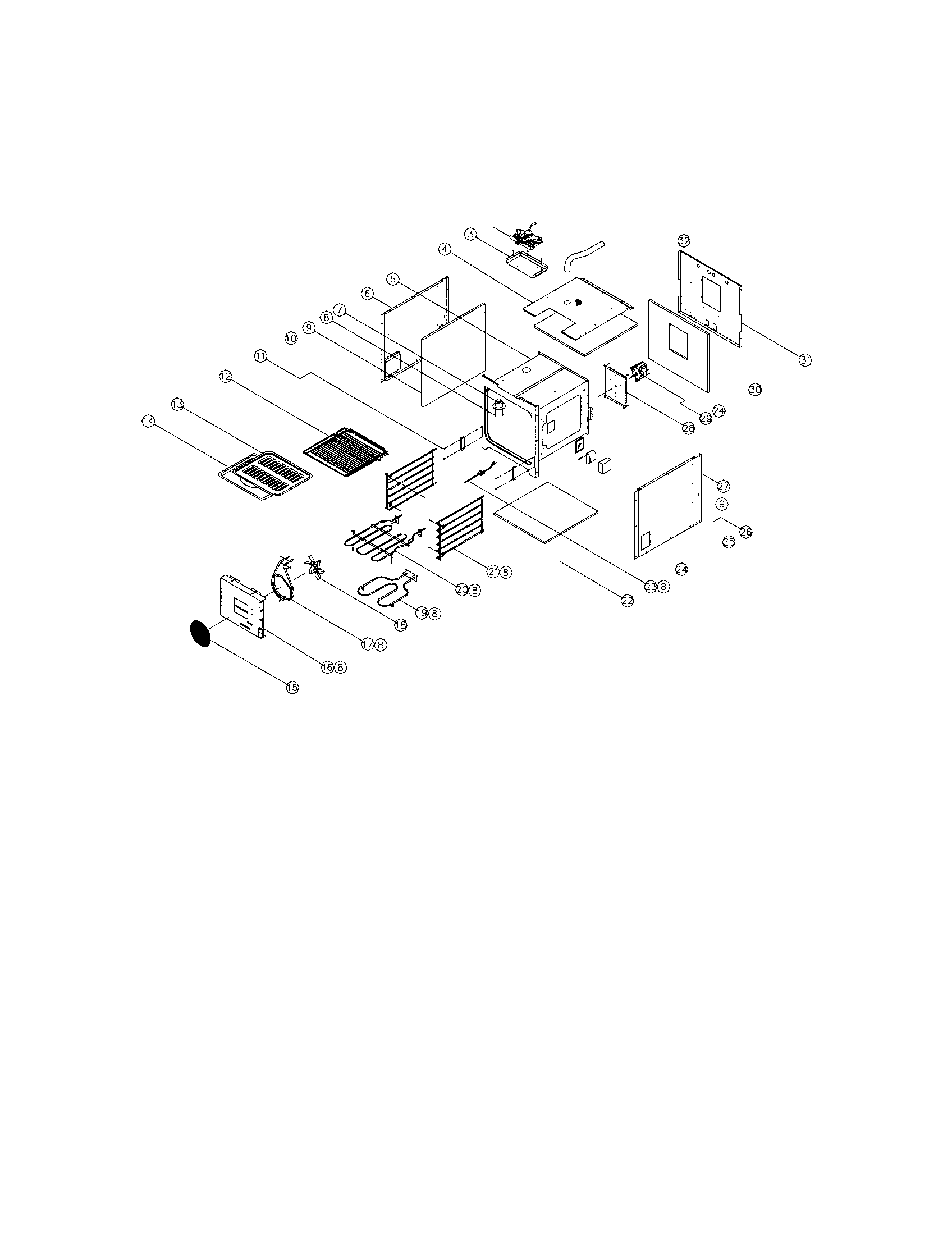

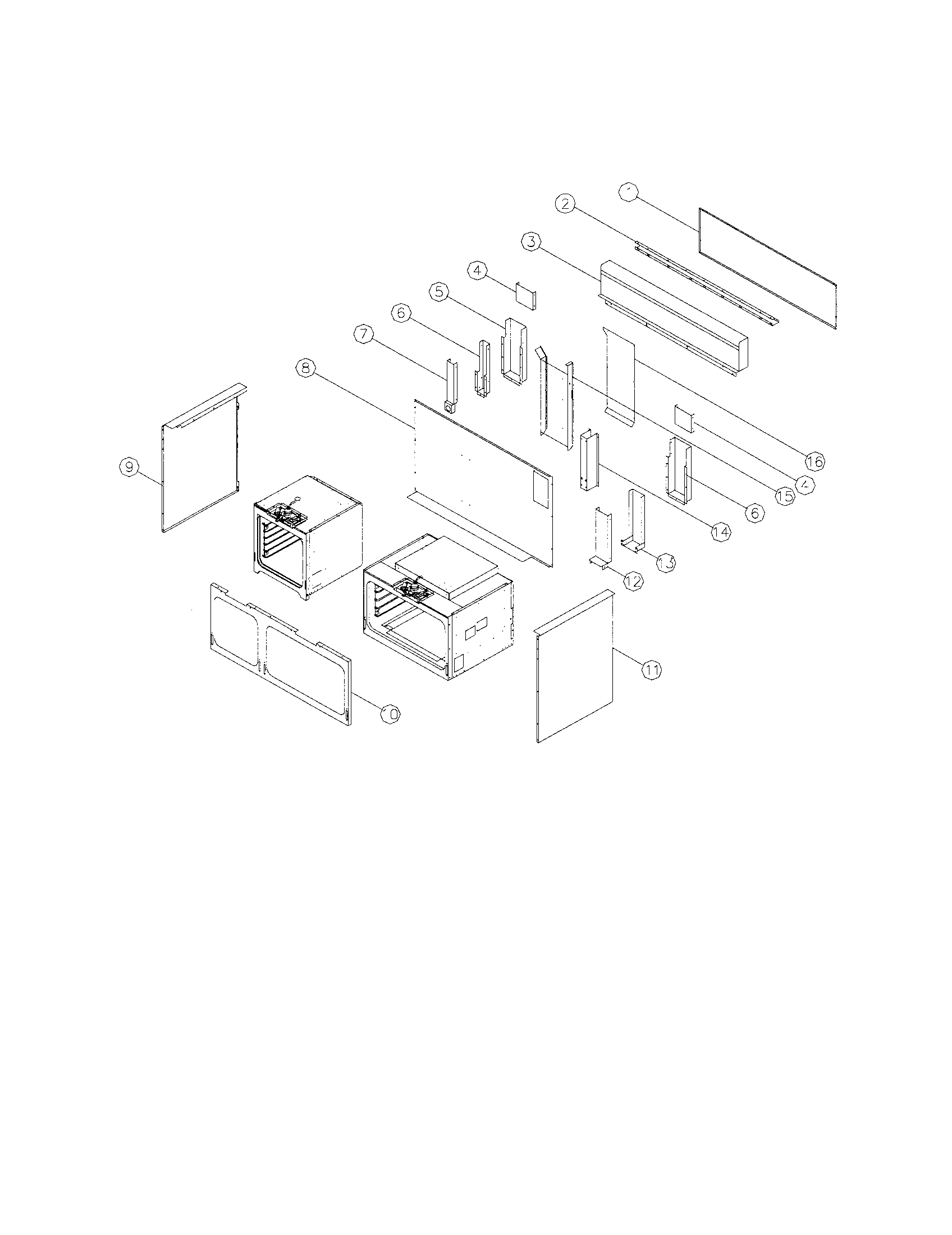

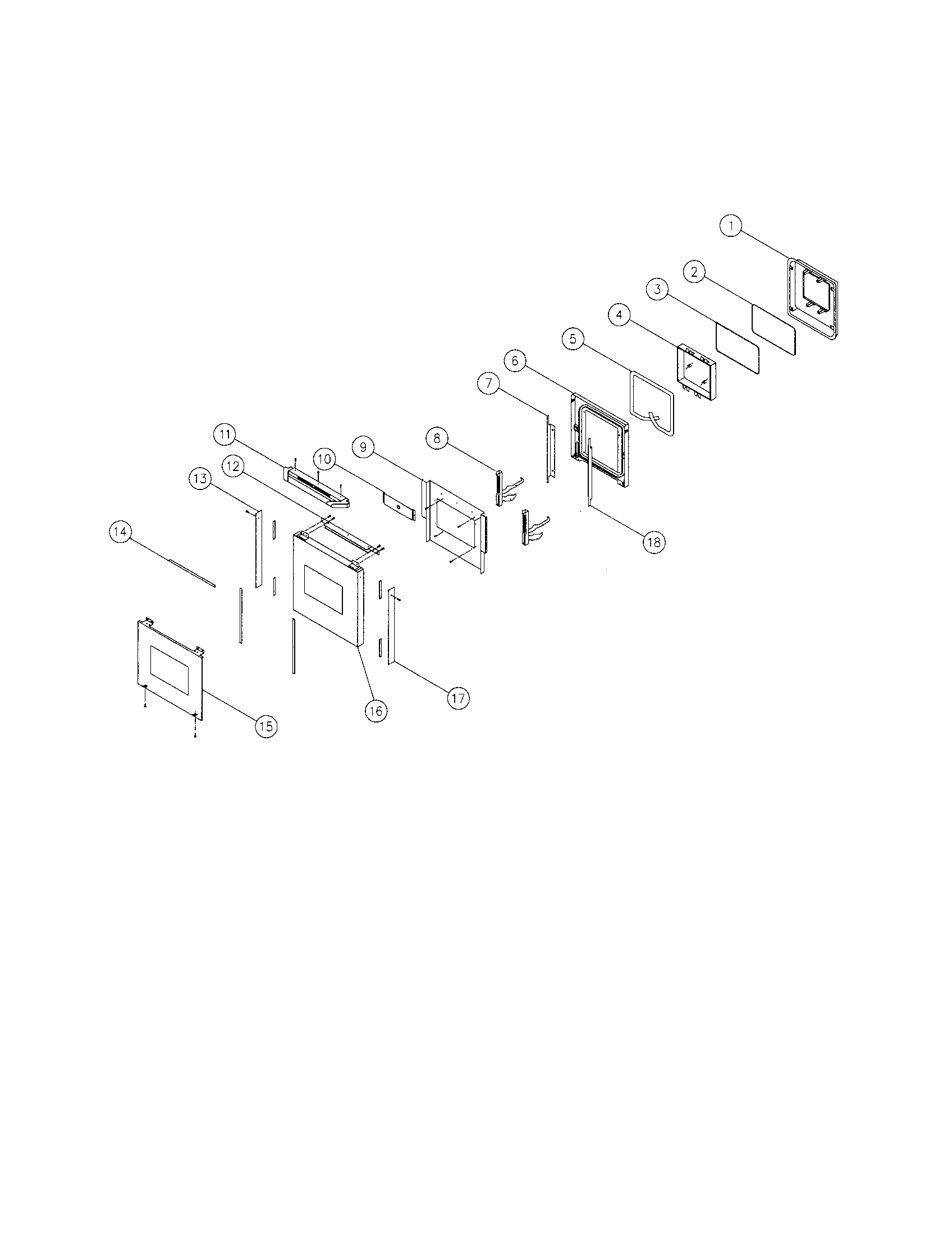

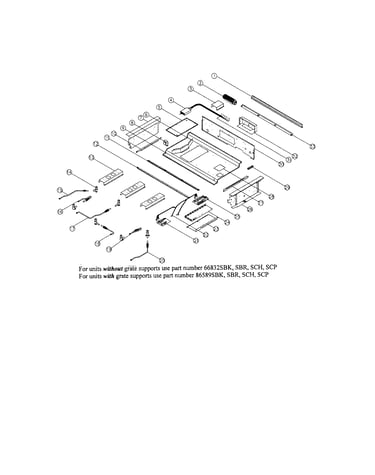

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Range Surface Burner Knob 62021B
#5

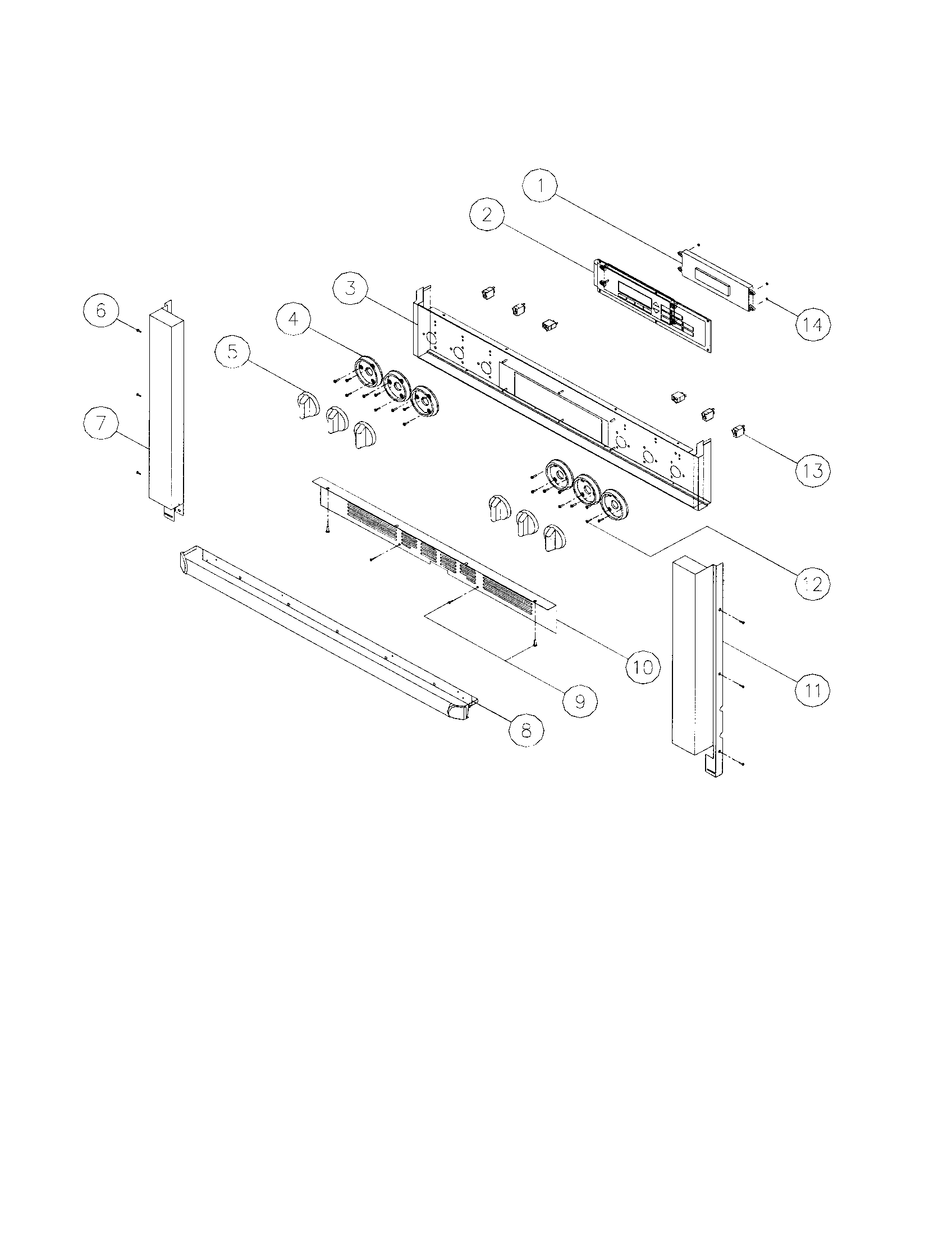

Control panel assembly diagram

Range surface burner knob

Part #62021B

$12.49
In Stock
Range Insulation 80040
#24

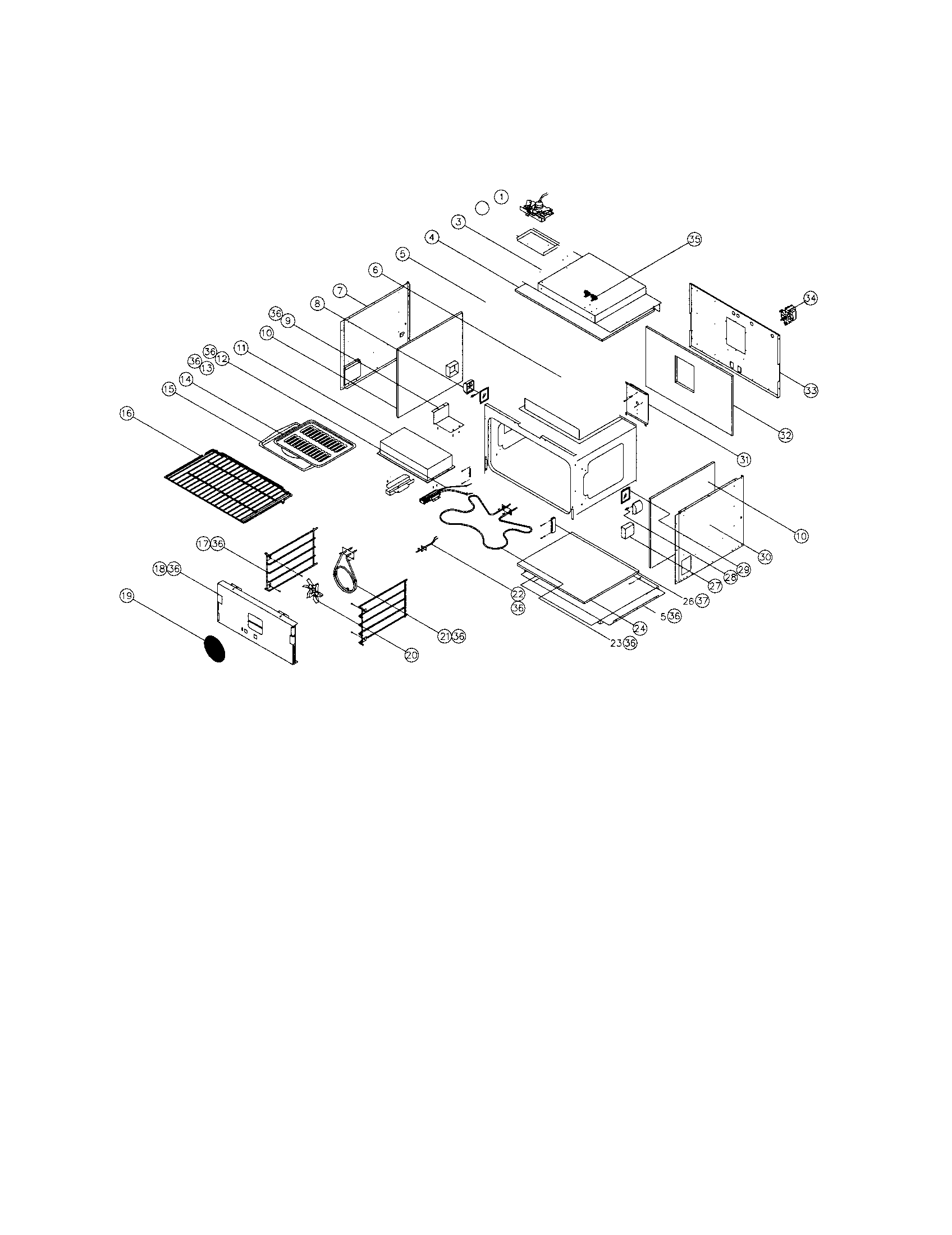

36" cell assembly diagram

Range insulation

Part #80040

The manufacturer no longer makes this part, and there's no substitute part

Cap 62022BM
#8

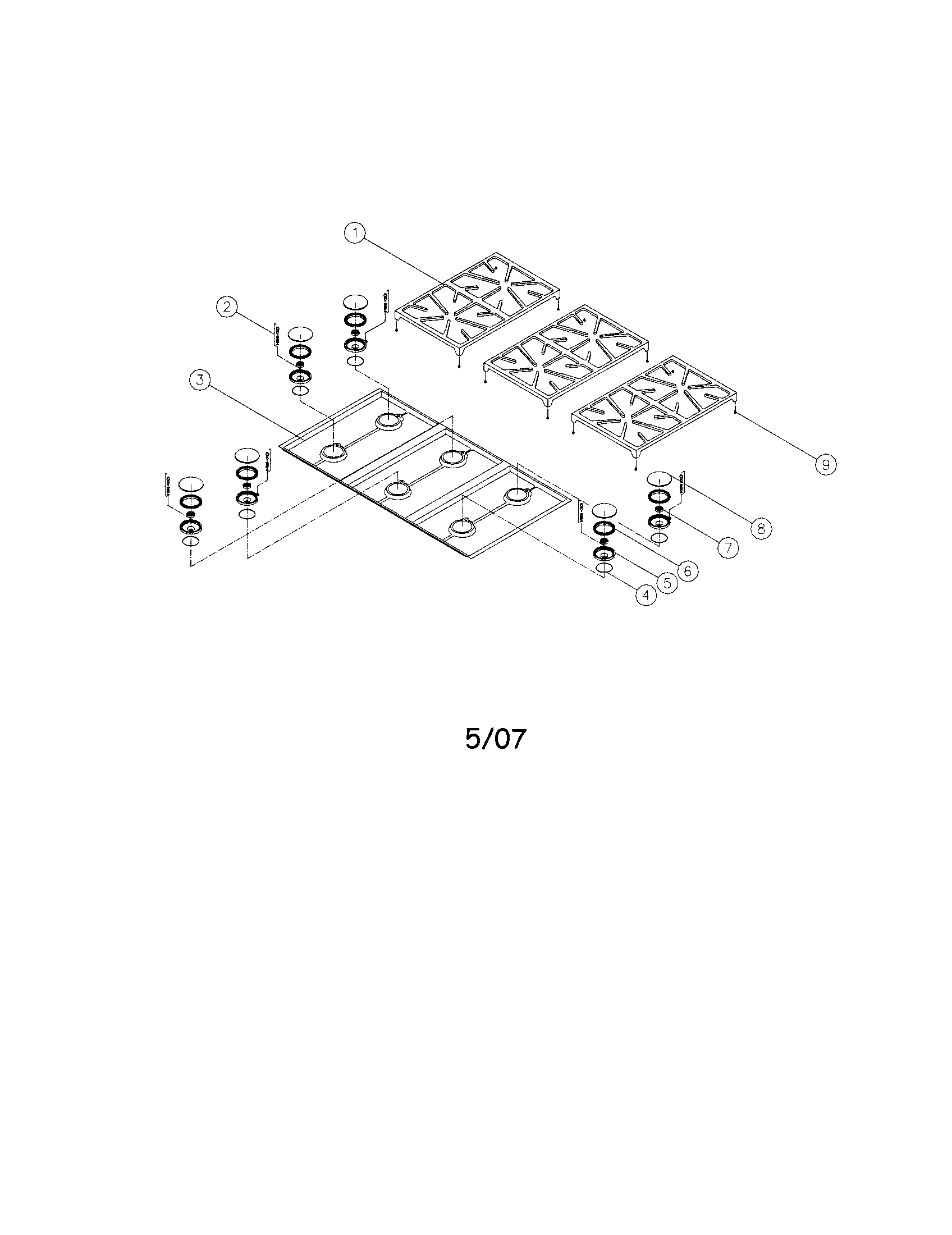

Top frame assembly diagram

Cap

Part #62022BM

Replaced by #72435SB

?
Manufacturer substitution
This part replaces 62022BM. Substitute parts can look different from the original.
$15.99
Back Order
Range Surface Burner Igniter Switch 86576
#5

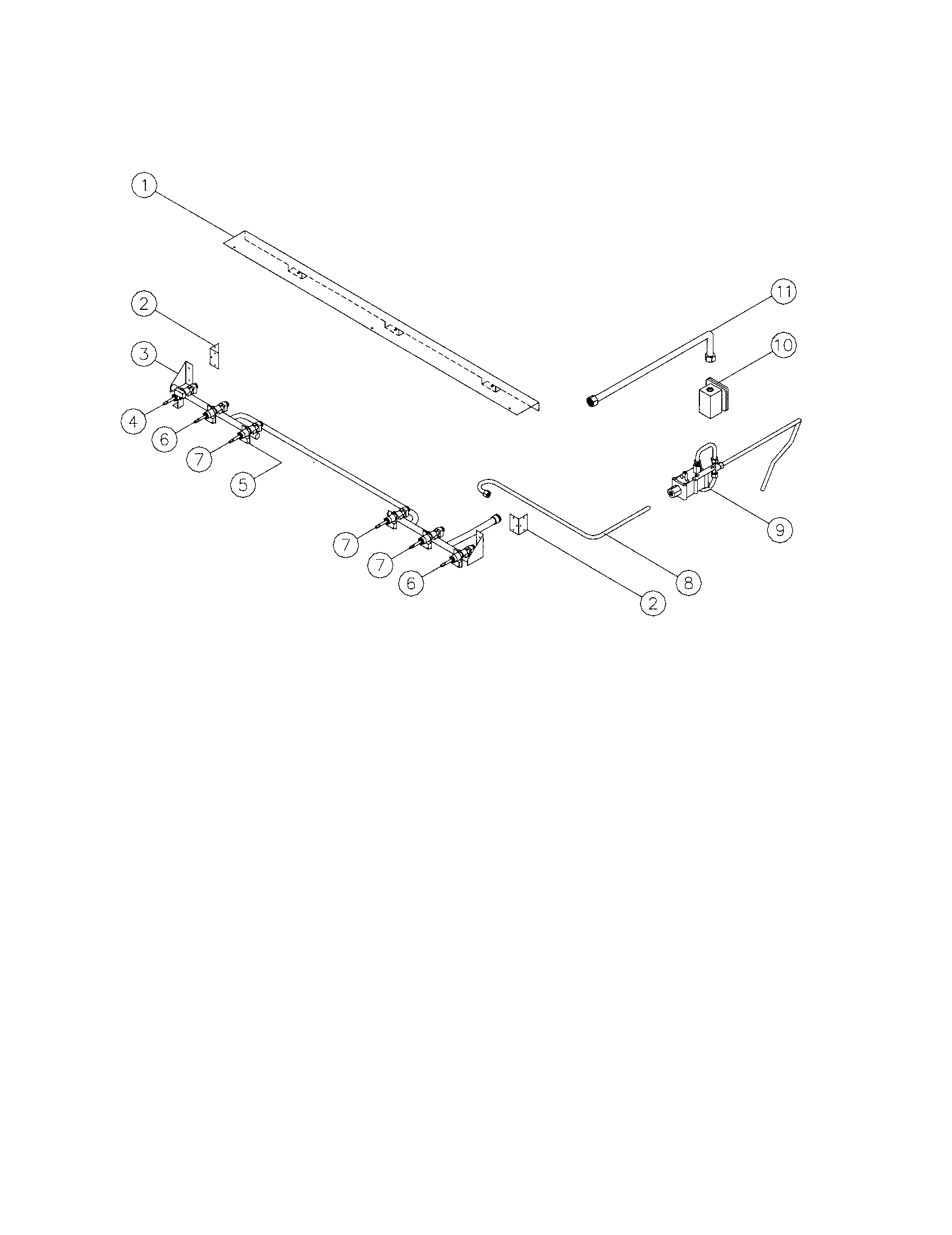

Manifold assembly diagram

Range surface burner igniter switch

Part #86576

$12.49
In Stock
Natural Gas Valve 86557
#6

Manifold assembly diagram

Natural gas valve

Part #86557

$95.99
In Stock
Range Oven Light Assembly 62175
#8

36" cell assembly diagram

Range oven light assembly

Part #62175

$72.99
In Stock
Wall Oven Convection Fan Cover 82891
Wall oven convection fan cover

Part #82891

$62.49
In Stock
Range Halogen Light Bulb 86573
#28

36" cell assembly diagram

Range halogen light bulb

Part #86573

$35.49
In Stock
Range Surface Burner Head O-ring 86395
#4

Top frame assembly diagram

Range surface burner head o-ring

Part #86395

$15.99
In Stock
Door Gasket 62813
#5

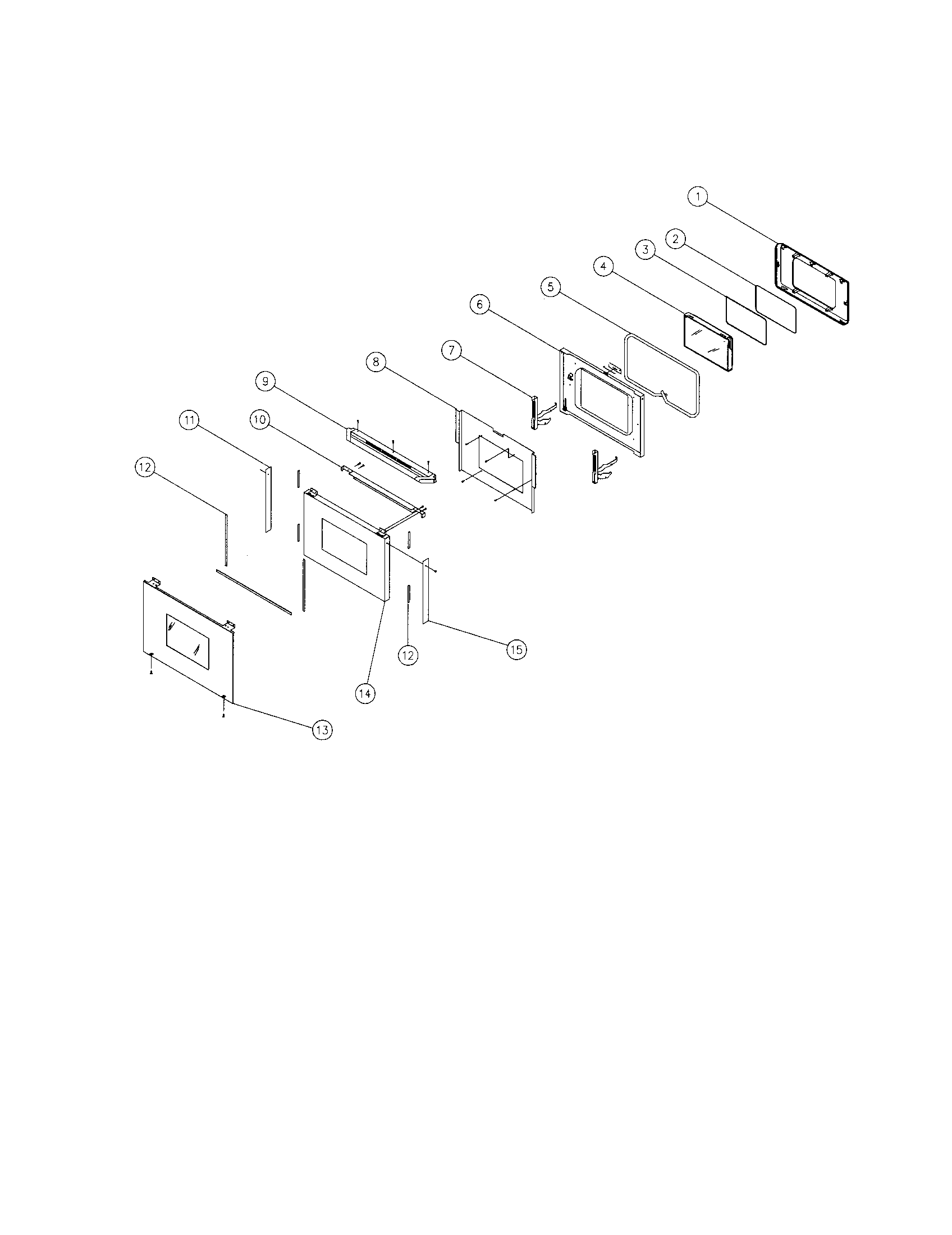

36" door assembly diagram

Door gasket

Part #62813

$33.99
In Stock
