LG
Side-By-Side Refrigerator

Model # LRSC26911TT Official LG side-by-side refrigerator

Here are the diagrams and repair parts for Official LG LRSC26911TT side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

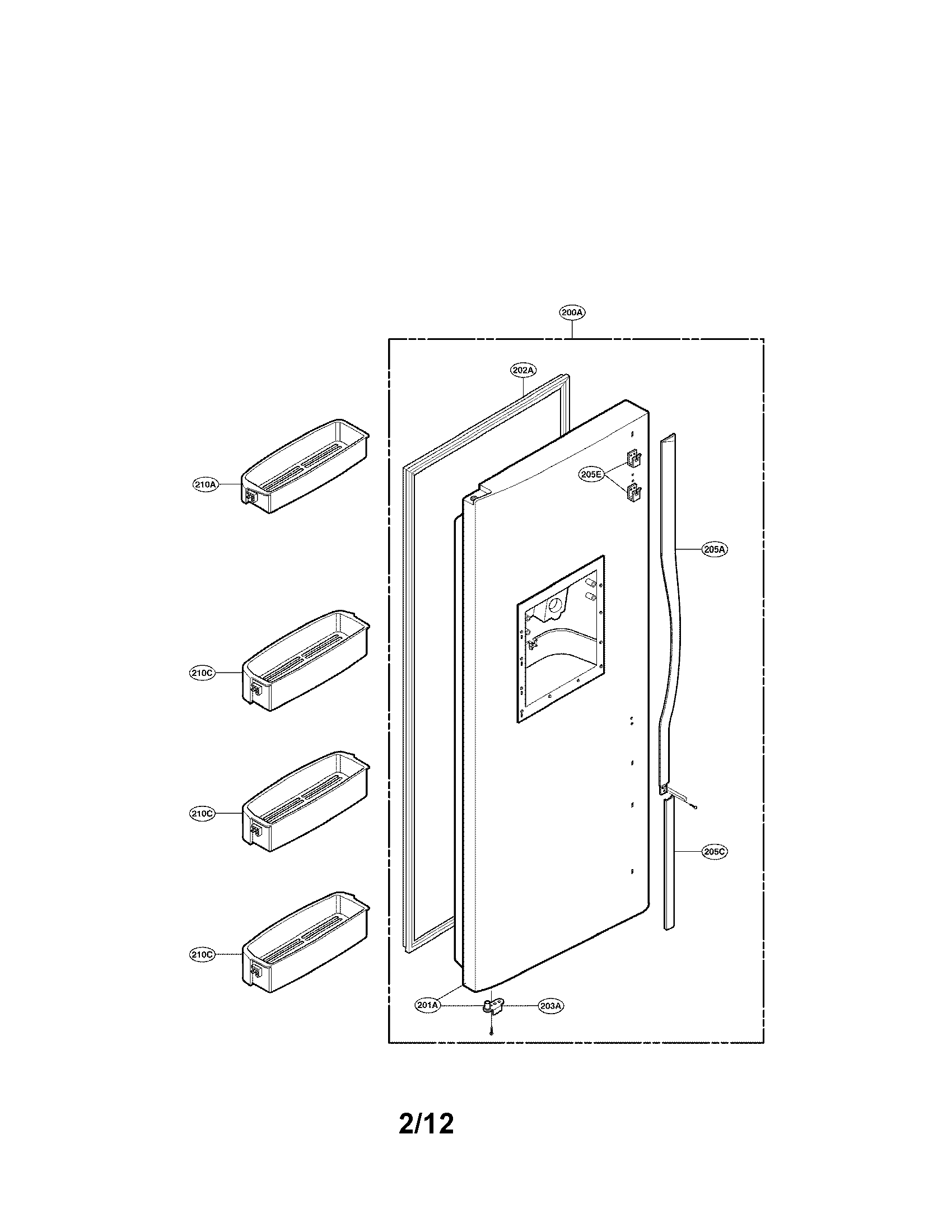

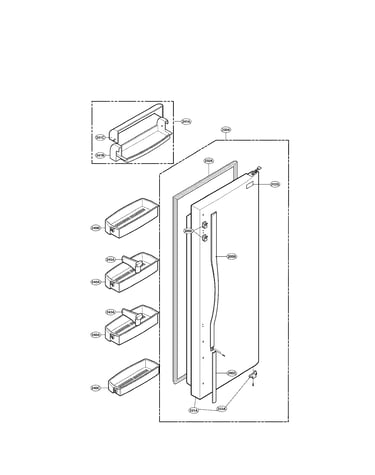

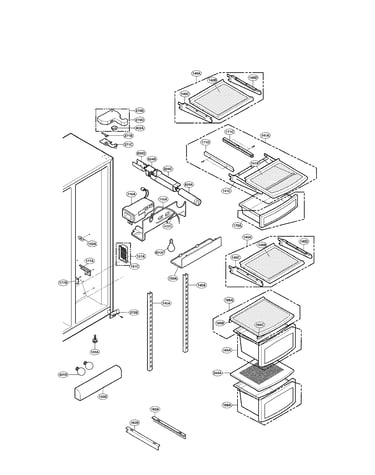

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Refrigerator Filter Dryer 5851JA2008R
#317A

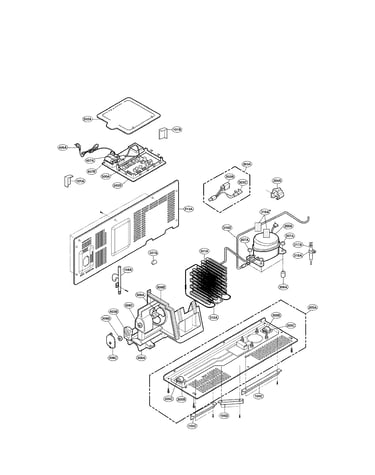

Mechanical compartment parts diagram

Refrigerator filter dryer

Part #5851JA2008R

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2008R. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Switch,mic 6600JB3001B
#402C

Dispenser parts diagram

Switch,mic

Part #6600JB3001B

Replaced by #6600JB3001C

?
Manufacturer substitution
This part replaces 6600JB3001B. Substitute parts can look different from the original.
BEST SELLER
$34.88 |
15% OFF Phone Price : $40.88
In Stock
Refrigerator Defrost Sensor Assembly 6615JB2002R
#400A

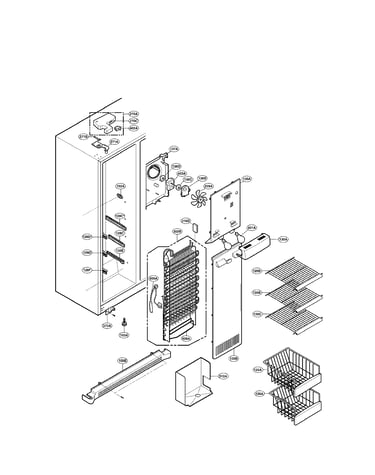

Freezer compartment parts diagram

Refrigerator defrost sensor assembly

Part #6615JB2002R

BEST SELLER
$34.86 |
15% OFF Phone Price : $40.86
In Stock
Refrigerator Water Inlet Valve 5221JB2006A
#619A

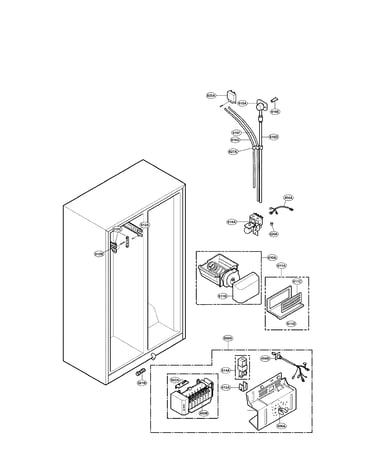

Ice and water parts diagram

Refrigerator water inlet valve

Part #5221JB2006A

Replaced by #5221JB2006K

?
Manufacturer substitution
This part replaces 5221JB2006A. Substitute parts can look different from the original.
BEST SELLER
$131.00 |
8% OFF Phone Price : $143.00
In Stock
Refrigerator Holder 4930JA3034B
#318A

Mechanical compartment parts diagram

Refrigerator holder

Part #4930JA3034B

Replaced by #4930JA3034A

?
Manufacturer substitution
This part replaces 4930JA3034B. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Kenmore Refrigerator Water Tubing, 91-3/4-inch (replaces 5210ja3005g, 5210ja3005q, 5210ja3005s) 5210JA3005E
#616G

Ice and water parts diagram

Kenmore refrigerator water tubing, 91-3/4-inch (replaces 5210ja3005g, 5210ja3005q, 5210ja3005s)

Part #5210JA3005E

BEST SELLER
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Refrigerator Fan Assembly 5901JA1019A
#309A

Mechanical compartment parts diagram

Refrigerator fan assembly

Part #5901JA1019A

Replaced by #5901JA1012B

?
Manufacturer substitution
This part replaces 5901JA1019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Motor Support Damper 5040JA2004B
#136D

Freezer compartment parts diagram

Refrigerator motor support damper

Part #5040JA2004B

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Light Switch (replaces 6600jb3007z) 6600JB3007B
#402A

Freezer compartment parts diagram

Refrigerator light switch (replaces 6600jb3007z)

Part #6600JB3007B

This item is not returnable
$20.38 |
23% OFF Phone Price : $26.38
In Stock
Refrigerator Guide Rail 4974JA1064A
#612B

Ice and water parts diagram

Refrigerator guide rail

Part #4974JA1064A

Replaced by #4974JA1064B

?
Manufacturer substitution
This part replaces 4974JA1064A. Substitute parts can look different from the original.
This item is not returnable
$20.38 |
23% OFF Phone Price : $26.38
In Stock
