Model # 13953669SRT Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 13953669SRT garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

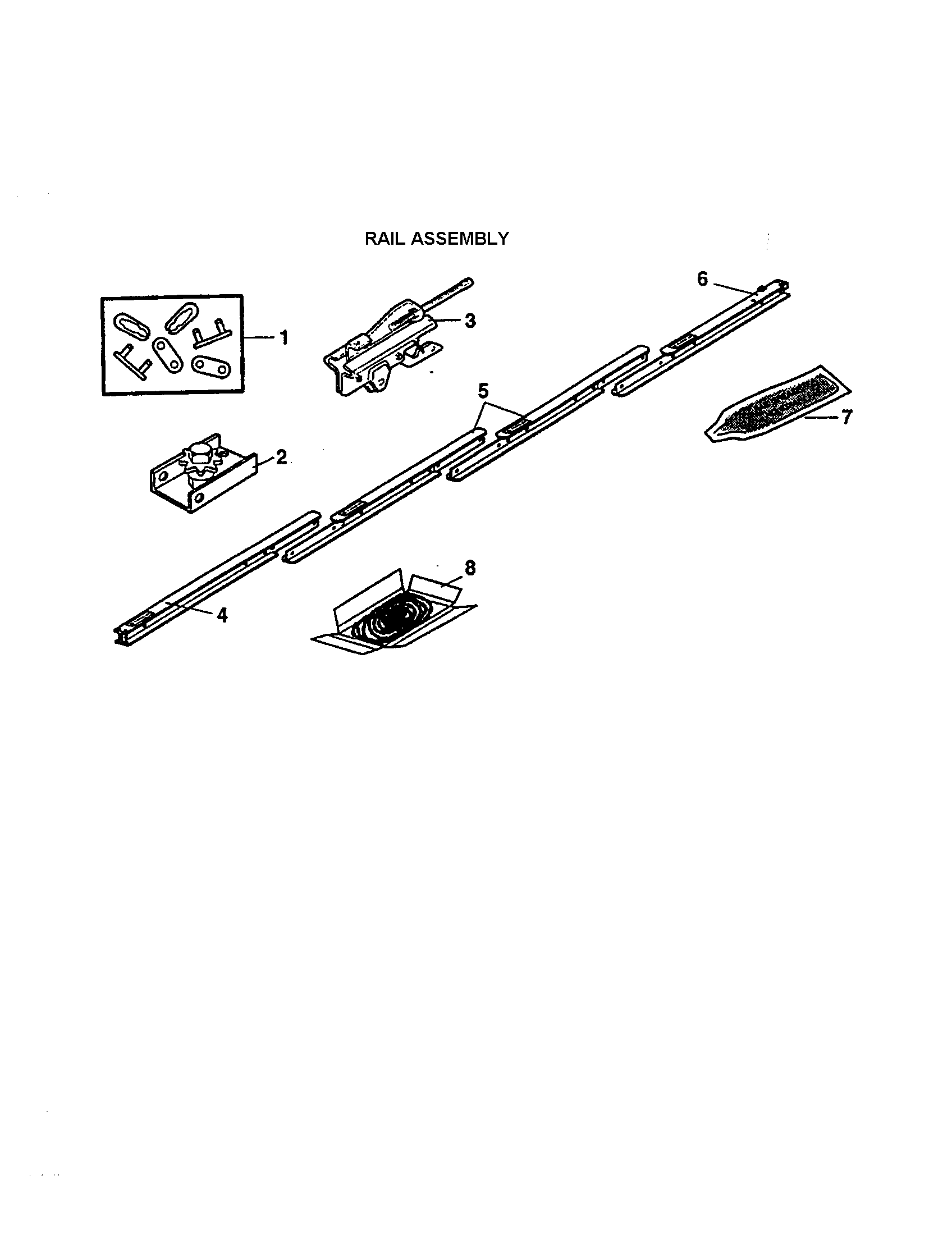

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 46 parts |

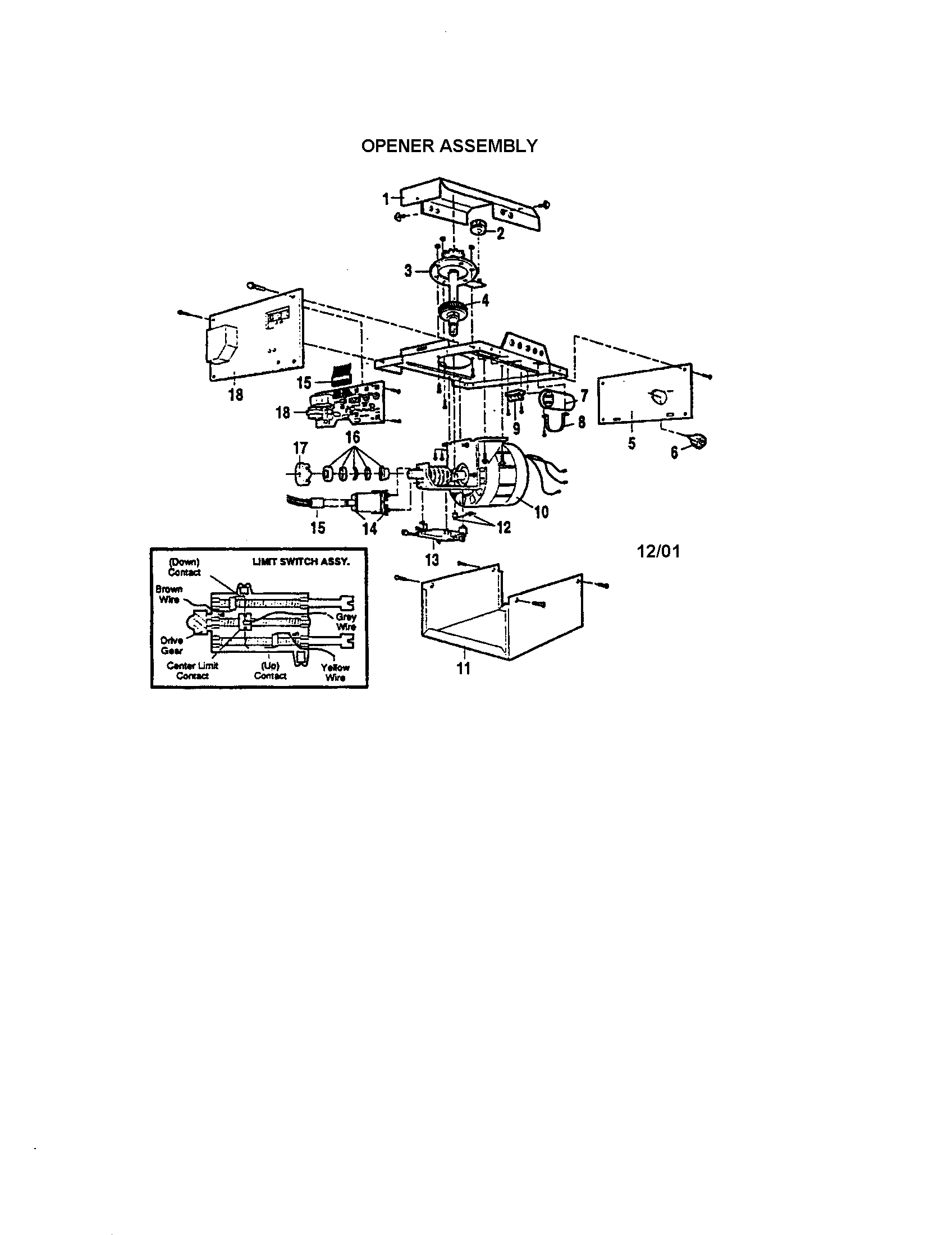

Opener assembly diagram

Garage door opener drive and worm gear kit (replaces 3002375, 65409)

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

#13

Opener assembly diagram

Garage door opener limit switch

Part #41D3452

The manufacturer no longer makes this part, and there's no substitute part

Opener assembly diagram

Light socket

Part #175B88M

The manufacturer no longer makes this part, and there's no substitute part

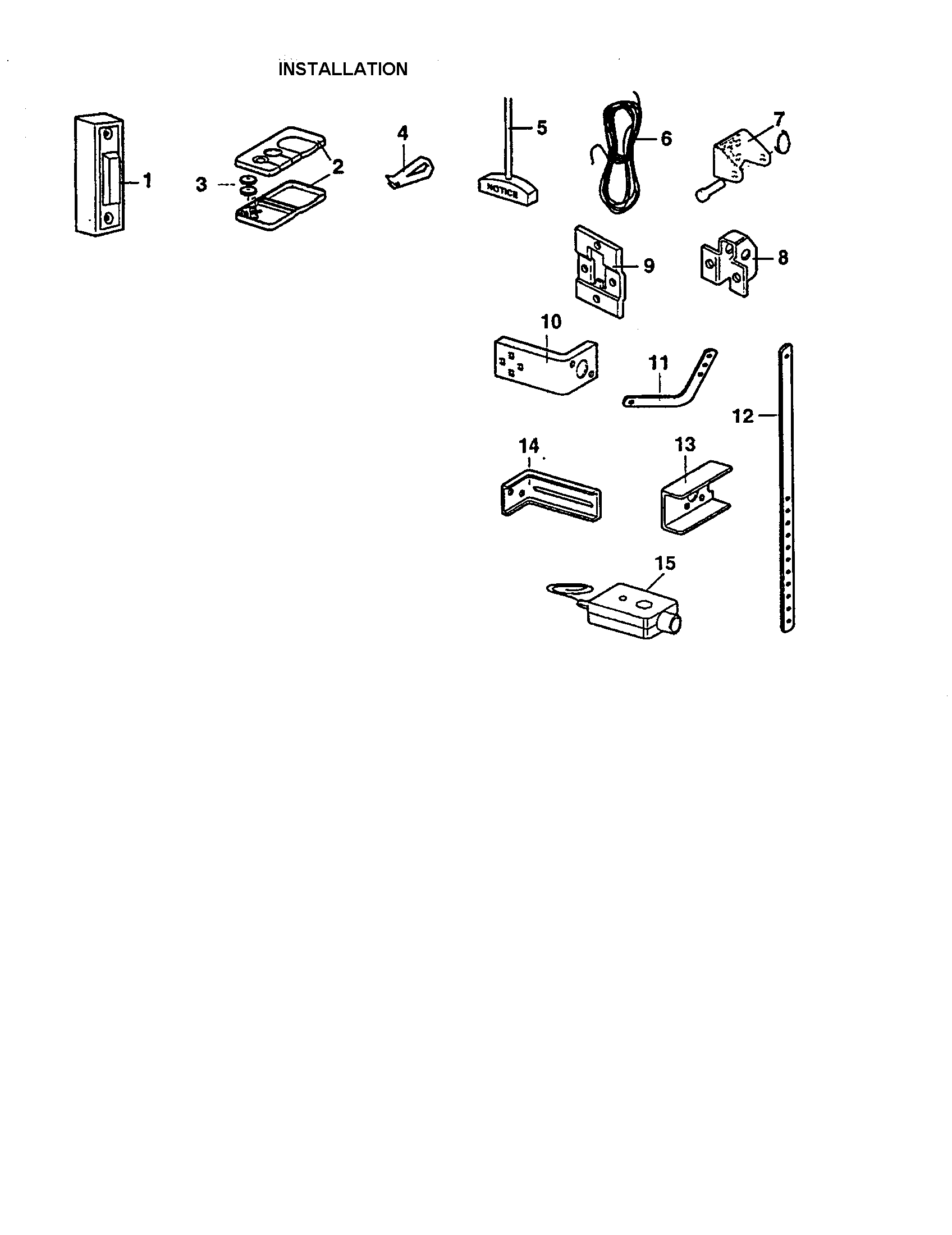

Installation parts diagram

Door bracket

Part #12B374

The manufacturer no longer makes this part, and there's no substitute part

Installation parts diagram

Garage door opener header bracket assembly

Part #41A4353

The manufacturer no longer makes this part, and there's no substitute part

#14

Installation parts diagram

Mtg bracket

Part #12B485

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Curved Door Arm 178B35

#11

Installation parts diagram

Garage door opener curved door arm

Part #178B35

The manufacturer no longer makes this part, and there's no substitute part

Installation parts diagram

Emergency rope and handle assembly

Part #41A2828-1

The manufacturer no longer makes this part, and there's no substitute part

#NI03

All parts diagram

Hardware bag

Part #41A4116

The manufacturer no longer makes this part, and there's no substitute part

#NI04

All parts diagram

Owner's manual

Part #114A2279

The manufacturer no longer makes this part, and there's no substitute part
