Kenmore
Mechanical Sewing Machine

Model # 14813220 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 14813220 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

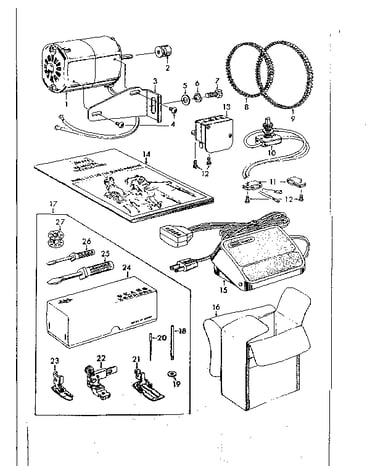

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Spring 214221
#27

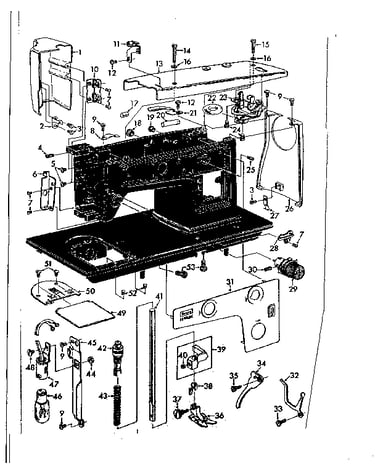

Base assembly diagram

Spring

Part #214221

The manufacturer no longer makes this part, and there's no substitute part

Bracket 214247
#22

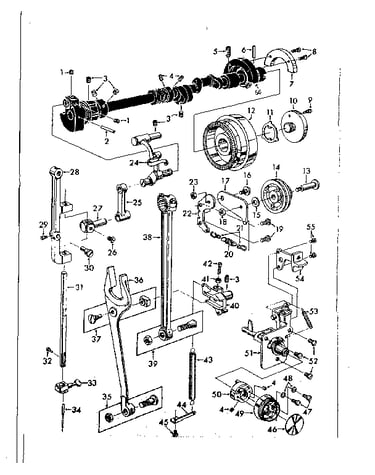

Connecting rod assembly diagram

Bracket

Part #214247

The manufacturer no longer makes this part, and there's no substitute part

Screw 214349
#54

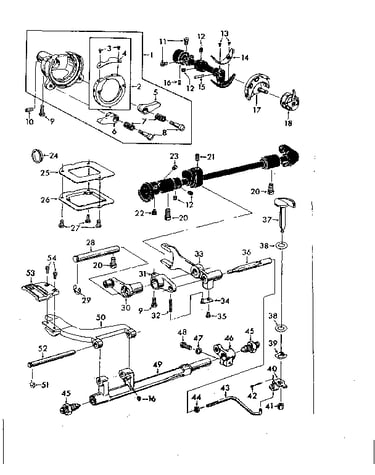

Shuttle assembly diagram

Screw

Part #214349

The manufacturer no longer makes this part, and there's no substitute part

Face Cover 214206
#1

Base assembly diagram

Face cover

Part #214206

The manufacturer no longer makes this part, and there's no substitute part

Screw 214284
#18

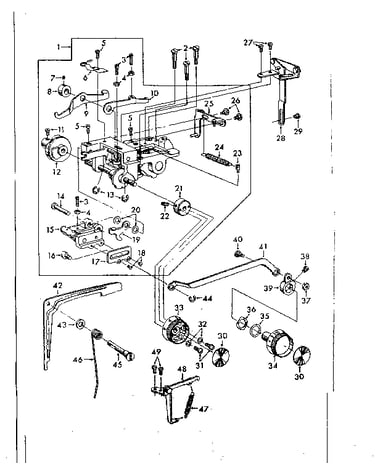

Zigzag mechanism assembly diagram

Screw

Part #214284

The manufacturer no longer makes this part, and there's no substitute part

Plate 214242
#17

Connecting rod assembly diagram

Plate

Part #214242

The manufacturer no longer makes this part, and there's no substitute part

Screw 214241
#16

Connecting rod assembly diagram

Screw

Part #214241

The manufacturer no longer makes this part, and there's no substitute part

Supporter 214252
#28

Connecting rod assembly diagram

Supporter

Part #214252

The manufacturer no longer makes this part, and there's no substitute part

Pin 214280
#14

Zigzag mechanism assembly diagram

Pin

Part #214280

The manufacturer no longer makes this part, and there's no substitute part

Face Cover 214220
#26

Base assembly diagram

Face cover

Part #214220

The manufacturer no longer makes this part, and there's no substitute part
