Model # TCF0710GW01 Official Whirlpool chest freezer

Here are the diagrams and repair parts for Official Whirlpool TCF0710GW01 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Drier Tube 4356675
#3

Unit diagram

Drier tube

Part #4356675

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356675. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Terminal Cover 4356599
#8

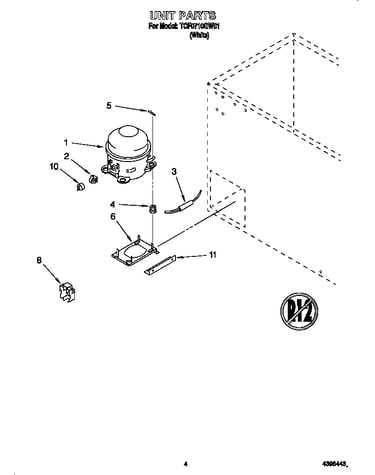

Unit diagram

Terminal cover

Part #4356599

Replaced by #WP2162358

?
Manufacturer substitution
This part replaces 4356599. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
In Stock
Thermostat 4356670
#6

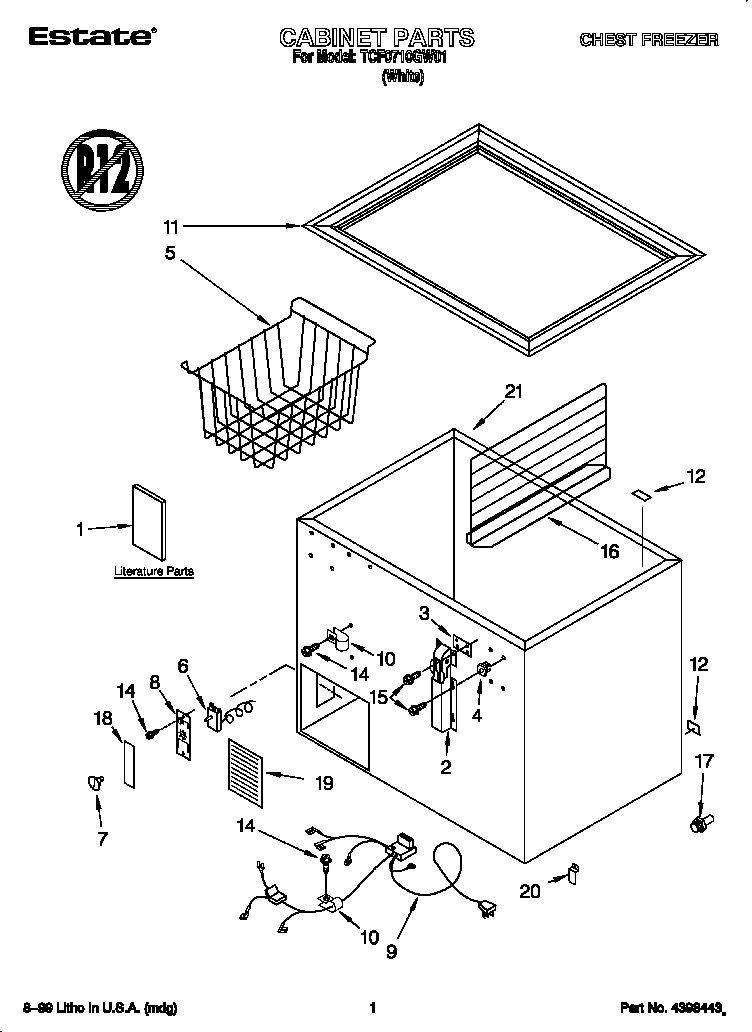

Cabinet diagram

Thermostat

Part #4356670

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 4356670. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Baskt-wire 4356354
#5

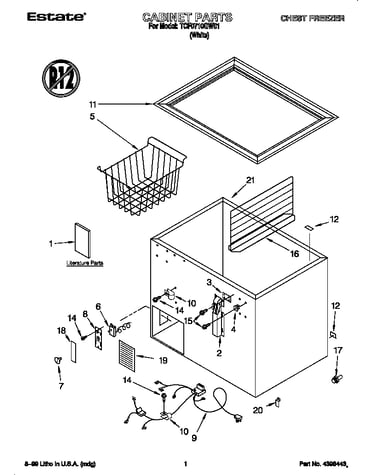

Cabinet diagram
