Craftsman
Gas Walk-Behind Mower

Model # 917370400 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370400 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Lawn & Garden Equipment Nut 409148
Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower 22-in Deck Mulching Blade 406713
#47

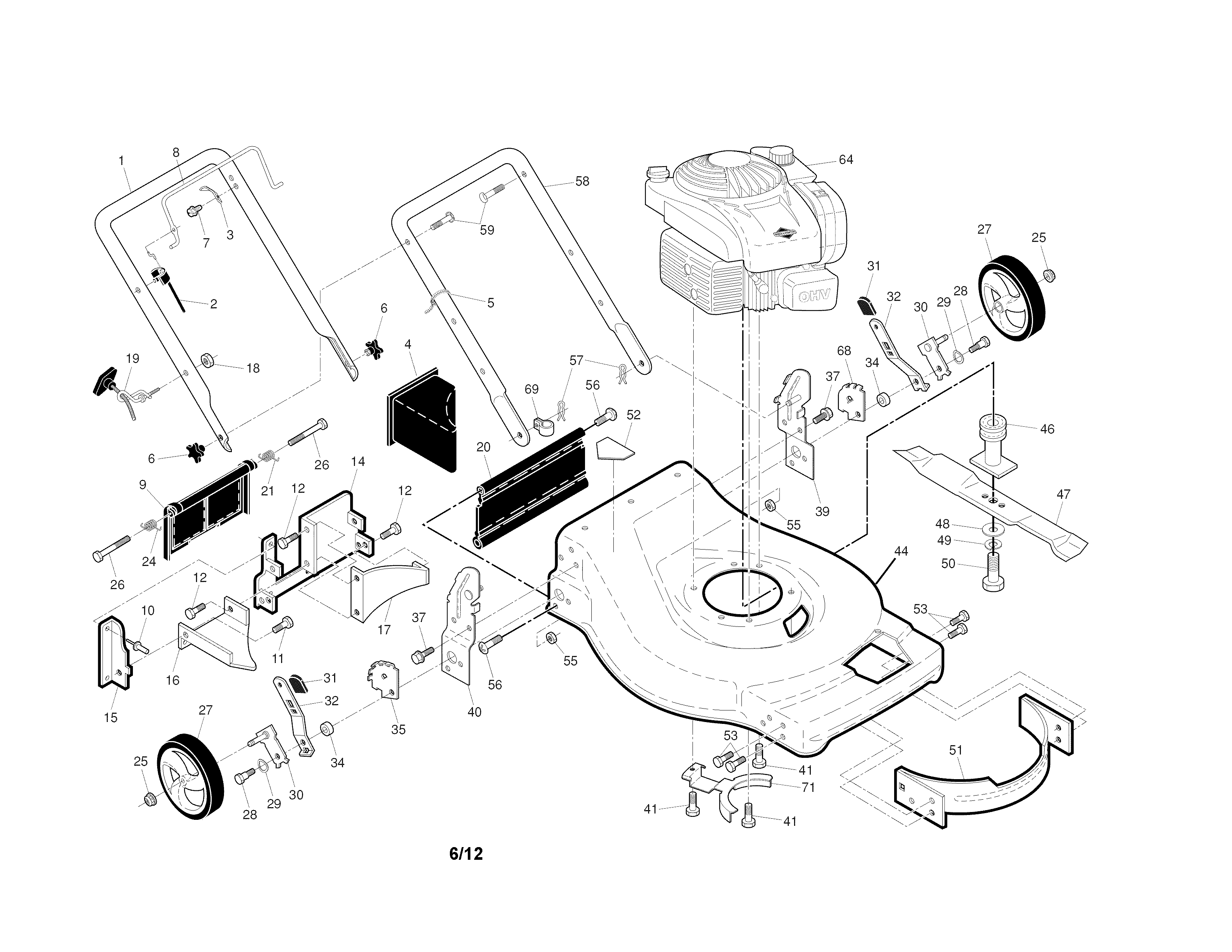

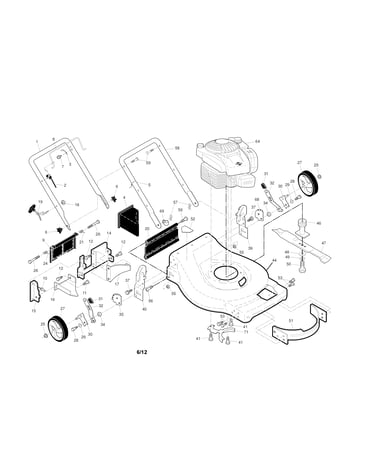

Engine/housing/handle diagram

Lawn mower 22-in deck mulching blade

Part #406713

Replaced by #532406713

?
Manufacturer substitution
This part replaces 406713. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

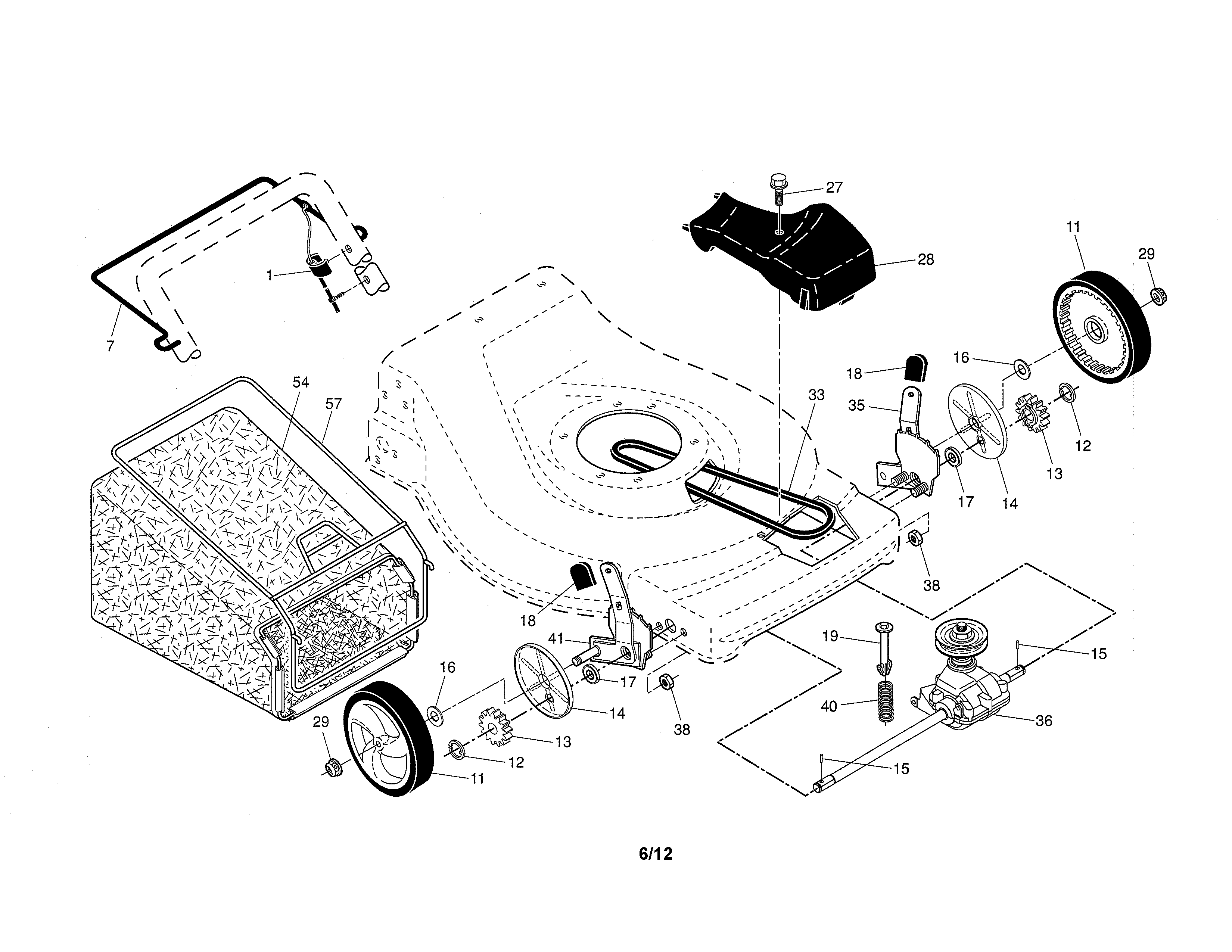

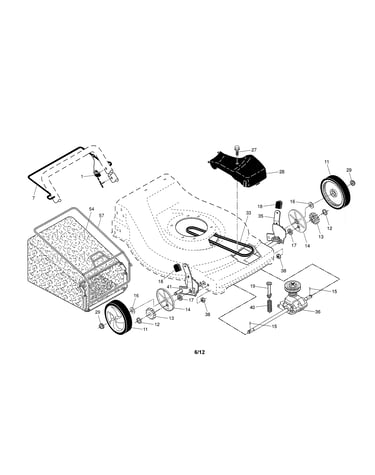

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$8.22 |
11% OFF Phone Price : $9.22
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Tower Lawn Tractor Lock Nut (replaces 5394h, 73750600, 751592) 73930600
#55

Engine/housing/handle diagram

Tower lawn tractor lock nut (replaces 5394h, 73750600, 751592)

Part #73930600

Replaced by #596322601

?
Manufacturer substitution
This part replaces 73930600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Washer 67725
#16

Drive control/gear case/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Engine Control Cable 183567
#2

Engine/housing/handle diagram

Lawn mower engine control cable

Part #183567

Replaced by #532183567

?
Manufacturer substitution
This part replaces 183567. Substitute parts can look different from the original.
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Height Spacer 401629
#34

Engine/housing/handle diagram

Height spacer

Part #401629

Replaced by #532401629

?
Manufacturer substitution
This part replaces 401629. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Frame.gbag.2 446437
#57

Drive control/gear case/wheels diagram

Frame.gbag.2

Part #446437

Replaced by #583585301

?
Manufacturer substitution
This part replaces 446437. Substitute parts can look different from the original.
$53.31
In Stock
Shoulder Bolt 174719
#28

Engine/housing/handle diagram

Shoulder bolt

Part #174719

Replaced by #532174719

?
Manufacturer substitution
This part replaces 174719. Substitute parts can look different from the original.
This item is not returnable
$13.69
In Stock
