KitchenAid
Electric Range

Model # KEDC205BBL2 Official KitchenAid electric range

Here are the diagrams and repair parts for Official KitchenAid KEDC205BBL2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Light Bulb 311255
#29

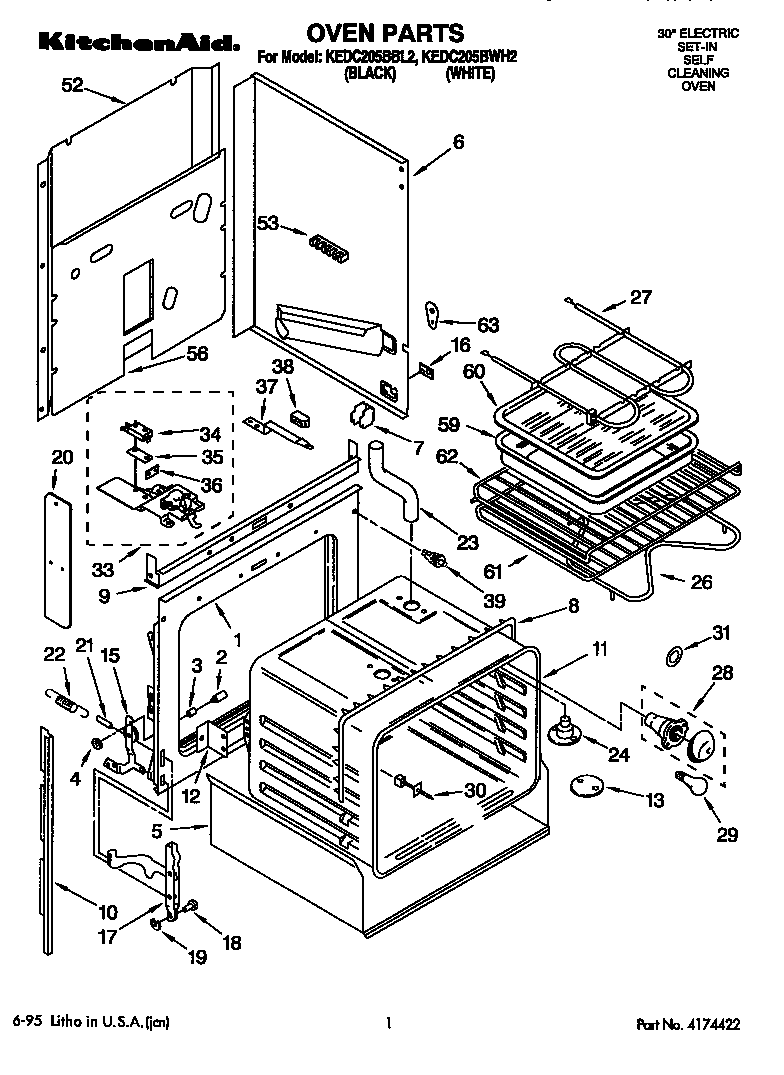

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Bake Element 661170
#26

Oven diagram

Bake element

Part #661170

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 661170. Substitute parts can look different from the original.
BEST SELLER
$44.81 |
12% OFF Phone Price : $50.81
In Stock
Polish Cooktop 3184477

#NI

All parts diagram

Polish cooktop

Part #3184477

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3184477. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Screw 3148107
Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 313638
Screw

Part #313638

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Broiler Element 3148040
#27

Oven diagram

Broiler element

Part #3148040

Replaced by #WP660579

?
Manufacturer substitution
This part replaces 3148040. Substitute parts can look different from the original.
$67.38 |
8% OFF Phone Price : $73.38
In Stock
Level Foot 312701
#9

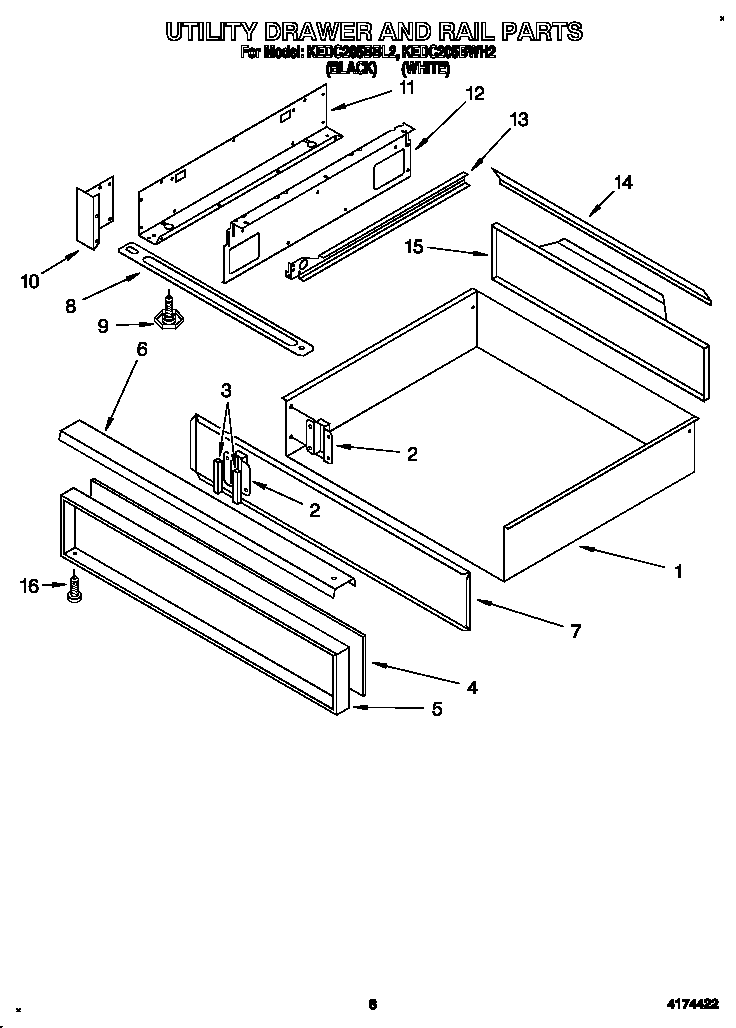

Utility drawer and rail diagram

Level foot

Part #312701

Replaced by #WPW10058460

?
Manufacturer substitution
This part replaces 312701. Substitute parts can look different from the original.
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
Terminal Block 258076
#53

Oven diagram

Terminal block

Part #258076

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 258076. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Nut 112432
#53A

Oven diagram

Nut

Part #112432

Replaced by #WP112432

?
Manufacturer substitution
This part replaces 112432. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Range Oven Door Spring 308126
#22

Oven diagram

Range oven door spring

Part #308126

Replaced by #WP308126

?
Manufacturer substitution
This part replaces 308126. Substitute parts can look different from the original.
$20.24 |
23% OFF Phone Price : $26.24
In Stock
