Model # SF302BSAN1 Official Whirlpool 30" gas freestanding range with pilot ignition

Here are the diagrams and repair parts for Official Whirlpool SF302BSAN1 30" gas freestanding range with pilot ignition, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

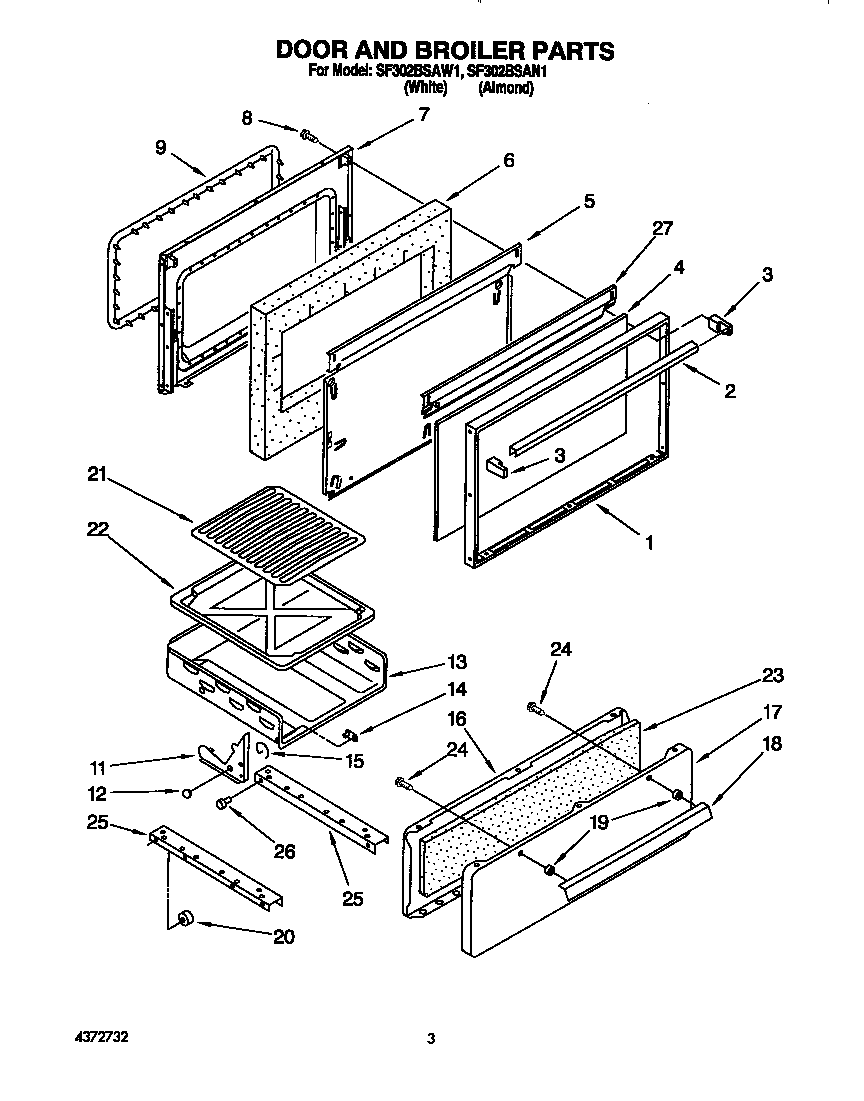

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Screw 4371027
#19

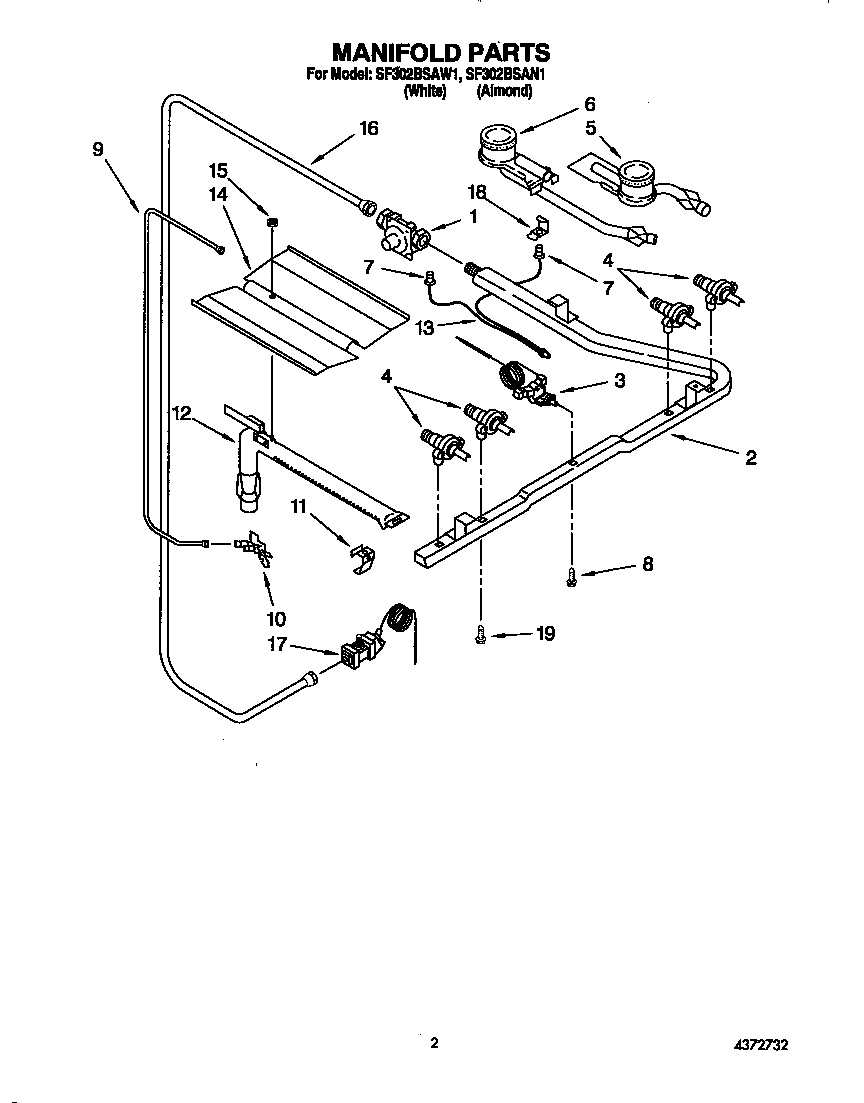

Manifold diagram

Screw

Part #4371027

Replaced by #WP3186217

?
Manufacturer substitution
This part replaces 4371027. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Surface Knob 4371476
#3

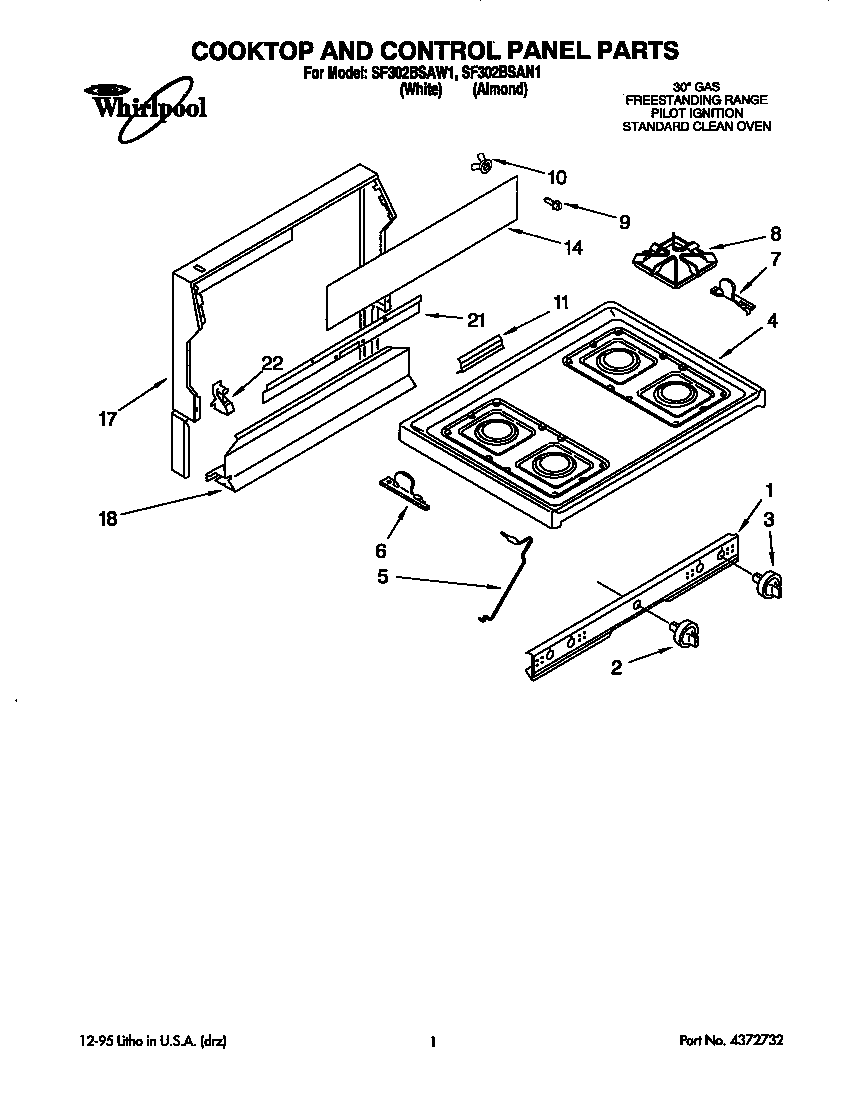

Cooktop and control panel diagram

Surface knob

Part #4371476

The manufacturer no longer makes this part, and there's no substitute part

Insulation 4371091
#15

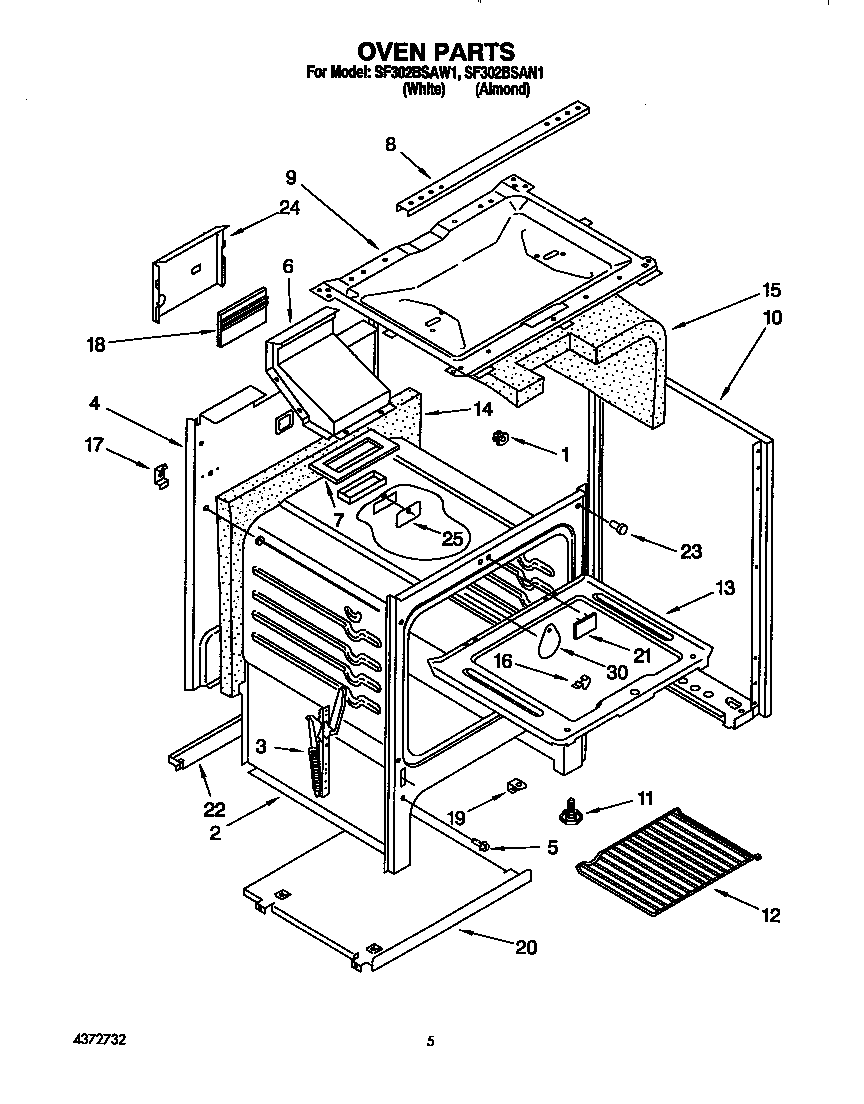

Oven diagram

Insulation

Part #4371091

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4371091. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Burner 4371480
#5

Manifold diagram

Burner

Part #4371480

The manufacturer no longer makes this part, and there's no substitute part

Support 816670
#19

Oven diagram

Support

Part #816670

The manufacturer no longer makes this part, and there's no substitute part

Oven Control 4372114
#3

Manifold diagram

Oven control

Part #4372114

The manufacturer no longer makes this part, and there's no substitute part

Pilot Cap 4371075
#7

Manifold diagram

Pilot cap

Part #4371075

The manufacturer no longer makes this part, and there's no substitute part

Screw 816651
#5

Oven diagram

Screw

Part #816651

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob 4372118
#2

Cooktop and control panel diagram

Thermostat knob

Part #4372118

The manufacturer no longer makes this part, and there's no substitute part

Rear Cover 4371280
#14

Manifold diagram

Rear cover

Part #4371280

The manufacturer no longer makes this part, and there's no substitute part
