Model # 11621690 Official Kenmore vacuum cleaner & attachment set - september, 1971
Here are the diagrams and repair parts for Official Kenmore 11621690 vacuum cleaner & attachment set - september, 1971, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11621690 Vacuum Cleaners
#10

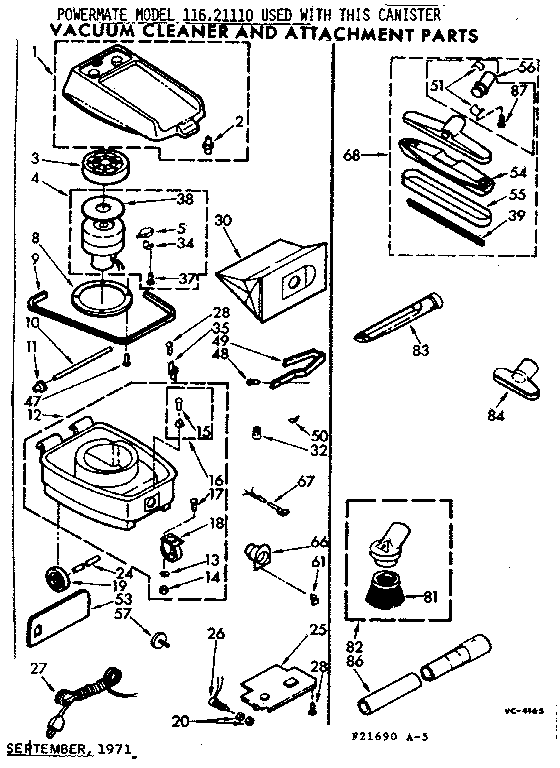

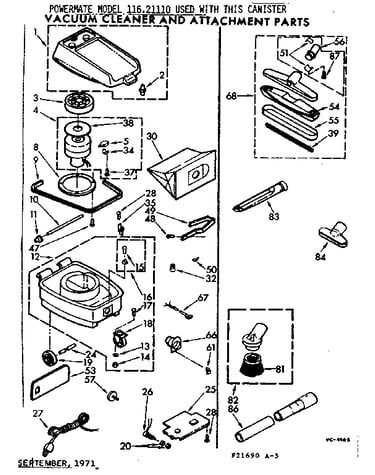

Unit parts diagram
Parts list
Part #763924
The manufacturer no longer makes this part, and there's no substitute part
#57
Unit parts diagram
Relief
Part #668379
The manufacturer no longer makes this part, and there's no substitute part
#81
Unit parts diagram
Dustng brush
Part #720215
The manufacturer no longer makes this part, and there's no substitute part
#84
Unit parts diagram
Nozzle
Part #722377
The manufacturer no longer makes this part, and there's no substitute part
#25
Unit parts diagram
Pan
Part #569858
The manufacturer no longer makes this part, and there's no substitute part
#47
Unit parts diagram
Screw
Part #681265
The manufacturer no longer makes this part, and there's no substitute part
#61
Unit parts diagram
Catch
Part #762672
The manufacturer no longer makes this part, and there's no substitute part
#50
Unit parts diagram
Speed nut
Part #680687
The manufacturer no longer makes this part, and there's no substitute part
#18
Unit parts diagram
Swivel castr
Part #761734
The manufacturer no longer makes this part, and there's no substitute part
#53
Unit parts diagram
Cover
Part #764160
The manufacturer no longer makes this part, and there's no substitute part
