Model # 217585120 Official Craftsman 1.2-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585120 1.2-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Gasket Set 190079
#50

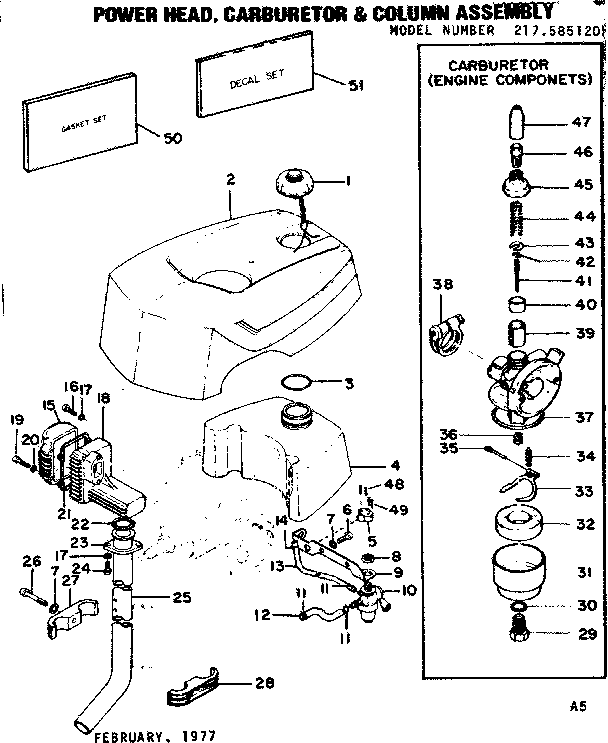

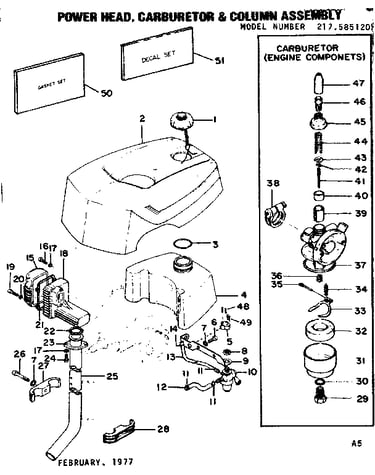

Power head, carburetor & column assembly diagram

Gasket set

Part #190079

The manufacturer no longer makes this part, and there's no substitute part

Crank Case 95784
#49

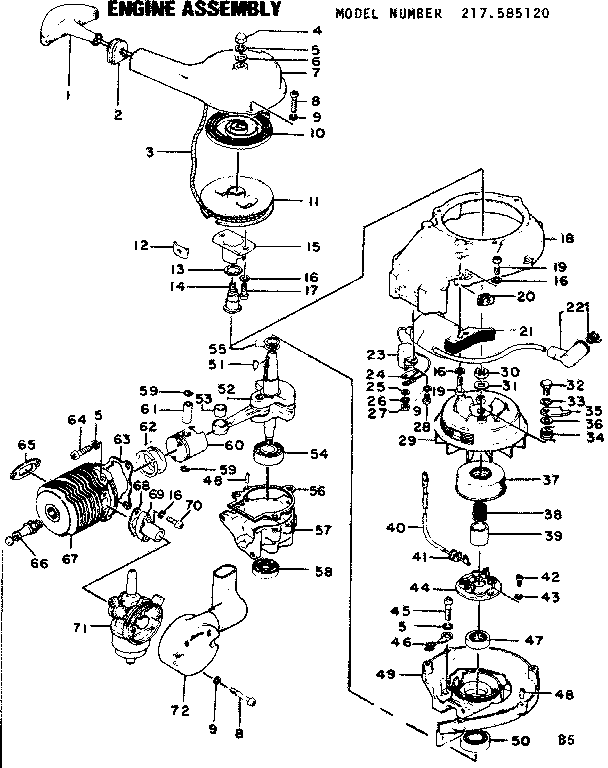

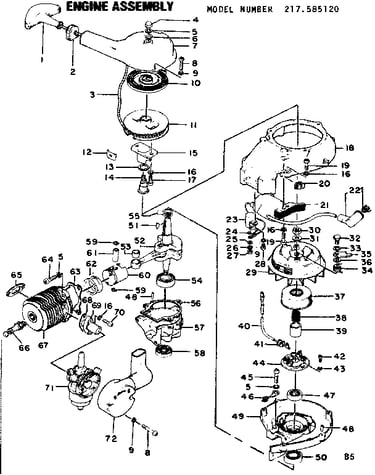

Engine assembly diagram

Crank case

Part #95784

The manufacturer no longer makes this part, and there's no substitute part

Crank Case 95786
#57

Engine assembly diagram

Crank case

Part #95786

The manufacturer no longer makes this part, and there's no substitute part

Gear Housing 95361
#34

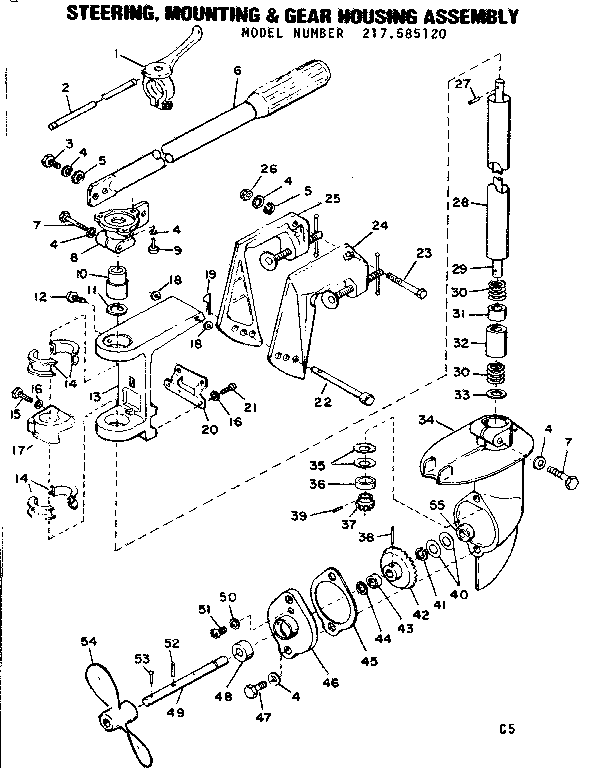

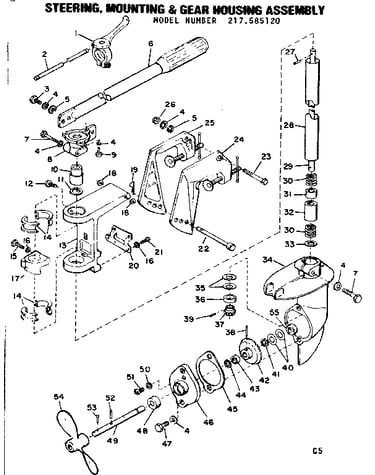

Steering, mounting & gear housing assem diagram

Gear housing

Part #95361

The manufacturer no longer makes this part, and there's no substitute part

Pulley 95597
#13

Engine assembly diagram

Pulley

Part #95597

The manufacturer no longer makes this part, and there's no substitute part

Shroud 95486
#2

Power head, carburetor & column assembly diagram

Shroud

Part #95486

The manufacturer no longer makes this part, and there's no substitute part

Swivel 95429
#13

Steering, mounting & gear housing assem diagram

Swivel

Part #95429

The manufacturer no longer makes this part, and there's no substitute part

Manifold 95489
#69

Engine assembly diagram

Manifold

Part #95489

The manufacturer no longer makes this part, and there's no substitute part

Muffler A 95562
#18

Power head, carburetor & column assembly diagram

Muffler a

Part #95562

The manufacturer no longer makes this part, and there's no substitute part

Pinion Gear 95379
#37

Steering, mounting & gear housing assem diagram

Pinion gear

Part #95379

The manufacturer no longer makes this part, and there's no substitute part
