Kenmore
Side-By-Side Refrigerator

Model # 79551812410 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79551812410 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

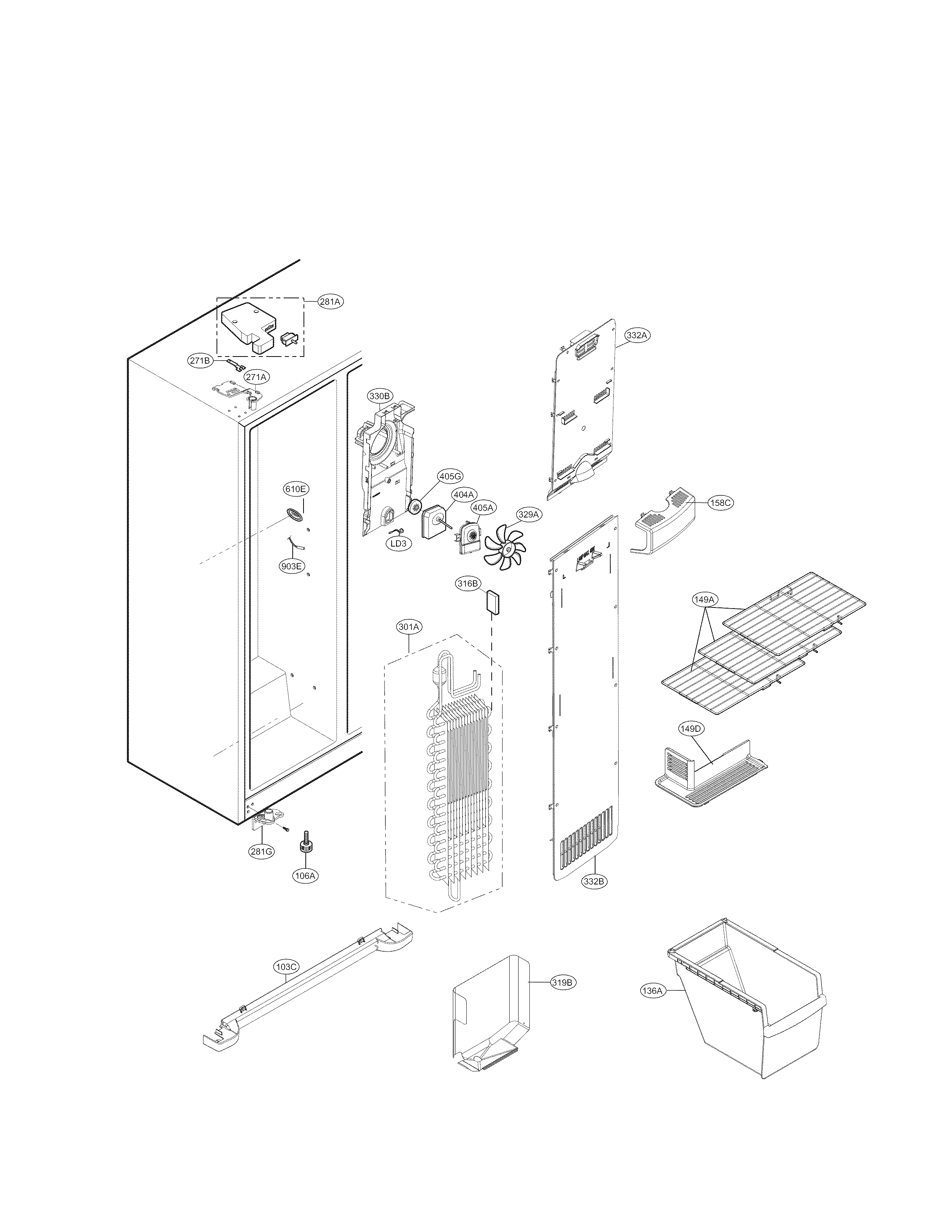

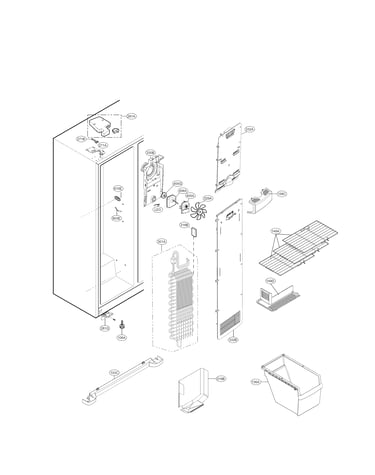

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Refrigerator Filter Dryer 5851JA2008X
#317A

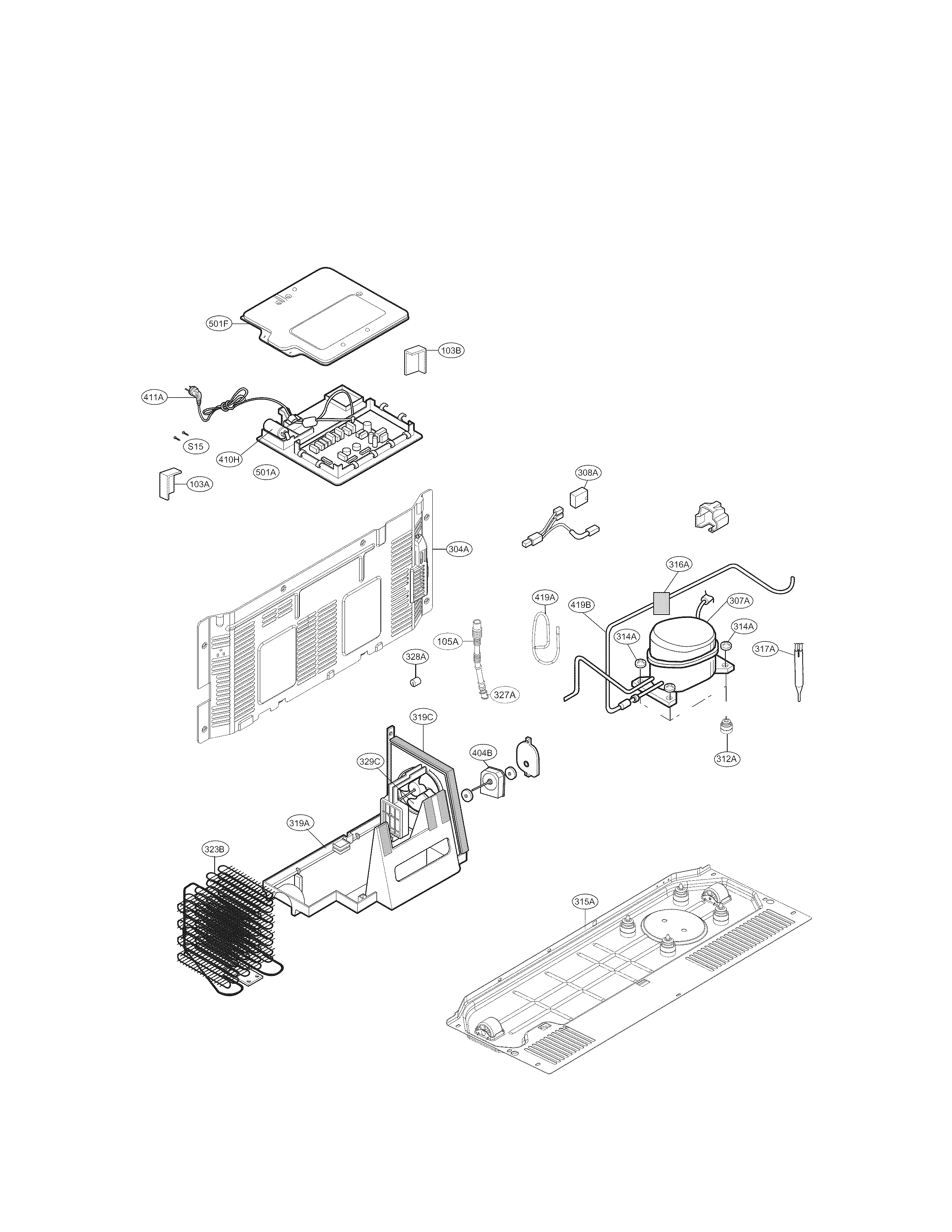

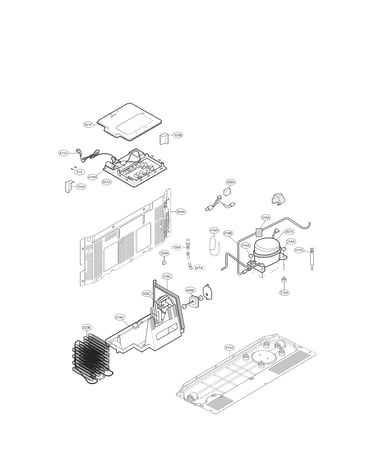

Mechanical parts diagram

Refrigerator filter dryer

Part #5851JA2008X

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2008X. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Kenmore Refrigerator Water Filter 9490 (replaces 9490) ADQ73613402
#611B

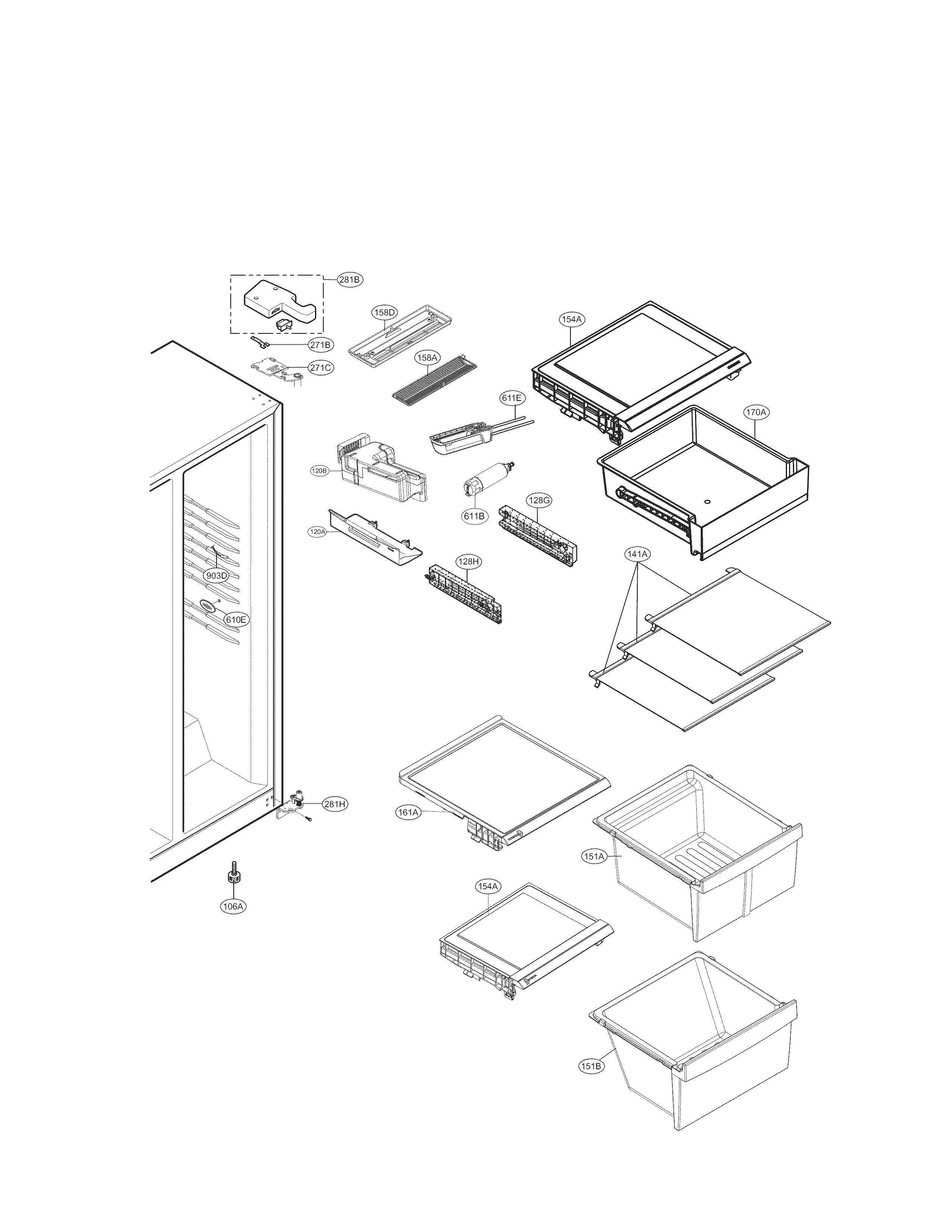

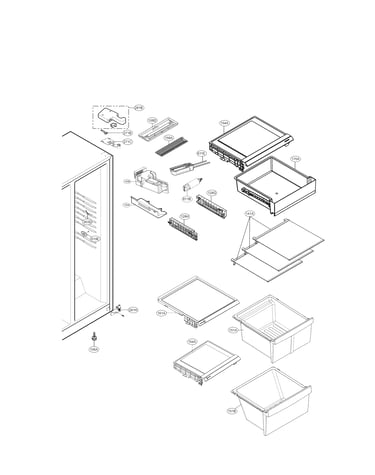

Refrigerator parts diagram

Kenmore refrigerator water filter 9490 (replaces 9490)

Part #ADQ73613402

BEST SELLER

Get free shipping with Automatic Reorder

$77.95
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204
#405H

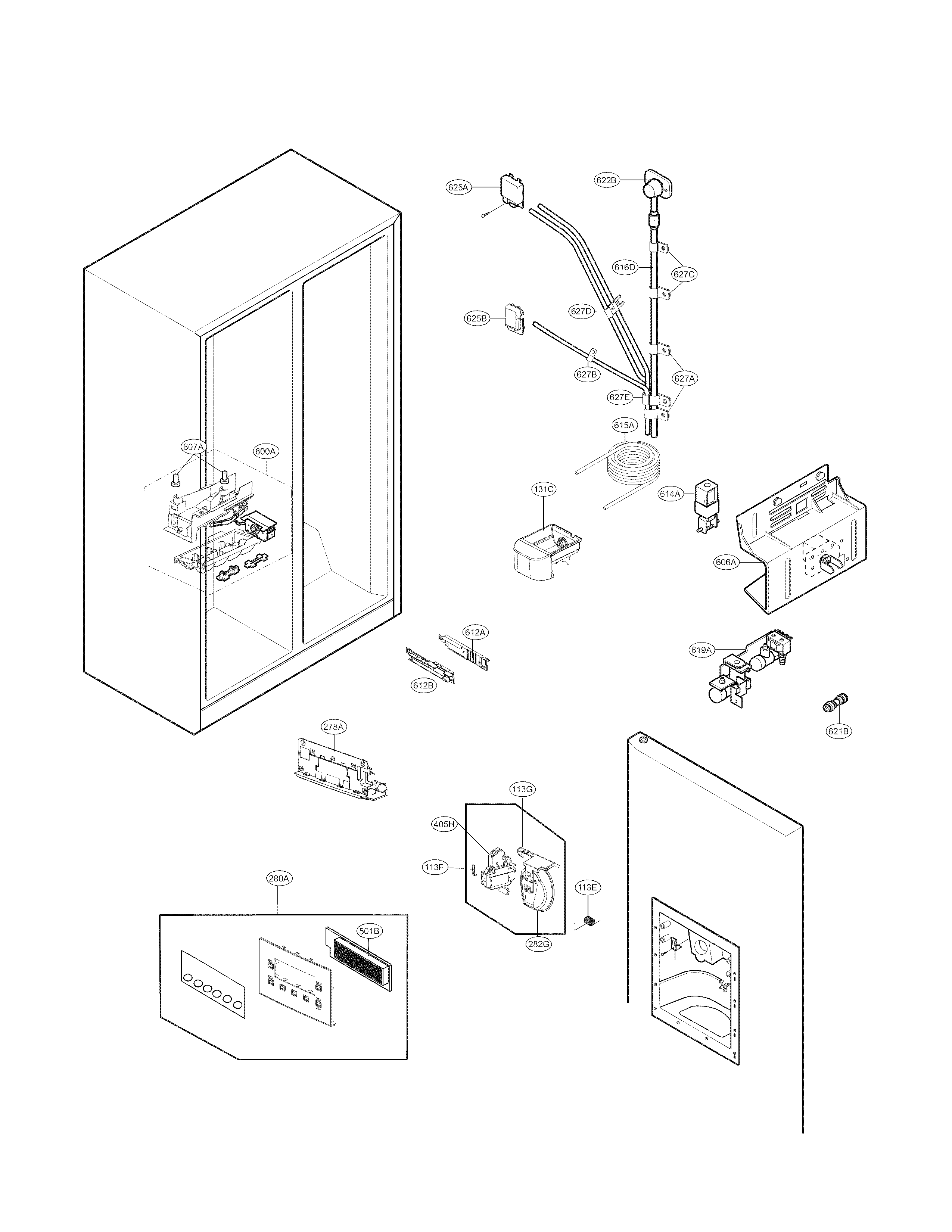

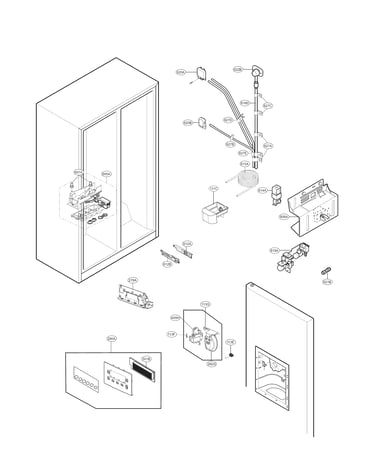

Ice and water parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$50.02 |
11% OFF Phone Price : $56.02
In Stock
Refrigerator Sensor 6500JK1003A
#903D

Refrigerator parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Water Reservoir (replaces 4838jj1003a, 4839jj2002b, 4839jj2003a, Mjm61904701) MJM61904702
#615A

Ice and water parts diagram

Refrigerator water reservoir (replaces 4838jj1003a, 4839jj2002b, 4839jj2003a, mjm61904701)

Part #MJM61904702

BEST SELLER
$90.27 |
6% OFF Phone Price : $96.27
In Stock
Refrigerator Condenser Coil ACG74444901
#323B

Mechanical parts diagram

Refrigerator condenser coil

Part #ACG74444901

BEST SELLER
$295.64 |
$12.00 OFF Phone Price : $307.64
In Stock
Refrigerator Refrigerant Line Noise Damper 5072JA3003F
#316A

Mechanical parts diagram

Refrigerator refrigerant line noise damper

Part #5072JA3003F

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A
#314A

Mechanical parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Door Handle Mounting Bolt 4620JJ2010C
#212J

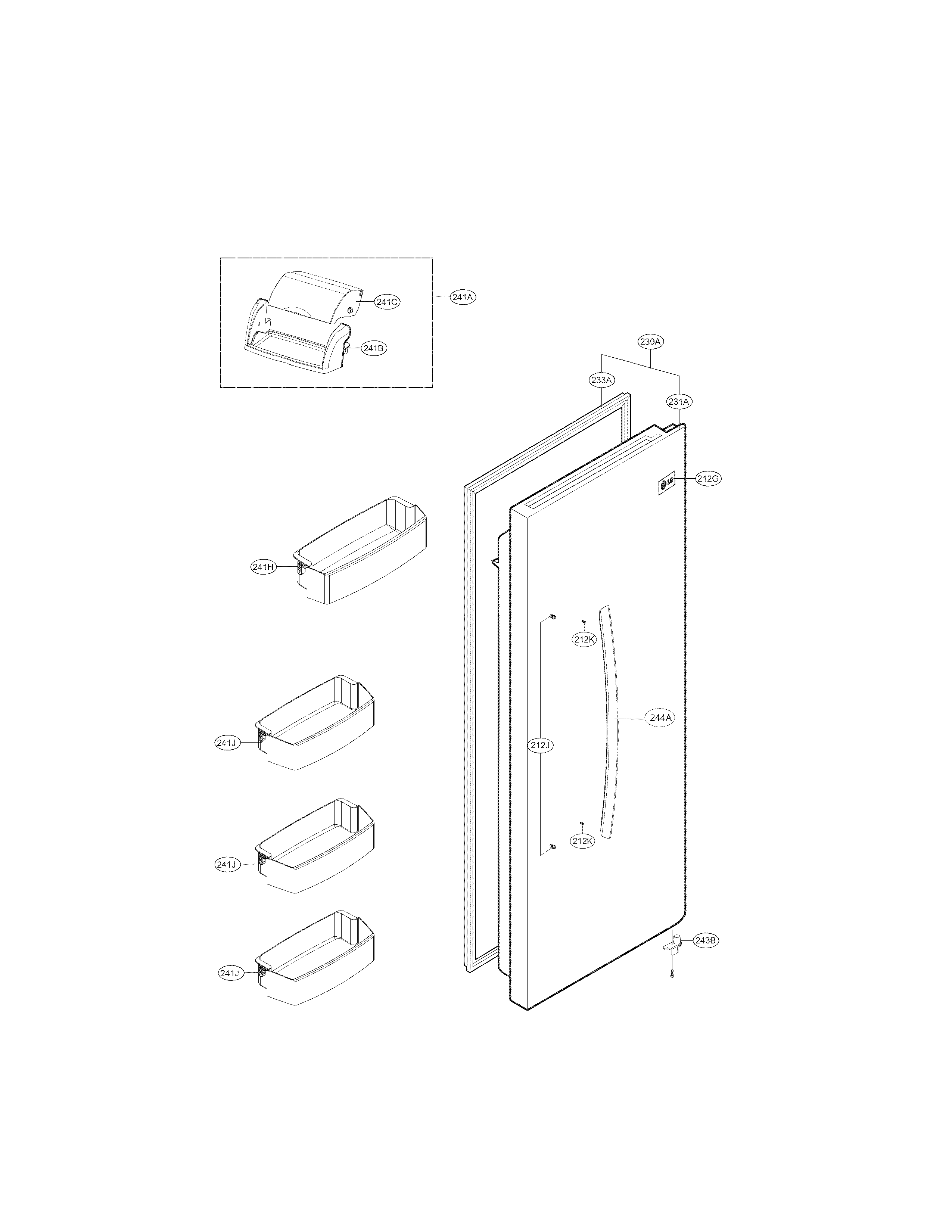

Freezer door parts diagram

Refrigerator door handle mounting bolt

Part #4620JJ2010C

Replaced by #MJB63190001

?
Manufacturer substitution
This part replaces 4620JJ2010C. Substitute parts can look different from the original.
BEST SELLER
$8.77 |
10% OFF Phone Price : $9.77
In Stock
Refrigerator Door Bin MAN61844401
#241J

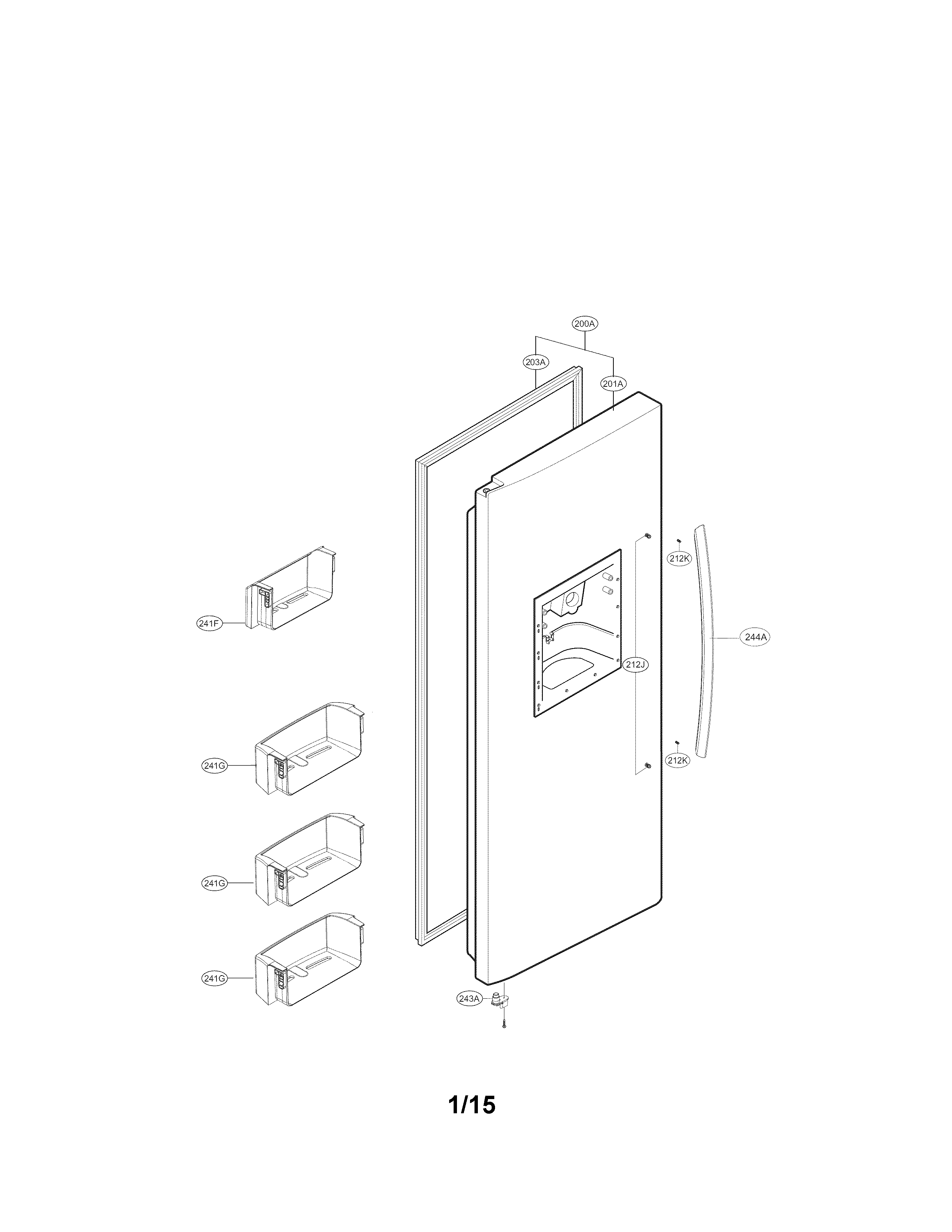

Refrigerator door parts diagram

Refrigerator door bin

Part #MAN61844401

BEST SELLER
$75.32 |
7% OFF Phone Price : $81.32
In Stock
