Tappan
Gas Range

Model # 30-2139-00-01 Official Tappan gas range - lt32490050

Here are the diagrams and repair parts for Official Tappan 30-2139-00-01 gas range - lt32490050, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

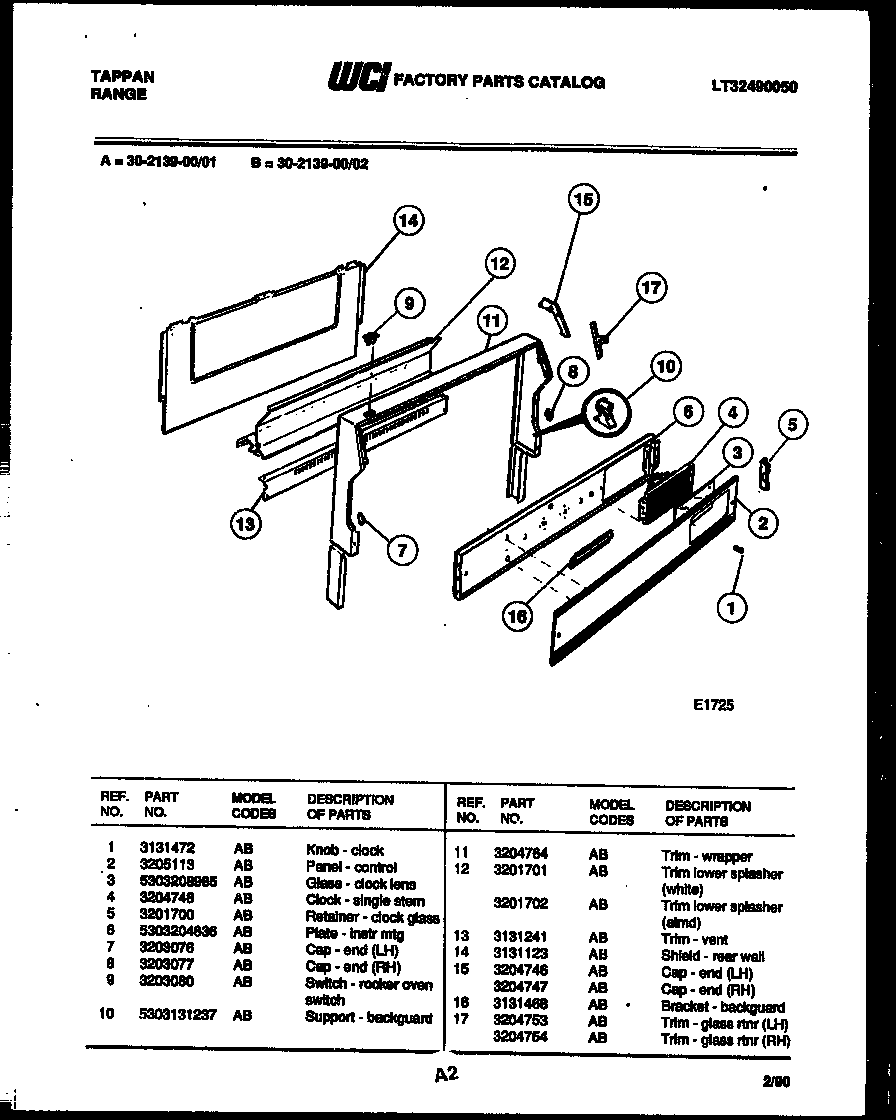

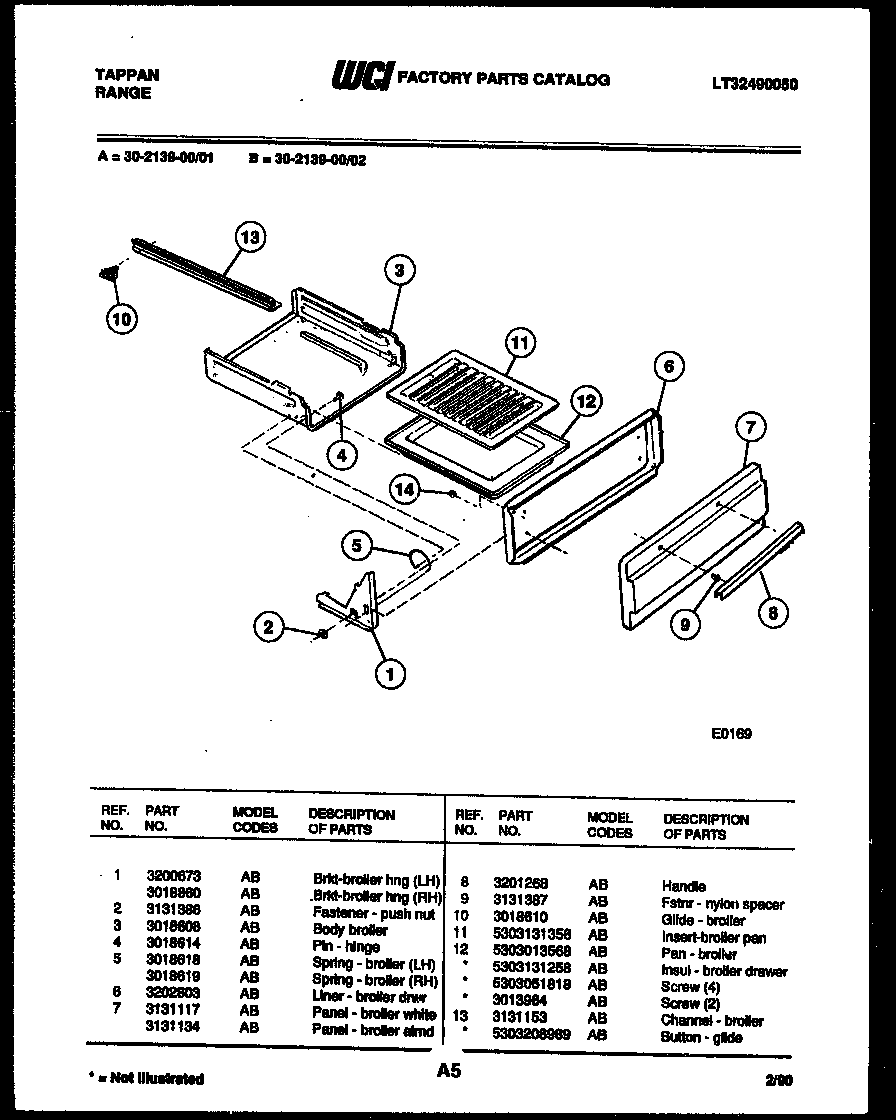

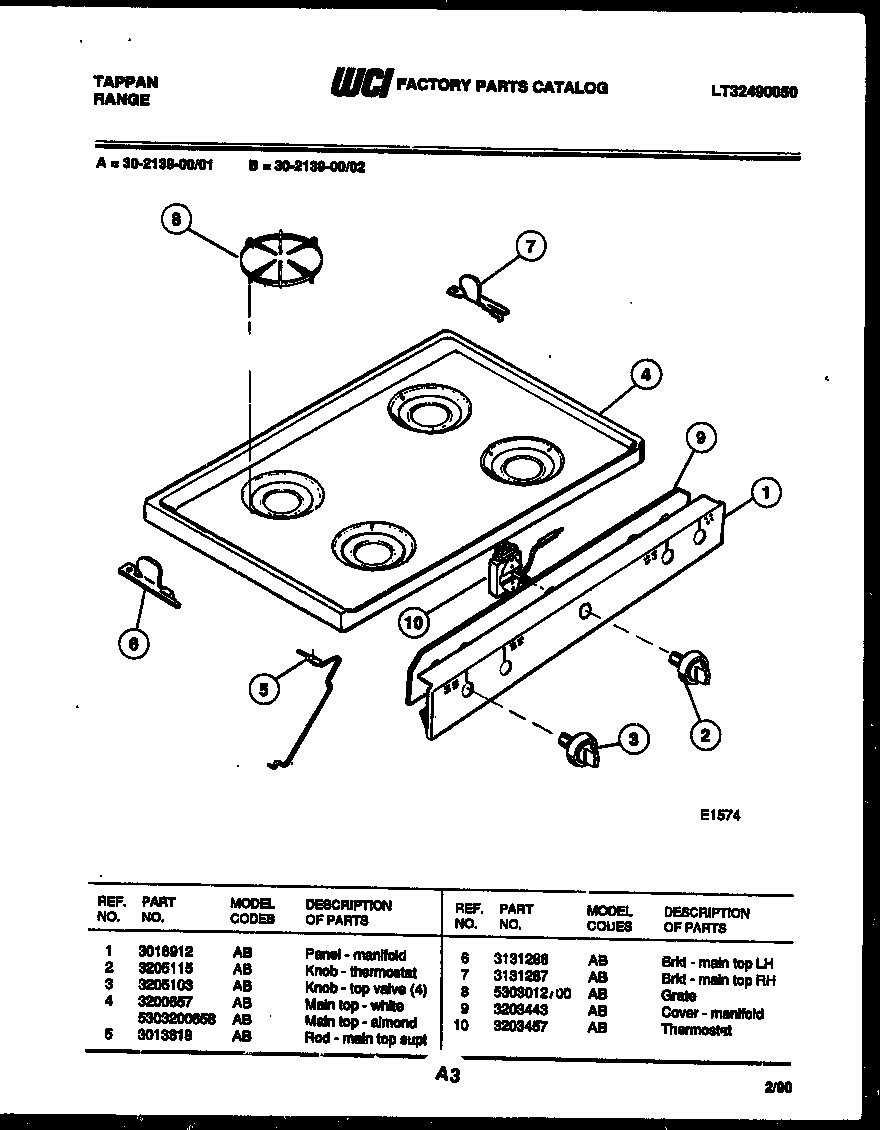

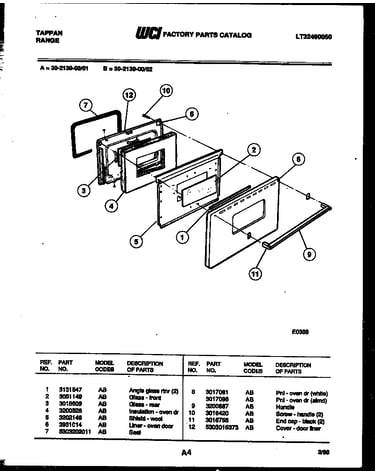

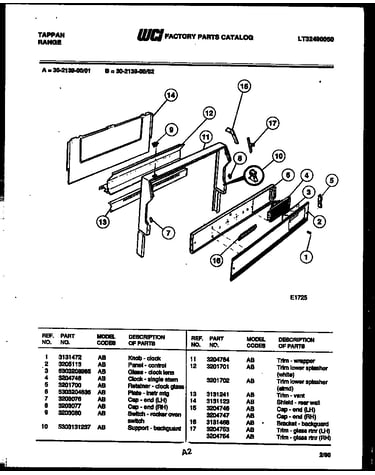

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Igniter 5303131300
#13

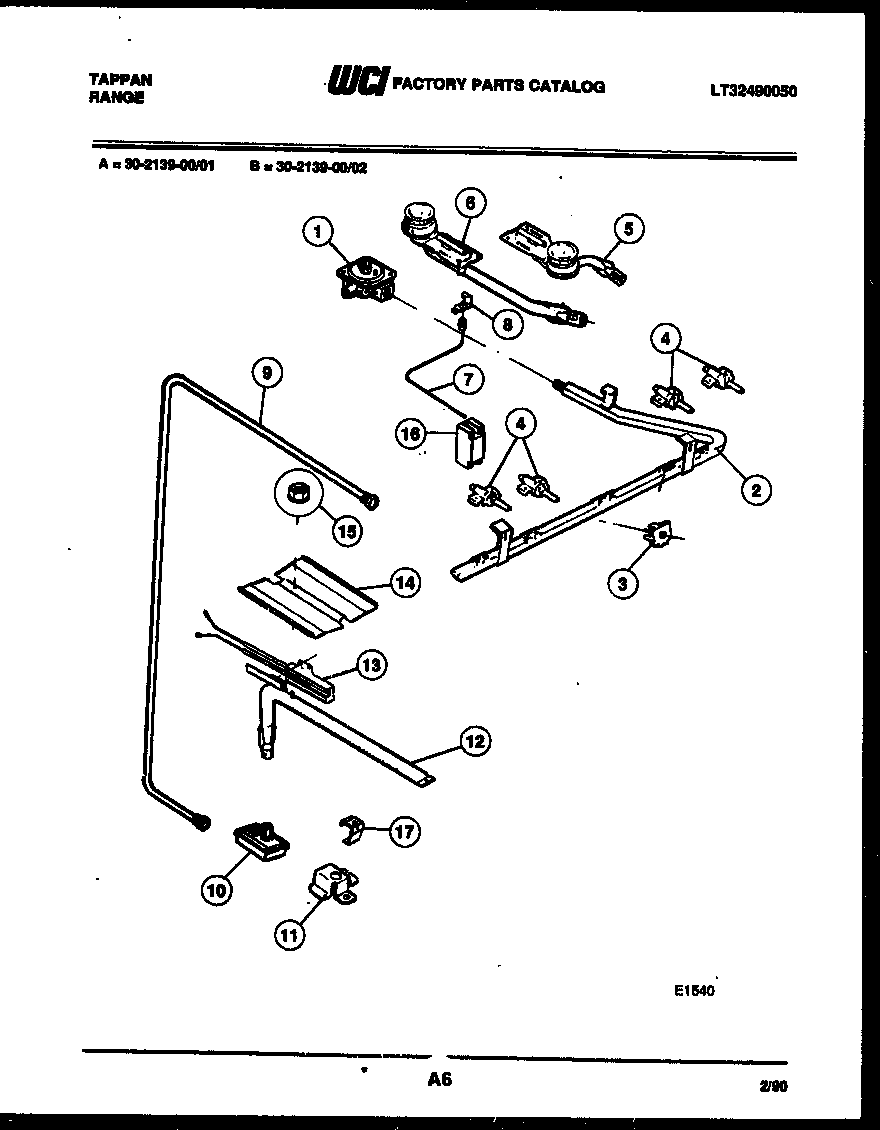

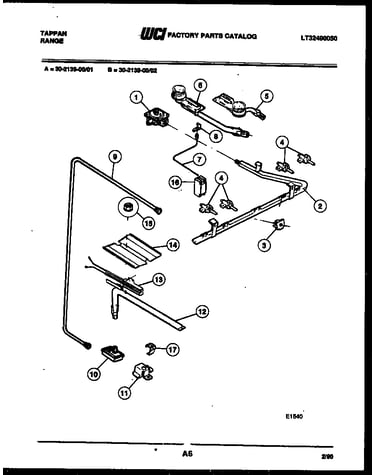

Burner, manifold and gas control diagram

Igniter

Part #5303131300

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5303131300. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Range Oven Light Bulb 5303013071
#4

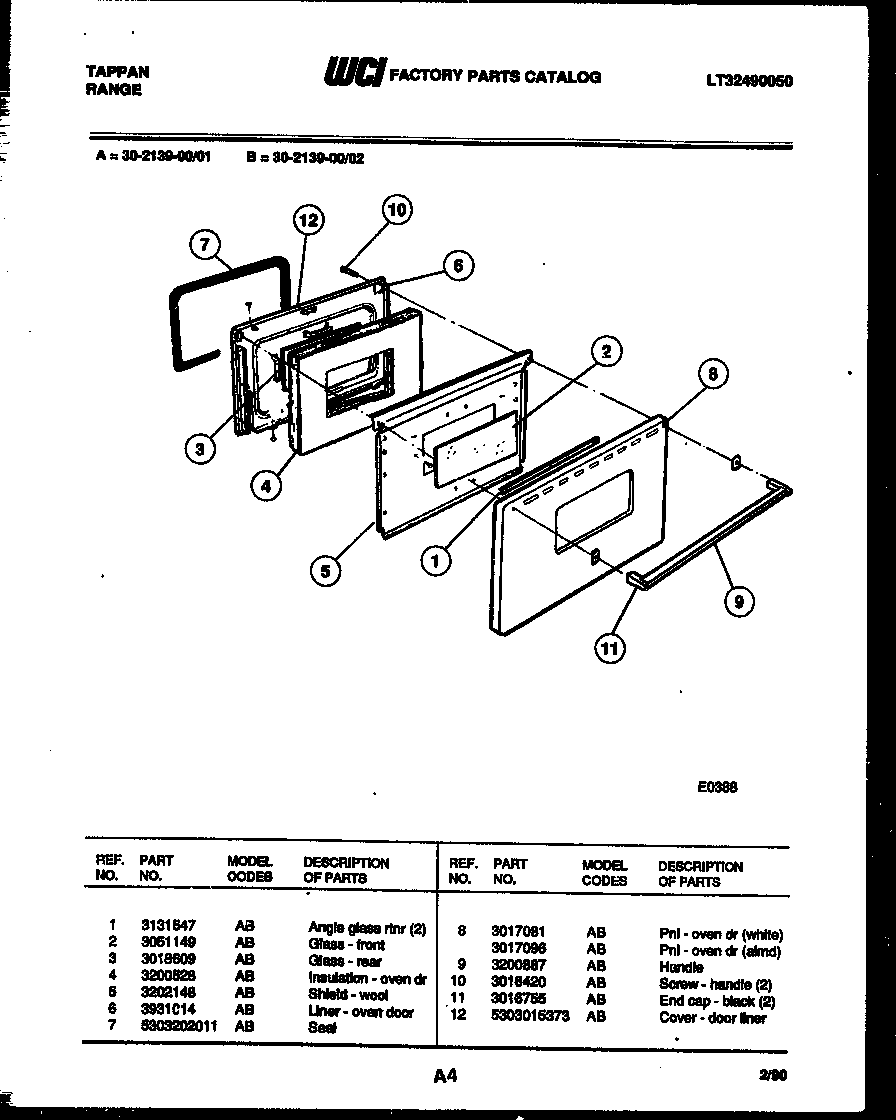

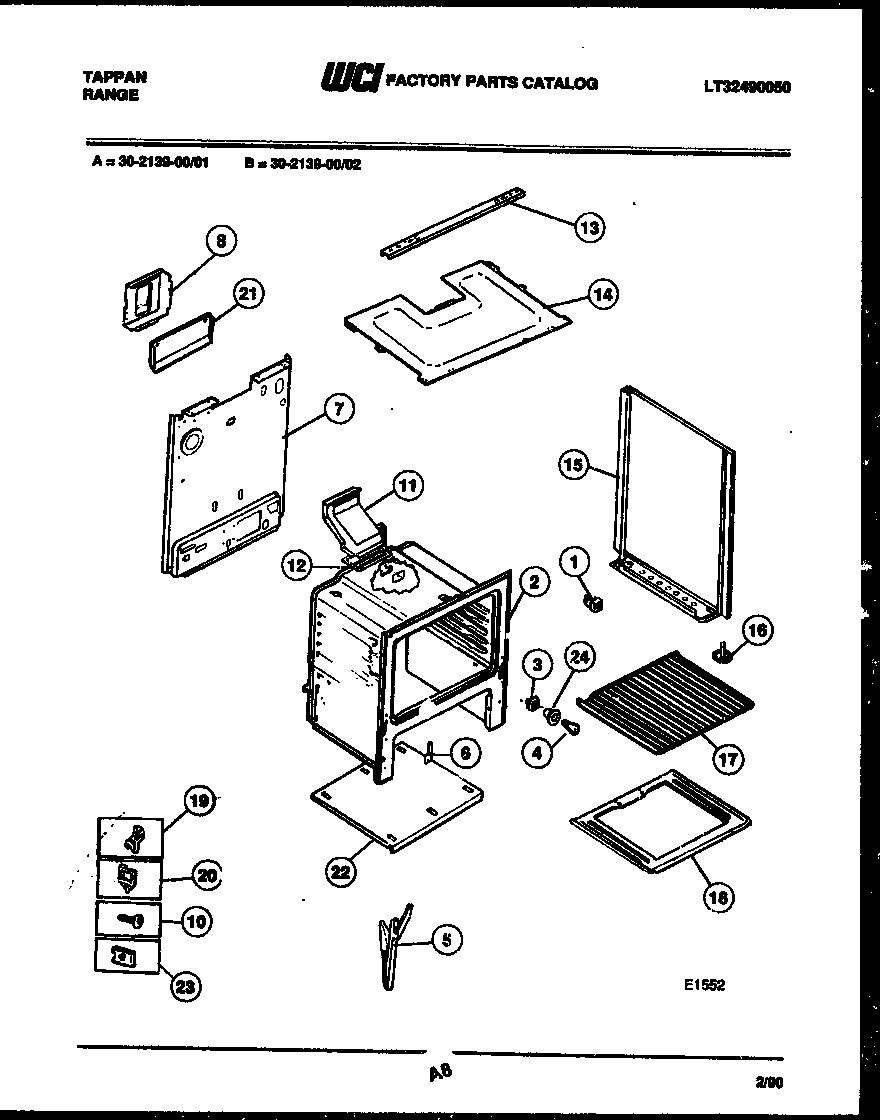

Body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Socket 3014073
#3

Body parts diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Hex Nut 5303013272
#15

Burner, manifold and gas control diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Burner 3204960
#6

Burner, manifold and gas control diagram

Burner

Part #3204960

Replaced by #5304506426

?
Manufacturer substitution
This part replaces 3204960. Substitute parts can look different from the original.
$74.99 |
7% OFF Phone Price : $80.99
In Stock
Range Screw 3131732
#10

Body parts diagram

Range screw

Part #3131732

Replaced by #316282700

?
Manufacturer substitution
This part replaces 3131732. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Module 5303200669
#16

Burner, manifold and gas control diagram

Module

Part #5303200669

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 5303200669. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Range Surface Burner Igniter Retainer 3016993
#8

Burner, manifold and gas control diagram

Range surface burner igniter retainer

Part #3016993

$63.18
In Stock
Clip 5303011805
#19

Body parts diagram

Clip

Part #5303011805

Replaced by #5303284616

?
Manufacturer substitution
This part replaces 5303011805. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Range Oven Gas Valve (replaces 316066400, 3201101, 5303131449) 3203459
#10

Burner, manifold and gas control diagram

Range oven gas valve (replaces 316066400, 3201101, 5303131449)

Part #3203459

$241.89 |
5% OFF Phone Price : $253.89
In Stock
