Model # DWU5902AAE Official Maytag dishwasher
Here are the diagrams and repair parts for Official Maytag DWU5902AAE dishwasher, as well as links to manuals and error code tables, if available.

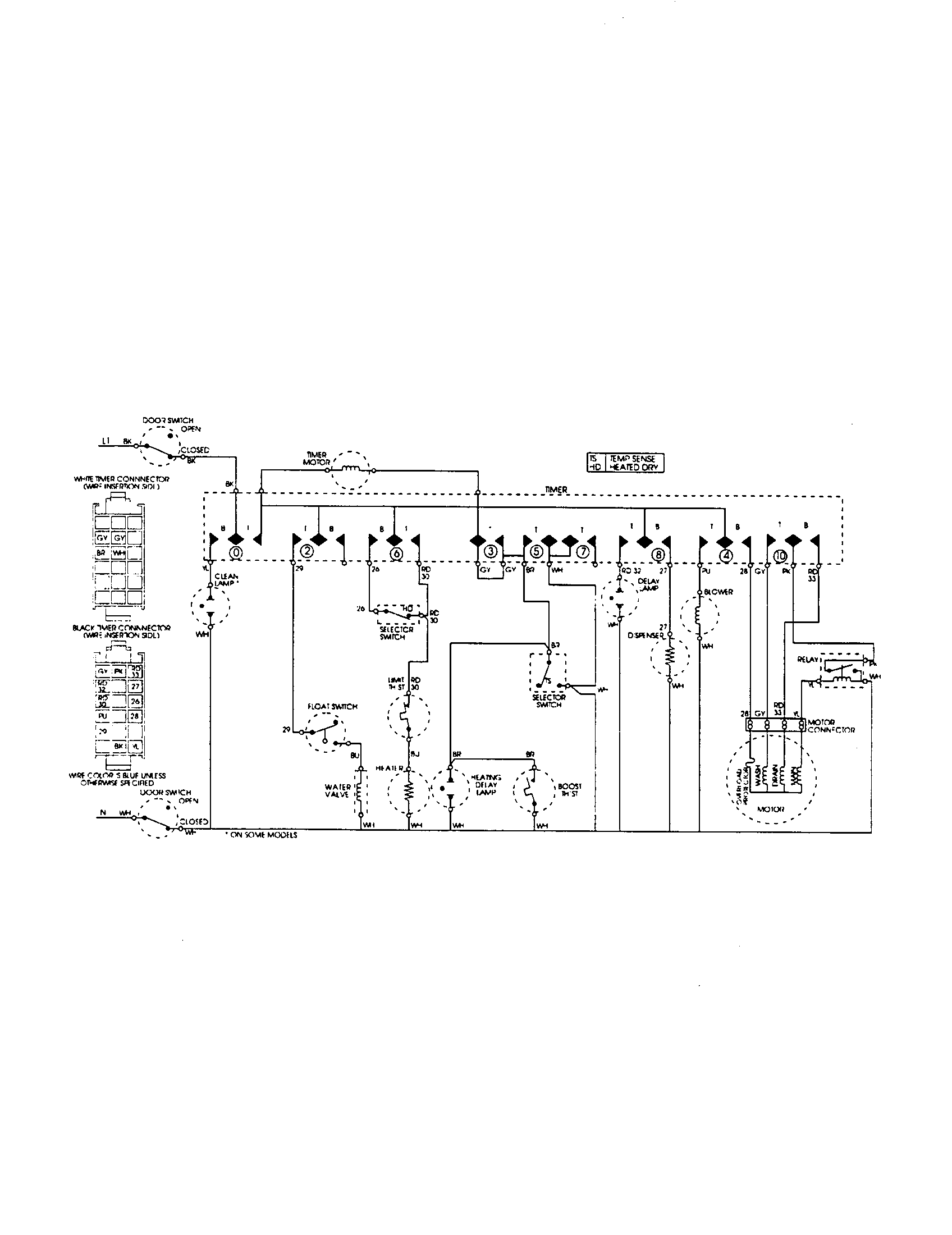

Owner’s manualBy Schematic
By Part

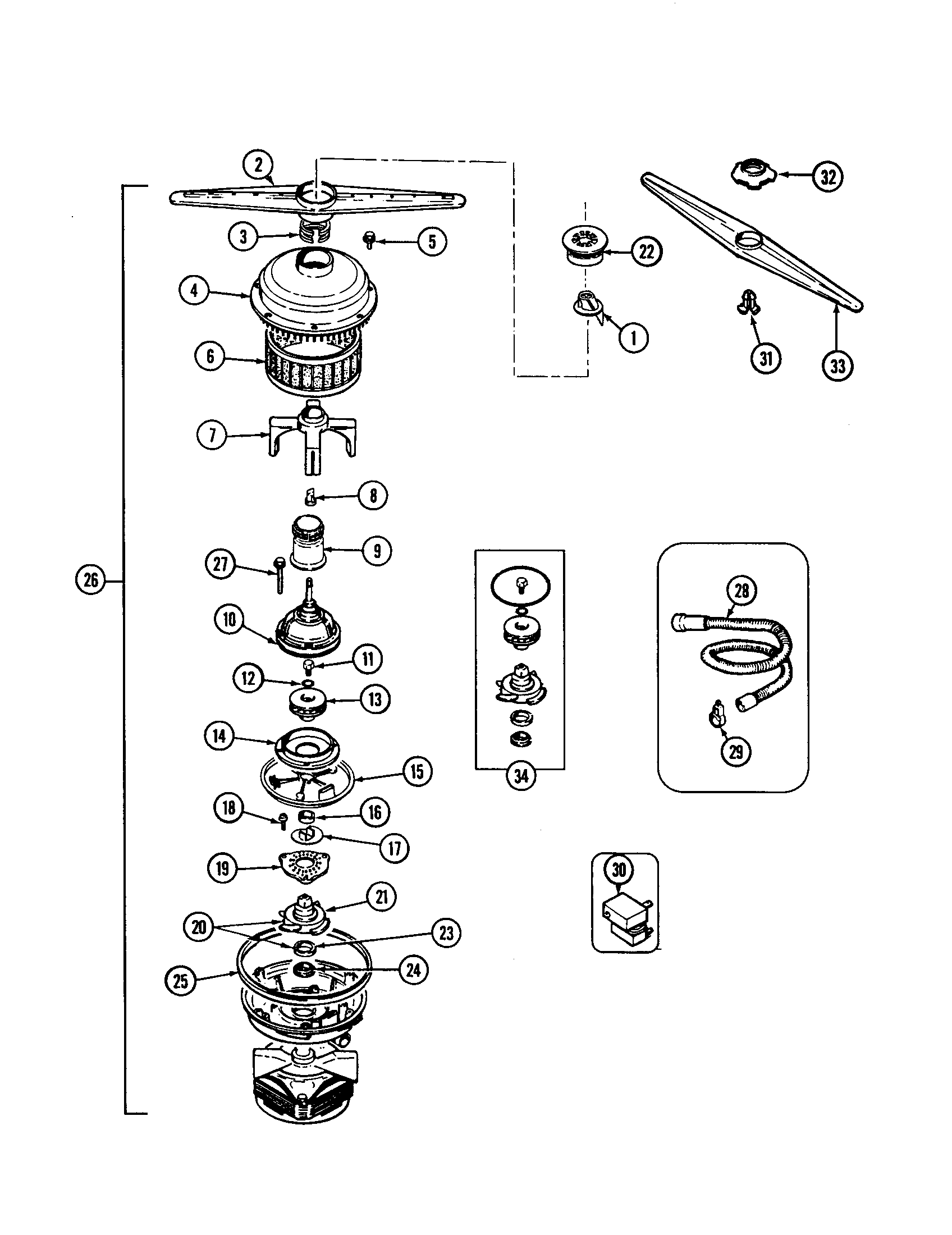

SELECT DIAGRAM
Browse Parts forDWU5902AAE Dishwasher
- #3

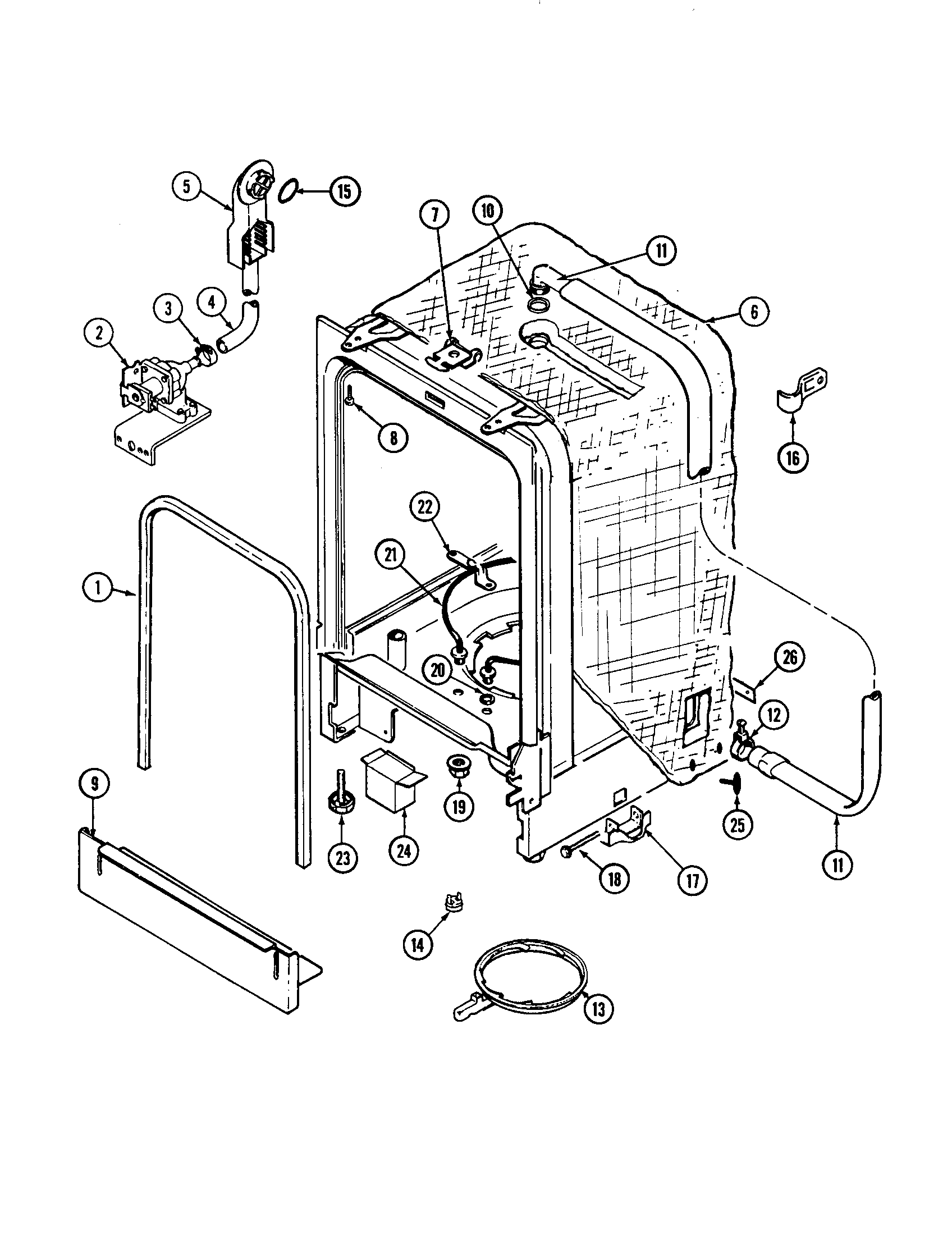

Tub diagram
Clamp springPart #911856
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 911856. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #1
Tub diagram
Dishwasher door sealPart #902894
Replaced by #WP902894
?Manufacturer substitutionThis part replaces 902894. Substitute parts can look different from the original.$53.39 |10% OFF Phone Price : $59.39In Stock - #6

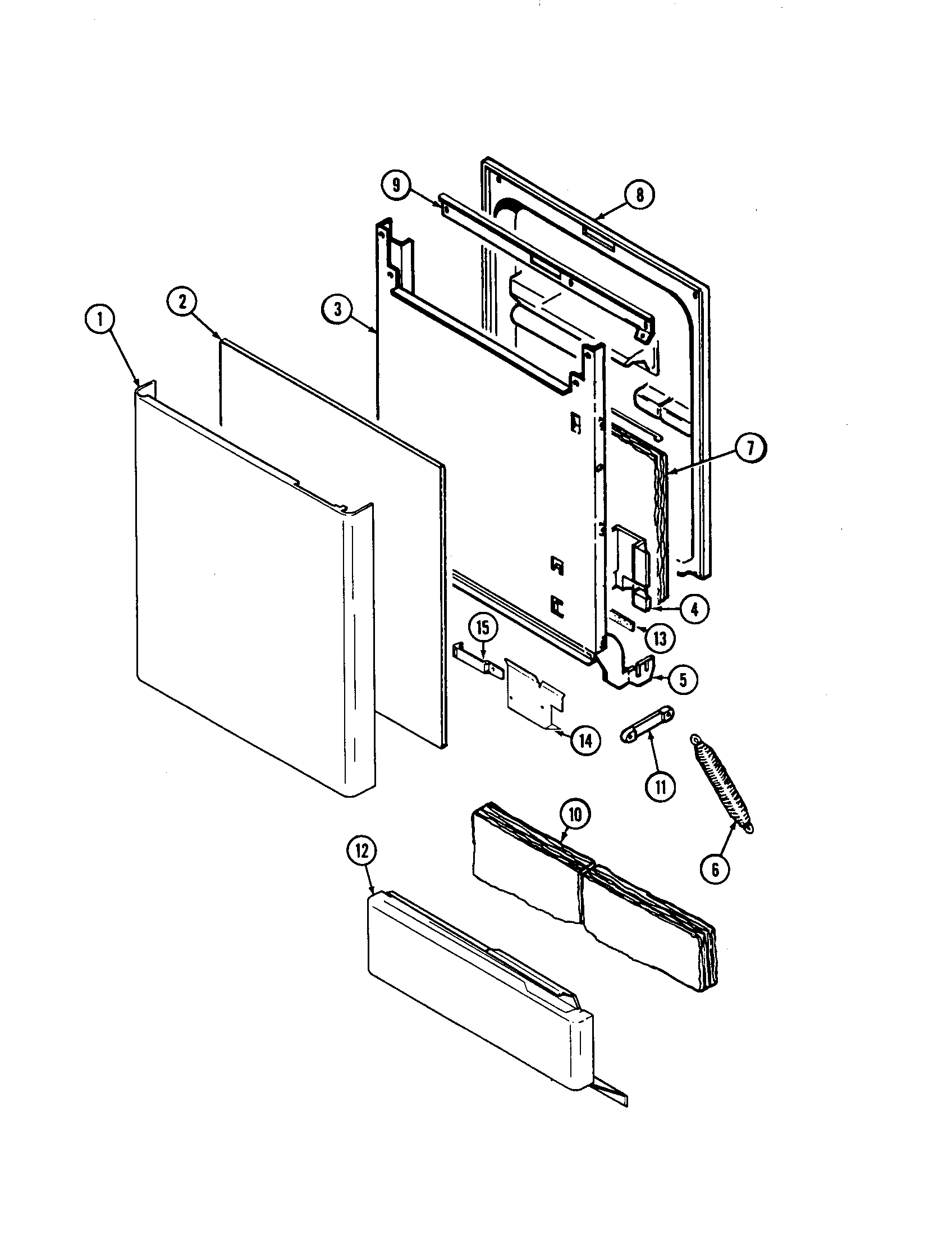

Door diagram
Dishwasher door springPart #912652
Replaced by #WP912652
?Manufacturer substitutionThis part replaces 912652. Substitute parts can look different from the original.This item is not returnable$7.78 |11% OFF Phone Price : $8.78In Stock - #3

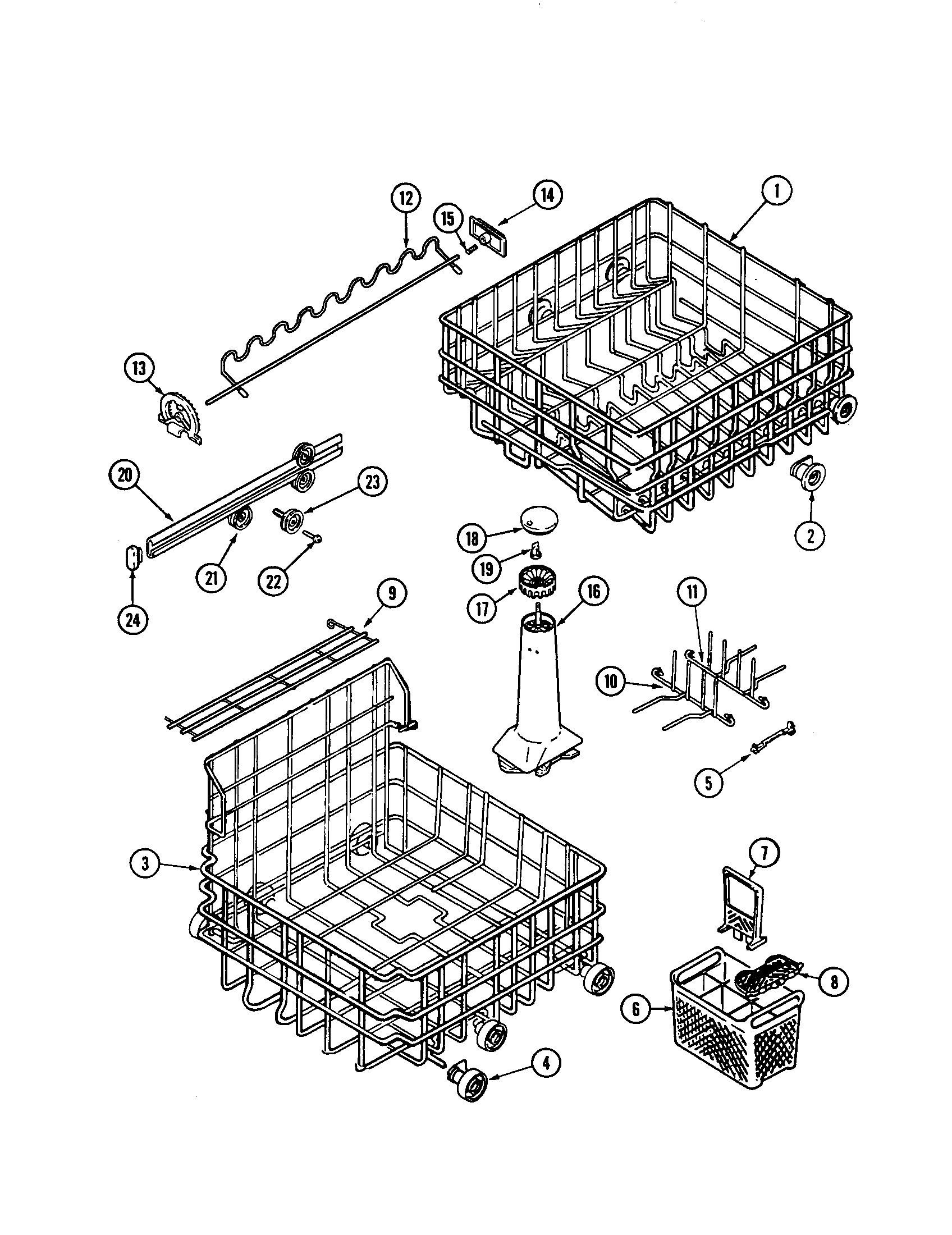

Track and racks diagram
RackPart #99001487
Replaced by #W10139223
?Manufacturer substitutionThis part replaces 99001487. Substitute parts can look different from the original.$238.14 |5% OFF Phone Price : $250.14In Stock - #10

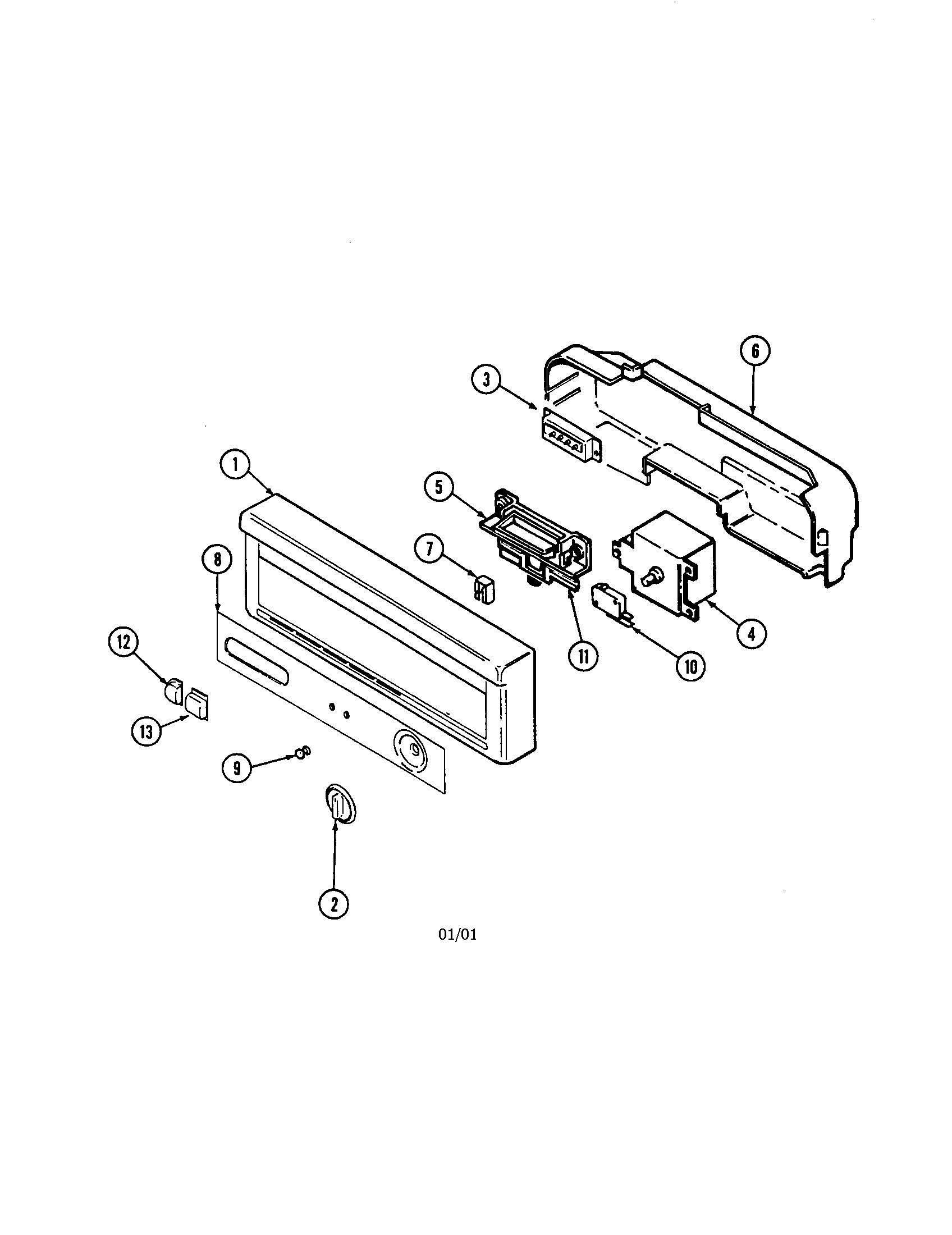

Control panel diagram
Door switchPart #903086
Replaced by #99002254
?Manufacturer substitutionThis part replaces 903086. Substitute parts can look different from the original.$62.45 |9% OFF Phone Price : $68.45In Stock - #5
Control panel diagram
Door holderPart #99001077
Replaced by #99002254
?Manufacturer substitutionThis part replaces 99001077. Substitute parts can look different from the original.$62.45 |9% OFF Phone Price : $68.45In Stock - Plate screw
Part #912365
Replaced by #WP489128
?Manufacturer substitutionThis part replaces 912365. Substitute parts can look different from the original.This item is not returnable$8.12 |11% OFF Phone Price : $9.12In Stock - #24
Track and racks diagram
Rack stopPart #912546
Replaced by #WP99002135
?Manufacturer substitutionThis part replaces 912546. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock - #1

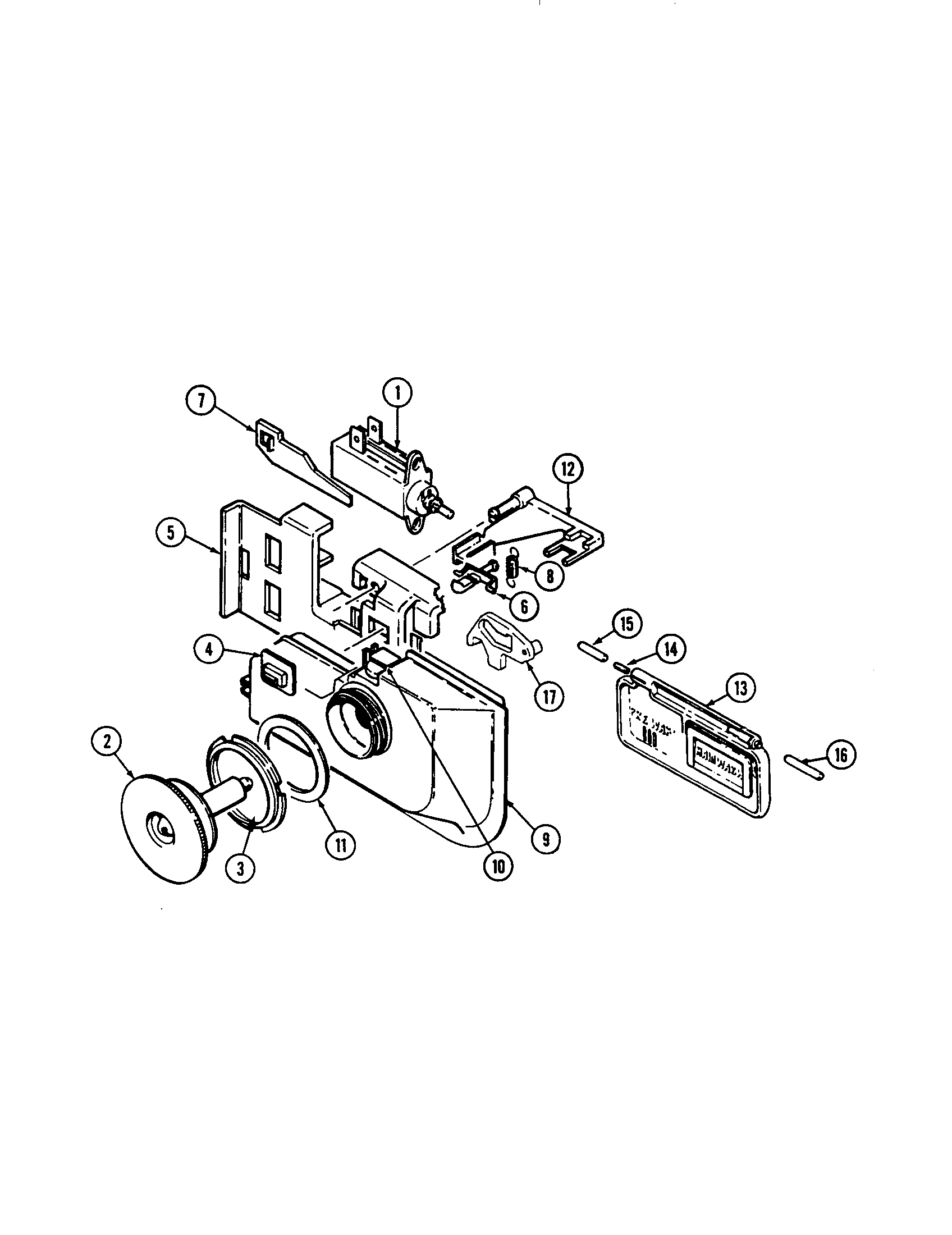

Rinse aid and soap dispenser diagram
Wax motorPart #902899
Replaced by #WP902899
?Manufacturer substitutionThis part replaces 902899. Substitute parts can look different from the original.$52.20 |10% OFF Phone Price : $58.20In Stock - Wire tie
Part #912266
Replaced by #WPW10339879
?Manufacturer substitutionThis part replaces 912266. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: broken door spring, damaged or broken door hinge…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main cause: damaged rack height adjuster…
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
Most common repair guides to help fix your dishwashers
These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.
How to replace a dishwasher door latch assembly
If the dishwasher door doesn't click shut, a broken door latch is a likely cause. Follow these instructions to replace i…
Repair difficulty
Time required
30 minutes or less
How to replace a dishwasher user interface control
The user interface control houses the selection buttons and display. If it fails, you can't select the cycle and setting…
Repair difficulty
Time required
30 minutes or less
How to replace a dishwasher thermal fuse
A completely dead control panel often indicates that the thermal fuse on the electronic control board is blown; follow t…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your dishwashers
Use the advice and tips in these articles and videos to get the most out of your dishwasher.
It could be a failed door switch, overfill float switch or water inlet valve. See how to test them.…
Find out how to clean and flush household appliances once a boil water advisory is lifted.…
See how easy replacing a broken upper dishrack roller is in this short video.…
