Craftsman
Air Compressor

Model # 10217321 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 10217321 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Air Compressor Low-pressure Valve 47974
#9

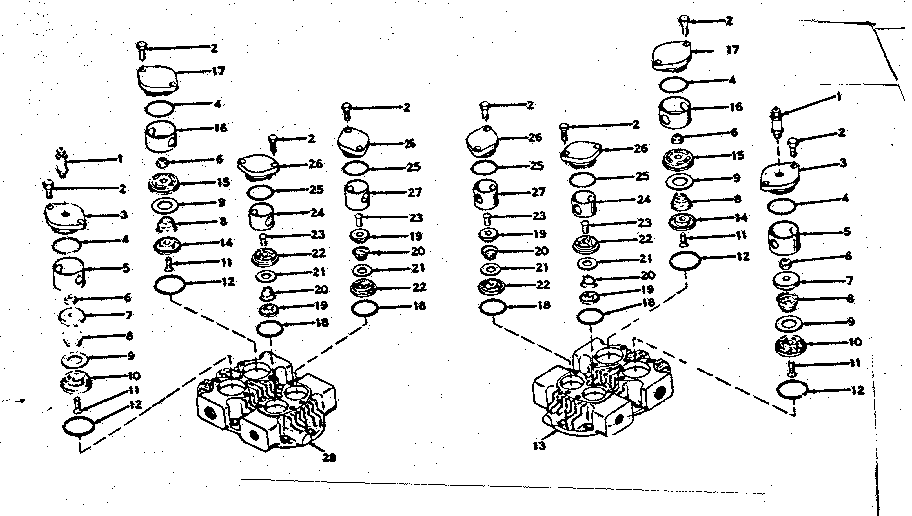

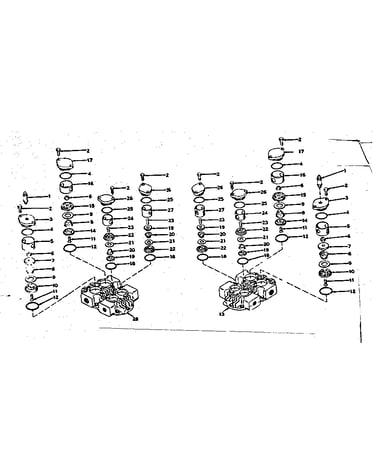

Cylinder/valve assembly diagram

Air compressor low-pressure valve

Part #47974

The manufacturer no longer makes this part, and there's no substitute part

Piston 47944
#14

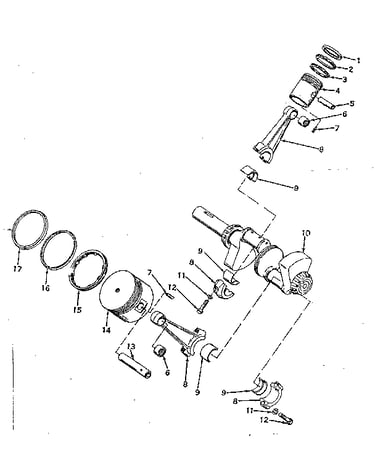

Crankshaft and cone assembly diagram

Piston

Part #47944

The manufacturer no longer makes this part, and there's no substitute part

Side Plate 48331
#20

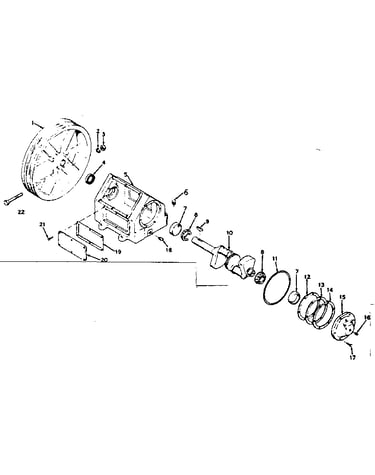

Flywheel/ base and cup assembly diagram

Side plate

Part #48331

The manufacturer no longer makes this part, and there's no substitute part

Intercooler 48287
#20

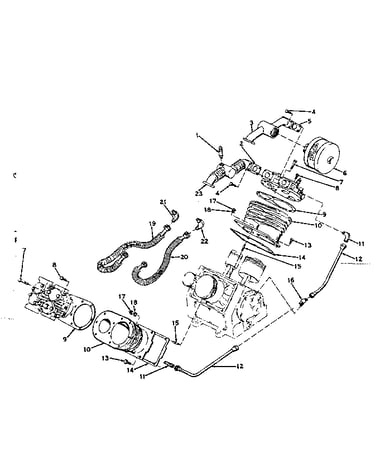

Manifold and muffler assembly diagram

Intercooler

Part #48287

The manufacturer no longer makes this part, and there's no substitute part

Tube 47175
#14

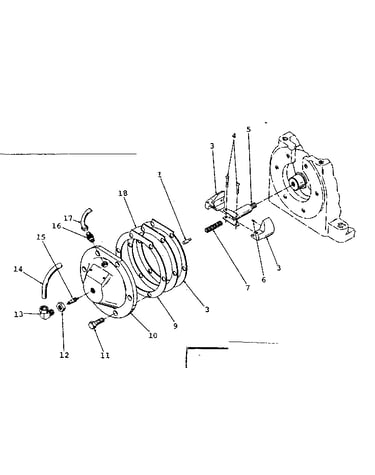

Centrifugal unloader diagram

Tube

Part #47175

The manufacturer no longer makes this part, and there's no substitute part

Gasket 47939
#9

Manifold and muffler assembly diagram

Gasket

Part #47939

The manufacturer no longer makes this part, and there's no substitute part

Piston Assembly 48176

#NI

All parts diagram

Piston assembly

Part #48176

The manufacturer no longer makes this part, and there's no substitute part

Manifold 48307
#3

Manifold and muffler assembly diagram

Manifold

Part #48307

The manufacturer no longer makes this part, and there's no substitute part

Body 38854
#5

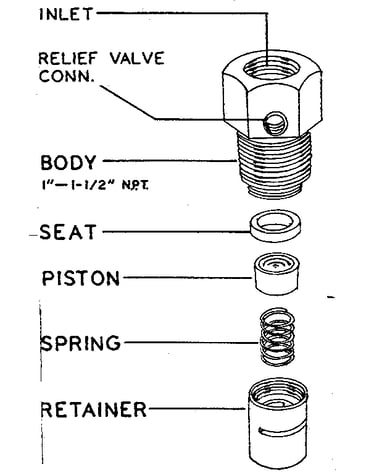

Check valve diagram

Body

Part #38854

The manufacturer no longer makes this part, and there's no substitute part

Connecting Rod 48284
#8

Crankshaft and cone assembly diagram

Connecting rod

Part #48284

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your air compressors

Choose a symptom to see related air compressor repairs.

View all

Why does air leak from my air compressor?

Main causes: loose air tube fitting connections, bad check valve, faulty safety valve, damaged or corroded air tank, bad…

Read more

Why won't my air compressor start with a full air tank?

Main cause: bad check valve…

Read more

Why won't my air compressor build tank pressure?

Main causes: tank drain valve open or leaking air, leaky air tank, bad safety valve, worn pump seals, bad pump valve pla…

Read more

Why won't my air compressor tank hold air?

Main causes: rusted air tank, loose air tube fitting connections, bad check valve, leaky safety valve, bad tank drain va…

Read more

Why does my air compressor safety valve keep popping open?

Main causes: bad safety valve, pressure switch failure…

Read more

Why can't I adjust the output air pressure on my air compressor?

Main cause: faulty output air pressure regulator…

Read more

Why doesn't my air compressor's pressure gauge work?

Main cause: bad air tank pressure gauge…

Read more

Why is my air compressor not turning on?

Main causes: lack of electrical power, check valve failure, bad pressure switch…

Read more

Most common repair guides to help fix your air compressors

These step-by-step repair guides will help you safely fix what’s broken on your air compressor.

View all
How to replace an air compressor pressure switch

How to replace an air compressor pressure switch

You can replace a broken air compressor pressure switch in about 45 minutes. …

Read more
Repair difficulty
Time required
 45 minutes or less
How to rebuild an air compressor pump

How to rebuild an air compressor pump

If the air compressor won't fill the tank with compressed air, rebuild the pump using these steps in about 45 minutes. …

Read more
Repair difficulty
Time required
 45 minutes or less
How to replace an air compressor check valve

How to replace an air compressor check valve

You can replace a defective air compressor check valve in about 10 minutes.…

Read more
Repair difficulty
Time required
 15 minutes or less
