Model # KWVU205YBA0 Official KitchenAid range hood
Here are the diagrams and repair parts for Official KitchenAid KWVU205YBA0 range hood, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

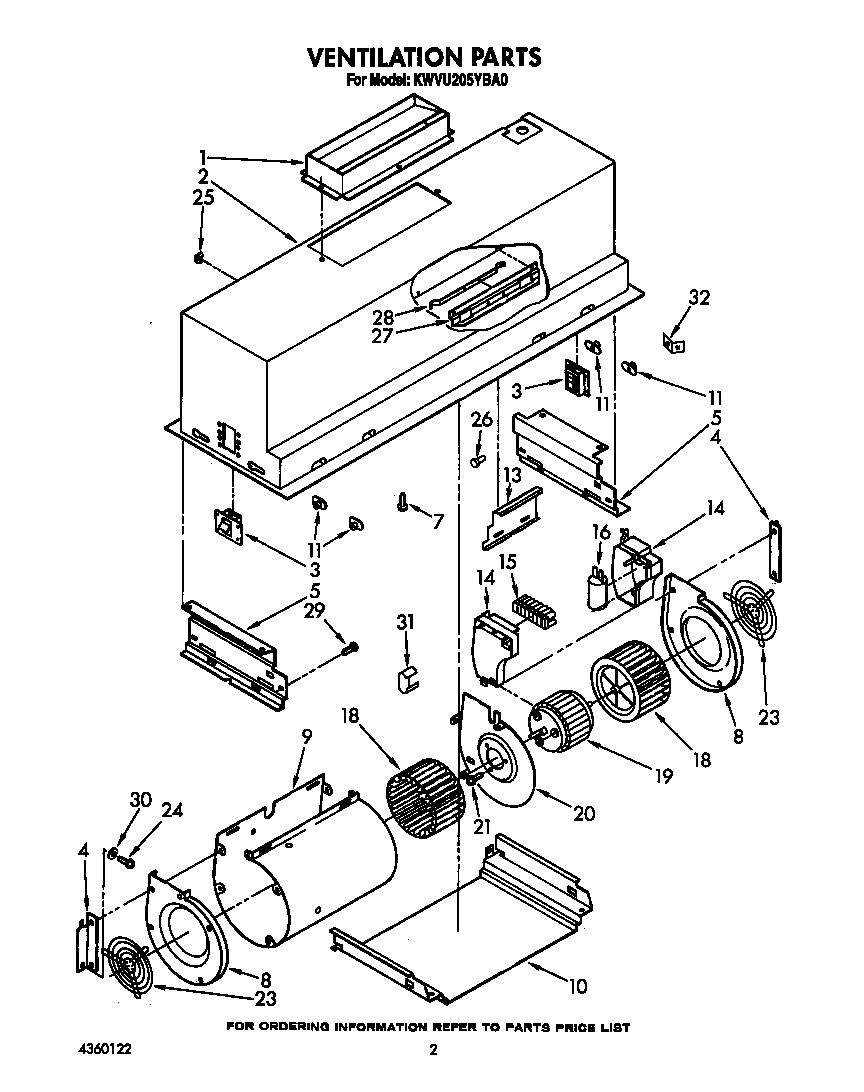

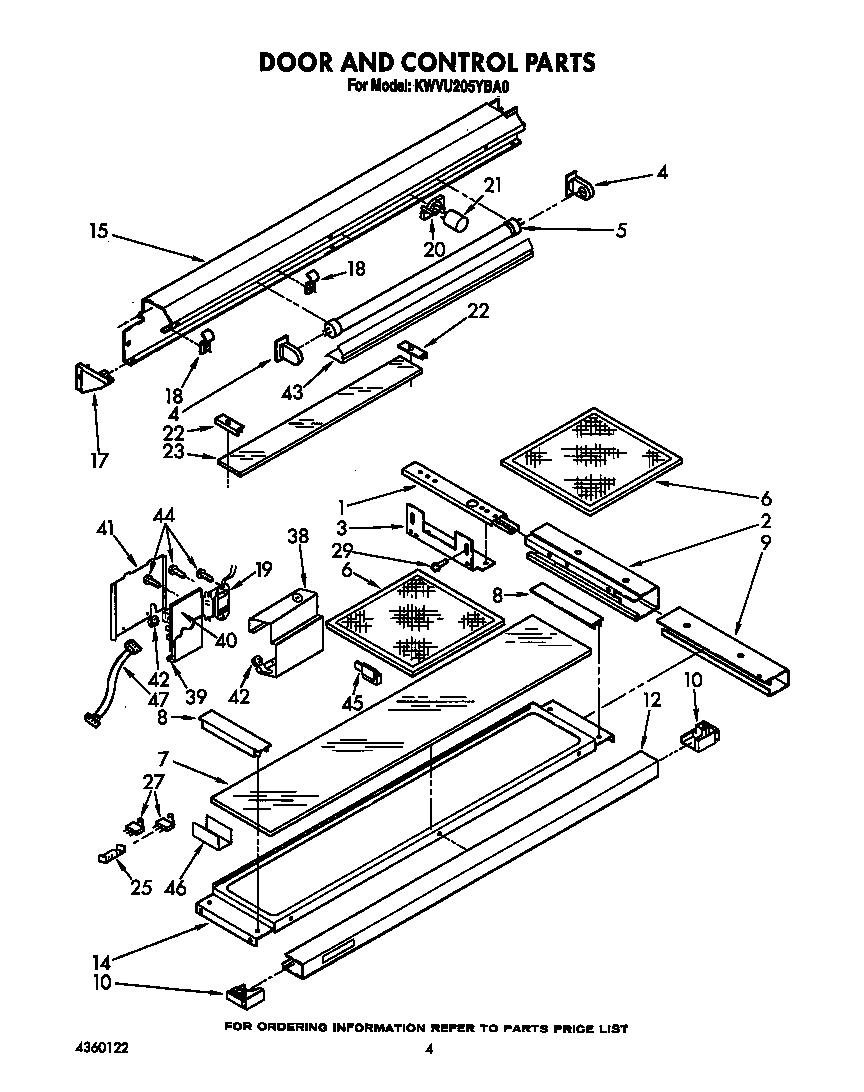

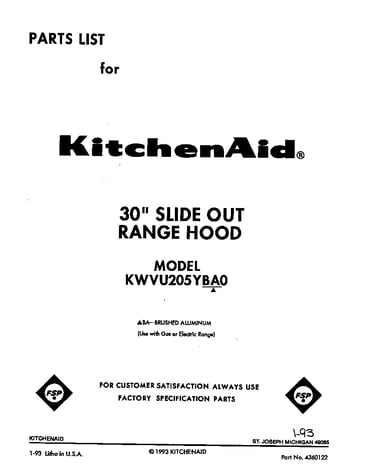

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 84 parts |
Screw
Part #4360089
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 4360089. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Switch
Part #4360035
Replaced by #WPW10240604
?
Manufacturer substitution
This part replaces 4360035. Substitute parts can look different from the original.
$112.24 |
10% OFF Phone Price : $124.24
In Stock
Screw
Part #4360050
Replaced by #4344826
?
Manufacturer substitution
This part replaces 4360050. Substitute parts can look different from the original.
$12.49
In Stock
Range hood blower wheel
Part #4360055
Replaced by #W10500696
?
Manufacturer substitution
This part replaces 4360055. Substitute parts can look different from the original.
$73.80
In Stock
Spring
Part #4360107
Replaced by #WPW10370009
?
Manufacturer substitution
This part replaces 4360107. Substitute parts can look different from the original.
$294.69 |
$12.00 OFF Phone Price : $306.69
In Stock
Grease filter
Part #4360015
Replaced by #WPW10370046
?
Manufacturer substitution
This part replaces 4360015. Substitute parts can look different from the original.
$104.74 |
10% OFF Phone Price : $116.74
In Stock
Housing panel
Part #4360109
Replaced by #WPW10370009
?
Manufacturer substitution
This part replaces 4360109. Substitute parts can look different from the original.
$294.69 |
$12.00 OFF Phone Price : $306.69
In Stock
Glass
Part #4360076
Replaced by #WPW10369939
?
Manufacturer substitution
This part replaces 4360076. Substitute parts can look different from the original.
$102.18
In Stock
Frame switch
Part #4360111
Replaced by #WPW10370009
?
Manufacturer substitution
This part replaces 4360111. Substitute parts can look different from the original.
$294.69 |
$12.00 OFF Phone Price : $306.69
In Stock
Spring
Part #4360072
Replaced by #WPW10349738
?
Manufacturer substitution
This part replaces 4360072. Substitute parts can look different from the original.
$131.64
In Stock
