GE
Electric Wall Oven

Model # JRP14G*06 Official GE electric wall oven

Here are the diagrams and repair parts for Official GE JRP14G06 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Range Bake Element (replaces Wb44x0200, Wb44x160) WB44X200
#650

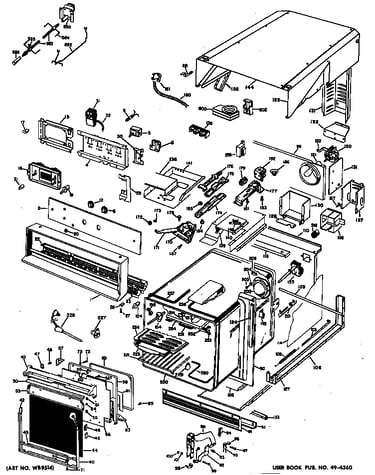

Oven diagram

Range bake element (replaces wb44x0200, wb44x160)

Part #WB44X200

BEST SELLER
$50.40 |
11% OFF Phone Price : $56.40
Back Order
Range Oven Light Lens (replaces Wb2x6211, Wb36x0192, Wb36x279, Wb36x299, Wb36x389, Wb8k5) WB36X192
#523

Oven diagram

Range oven light lens (replaces wb2x6211, wb36x0192, wb36x279, wb36x299, wb36x389, wb8k5)

Part #WB36X192

This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Screw WB1X536
#0C

Oven diagram

Range screw

Part #WB1X536

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer WB1X119
#362

Oven diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Screw WB1X537
#459

Oven diagram

Screw

Part #WB1X537

$8.11
In Stock
Door Gasket WB2X2940
#352

Oven diagram

Door gasket

Part #WB2X2940

Replaced by #WB2X3138

?
Manufacturer substitution
This part replaces WB2X2940. Substitute parts can look different from the original.
$120.27 |
9% OFF Phone Price : $132.27
In Stock
Broil Pan Rack WB48X5002
#530

Oven diagram

Broil pan rack

Part #WB48X5002

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X5002. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Timer WB19X5231
#16

Oven diagram

Timer

Part #WB19X5231

Replaced by #WB19X10006

?
Manufacturer substitution
This part replaces WB19X5231. Substitute parts can look different from the original.
$231.84 |
5% OFF Phone Price : $243.84
In Stock
Broil Unit WB44X185
#651

Oven diagram

Broil unit

Part #WB44X185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Broiler Pan WB49X88
#529

Oven diagram

Broiler pan

Part #WB49X88

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X88. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
