Model # FCFS201LFB4 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FCFS201LFB4 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Filter Drier 216938601
#4

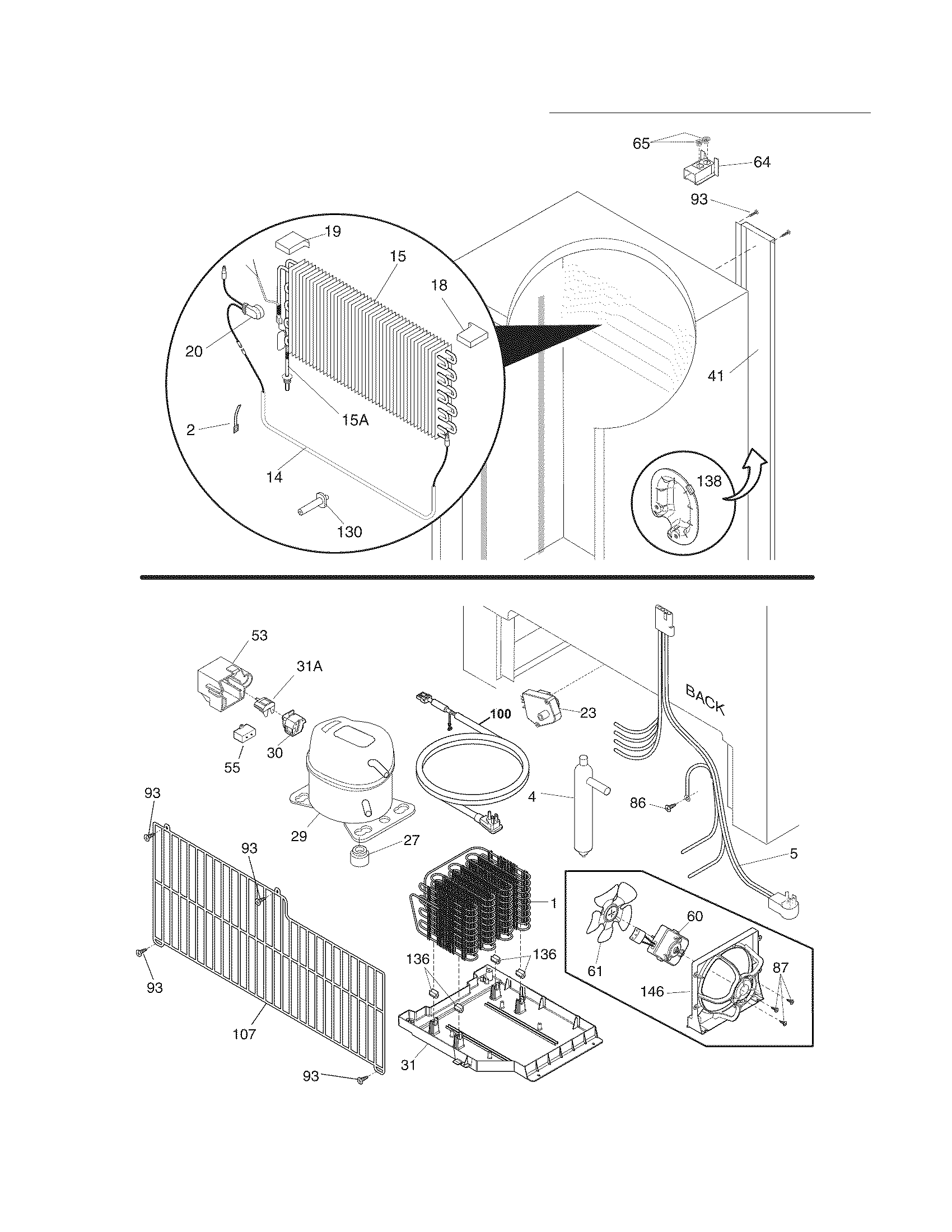

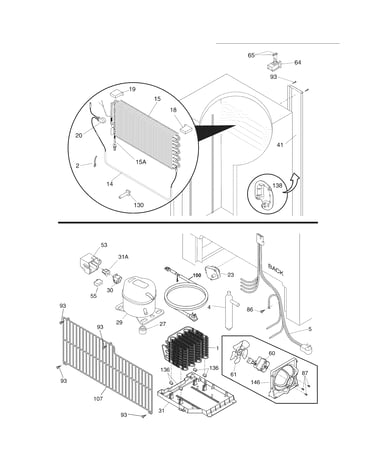

System diagram

Filter drier

Part #216938601

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938601. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Defrost Timer 297318010
#23

System diagram

Freezer defrost timer

Part #297318010

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 297318010. Substitute parts can look different from the original.
BEST SELLER
$45.98 |
12% OFF Phone Price : $51.98
In Stock
Freezer Evaporator Fan Motor 297250000
#13

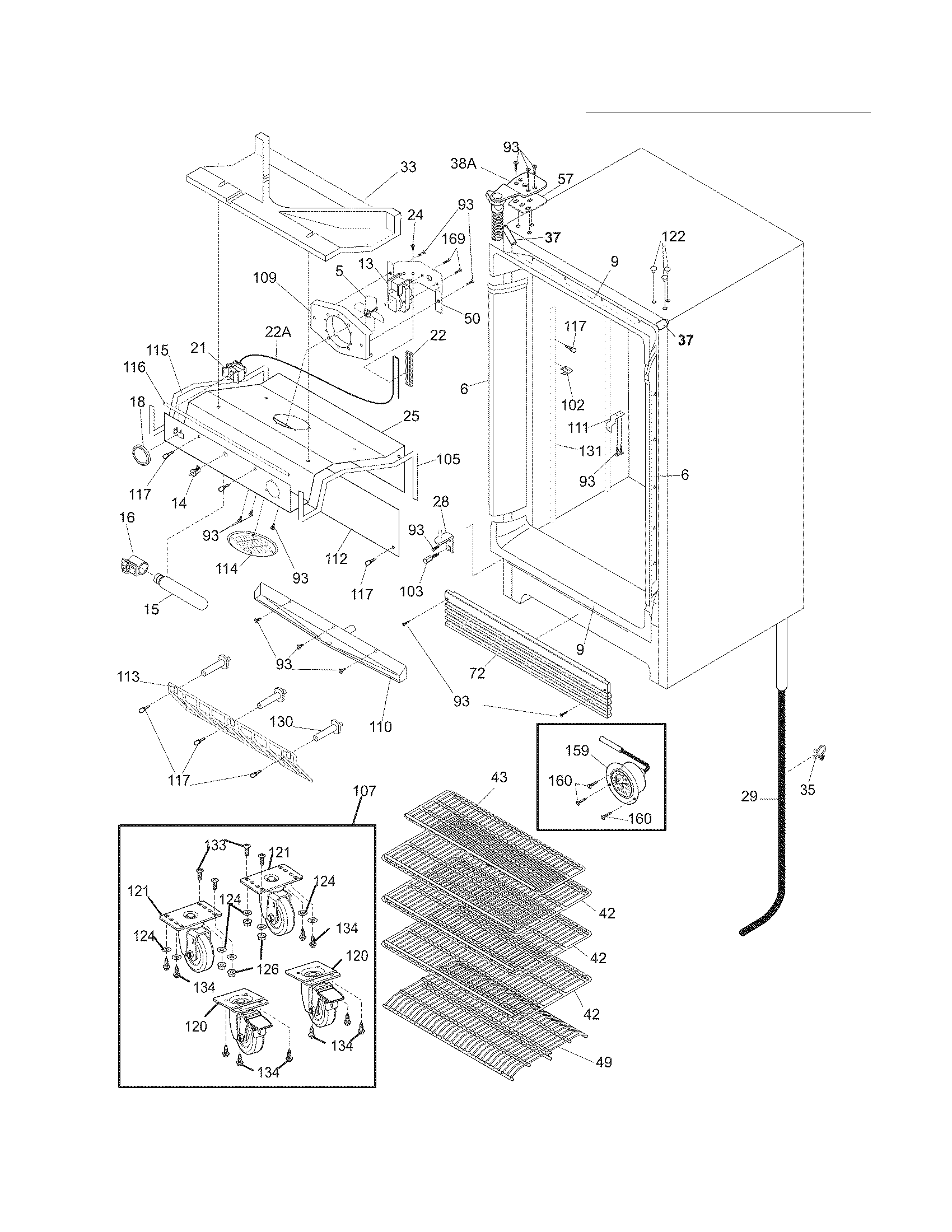

Cabinet diagram

Freezer evaporator fan motor

Part #297250000

Replaced by #297309000

?
Manufacturer substitution
This part replaces 297250000. Substitute parts can look different from the original.
BEST SELLER
$58.41 |
9% OFF Phone Price : $64.41
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigeration Appliance Defrost Bi-metal Thermostat (replaces 216872200, 218969901, 7216872200) 297216600
#20

System diagram

Refrigeration appliance defrost bi-metal thermostat (replaces 216872200, 218969901, 7216872200)

Part #297216600

BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Universal/multiflex (frigidaire) Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#80

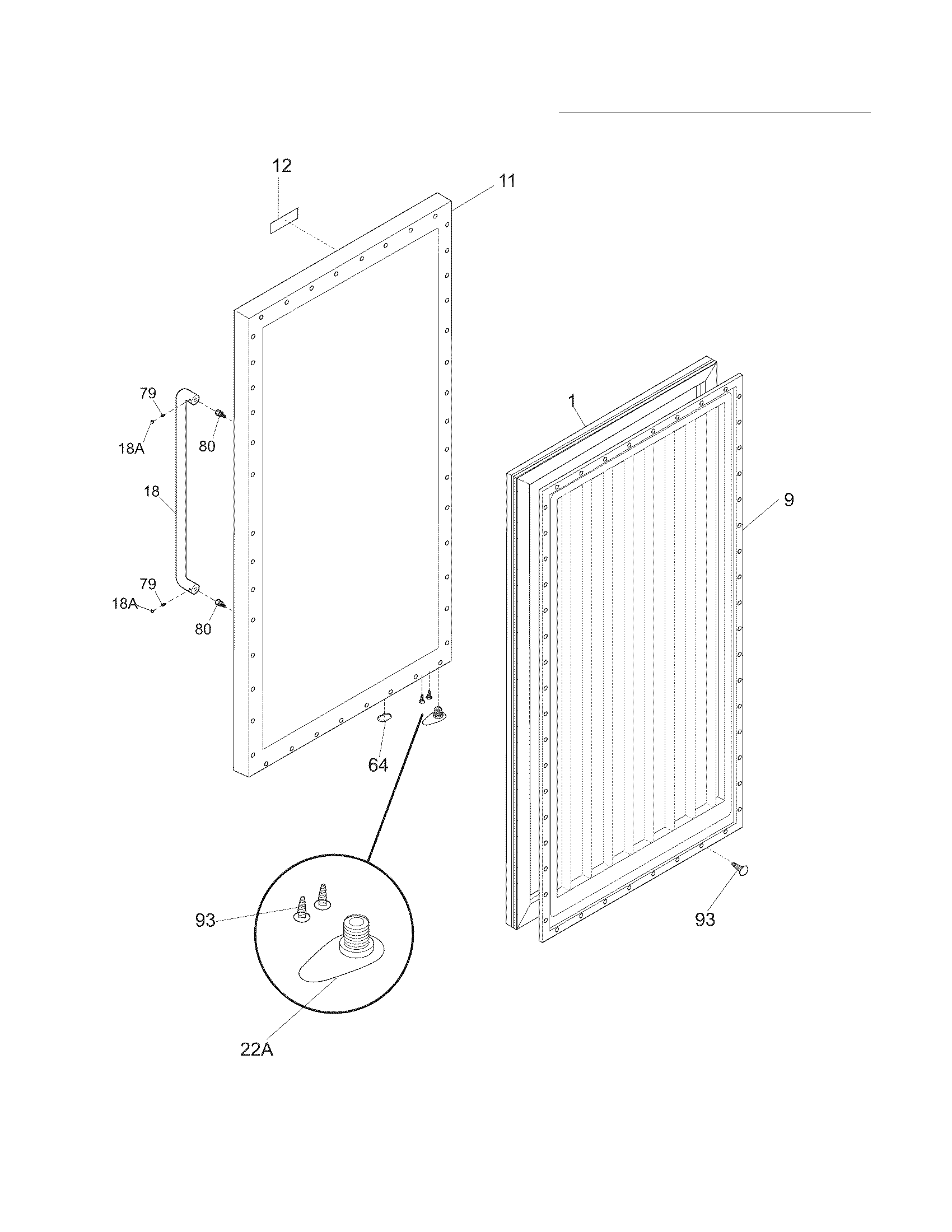

Door diagram

Universal/multiflex (frigidaire) refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$15.01 |
12% OFF Phone Price : $17.01
In Stock
Upright Freezer Power Cord 297169900
#100

System diagram

Upright freezer power cord

Part #297169900

Replaced by #297366805

?
Manufacturer substitution
This part replaces 297169900. Substitute parts can look different from the original.
$54.79 |
10% OFF Phone Price : $60.79
In Stock
Refrigeration Appliance Door Hinge Screw, 1/4-20 X 5/8-in (black) 297236250
#134

Cabinet diagram

Refrigeration appliance door hinge screw, 1/4-20 x 5/8-in (black)

Part #297236250

Replaced by #240578902

?
Manufacturer substitution
This part replaces 297236250. Substitute parts can look different from the original.
$16.69 |
11% OFF Phone Price : $18.69
In Stock
Freezer Breaker Kit (replaces 7297200100) 297200100
#9

Cabinet diagram

Freezer breaker kit (replaces 7297200100)

Part #297200100

$47.39 |
11% OFF Phone Price : $53.39
In Stock
White-westinghouse Freezer Evaporator Insulator 297078701
#18

System diagram

White-westinghouse freezer evaporator insulator

Part #297078701

This item is not returnable
$3.49
In Stock
