Model # KBLO36FTX05 Official KitchenAid 36" built-in refrigerator
Here are the diagrams and repair parts for Official KitchenAid KBLO36FTX05 36" built-in refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

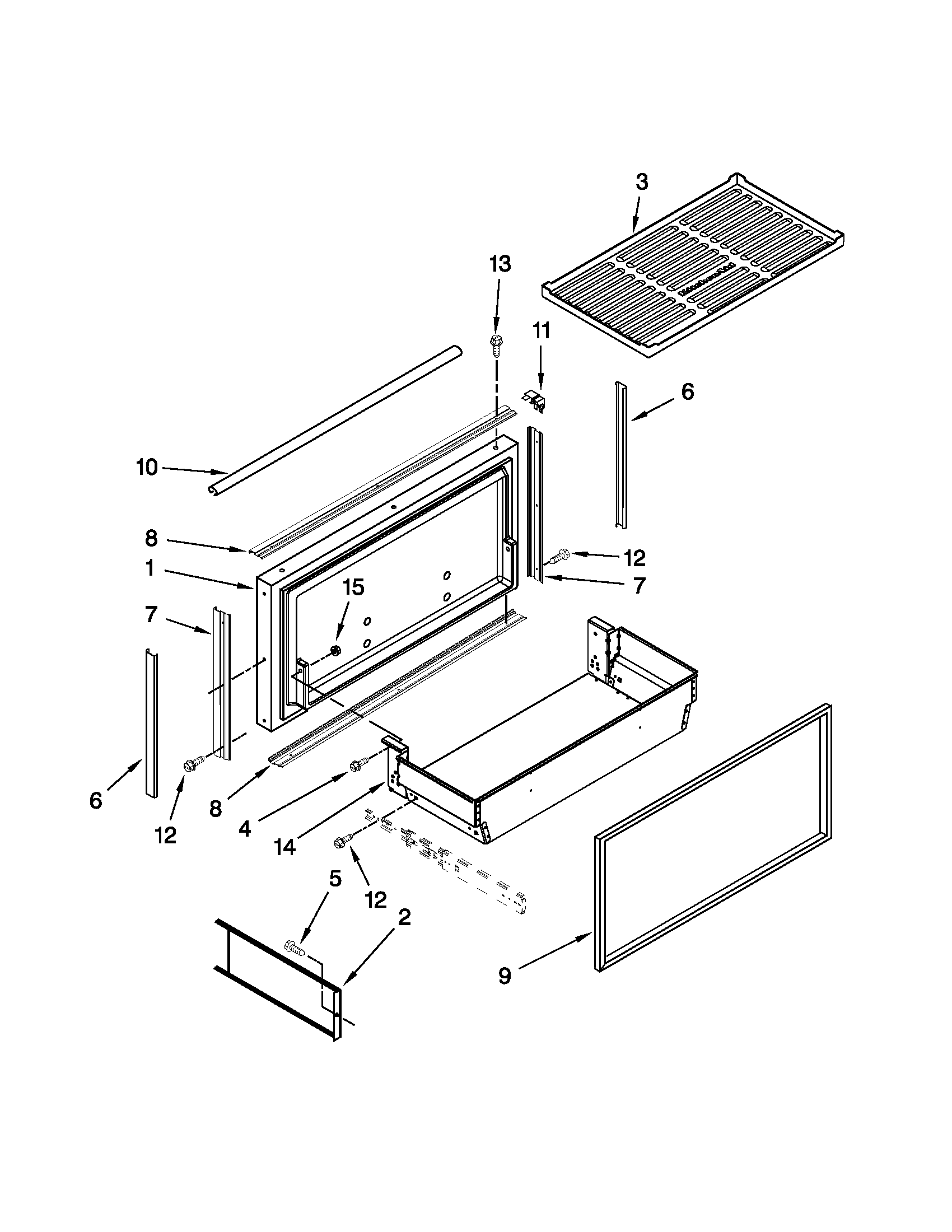

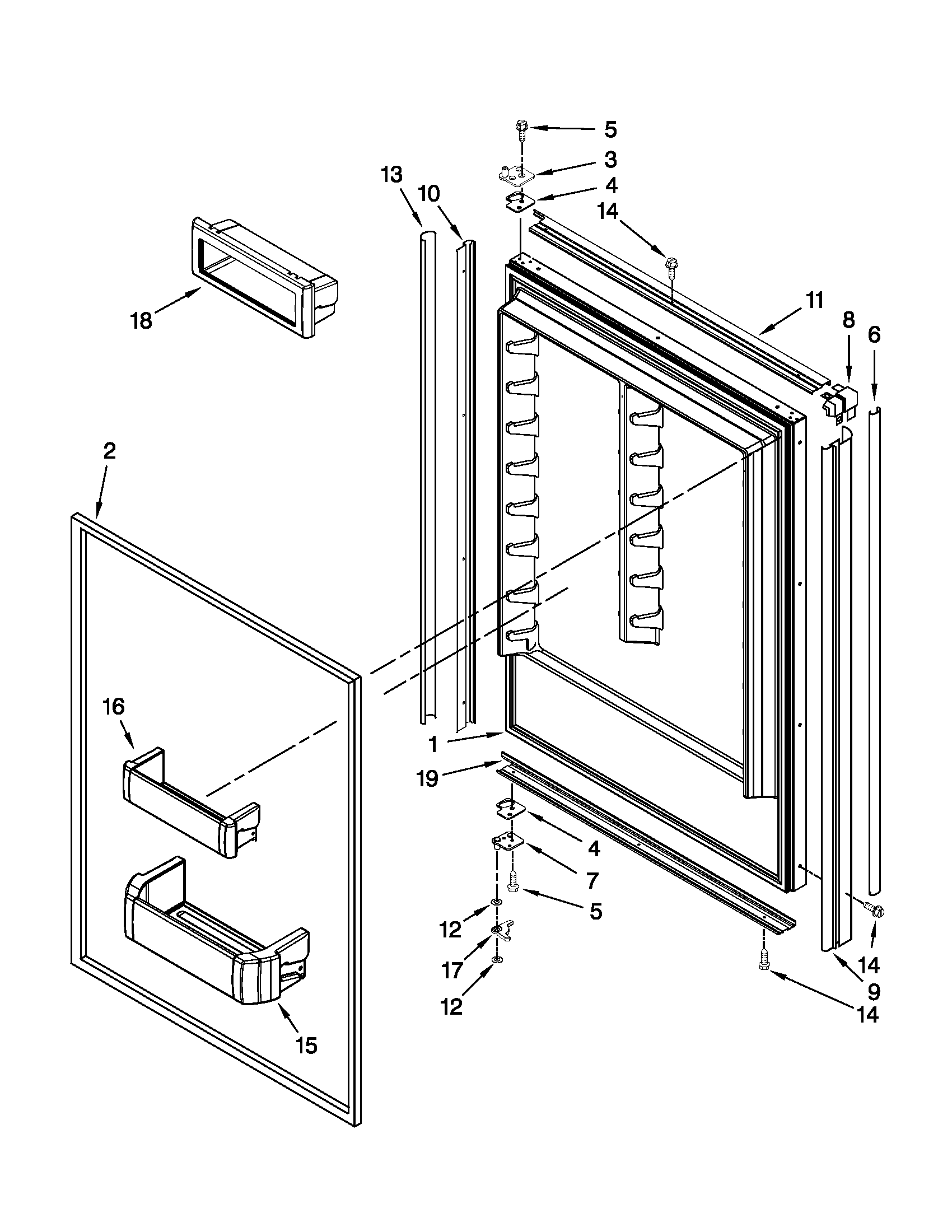

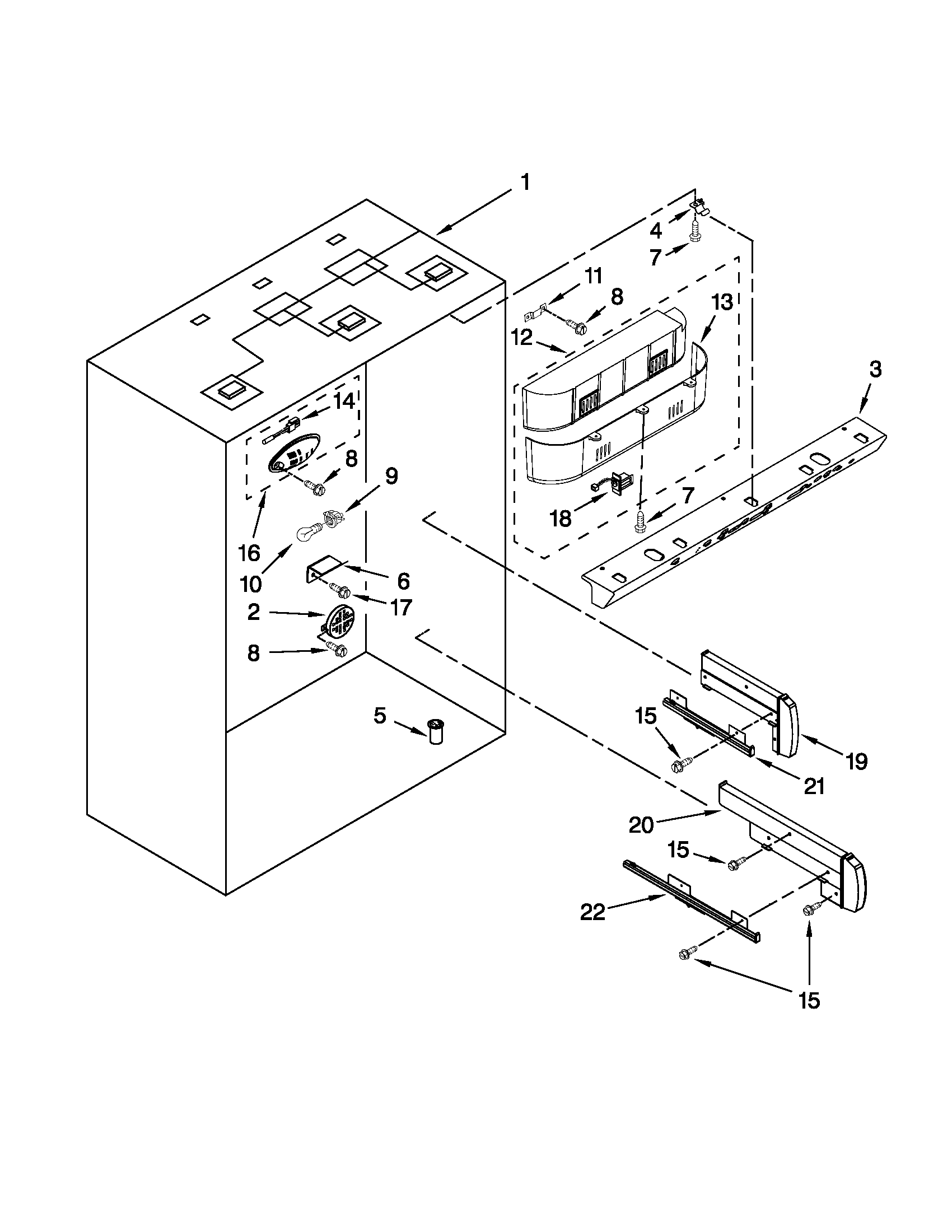

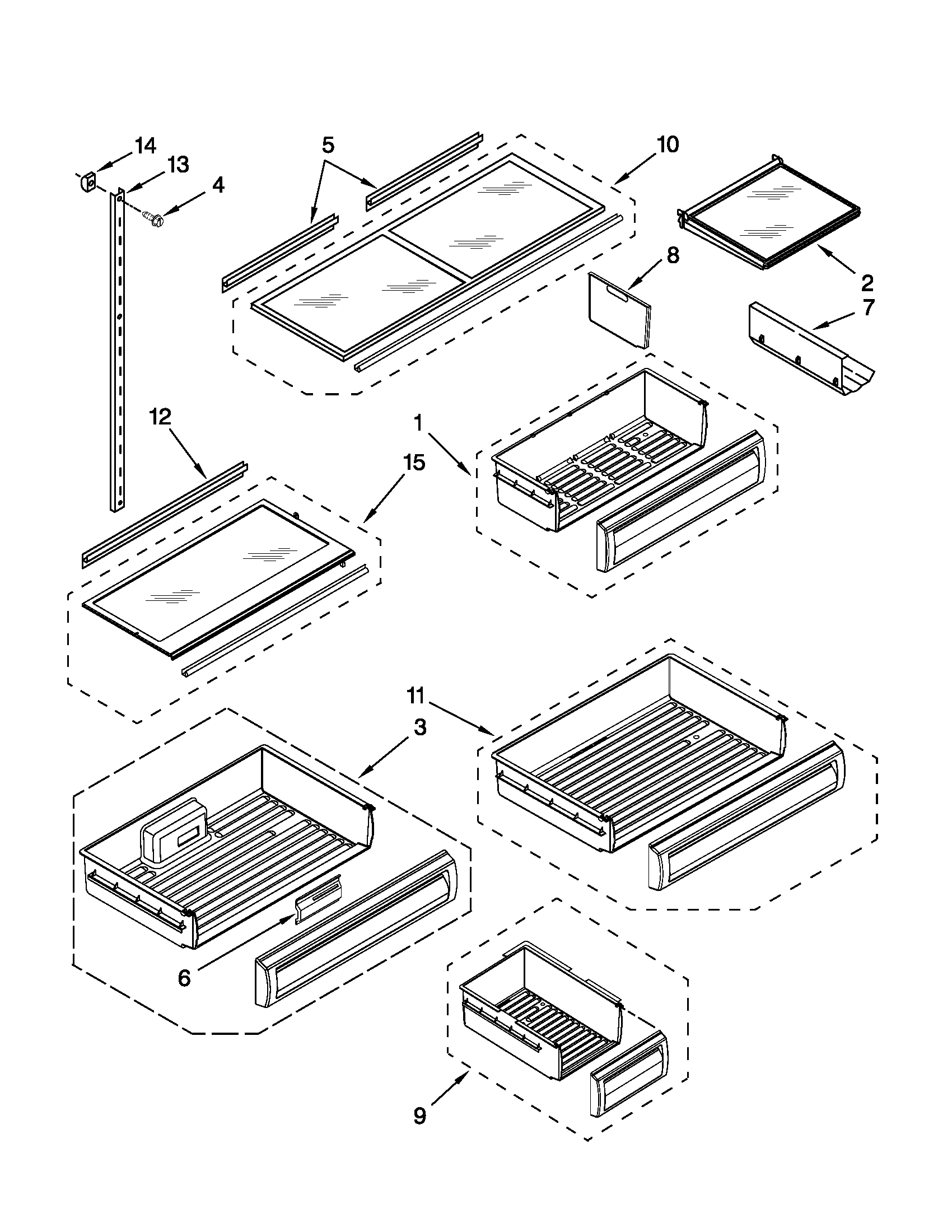

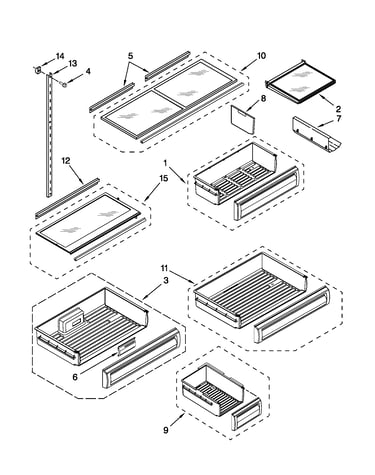

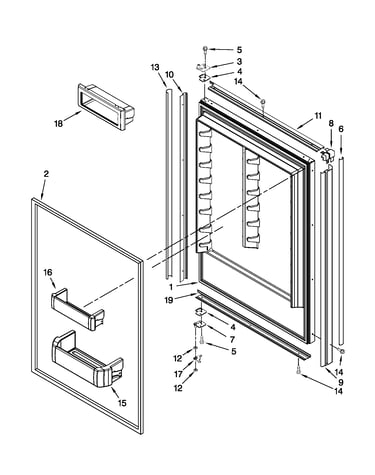

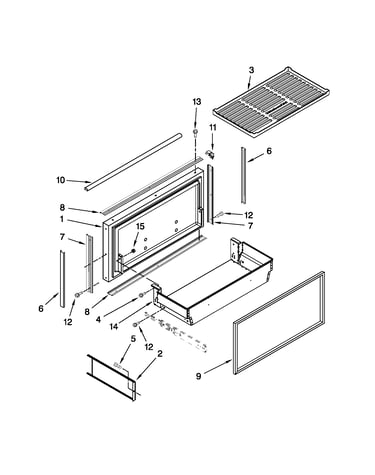

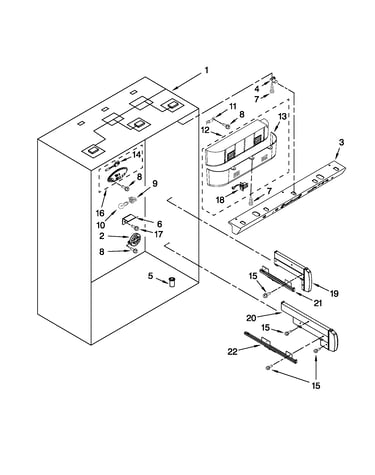

SELECT DIAGRAM
Browse Parts for
KBLO36FTX05 Refrigerators
#21

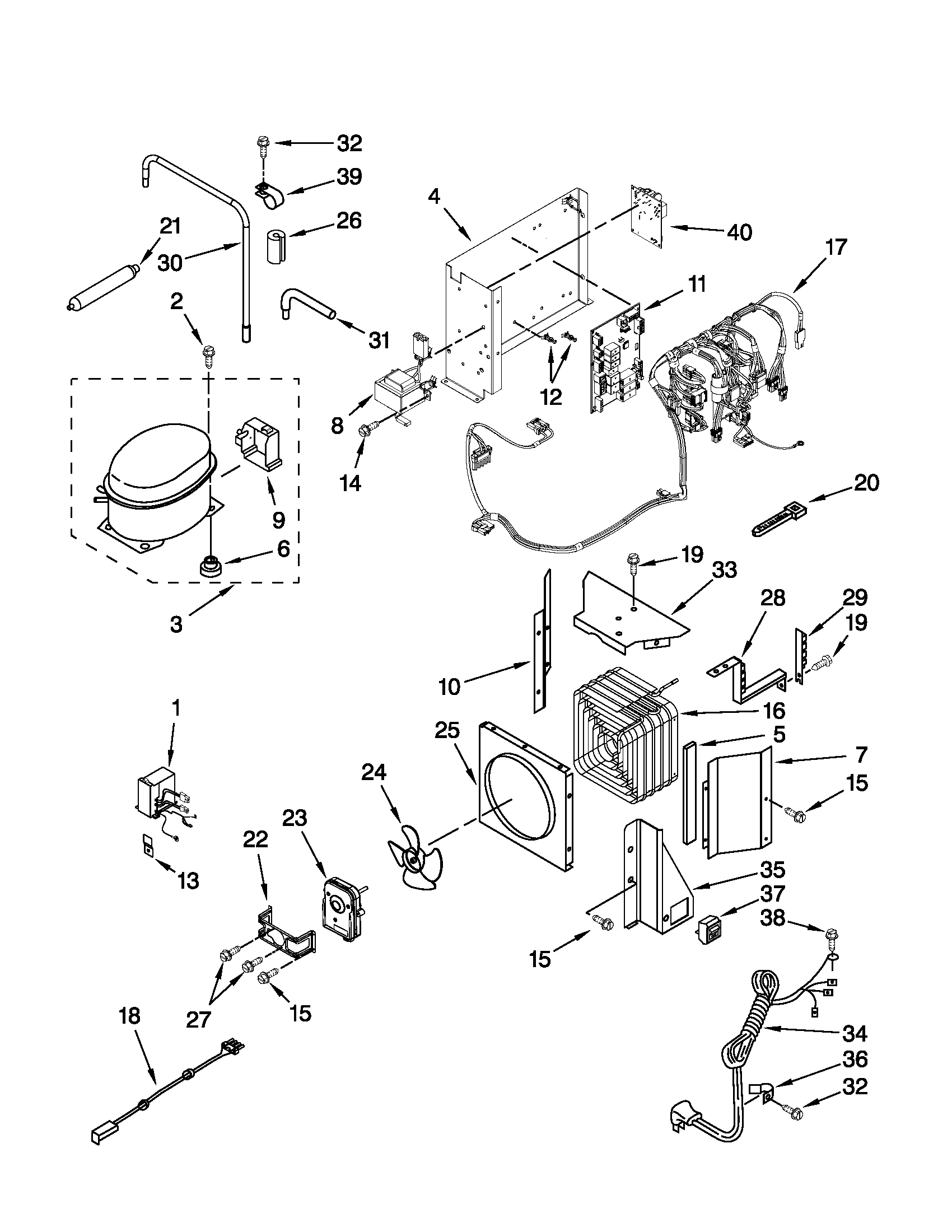

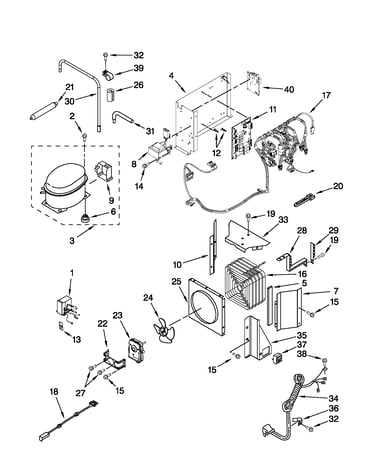

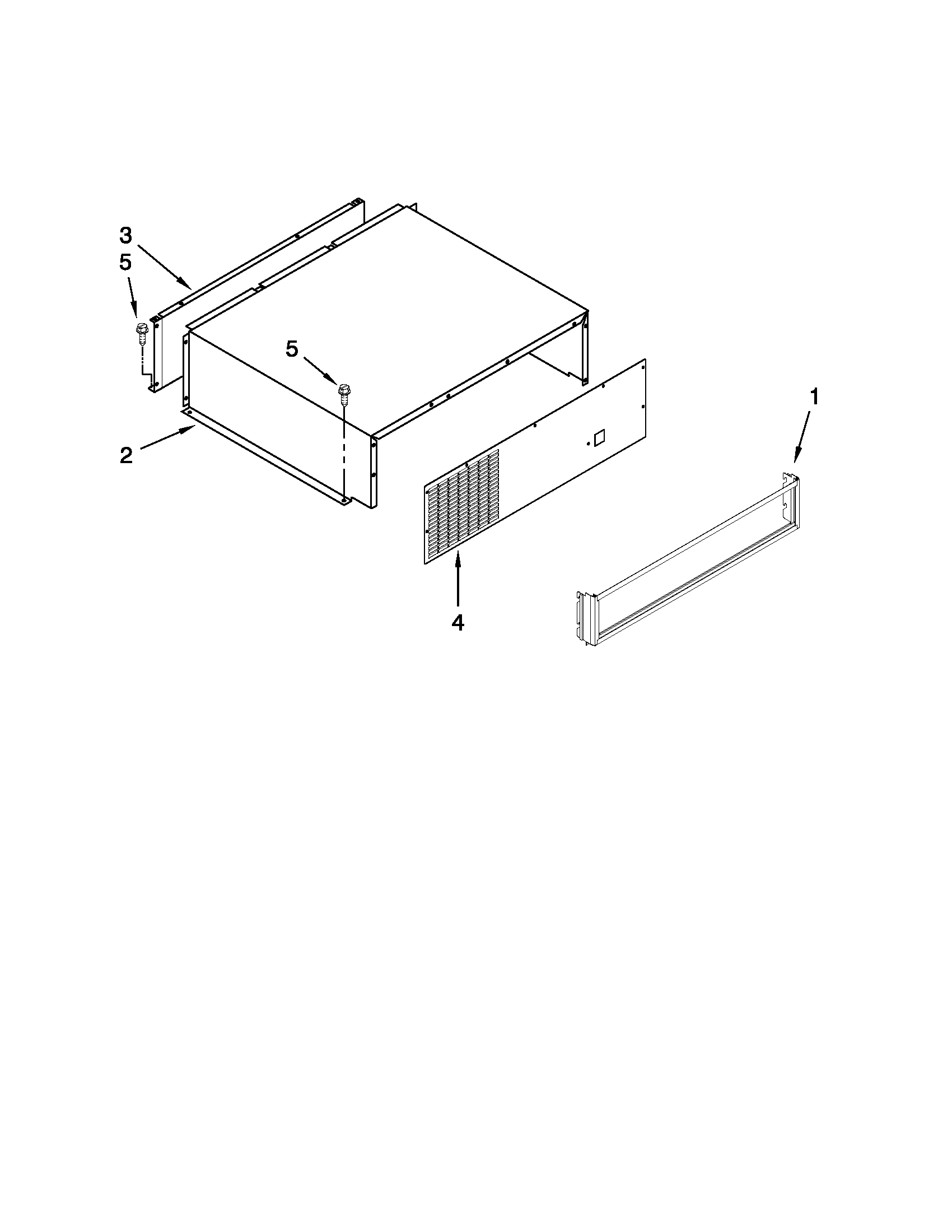

Upper unit parts diagram
Drier tube
Part #W10175593
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces W10175593. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#41

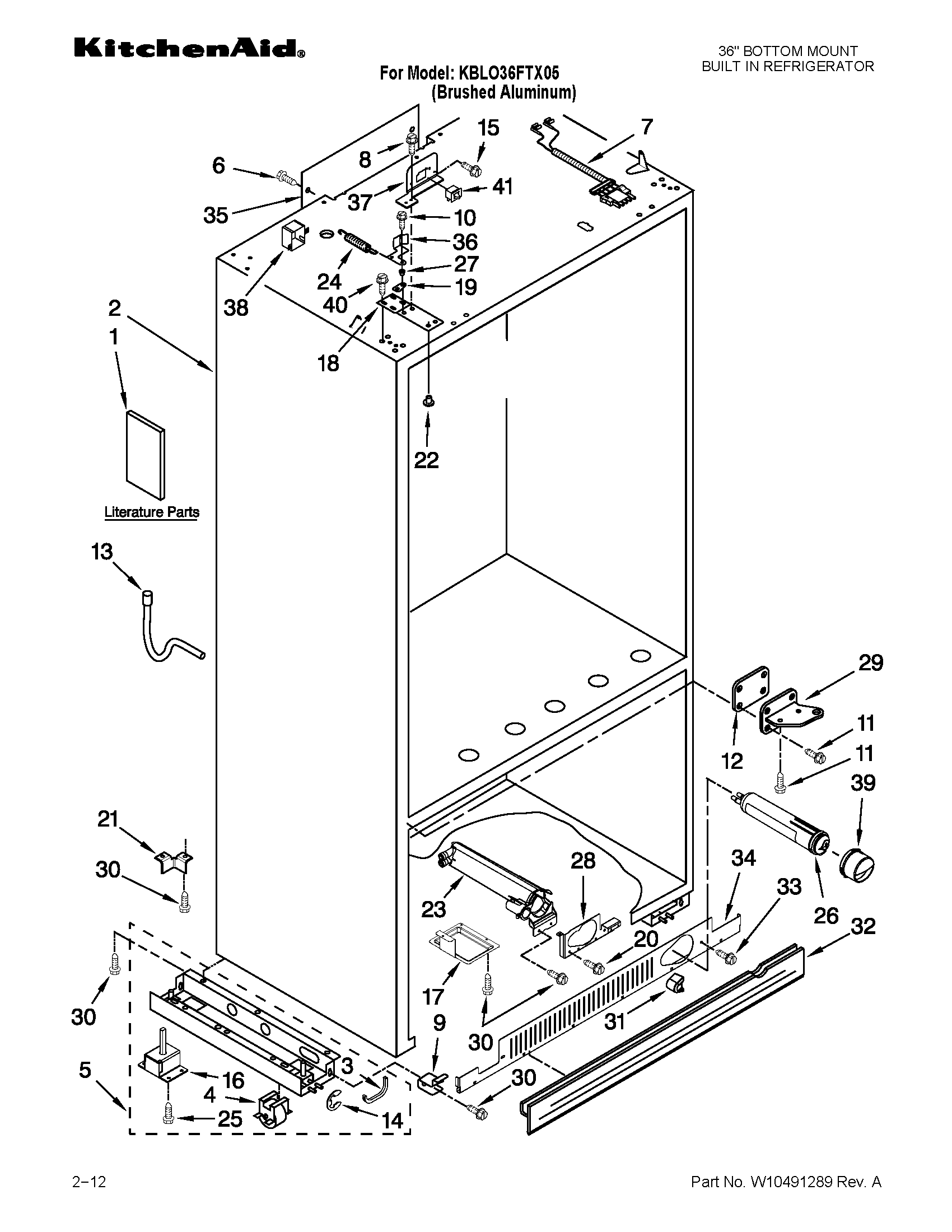

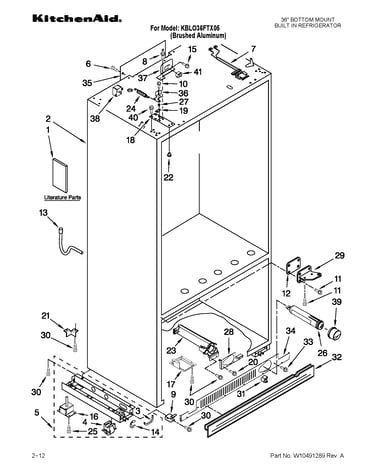

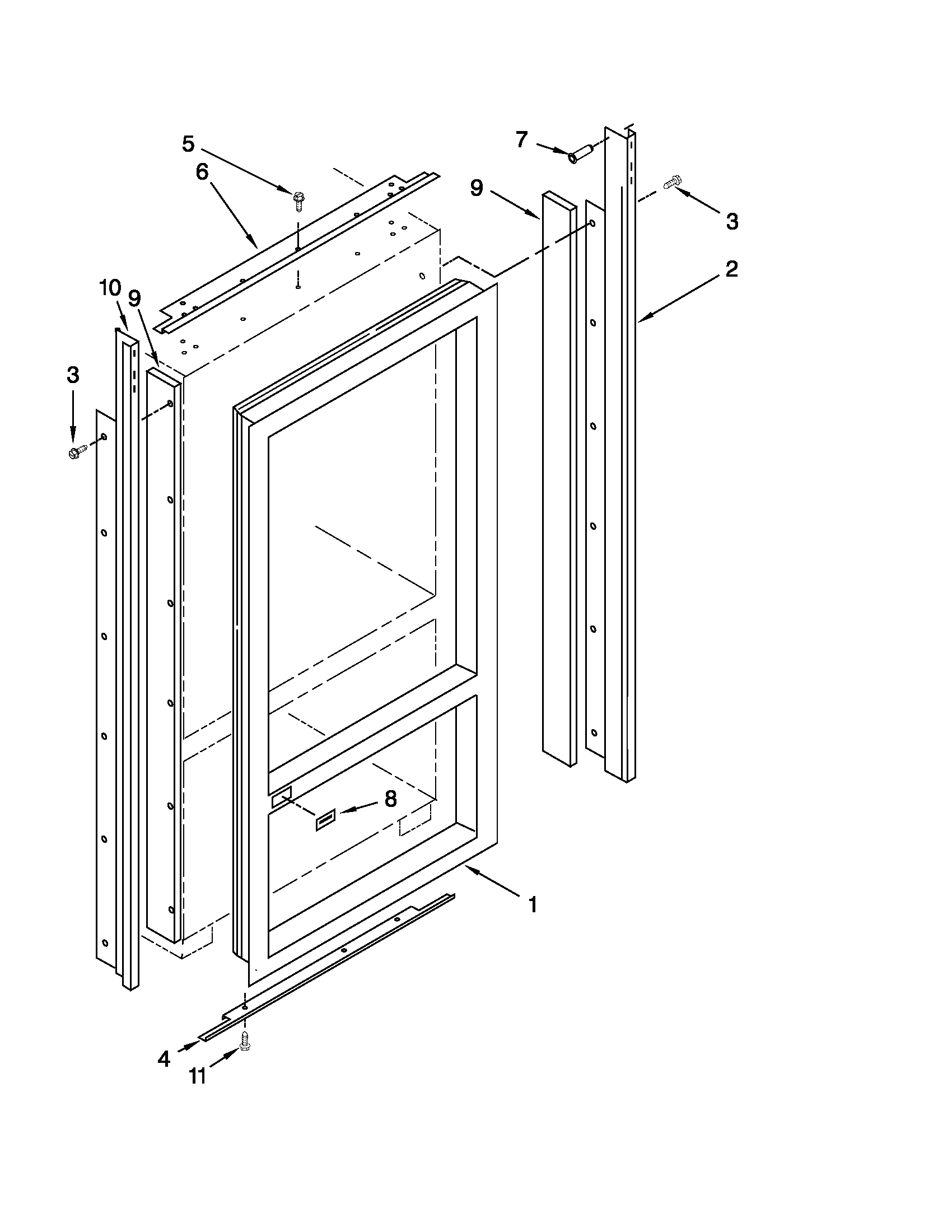

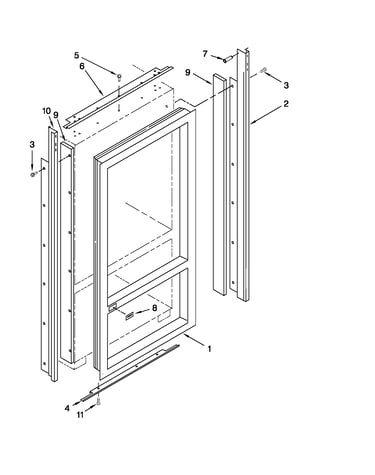

Cabinet parts diagram
Refrigerator light switch
Part #1118894
Replaced by #W11384469
?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
$21.70 |
29% OFF Phone Price : $30.42
In Stock
#7

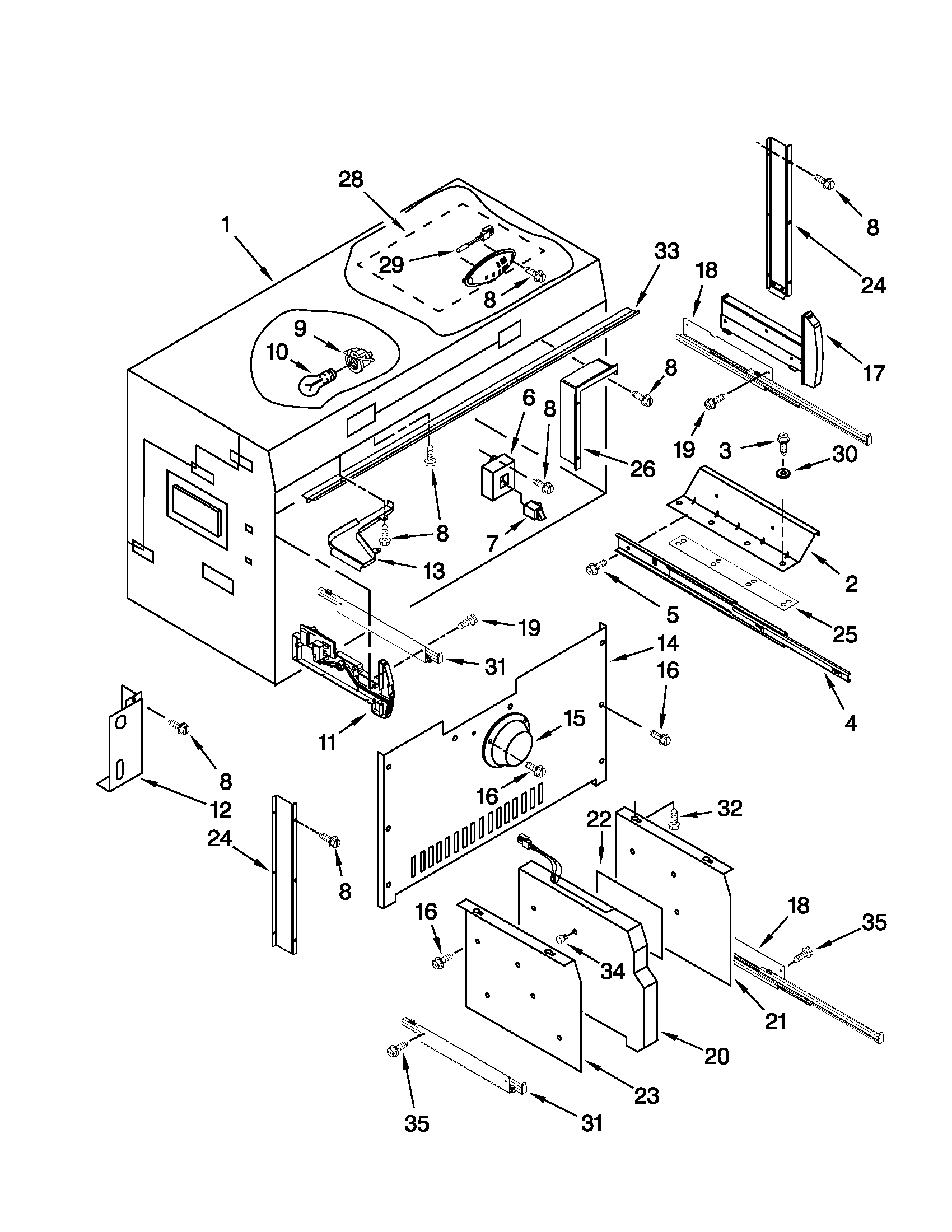

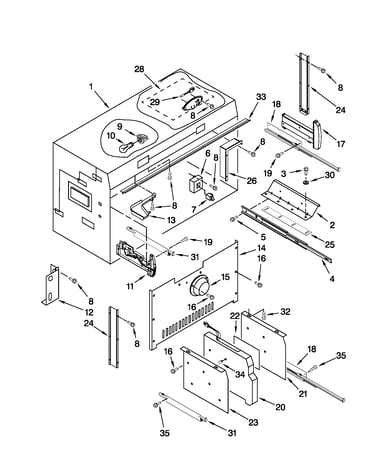

Freezer liner parts diagram
Refrigerator push-button switch
Part #C3680314
Replaced by #W11384469
?
Manufacturer substitution
This part replaces C3680314. Substitute parts can look different from the original.
$21.70 |
29% OFF Phone Price : $30.42
In Stock
#26
Cabinet parts diagram
Refrigerator water filter
Part #4396841
Replaced by #EDR3RXD1
?
Manufacturer substitution
This part replaces 4396841. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$59.99
Back Order
#12

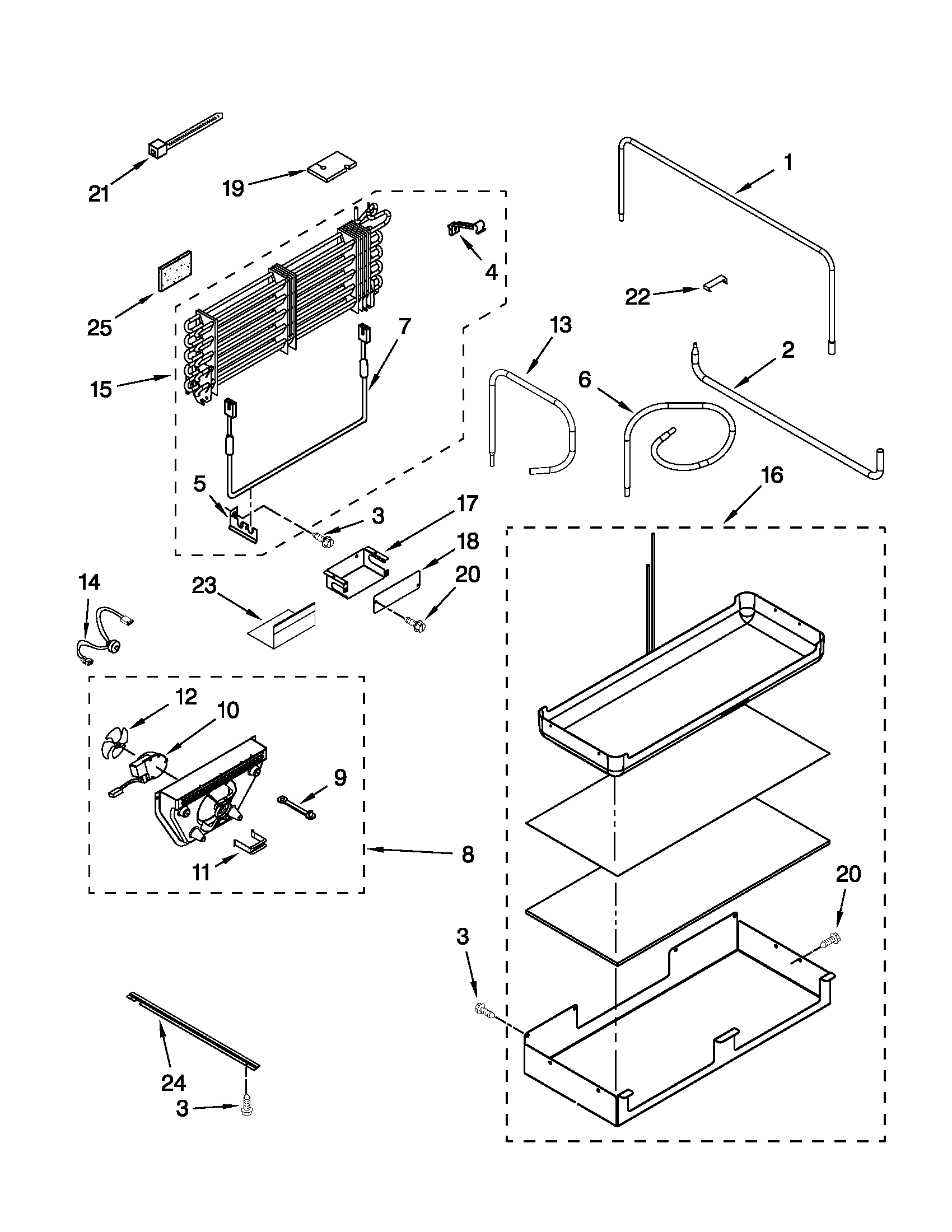

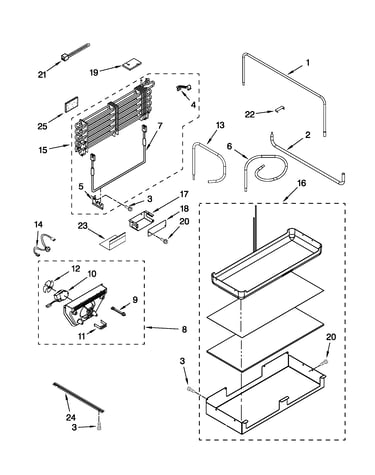

Lower unit and tube parts diagram
Refrigerator evaporator fan blade
Part #2169142
Replaced by #WP2169142
?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
$32.96 |
18% OFF Phone Price : $40.25
In Stock
#1
Upper unit parts diagram
Refrigerator inverter assembly
Part #W10133449
Replaced by #W10629033
?
Manufacturer substitution
This part replaces W10133449. Substitute parts can look different from the original.
$220.76 |
13% OFF Phone Price : $255.19
In Stock
#23
Cabinet parts diagram
Refrigerator water filter housing
Part #W10121140
Replaced by #WPW10121140
?
Manufacturer substitution
This part replaces W10121140. Substitute parts can look different from the original.
$98.66
In Stock
Screw
Part #487539
Replaced by #WP488729
?
Manufacturer substitution
This part replaces 487539. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#30

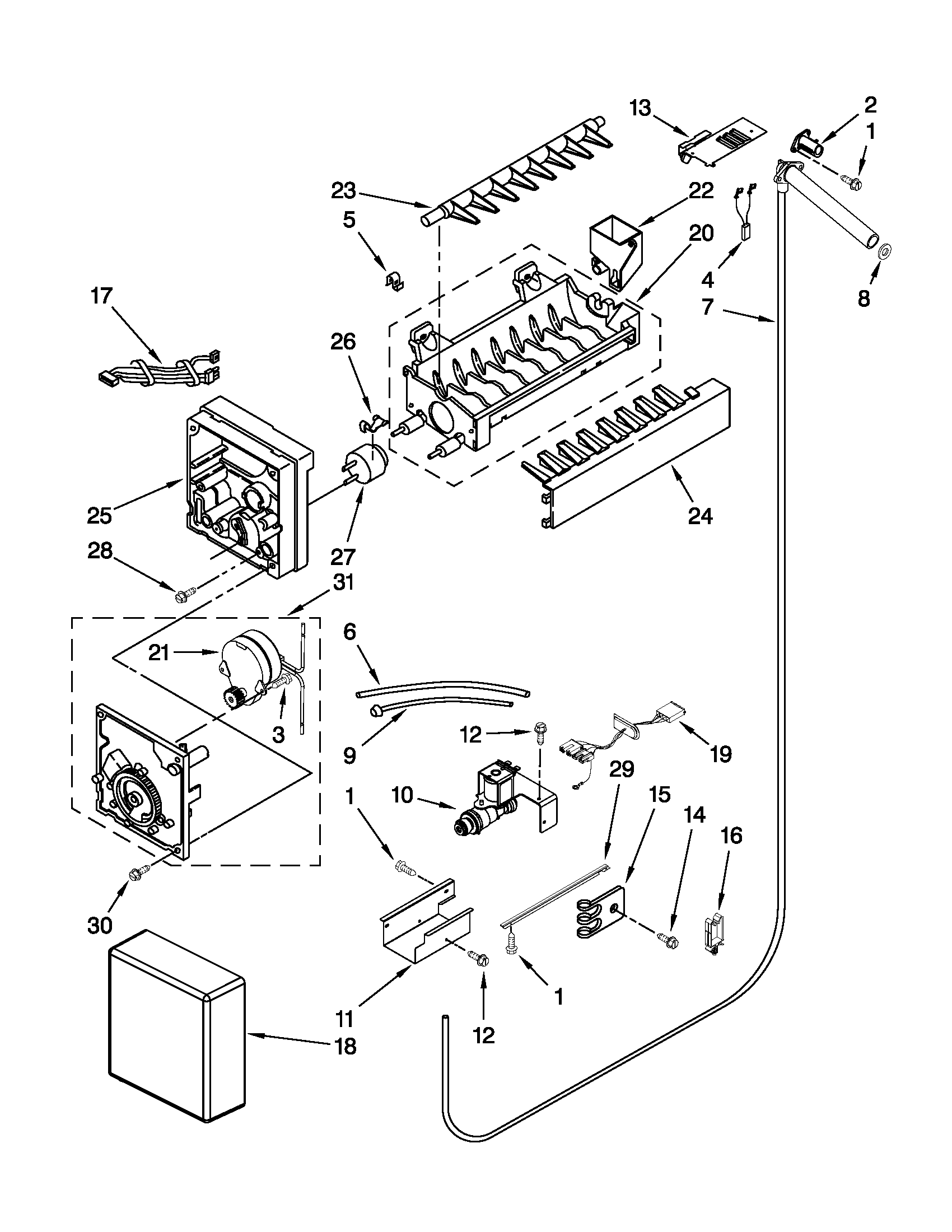

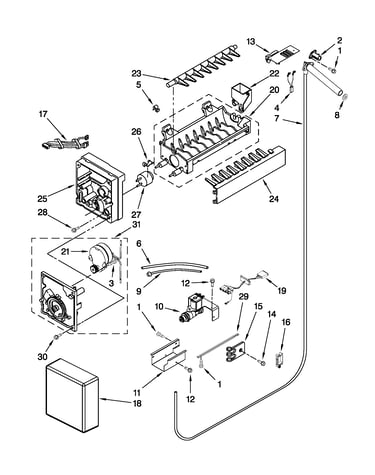

Icemaker parts diagram
Screw
Part #489276
Replaced by #WP681249
?
Manufacturer substitution
This part replaces 489276. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
#27
Icemaker parts diagram
Refrigerator ice maker thermostat
Part #627985
Replaced by #WP627985
?
Manufacturer substitution
This part replaces 627985. Substitute parts can look different from the original.
$47.98 |
11% OFF Phone Price : $53.98
In Stock
