Maytag
Upright Freezer

Model # CFU2036ARW Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag CFU2036ARW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

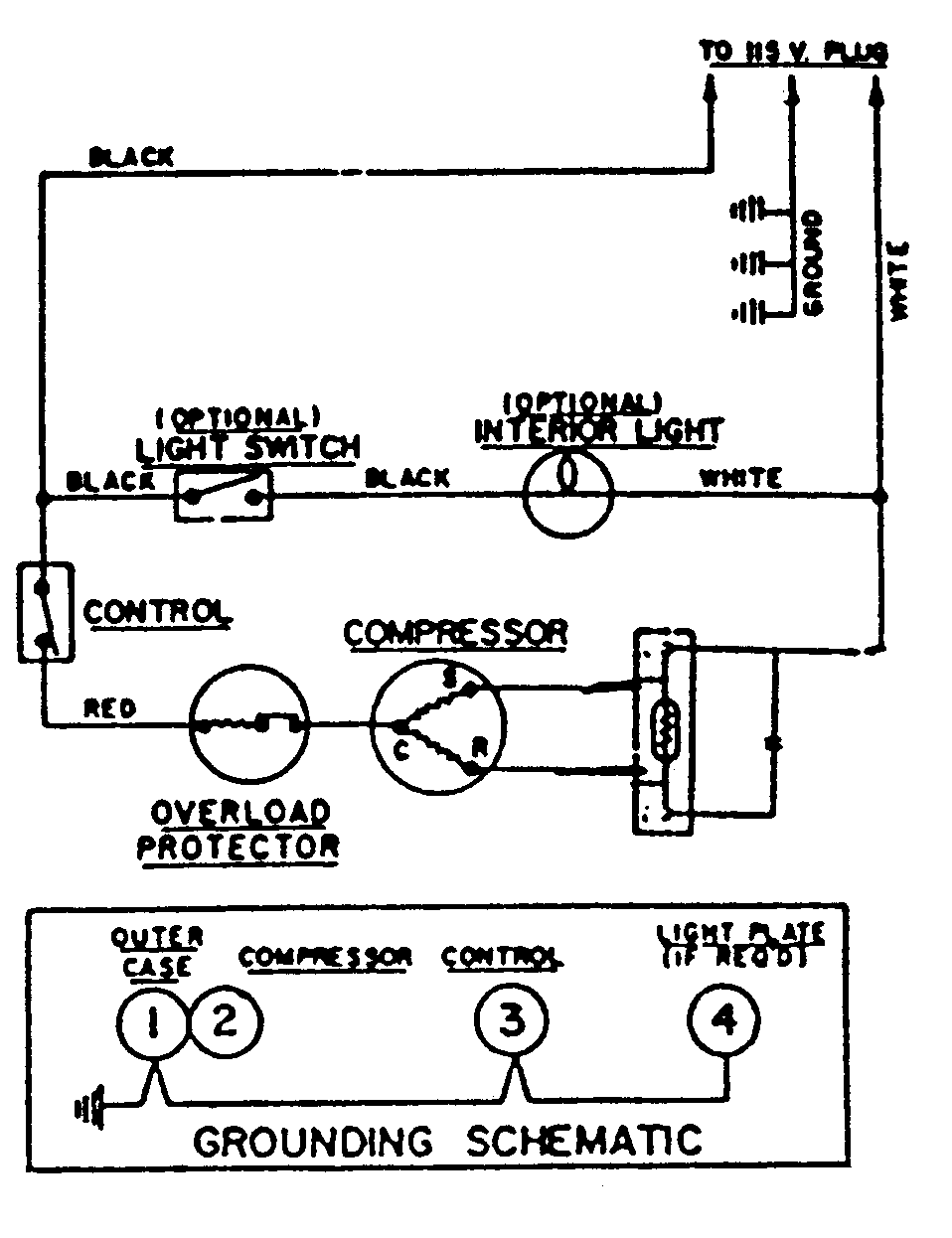

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

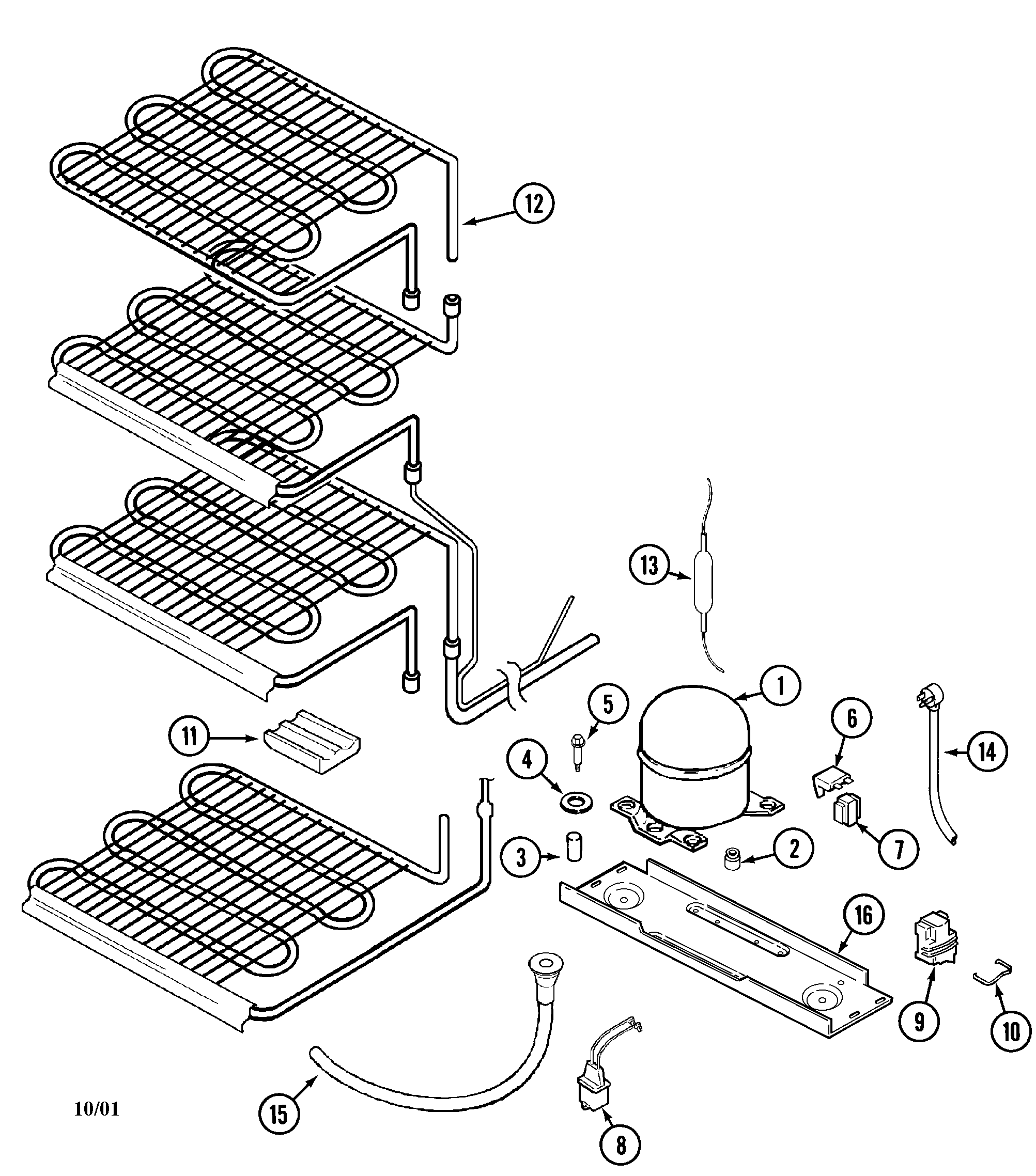

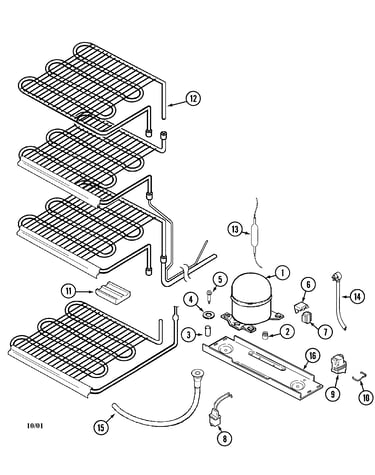

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 68001324
#5A

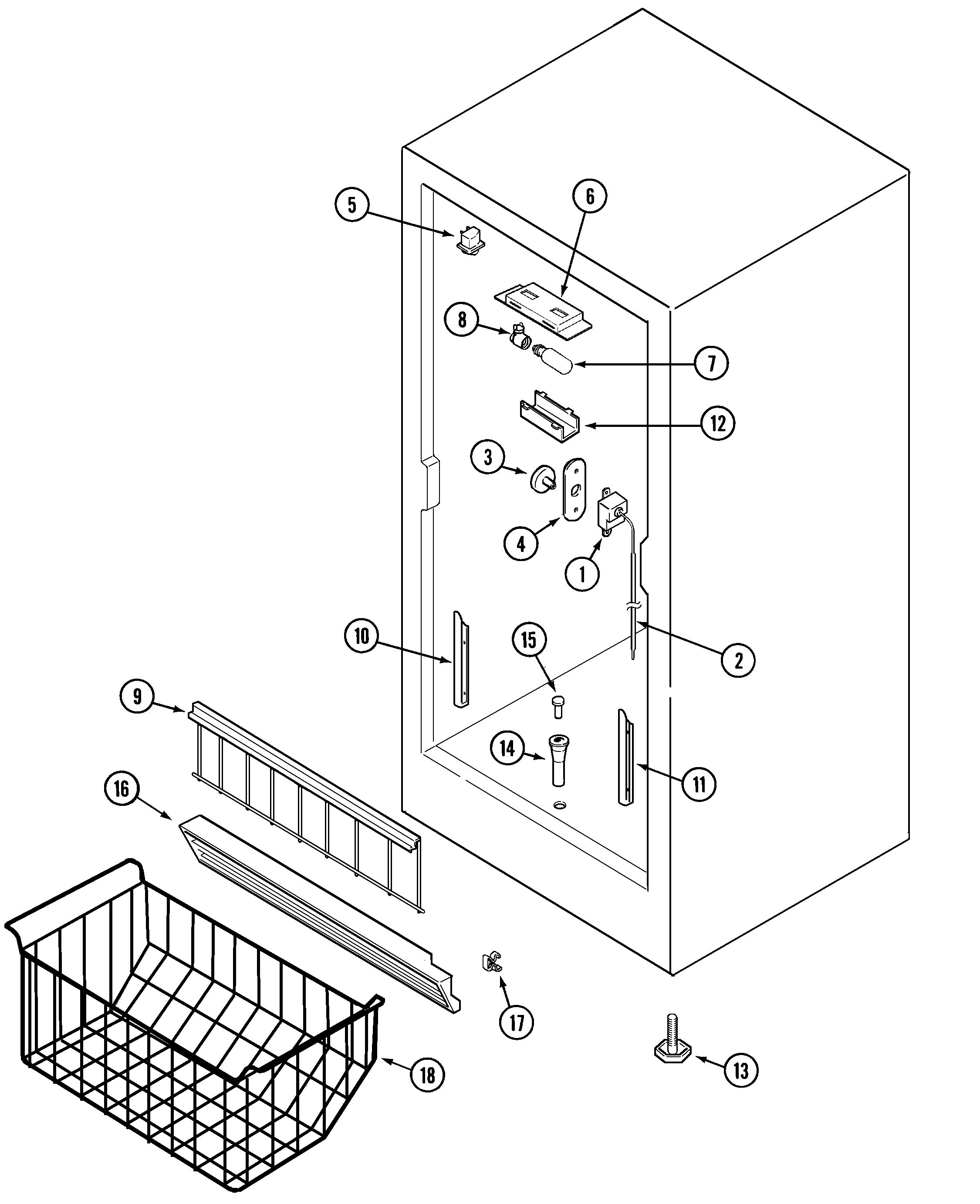

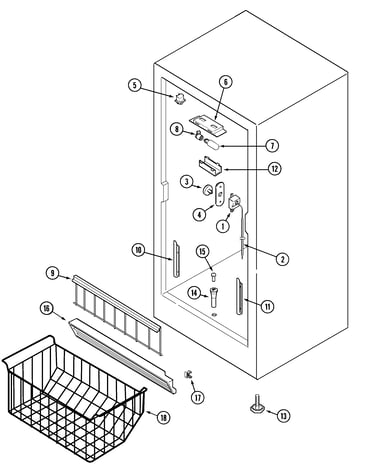

Freezer compartment diagram

Light switch

Part #68001324

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001324. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Fan Switch 68001061
#5

Freezer compartment diagram

Fan switch

Part #68001061

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001061. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Compressor Kit 68001145
#1

Unit compartment & system diagram

Compressor kit

Part #68001145

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 68001145. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Compressor 68001437
#1B

Unit compartment & system diagram

Compressor

Part #68001437

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 68001437. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Compressor Kit 68001216
#1A

Unit compartment & system diagram

Compressor kit

Part #68001216

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 68001216. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Start Relay 68001457
#6A

Unit compartment & system diagram

Start relay

Part #68001457

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 68001457. Substitute parts can look different from the original.
BEST SELLER
$71.10 |
8% OFF Phone Price : $77.10
In Stock
Screw (1 1/4 68001196
#2D

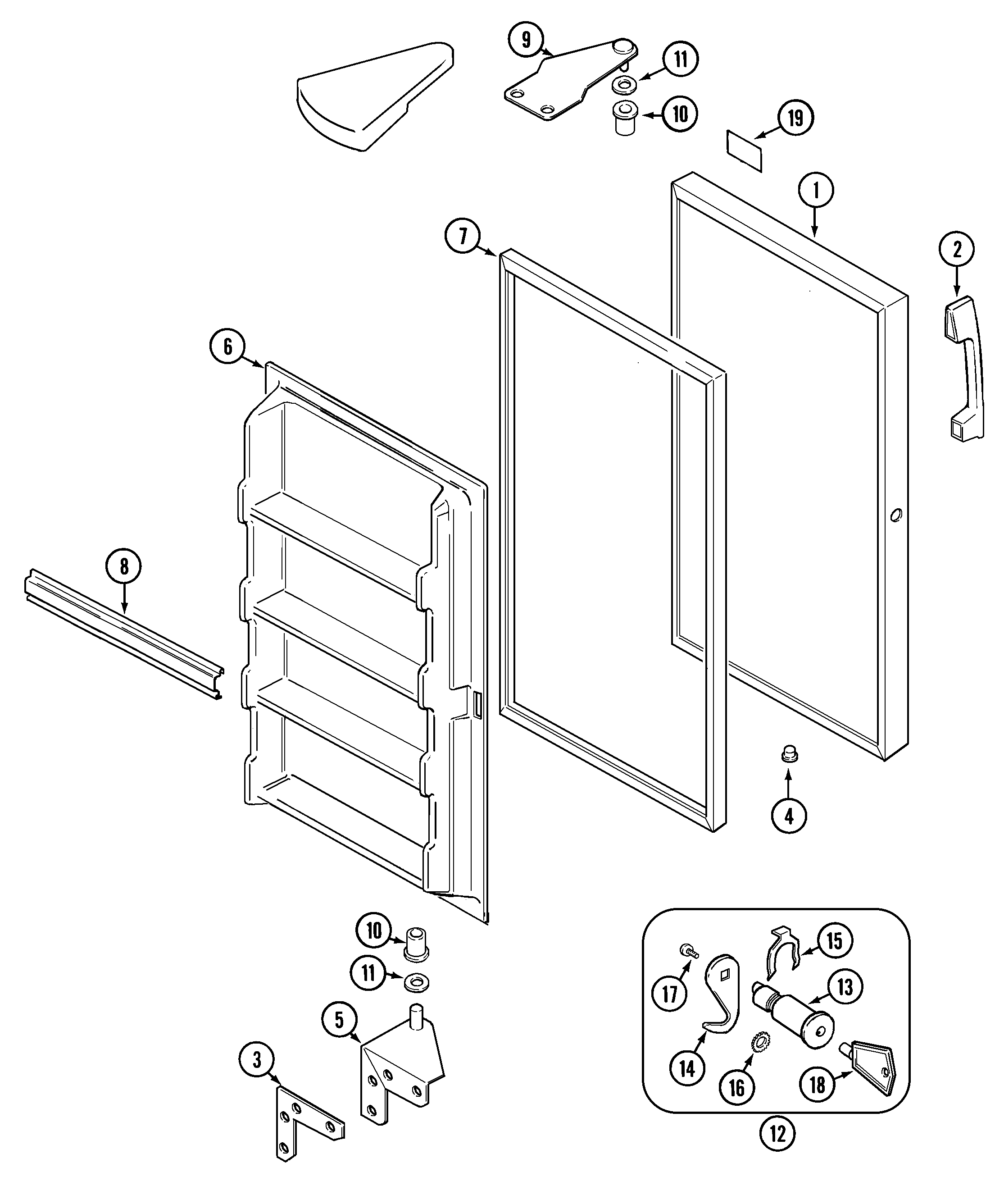

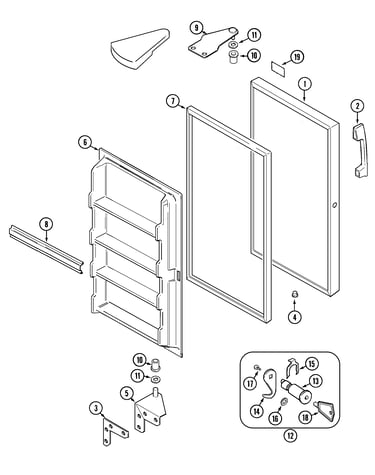

Door diagram

Screw (1 1/4

Part #68001196

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Tubing Control 68001066
#2

Freezer compartment diagram

Tubing control

Part #68001066

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 68001066. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Support, Fen 68001067
#10

Freezer compartment diagram

Support, fen

Part #68001067

Replaced by #4-80576-202

?
Manufacturer substitution
This part replaces 68001067. Substitute parts can look different from the original.
This item is not returnable
$16.15 |
11% OFF Phone Price : $18.15
In Stock
