Whirlpool
Chest Freezer

Model # WZC5422DW01 Official Whirlpool chest freezer

Here are the diagrams and repair parts for Official Whirlpool WZC5422DW01 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Drier Assembly W10709968
#4

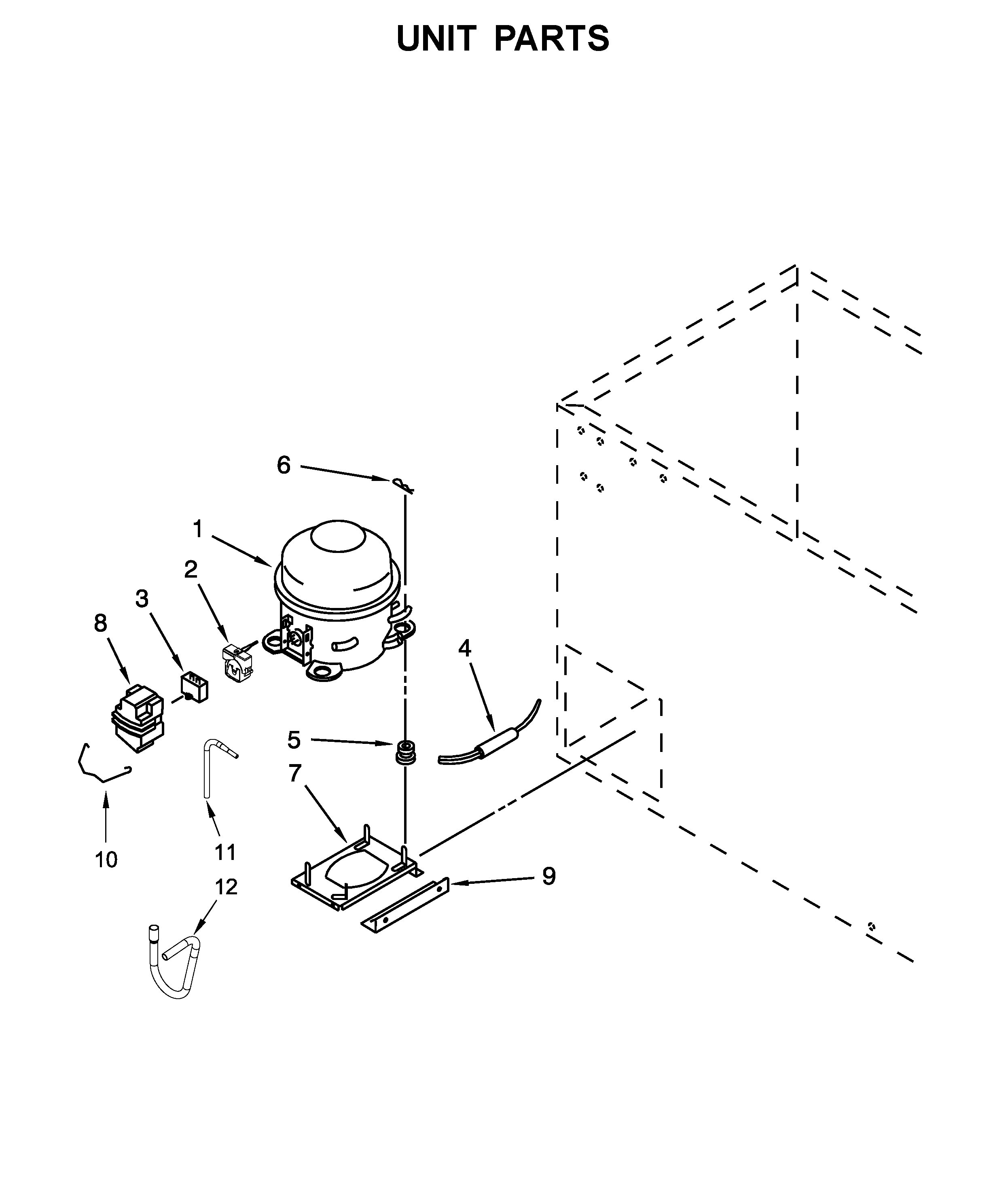

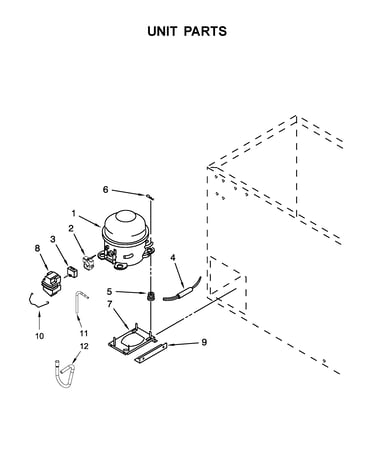

Unit parts diagram

Drier assembly

Part #W10709968

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10709968. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Run Capacitor W10350564
#3

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$47.79 |
11% OFF Phone Price : $53.79
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

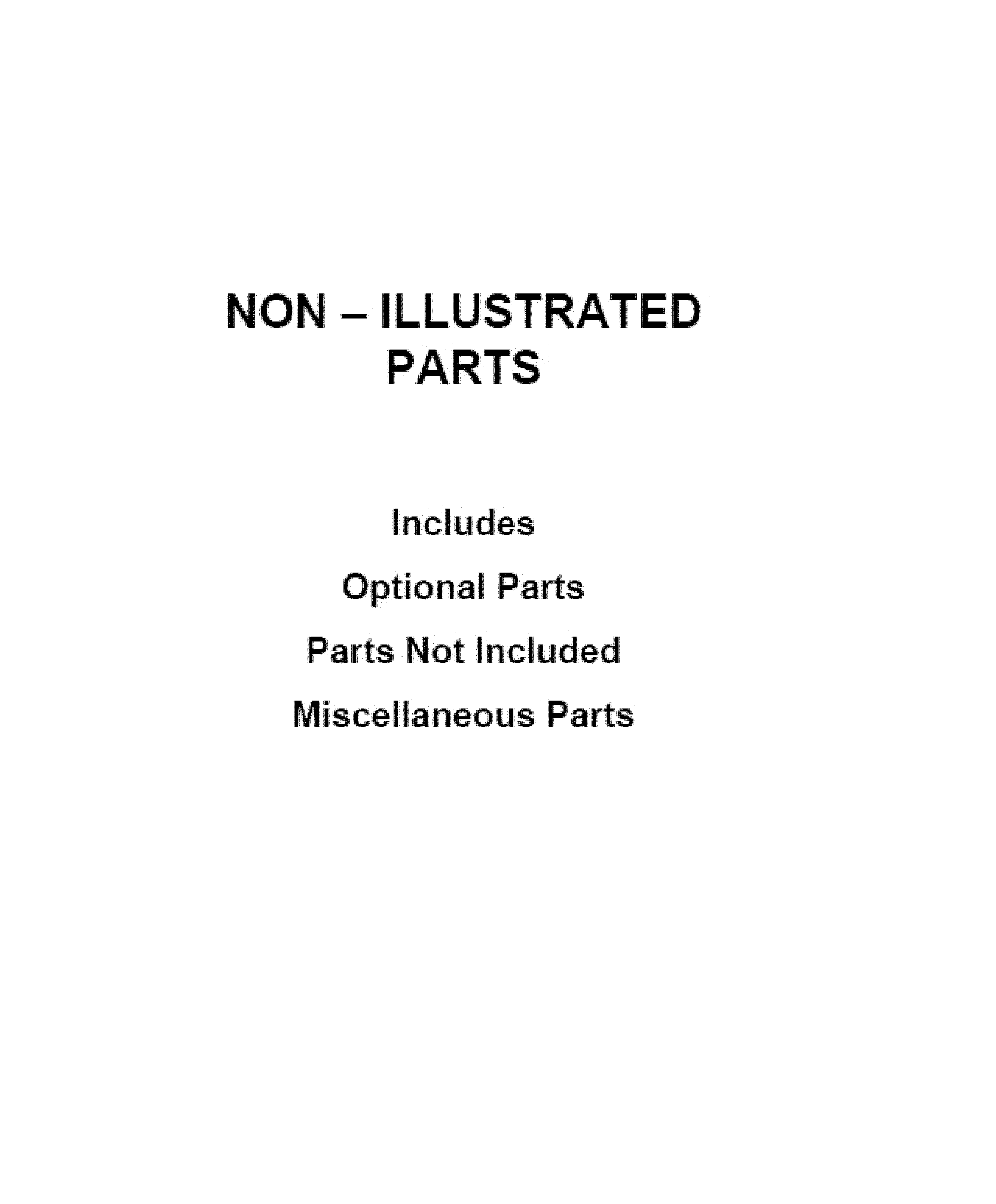

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray Paint (white) 350930
#NI

Optional parts (not included) diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Socket W10191429
#11

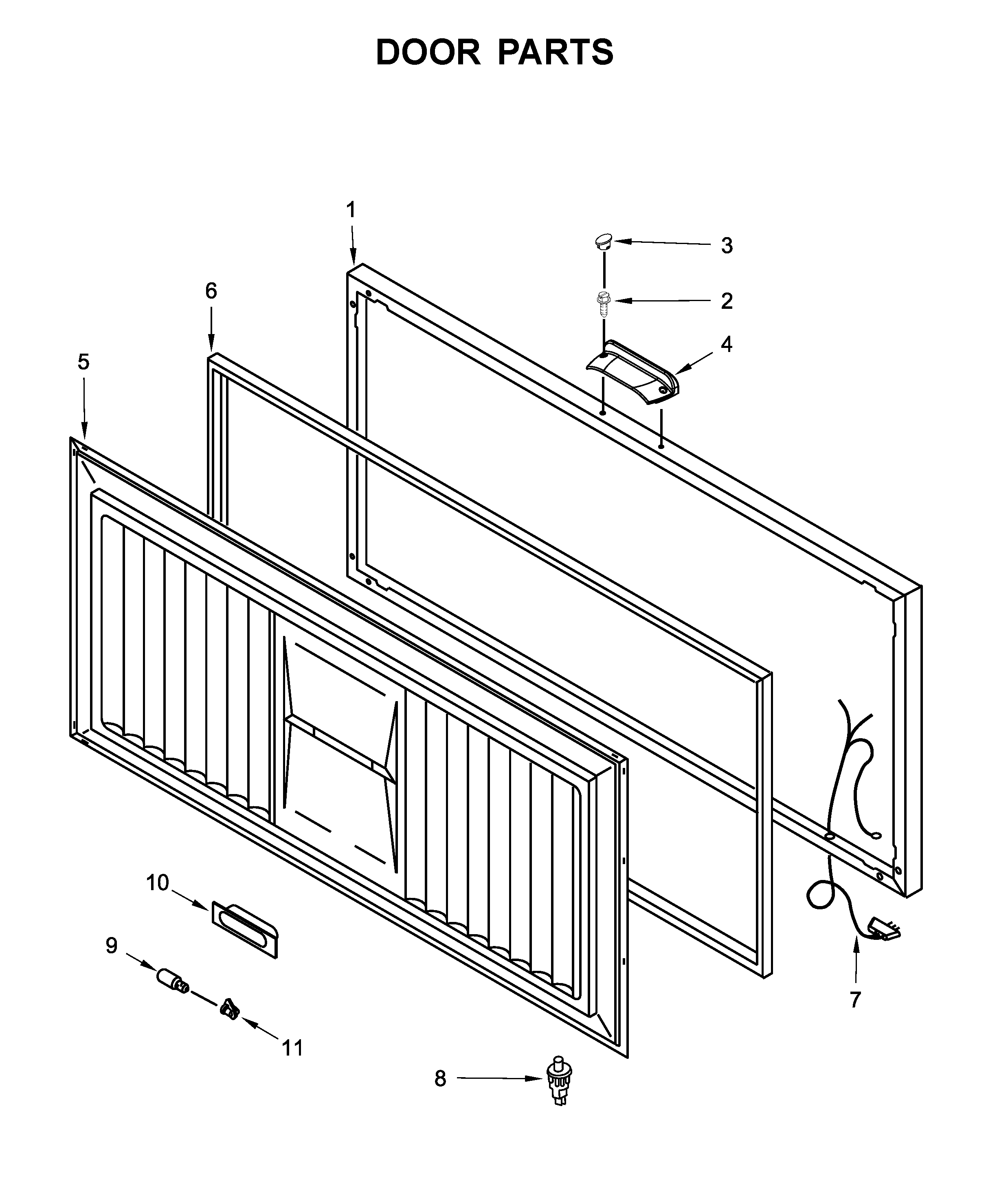

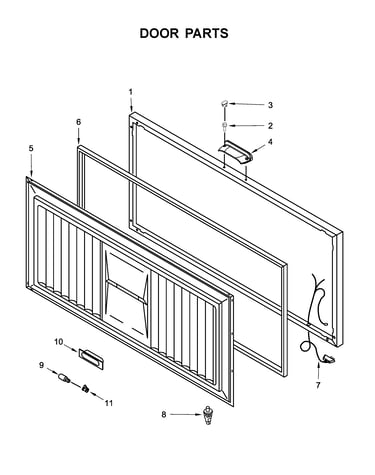

Door parts diagram

Socket

Part #W10191429

Replaced by #WPW10191429

?
Manufacturer substitution
This part replaces W10191429. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Nameplate W10481434
#19

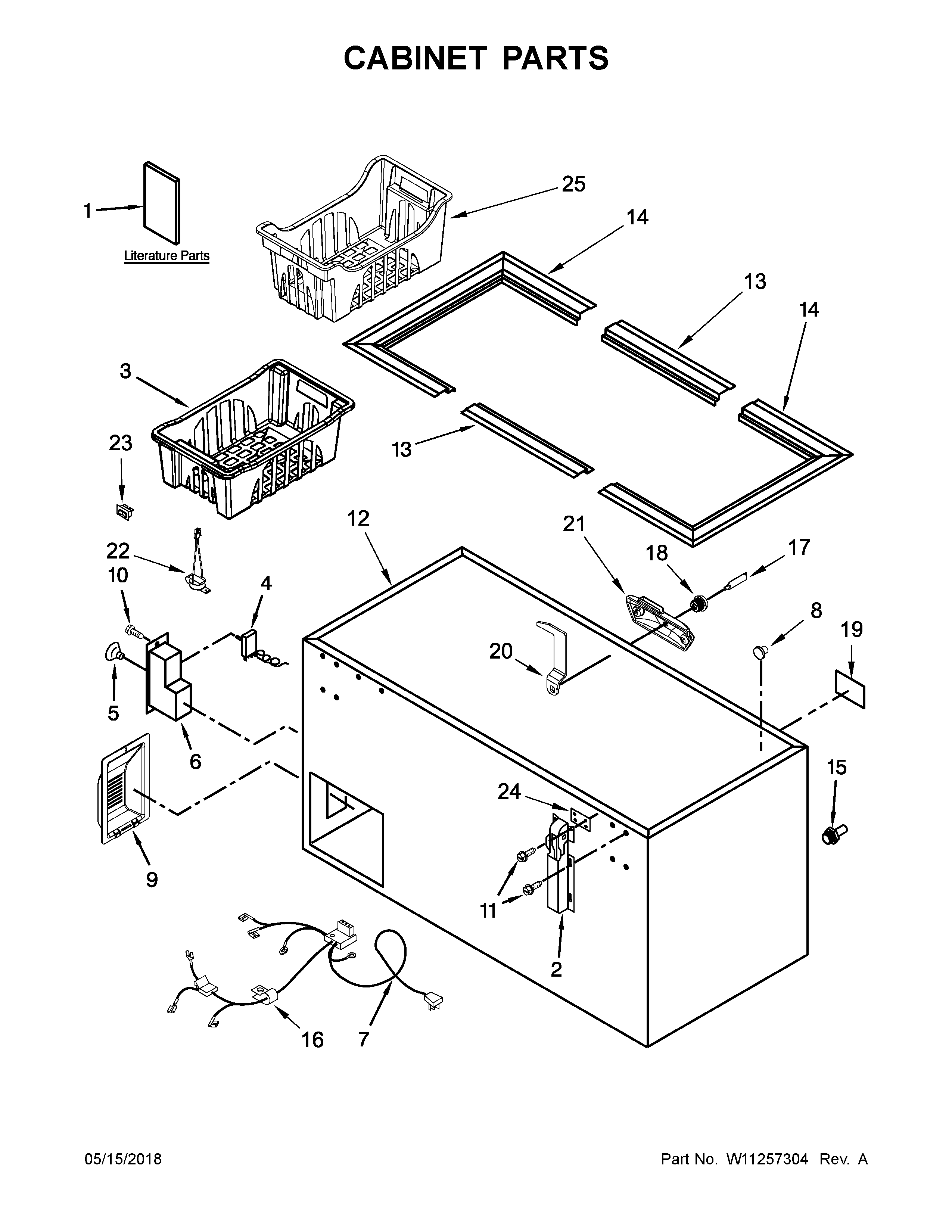

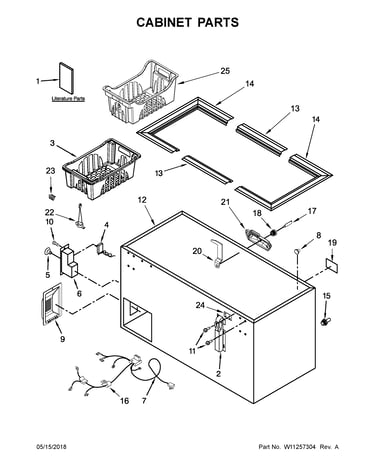

Cabinet parts diagram

Nameplate

Part #W10481434

Replaced by #W11178521

?
Manufacturer substitution
This part replaces W10481434. Substitute parts can look different from the original.
$33.73 |
15% OFF Phone Price : $39.73
In Stock
Sears Refrigerator Permagum Sealer 212643
#NI

Optional parts (not included) diagram

Sears refrigerator permagum sealer

Part #212643

This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Appliance Touch-up Paint, 0.6-oz (biscuit) (replaces 22002900, 4392899r, R9900463, W10831386) 4392899
#NI

Optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (biscuit) (replaces 22002900, 4392899r, r9900463, w10831386)

Part #4392899

This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Refrigerator Ice Maker Installation Kit (replaces 18001005, 4396087, 8003, 8003ip, 8003ra, W10831946) 8003RP
#NI

Optional parts (not included) diagram

Refrigerator ice maker installation kit (replaces 18001005, 4396087, 8003, 8003ip, 8003ra, w10831946)

Part #8003RP

$34.29 |
15% OFF Phone Price : $40.29
In Stock
Compressor W11189854
#1

Unit parts diagram

Compressor

Part #W11189854

Replaced by #WPW10750849

?
Manufacturer substitution
This part replaces W11189854. Substitute parts can look different from the original.
$309.87 |
$12.00 OFF Phone Price : $321.87
In Stock
