Singer
Mechanical Sewing Machine

Model # 9034 Official Singer sewing machine

Here are the diagrams and repair parts for Official Singer 9034 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

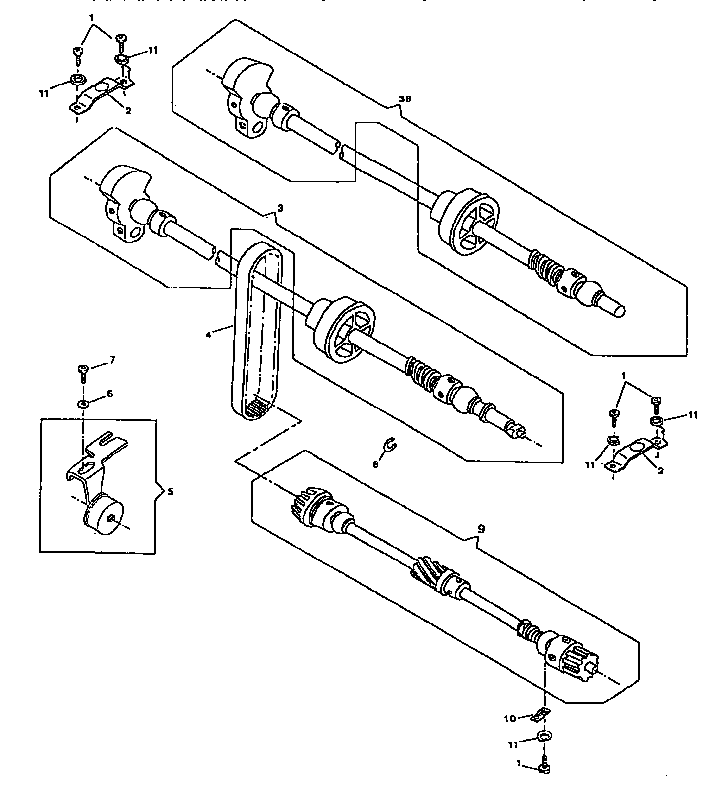

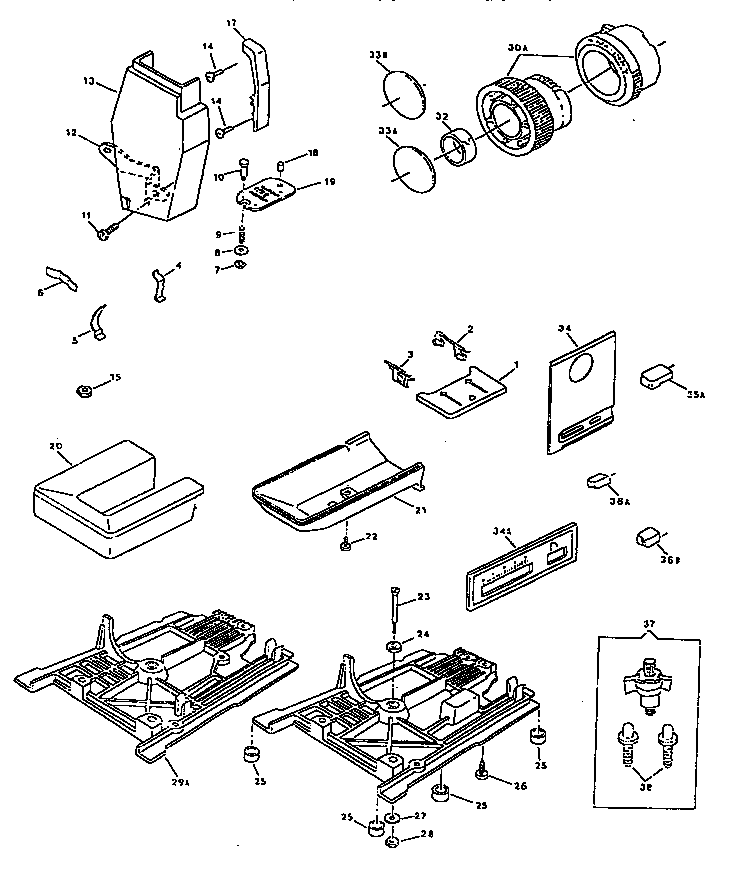

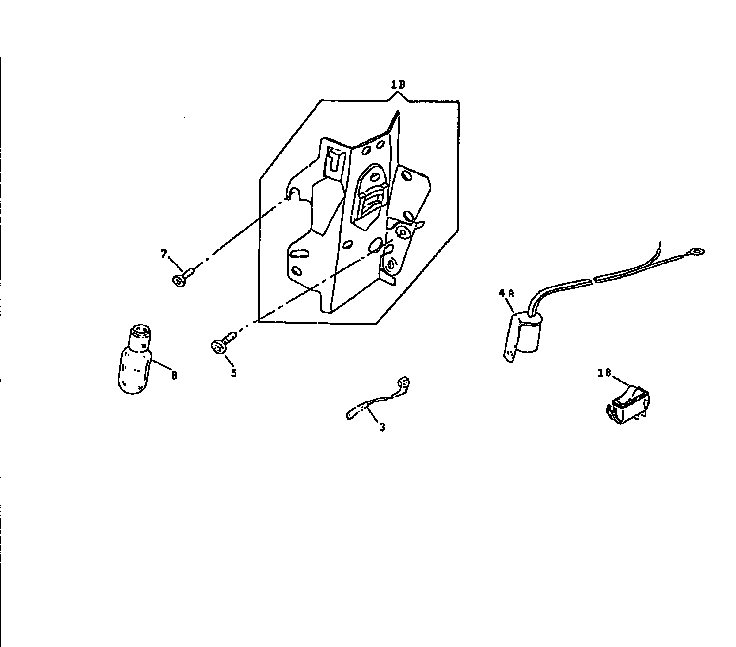

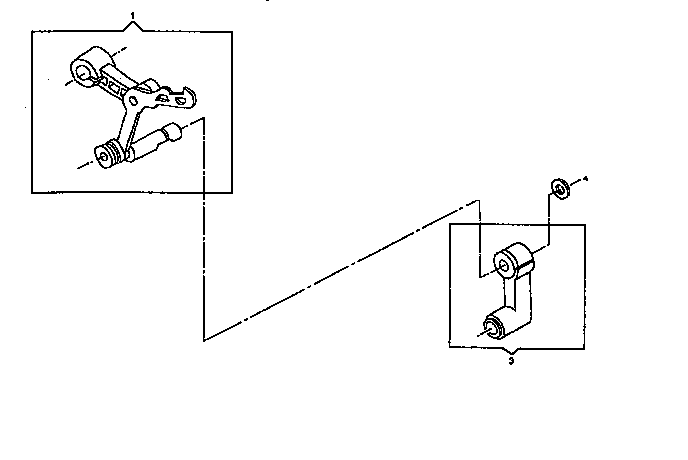

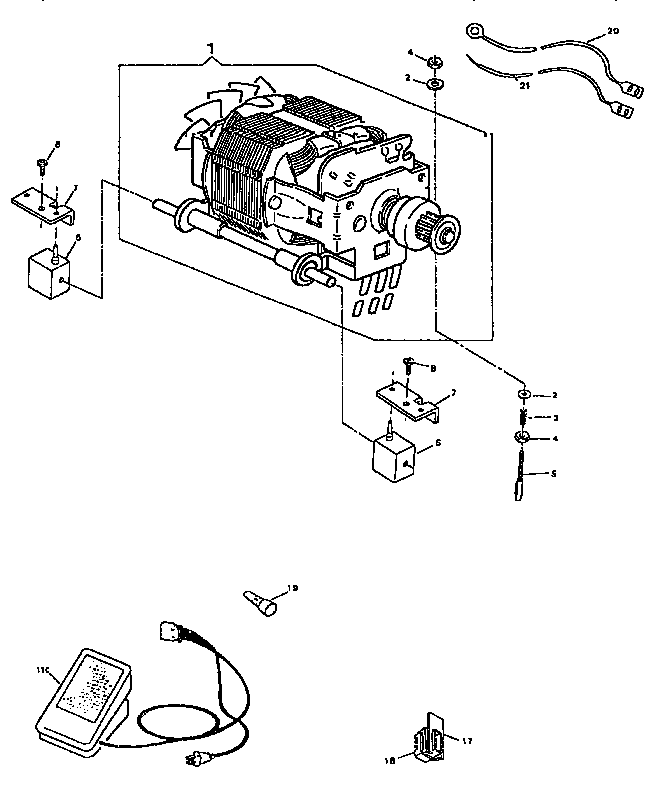

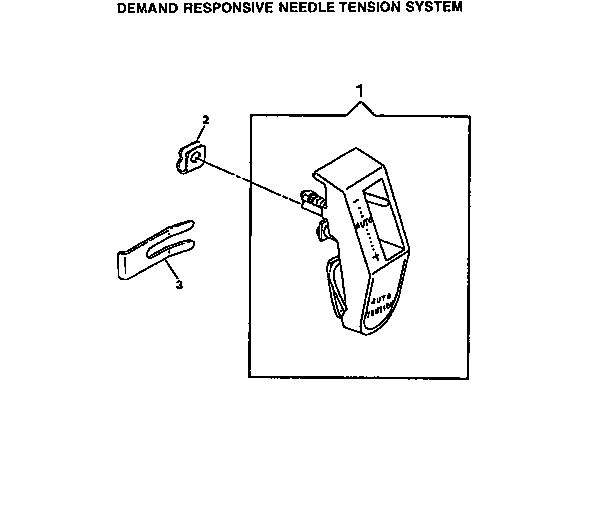

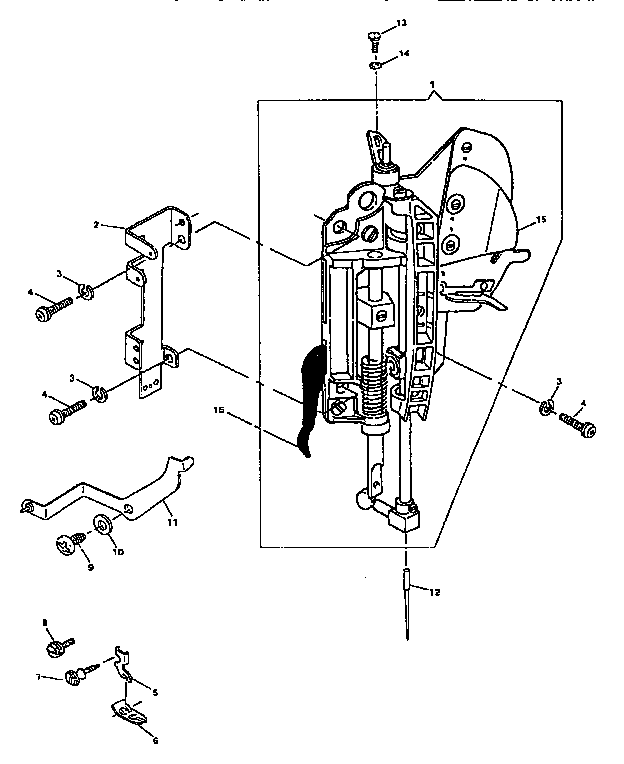

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 183 parts  |
Retaining Ring 286595-451
#2

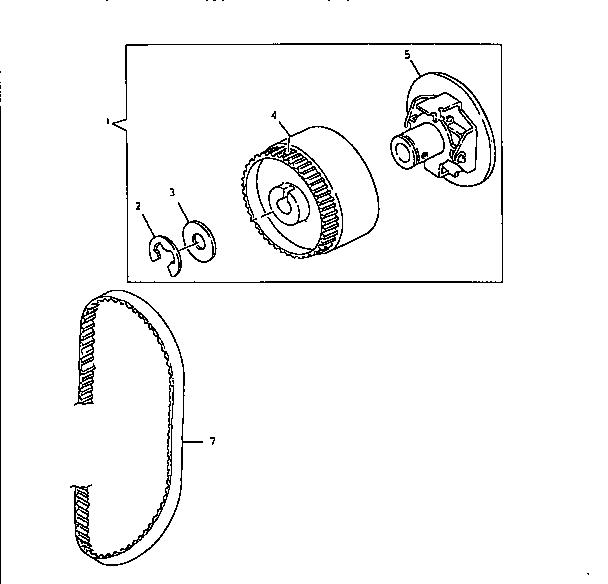

Hand wheel diagram

Retaining ring

Part #286595-451

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Button Guide Foot 313093-452
#10

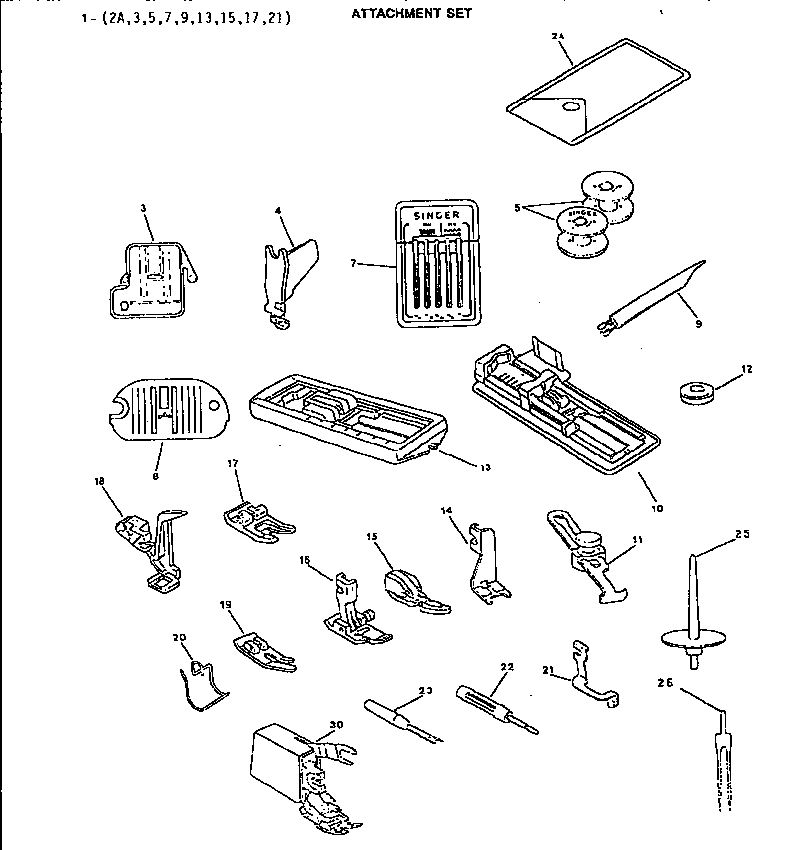

Attachment set diagram

Sewing machine button guide foot

Part #313093-452

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Screw 113455-014
#5

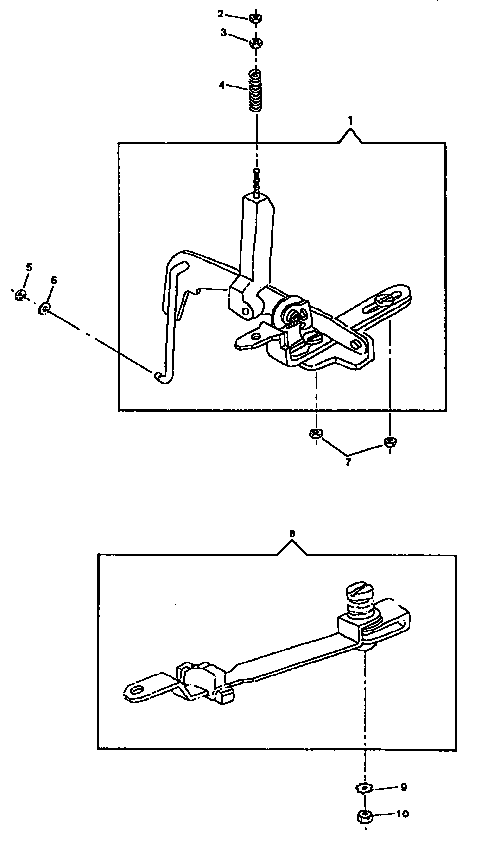

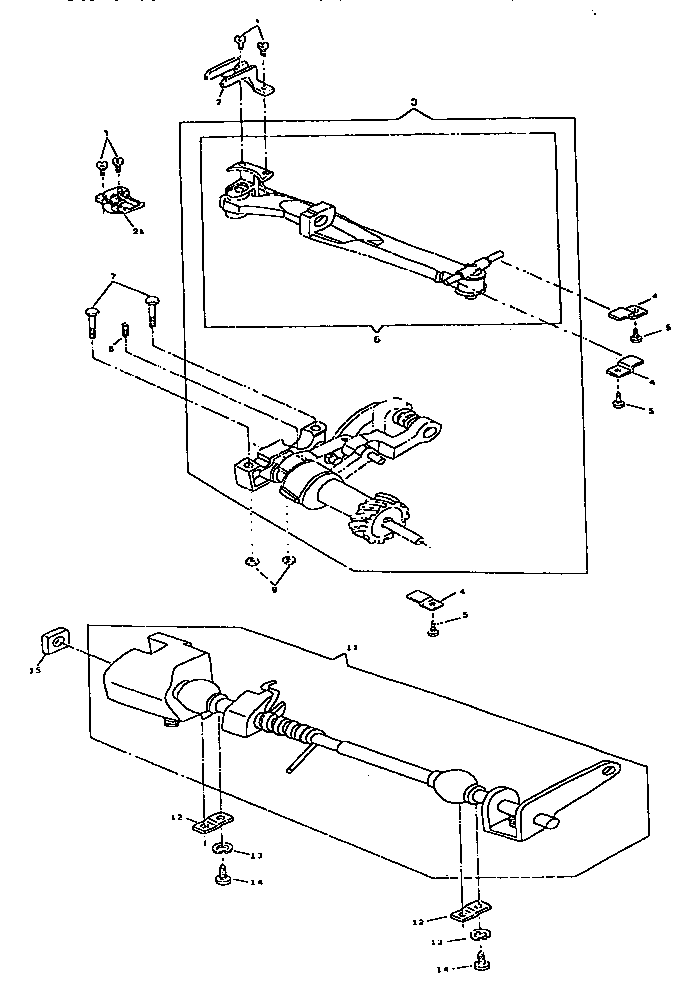

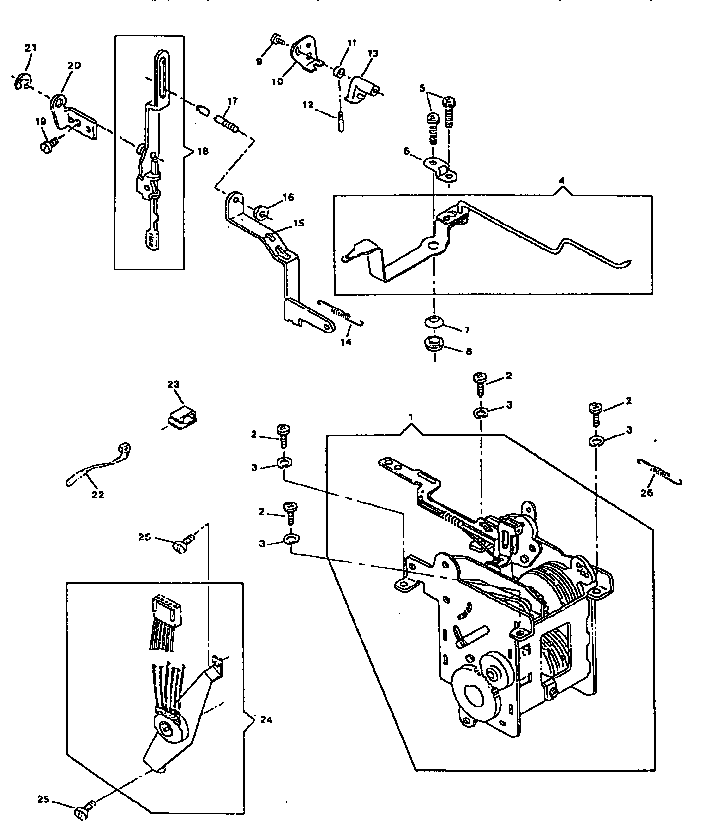

Pattern,stitch length ctrl & cam controlled feed diagram

Adjustment screw

Part #113455-014

The manufacturer no longer makes this part, and there's no substitute part

Singer Control Panel 317197-910
#2A

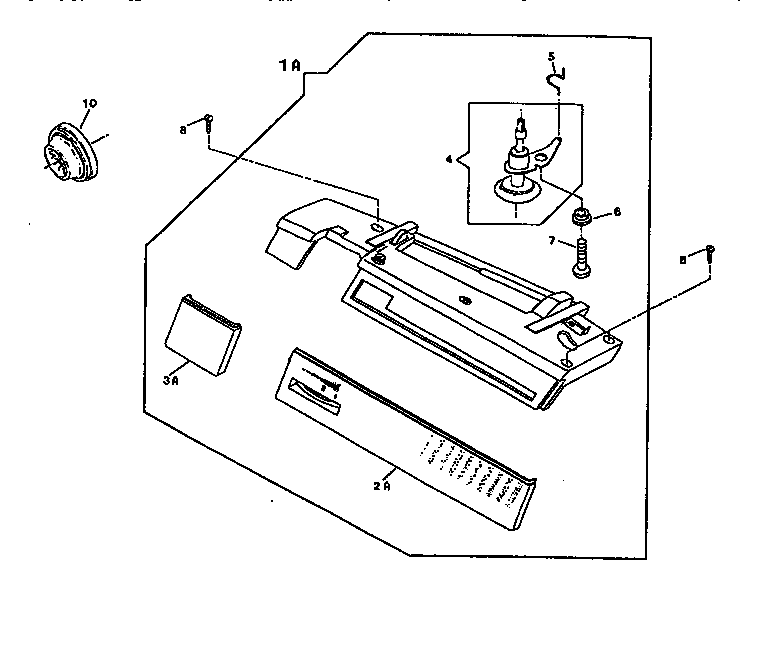

Arm top cover diagram

Singer control panel

Part #317197-910

The manufacturer no longer makes this part, and there's no substitute part

Washer 312847
#15

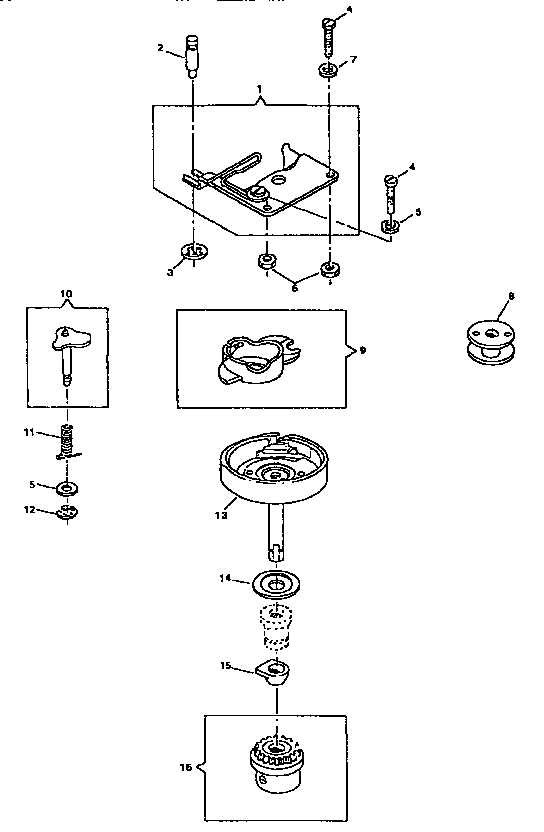

Hook system (apollo) diagram

Washer

Part #312847

The manufacturer no longer makes this part, and there's no substitute part

Hem Guide 171110
#21

Attachment set diagram

Hem guide

Part #171110

The manufacturer no longer makes this part, and there's no substitute part

Release Link 313005
#15

Pattern,stitch length ctrl & cam controlled feed diagram

Release link

Part #313005

The manufacturer no longer makes this part, and there's no substitute part

Release Pin 313023
#12

Pattern,stitch length ctrl & cam controlled feed diagram

Release pin

Part #313023

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Darning Foot 384037
#18

Attachment set diagram

Sewing machine darning foot

Part #384037

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Even Feed Foot 421333-451
#30

Attachment set diagram

Sewing machine even feed foot

Part #421333-451

The manufacturer no longer makes this part, and there's no substitute part
