Model # CDE20T7WC Official Crosley dryer

Here are the diagrams and repair parts for Official Crosley CDE20T7WC dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

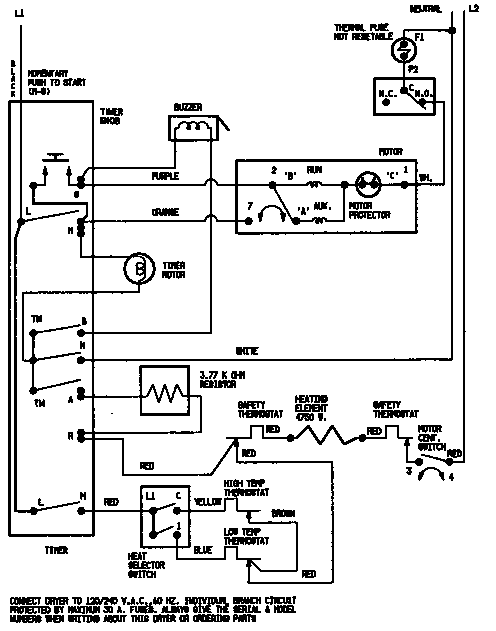

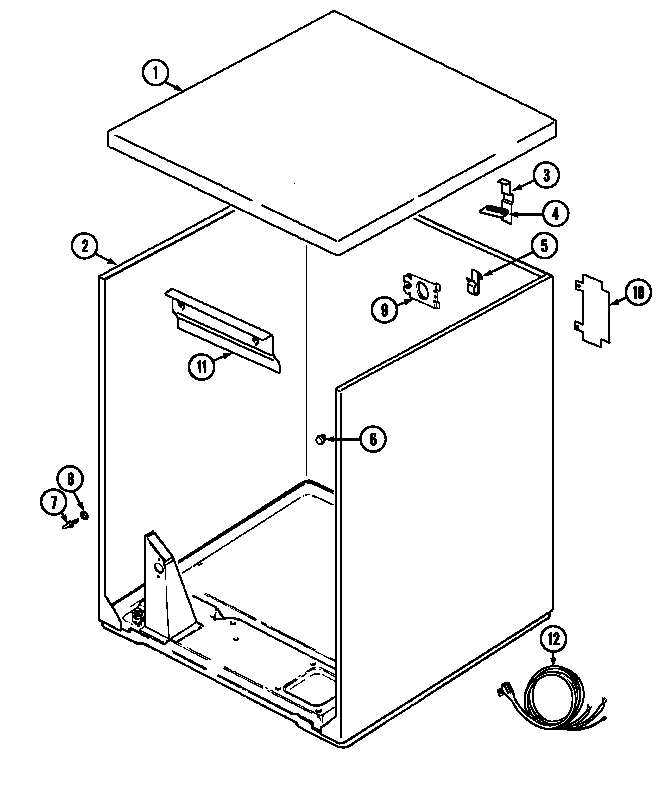

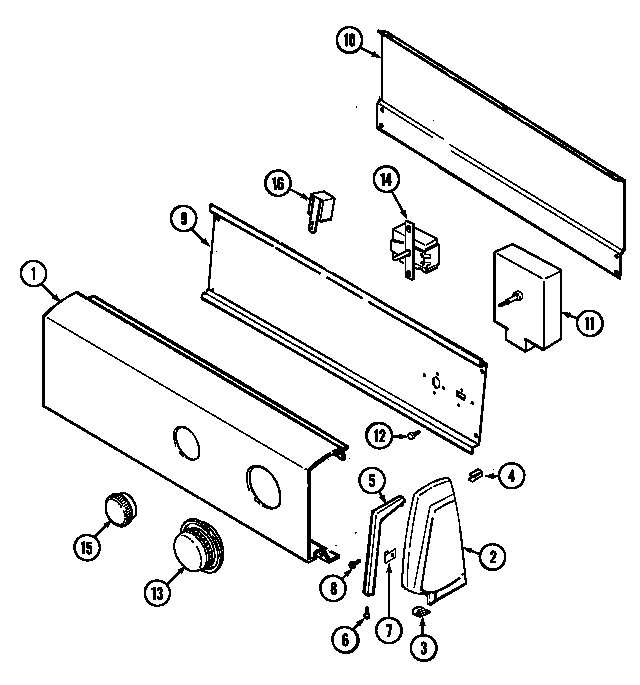

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Belt 31001026
#5

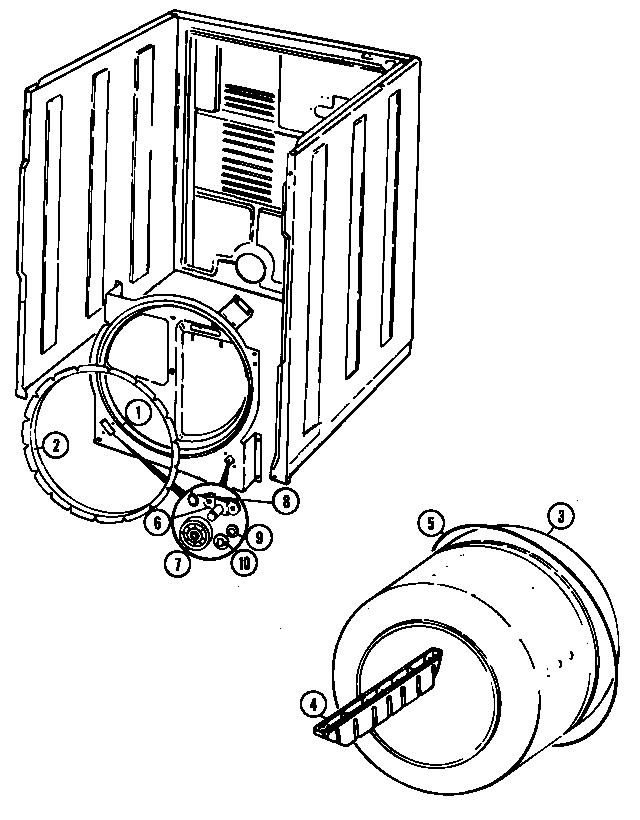

Tumbler diagram

Belt

Part #31001026

Replaced by #341241

?
Manufacturer substitution
This part replaces 31001026. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Motor With Pulley 31001015
#5

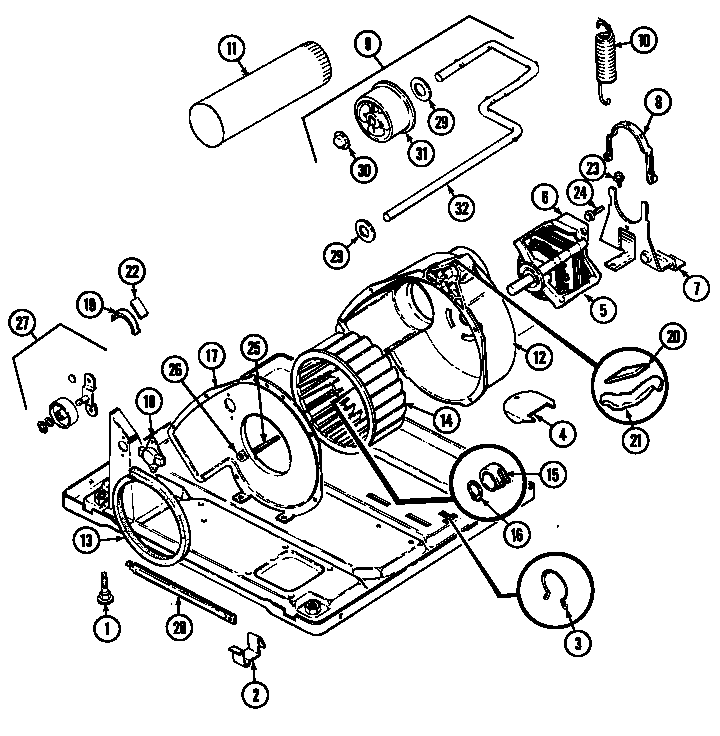

Motor & drive diagram

Motor with pulley

Part #31001015

Replaced by #W10410996

?
Manufacturer substitution
This part replaces 31001015. Substitute parts can look different from the original.
BEST SELLER
$206.04 |
6% OFF Phone Price : $218.04
In Stock
Element, Hea 53-1641
#1

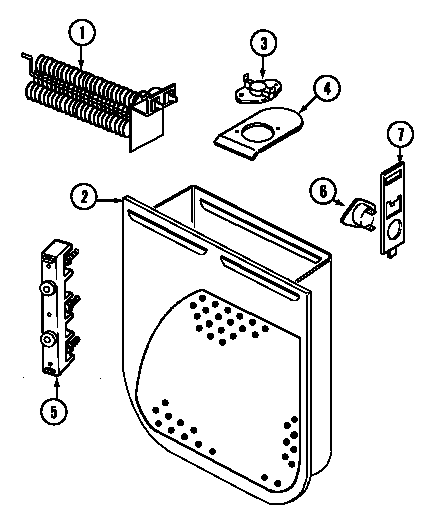

Heater diagram

Element, hea

Part #53-1641

Replaced by #LA-1044

?
Manufacturer substitution
This part replaces 53-1641. Substitute parts can look different from the original.
$73.64
In Stock
Outer Screw 25-7770
#16A

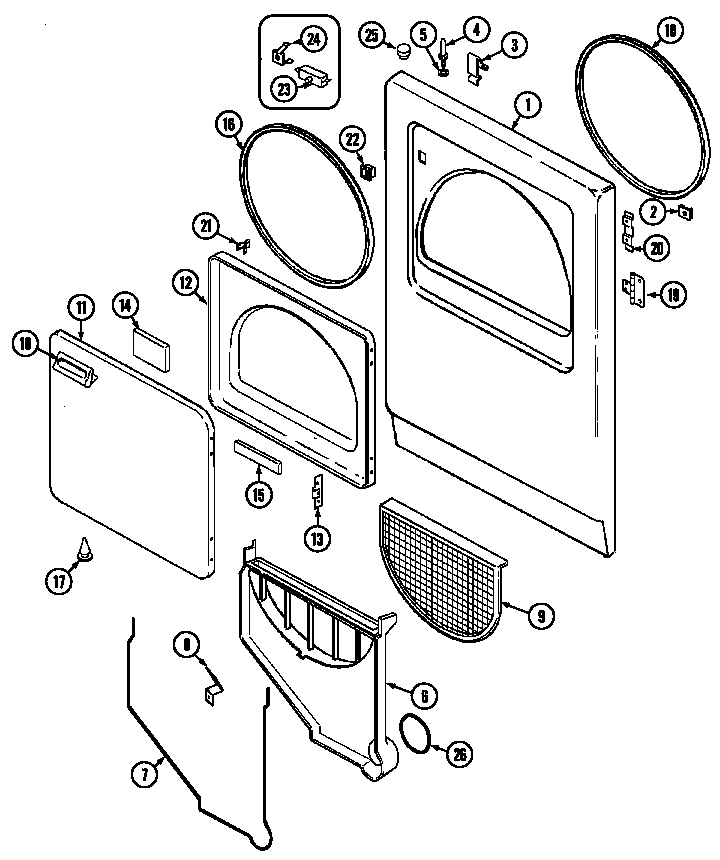

Door diagram

Outer screw

Part #25-7770

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 25-7770. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Thermal Fuse Kit (replaces 53-0143, 53-0261, 53-1096, 53-1133, 53-1182, 53-1526) LA-1053
#6

Heater diagram

Dryer thermal fuse kit (replaces 53-0143, 53-0261, 53-1096, 53-1133, 53-1182, 53-1526)

Part #LA-1053

$35.29 |
15% OFF Phone Price : $41.29
In Stock
Dryer Screw 25-7101
#6A

Tumbler diagram

Dryer screw

Part #25-7101

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 25-7101. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Blower Wheel (replaces 53-2045) 31001043
#14

Motor & drive diagram

Dryer blower wheel (replaces 53-2045)

Part #31001043

$66.65 |
8% OFF Phone Price : $72.65
In Stock
Seal Assy (w 53-0281
#2

Tumbler diagram

Seal assy (w

Part #53-0281

Replaced by #WP31001747

?
Manufacturer substitution
This part replaces 53-0281. Substitute parts can look different from the original.
This item is not returnable
$26.59 |
18% OFF Phone Price : $32.59
In Stock
Front Seal S 53-1756
#10

Door diagram

Front seal s

Part #53-1756

Replaced by #WP31001747

?
Manufacturer substitution
This part replaces 53-1756. Substitute parts can look different from the original.
This item is not returnable
$26.59 |
18% OFF Phone Price : $32.59
In Stock
Door Seal 53-0648
#16

Door diagram

Door seal

Part #53-0648

Replaced by #WP31001529

?
Manufacturer substitution
This part replaces 53-0648. Substitute parts can look different from the original.
$54.80 |
10% OFF Was : $60.89
In Stock
