Model # BKDEG130SS Official Broan range hood

Here are the diagrams and repair parts for Official Broan BKDEG130SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

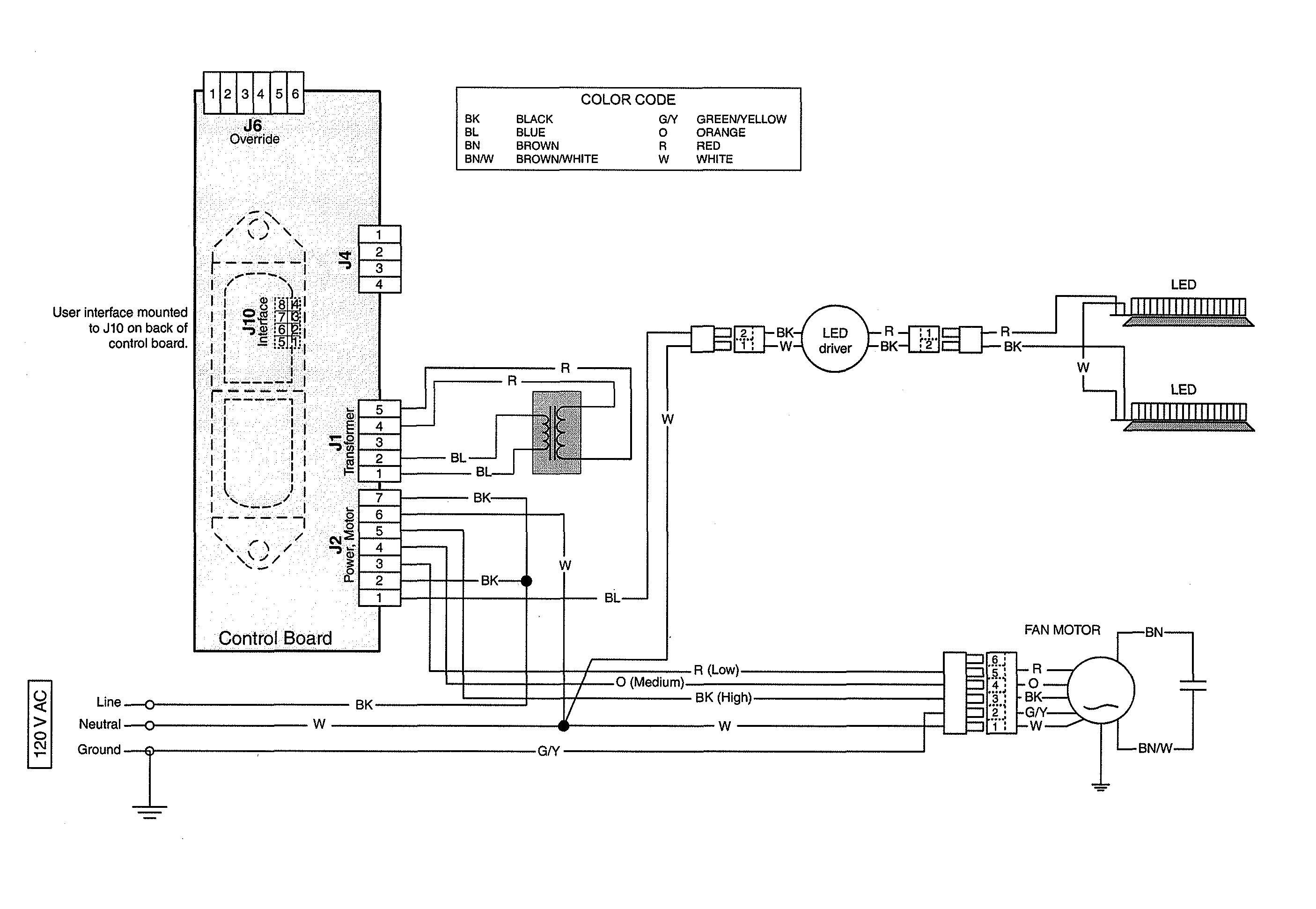

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Range Hood Vent Damper (replaces R680508) SR680508
#2

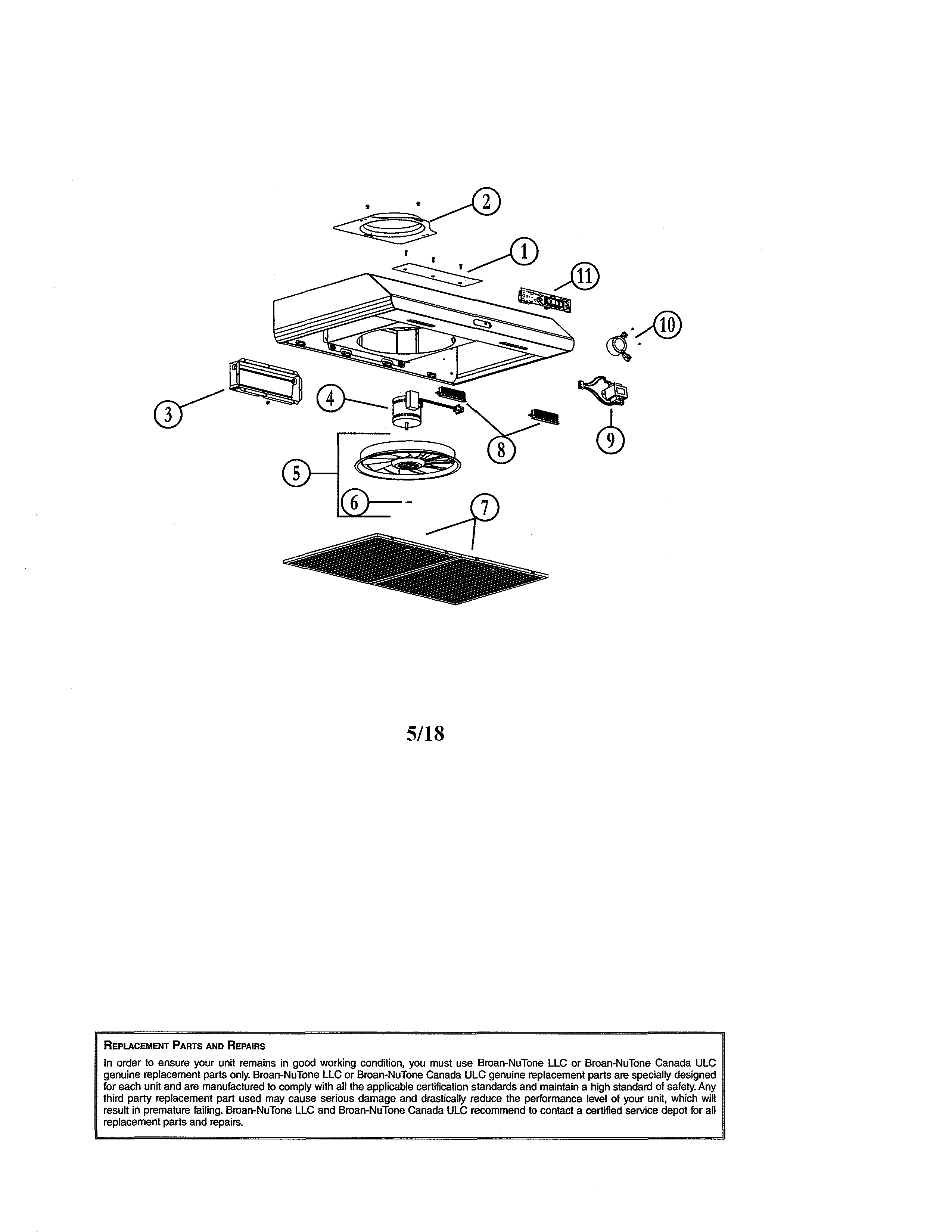

Range hood diagram

Range hood vent damper (replaces r680508)

Part #SR680508

BEST SELLER
$30.72 |
16% OFF Phone Price : $36.72
In Stock
Range Hood Light Assembly S97020444
#8

Range hood diagram

Range hood light assembly

Part #S97020444

$69.59 |
8% OFF Phone Price : $75.59
In Stock
Driver For Led Energy Star (with Screws) S97020446
#10

Range hood diagram

Driver for led energy star (with screws)

Part #S97020446

$63.85
In Stock
Range Hood Fan Blade Retainer SR99420635
#6

Range hood diagram

Range hood fan blade retainer

Part #SR99420635

This item is not returnable
$25.71
In Stock
Range Hood Non-ducted Filter, 2-pack S97020466

#NI04

All parts diagram

Range hood non-ducted filter, 2-pack

Part #S97020466

$56.99 |
10% OFF Phone Price : $62.99
In Stock
Wire Harness S97020455

#NI01

All parts diagram

Wire harness

Part #S97020455

The manufacturer no longer makes this part, and there's no substitute part

3 1/4" X 10" Damper Assy (incl Screws) S97020534
#3

Range hood diagram

3 1/4" x 10" damper assy (incl screws)

Part #S97020534

The manufacturer no longer makes this part, and there's no substitute part

Wiring Cover S98011637

#NI02

All parts diagram

Wiring cover

Part #S98011637

The manufacturer no longer makes this part, and there's no substitute part

Parts Bag Incl: 4 Metal Screw #8-18 X 1/2", 4 Washers, 6 Round Head #8 X 5/8" Wood Screw, S97020360

#NI03

All parts diagram

Parts bag incl: 4 metal screw #8-18 x 1/2", 4 washers, 6 round head #8 x 5/8" wood screw,

Part #S97020360

The manufacturer no longer makes this part, and there's no substitute part

Recirculation Cover Plate, Stainless Steel (incl Screws) S97020031
#1

Range hood diagram

Recirculation cover plate, stainless steel (incl screws)

Part #S97020031

The manufacturer no longer makes this part, and there's no substitute part
