Model # JV535H1BB Official GE range hood
Here are the diagrams and repair parts for Official GE JV535H1BB range hood, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts forJV535H1BB Range Hood
- #18

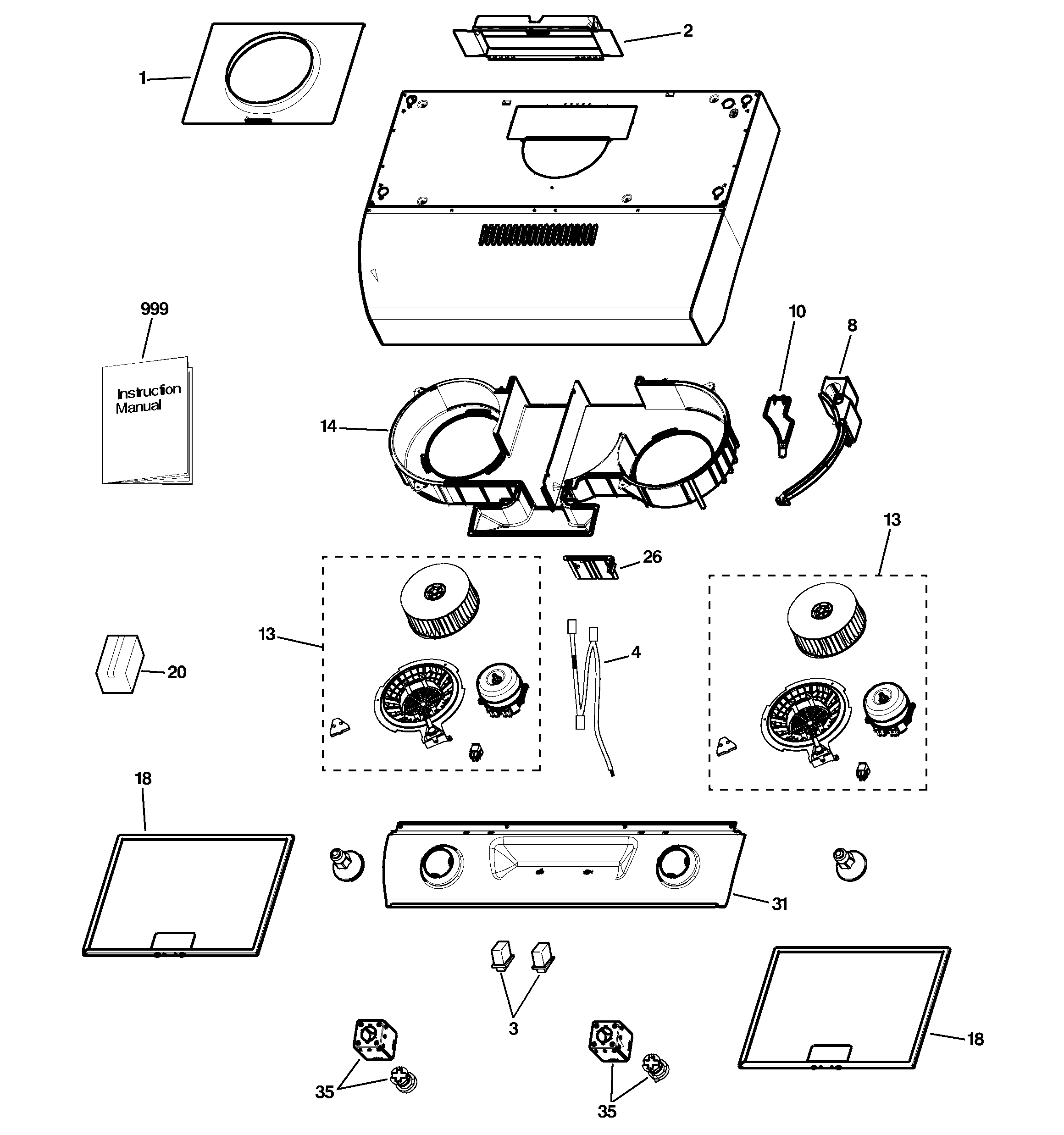

Range hood diagram
Range hood grease filterPart #WB02X11011
$172.72 |6% OFF Phone Price : $184.72In Stock - #8
Range hood diagram
Junction boxPart #WB18X10243
$28.84 |17% OFF Phone Price : $34.84In Stock - #3
Range hood diagram
Range hood rocker switchPart #WB24X10125
$29.24 |17% OFF Phone Price : $35.24In Stock - #1
Range hood diagram
Vent adapterPart #WB02X10705
$42.44 |12% OFF Phone Price : $48.44In Stock - #2
Range hood diagram
TransitionPart #WB02X11020
$57.89In Stock - #10
Range hood diagram
Junction boxPart #WB59X10001
$27.89In Stock - #31
Range hood diagram
Lamp/cntrl pPart #WB07X10744
$67.96In Stock - #20
Range hood diagram
Hardware bagPart #WB02X11021
$23.47In Stock - #26
Range hood diagram
Recirculation leverPart #WB38X10082
$9.91 |9% OFF Phone Price : $10.91In Stock - #4
Range hood diagram
Wiring w/ diPart #WB18X10242
$22.69In Stock
