Model # WFL2060UC/22 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFL2060UC-22 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Washer Door Boot (replaces 354135) 00354135
#330

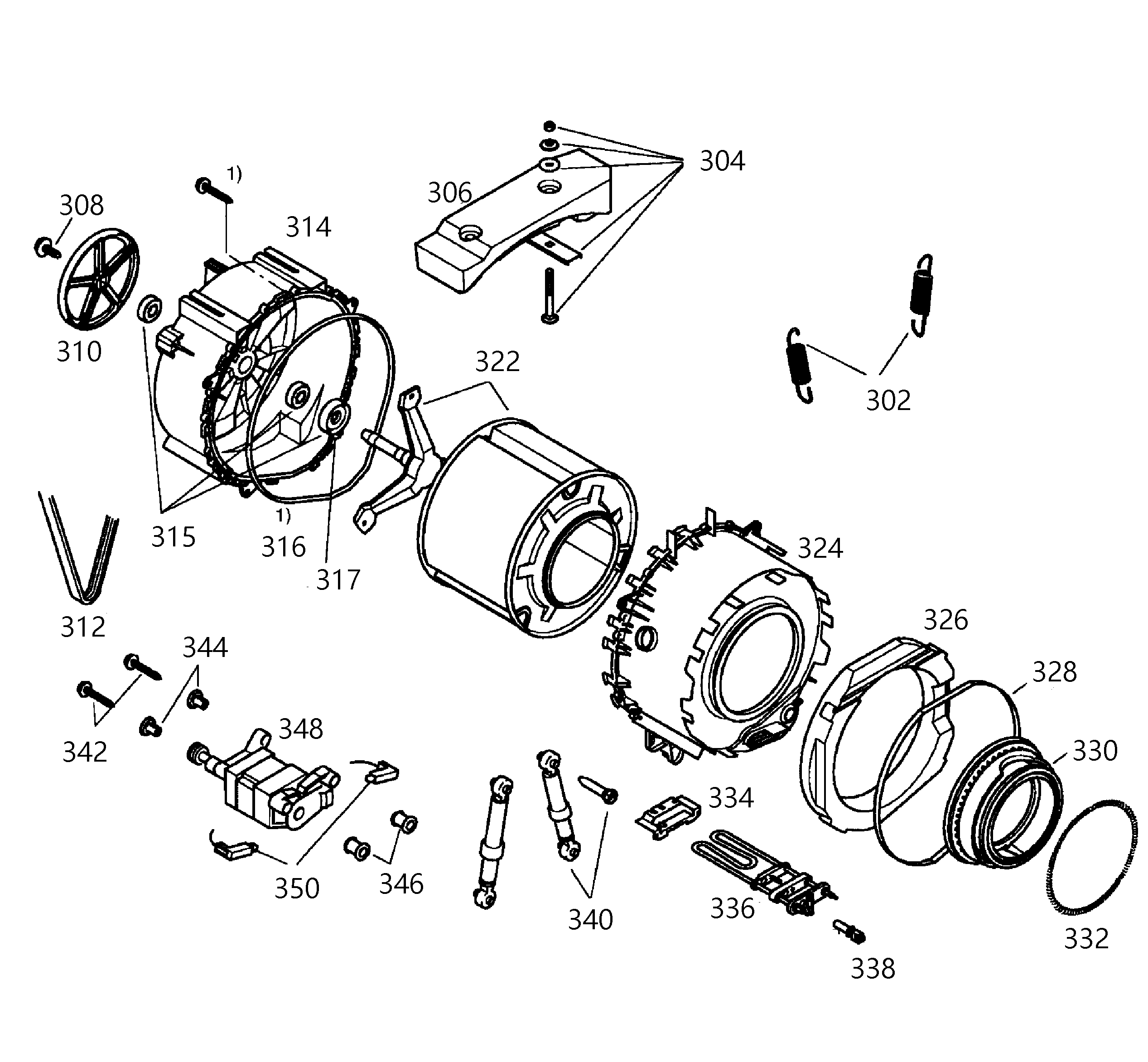

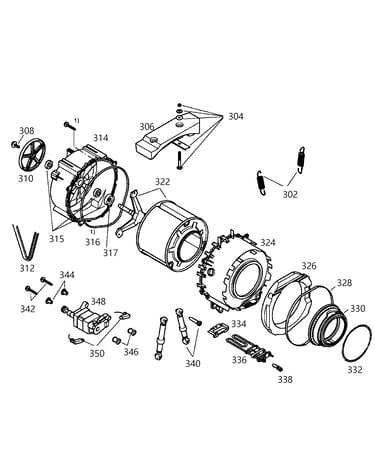

Drum diagram

Washer door boot (replaces 354135)

Part #00354135

$93.09 |
6% OFF Phone Price : $99.09
In Stock
Ring 00354134
#332

Drum diagram

Ring

Part #00354134

$11.60
In Stock
Hinge Washer 00171269
#234

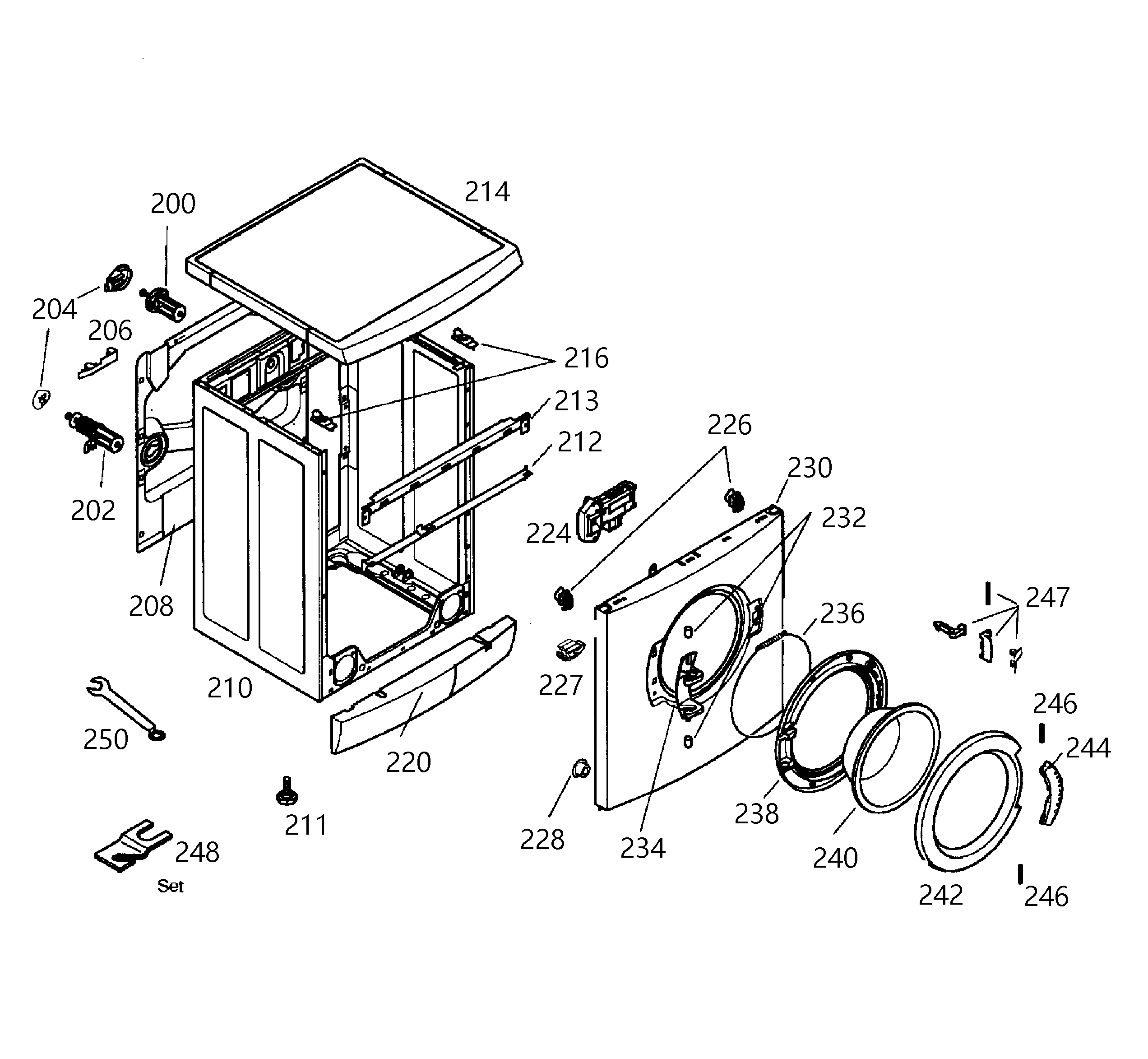

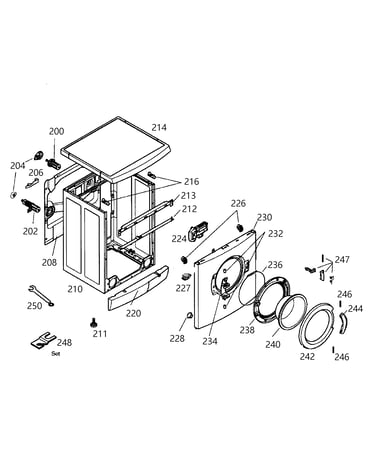

Cabinet diagram

Hinge washer

Part #00171269

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Washer Door Hinge Bushing 00171264
#232

Cabinet diagram

Washer door hinge bushing

Part #00171264

$23.77
In Stock
Washer Motor Brush (replaces 154740) 00154740
#350

Drum diagram

Washer motor brush (replaces 154740)

Part #00154740

$75.19 |
7% OFF Phone Price : $81.19
In Stock
Drive Belt 00354131
#312

Drum diagram

Drive belt

Part #00354131

Replaced by #00439491

?
Manufacturer substitution
This part replaces 00354131. Substitute parts can look different from the original.
$26.97
In Stock
Foot 00170953
#211

Cabinet diagram

Foot

Part #00170953

Replaced by #00610643

?
Manufacturer substitution
This part replaces 00170953. Substitute parts can look different from the original.
This item is not returnable
$19.89
In Stock
Cable Support 00482048
#104

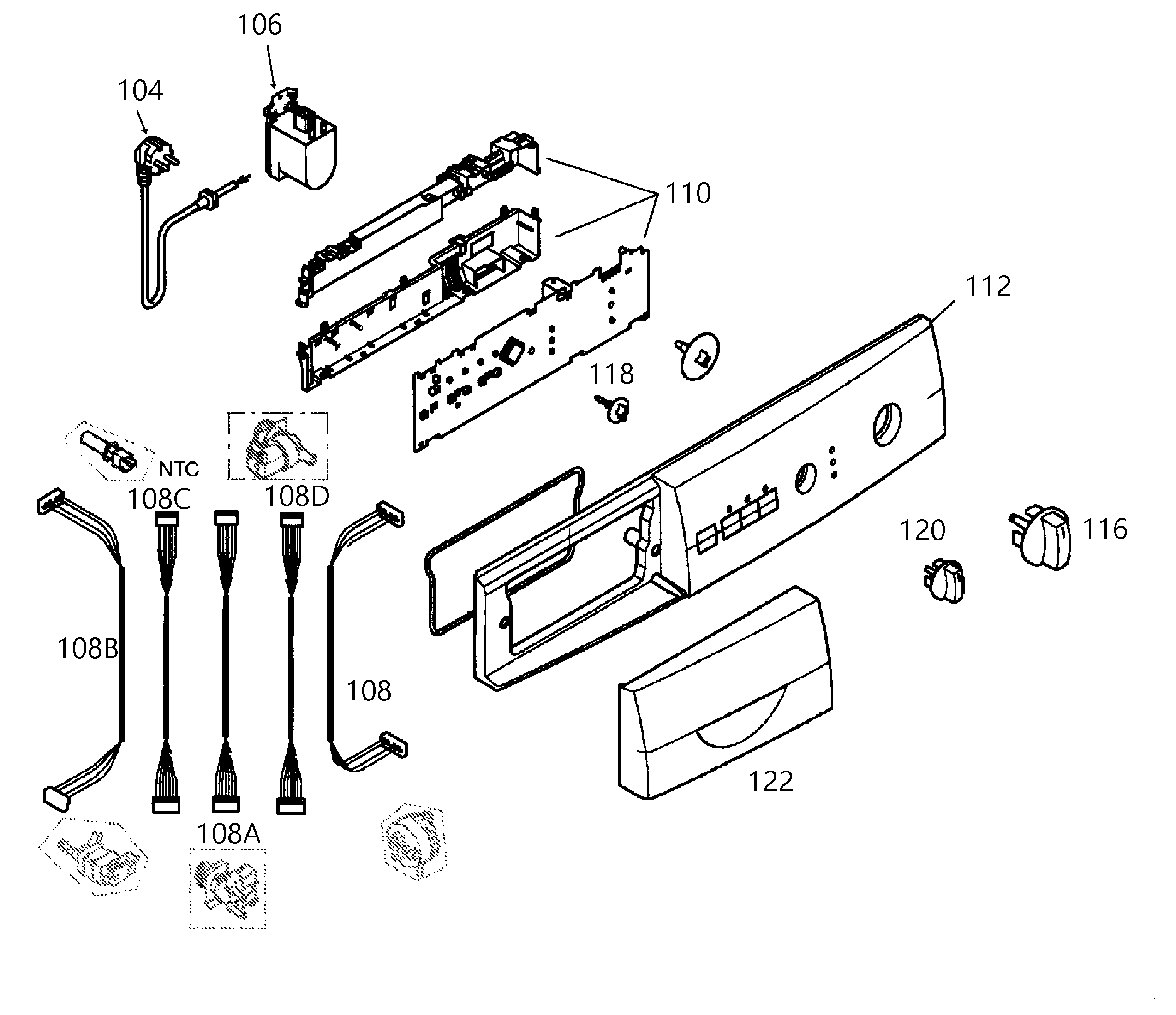

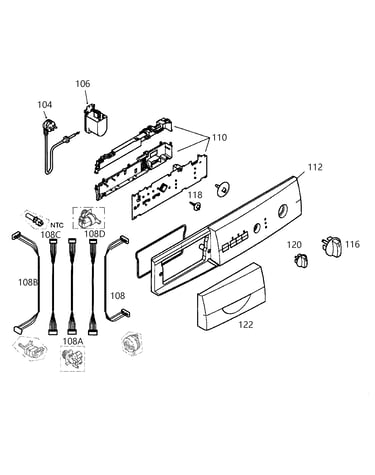

Control panel diagram

Cable support

Part #00482048

Replaced by #00648023

?
Manufacturer substitution
This part replaces 00482048. Substitute parts can look different from the original.
$101.22 |
11% OFF Phone Price : $113.22
In Stock
Drain Pump 00142152
#440

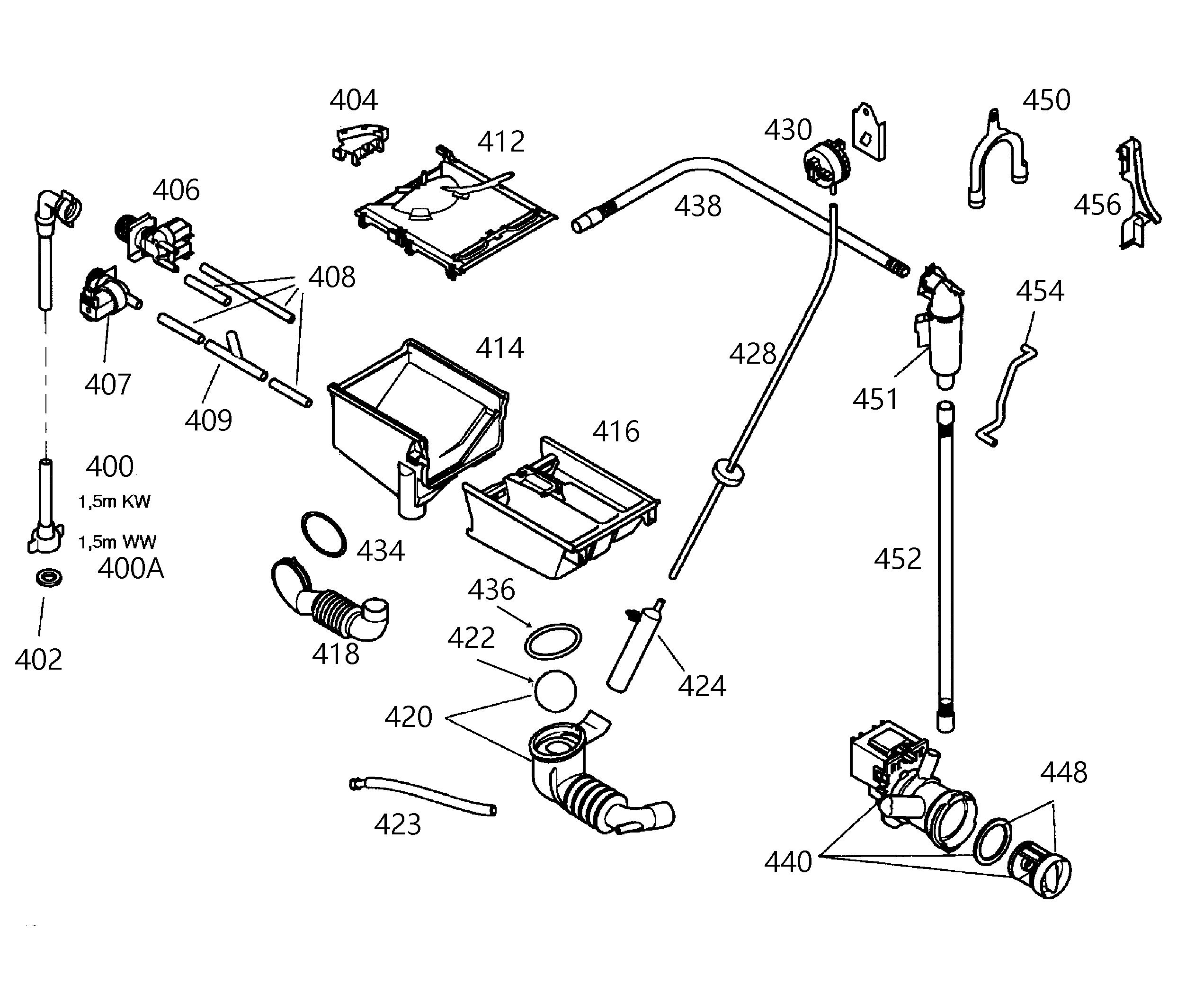

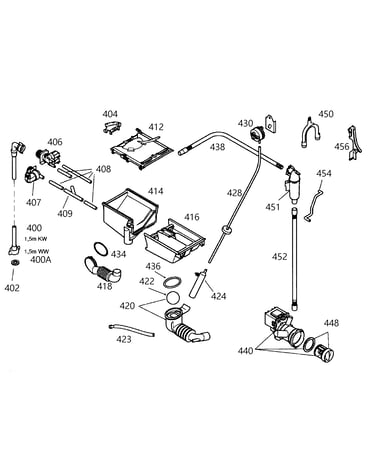

Pump diagram

Drain pump

Part #00142152

Replaced by #00144486

?
Manufacturer substitution
This part replaces 00142152. Substitute parts can look different from the original.
$96.83 |
11% OFF Phone Price : $108.83
In Stock
Hose 00358305
#452

Pump diagram

Hose

Part #00358305

$27.69 |
18% OFF Phone Price : $33.69
In Stock
