Model # 10618480 Official Craftsman paint sprayer unit
Here are the diagrams and repair parts for Official Craftsman 10618480 paint sprayer unit, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 51 parts |
#15

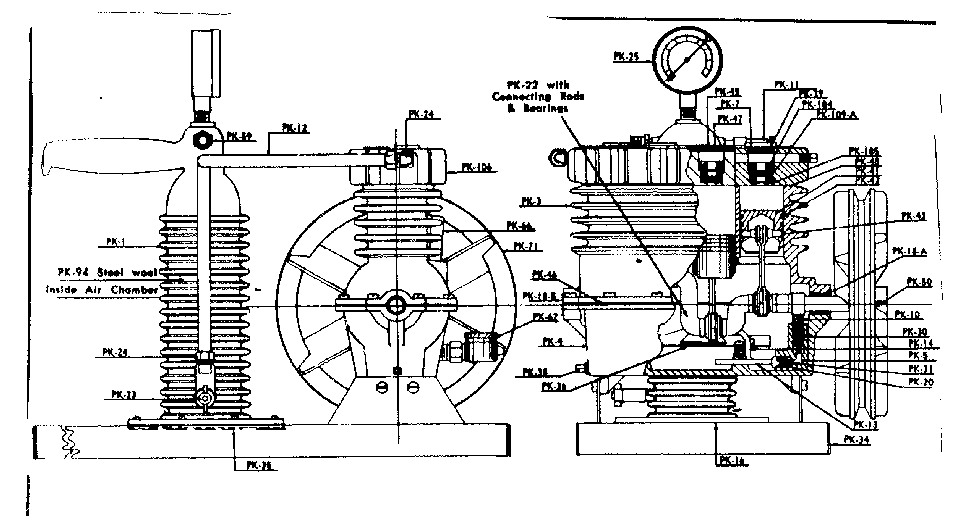

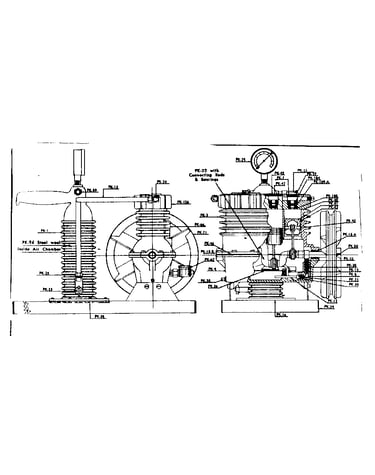

Replacement parts diagram
Rod/brng
Part #PK-22
The manufacturer no longer makes this part, and there's no substitute part
#19
Replacement parts diagram
Pulley
Part #PK-26
The manufacturer no longer makes this part, and there's no substitute part
#18
Replacement parts diagram
Air gauge
Part #PK-25
The manufacturer no longer makes this part, and there's no substitute part
#52
Replacement parts diagram
Air hose
Part #9-1875
The manufacturer no longer makes this part, and there's no substitute part
#51
Replacement parts diagram
V-belt
Part #9-1643
The manufacturer no longer makes this part, and there's no substitute part
#31
Replacement parts diagram
Piston
Part #PK-41
The manufacturer no longer makes this part, and there's no substitute part
#49
Replacement parts diagram
Ring
Part #PK-184
The manufacturer no longer makes this part, and there's no substitute part
#6
Replacement parts diagram
Plunger
Part #PK-10
The manufacturer no longer makes this part, and there's no substitute part
#39
Replacement parts diagram
Wrench
Part #PK-50-A
The manufacturer no longer makes this part, and there's no substitute part
#30
Replacement parts diagram
Valve gasket
Part #PK-39
The manufacturer no longer makes this part, and there's no substitute part
