Kenmore
Electronic Sewing Machine

Model # 38517026590 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 38517026590 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 294 parts  |
Kenmore Elite Sewing Machine Rubber Cushion 647009002
#24

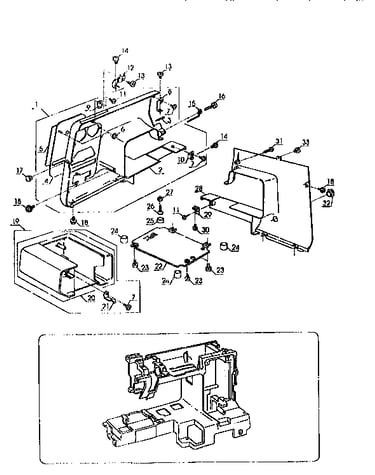

Base assembly diagram

Kenmore elite sewing machine rubber cushion

Part #647009002

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block 647511002
#10

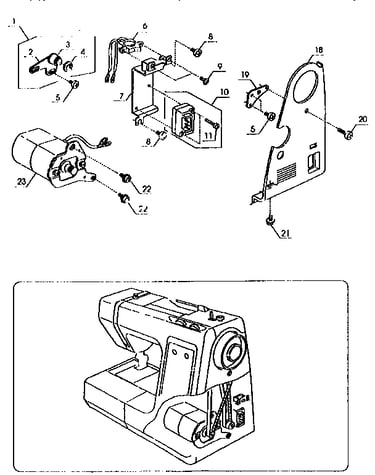

Motor assembly diagram

Terminal block

Part #647511002

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer 000072106
#12

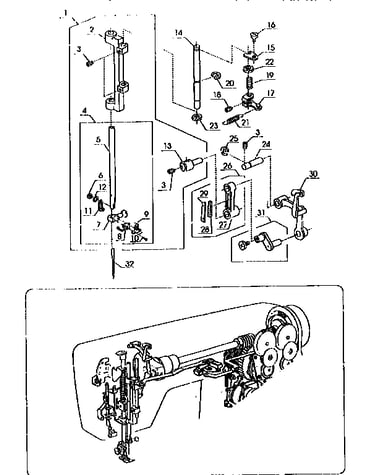

Needle bar support diagram

Plain washer

Part #000072106

The manufacturer no longer makes this part, and there's no substitute part

Janome Stud 650062003
#24

Needle bar support diagram

Janome stud

Part #650062003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Card 752801115
#25

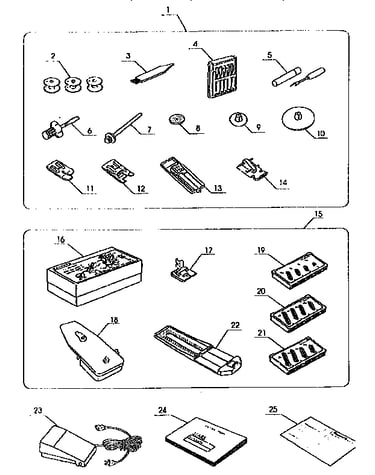

Attachment parts diagram

Kenmore card

Part #752801115

The manufacturer no longer makes this part, and there's no substitute part

Janome Cam Spring 686035008
#21

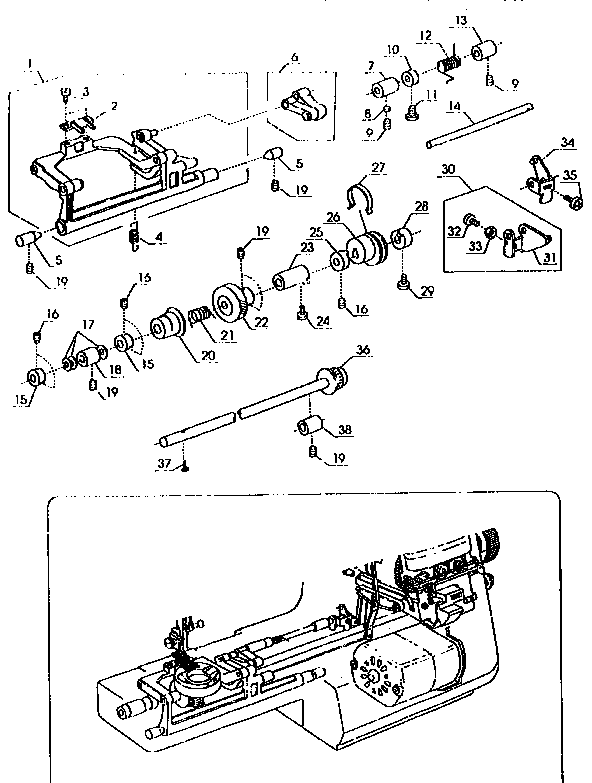

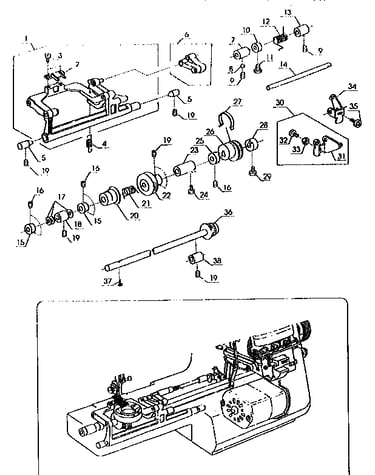

Feed regulator assembly diagram

Janome cam spring

Part #686035008

The manufacturer no longer makes this part, and there's no substitute part

Janome Washer 000030205
#9

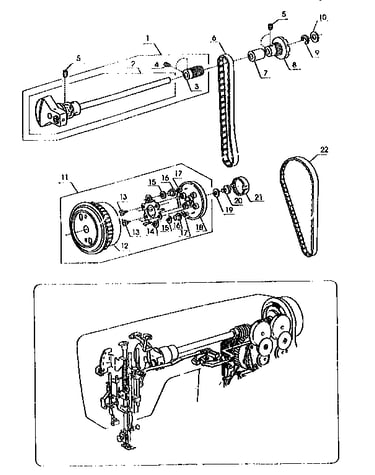

Upper shaft unit diagram

Janome washer

Part #000030205

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 000103808
Sewing machine set screw

Part #000103808

The manufacturer no longer makes this part, and there's no substitute part

Janome Release Button 825016000
#34

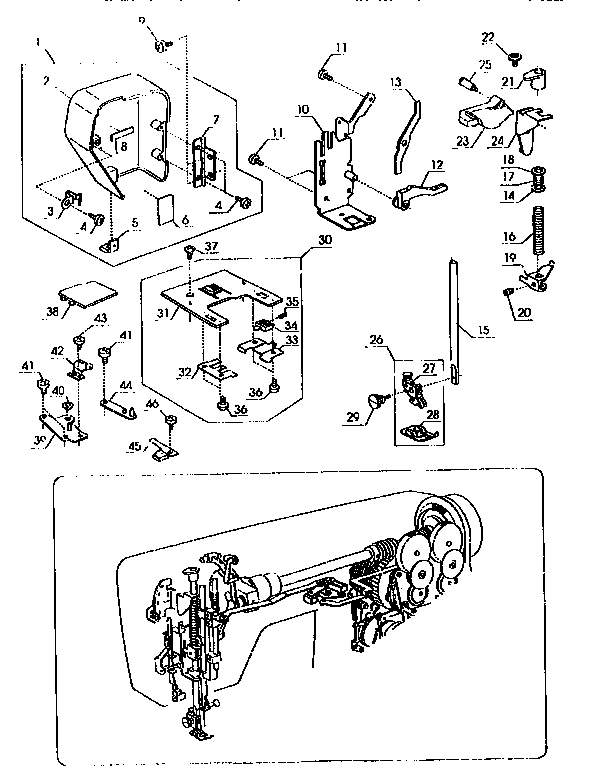

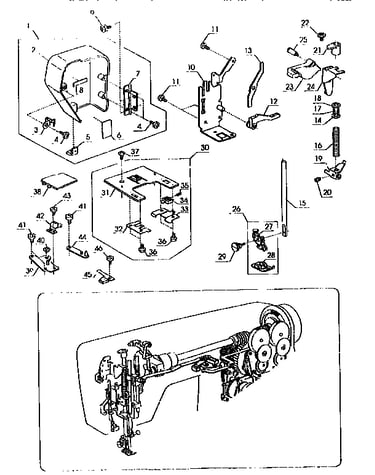

Presser bar assembly diagram

Janome release button

Part #825016000

The manufacturer no longer makes this part, and there's no substitute part

Stud 650033005
#14

Needle bar support diagram

Stud

Part #650033005

The manufacturer no longer makes this part, and there's no substitute part
