Model # MSG22GAXFWW Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE MSG22GAXFWW refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

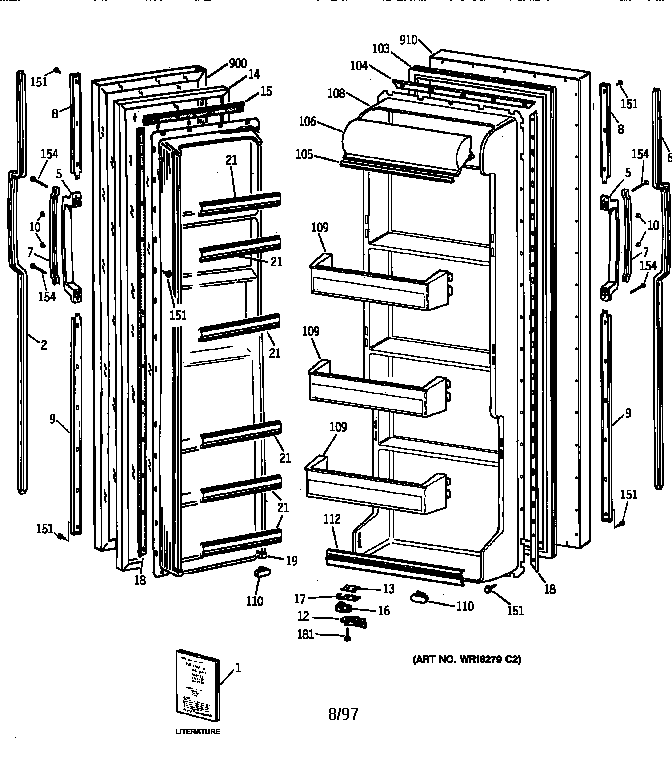

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Dryer Filter WR86X0096
#740

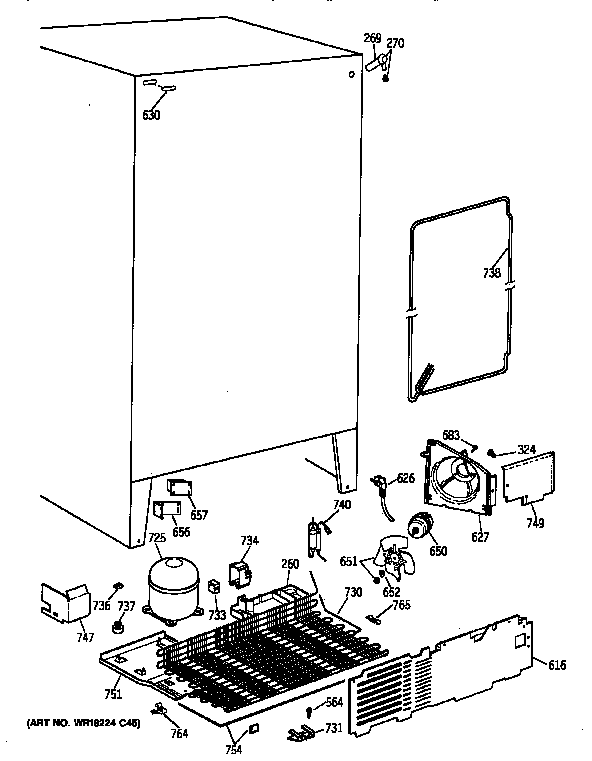

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Defrost Thermostat WR50X0122
#240

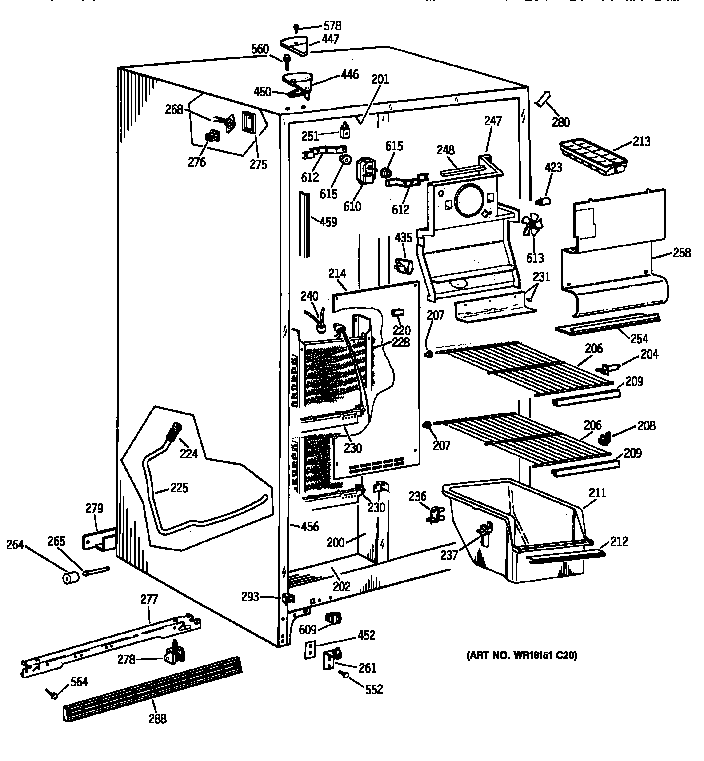

Freezer section diagram

Refrigerator defrost thermostat

Part #WR50X0122

Replaced by #WR50X122

?
Manufacturer substitution
This part replaces WR50X0122. Substitute parts can look different from the original.
BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Hinge WR13X0742
#261

Freezer section diagram

Refrigerator hinge

Part #WR13X0742

Replaced by #WR13X10020

?
Manufacturer substitution
This part replaces WR13X0742. Substitute parts can look different from the original.
BEST SELLER
$26.34 |
19% OFF Phone Price : $32.34
In Stock
Refrigerator Hinge WR13X0741
#451

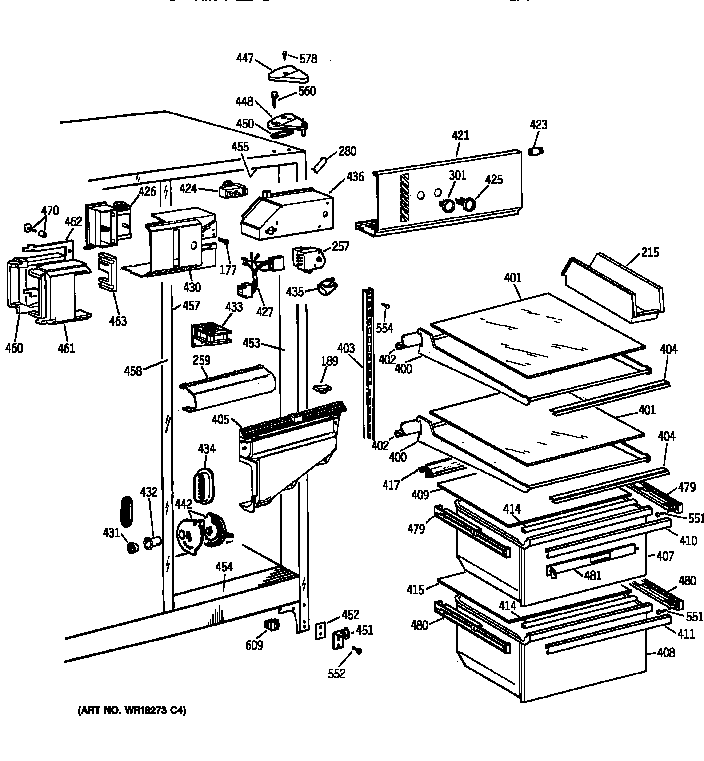

Fresh food section diagram

Refrigerator hinge

Part #WR13X0741

Replaced by #WR13X10020

?
Manufacturer substitution
This part replaces WR13X0741. Substitute parts can look different from the original.
BEST SELLER
$26.34 |
19% OFF Phone Price : $32.34
In Stock
Refrigerator Slide Assembly, Right WR72X0240
#479A

Fresh food section diagram

Refrigerator slide assembly, right

Part #WR72X0240

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR72X0240. Substitute parts can look different from the original.
BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
Refrigerator Slide Assembly, Left WR72X0239
#479B

Fresh food section diagram

Refrigerator slide assembly, left

Part #WR72X0239

Replaced by #WR72X239

?
Manufacturer substitution
This part replaces WR72X0239. Substitute parts can look different from the original.
$26.43 |
19% OFF Phone Price : $32.43
In Stock
Refrigerator Light Switch WR23X0359
Refrigerator light switch

Part #WR23X0359

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0359. Substitute parts can look different from the original.
$50.19
In Stock
Refrigerator Wheel WR02X3594
#264

Freezer section diagram

Refrigerator wheel

Part #WR02X3594

Replaced by #WR2X3594

?
Manufacturer substitution
This part replaces WR02X3594. Substitute parts can look different from the original.
This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
Refrigerator Fan Blade WR60X0247
#613B

Freezer section diagram

Refrigerator fan blade

Part #WR60X0247

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR60X0247. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Screw WZ04X0241

#NI

All parts diagram

Refrigerator screw

Part #WZ04X0241

Replaced by #WZ04X0241D

?
Manufacturer substitution
This part replaces WZ04X0241. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
