Model # UT10901A Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite UT10901A chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

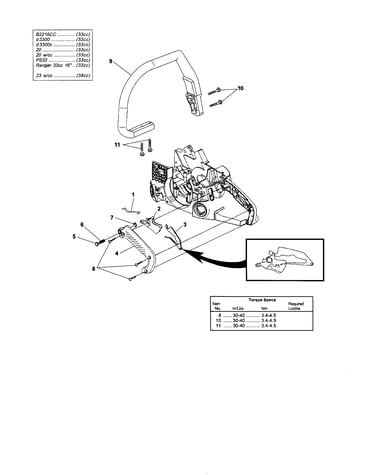

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Tubing, Ru 0745499

#NI10

All parts diagram

Tubing, ru

Part #0745499

The manufacturer no longer makes this part, and there's no substitute part

Bearing Case 04919
#17

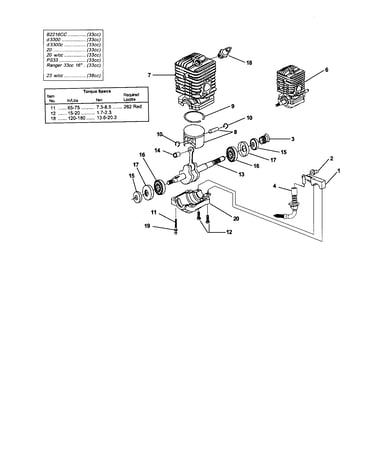

Engine internal-oil pump diagram

Bearing case

Part #04919

The manufacturer no longer makes this part, and there's no substitute part

Spring A97908
#2

Starter-ignition diagram

Spring

Part #A97908

The manufacturer no longer makes this part, and there's no substitute part

Short Block UP04161
#6A

Engine internal-oil pump diagram

Short block

Part #UP04161

The manufacturer no longer makes this part, and there's no substitute part

Screw 82623
#28

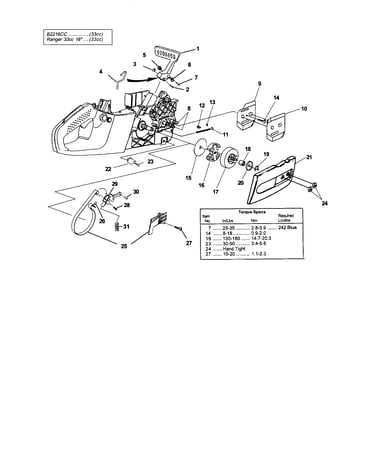

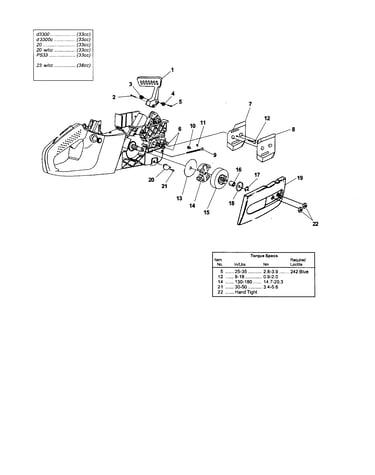

Clutch/hand guard/drive case cover diagram

Screw

Part #82623

The manufacturer no longer makes this part, and there's no substitute part

Deflector 07396A
#6

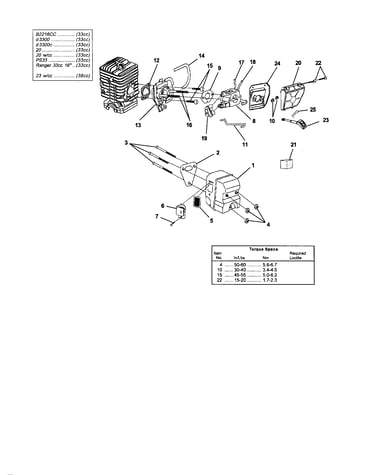

Carb./muffler/air filter diagram

Deflector

Part #07396A

The manufacturer no longer makes this part, and there's no substitute part

Chainsaw Fuel Filter PS03380
#17

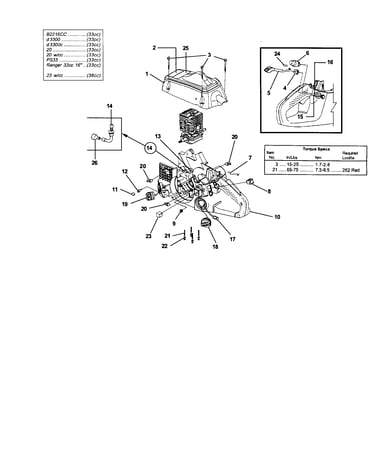

Engine housing/fuel tank/oil tank diagram

Chainsaw fuel filter

Part #PS03380

The manufacturer no longer makes this part, and there's no substitute part

Complete Gauge 94194

#NI14

All parts diagram

Complete gauge

Part #94194

The manufacturer no longer makes this part, and there's no substitute part

Crankcase 04909
#20

Engine internal-oil pump diagram

Crankcase

Part #04909

The manufacturer no longer makes this part, and there's no substitute part

Bll Brng/cse A04931
#16

Engine internal-oil pump diagram

Bll brng/cse

Part #A04931

The manufacturer no longer makes this part, and there's no substitute part
