Model # TBK25PAXGRWW Official GE refrigerator - x series
Here are the diagrams and repair parts for Official GE TBK25PAXGRWW refrigerator - x series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

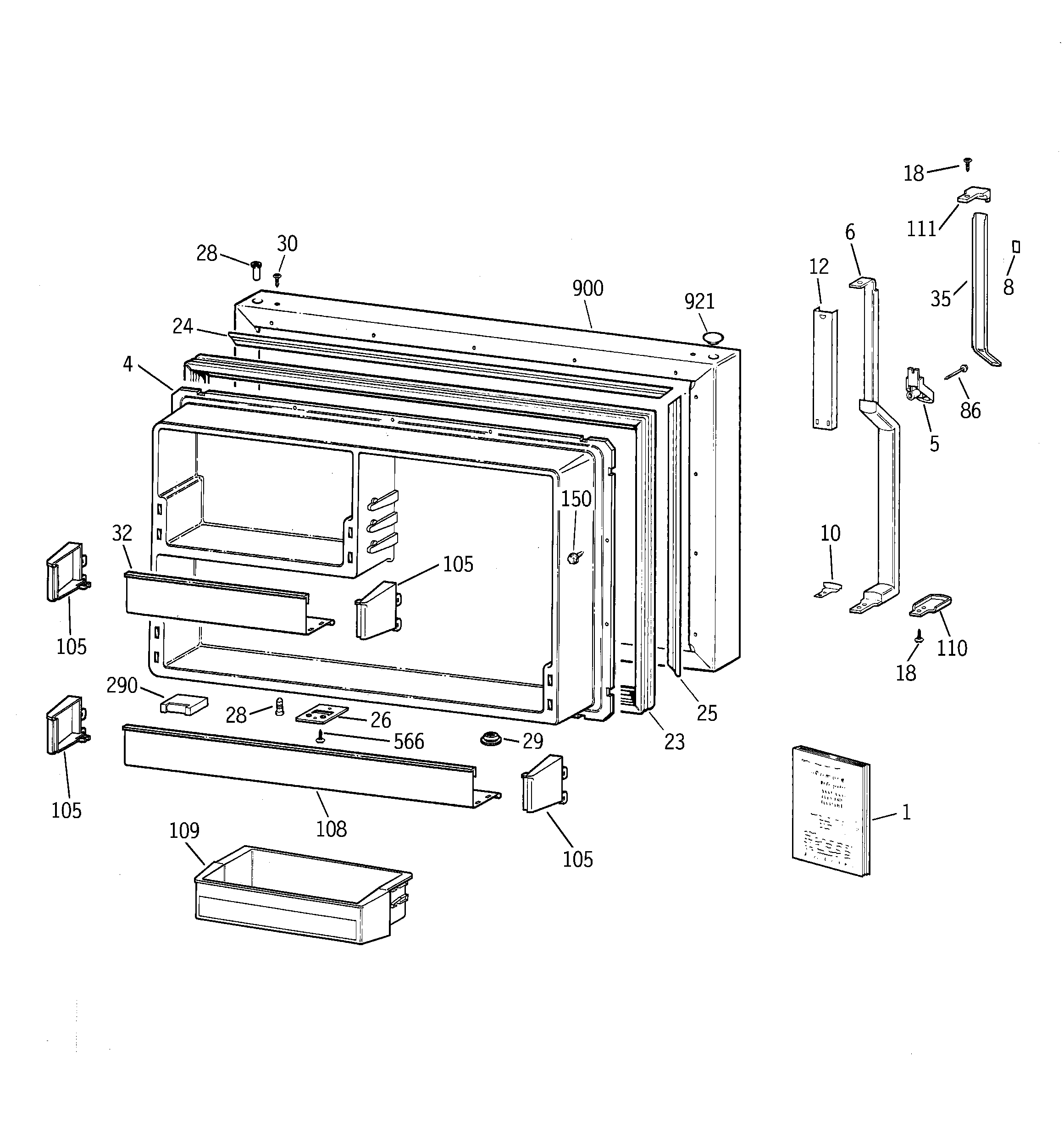

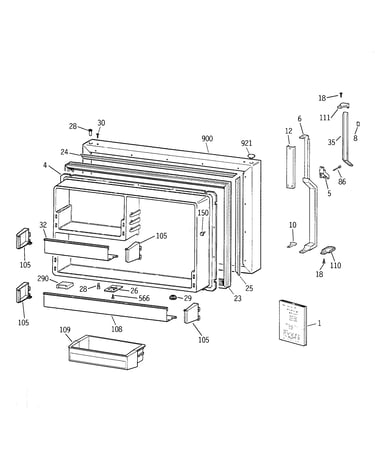

SELECT DIAGRAM
Browse Parts for
TBK25PAXGRWW Refrigerators
#740

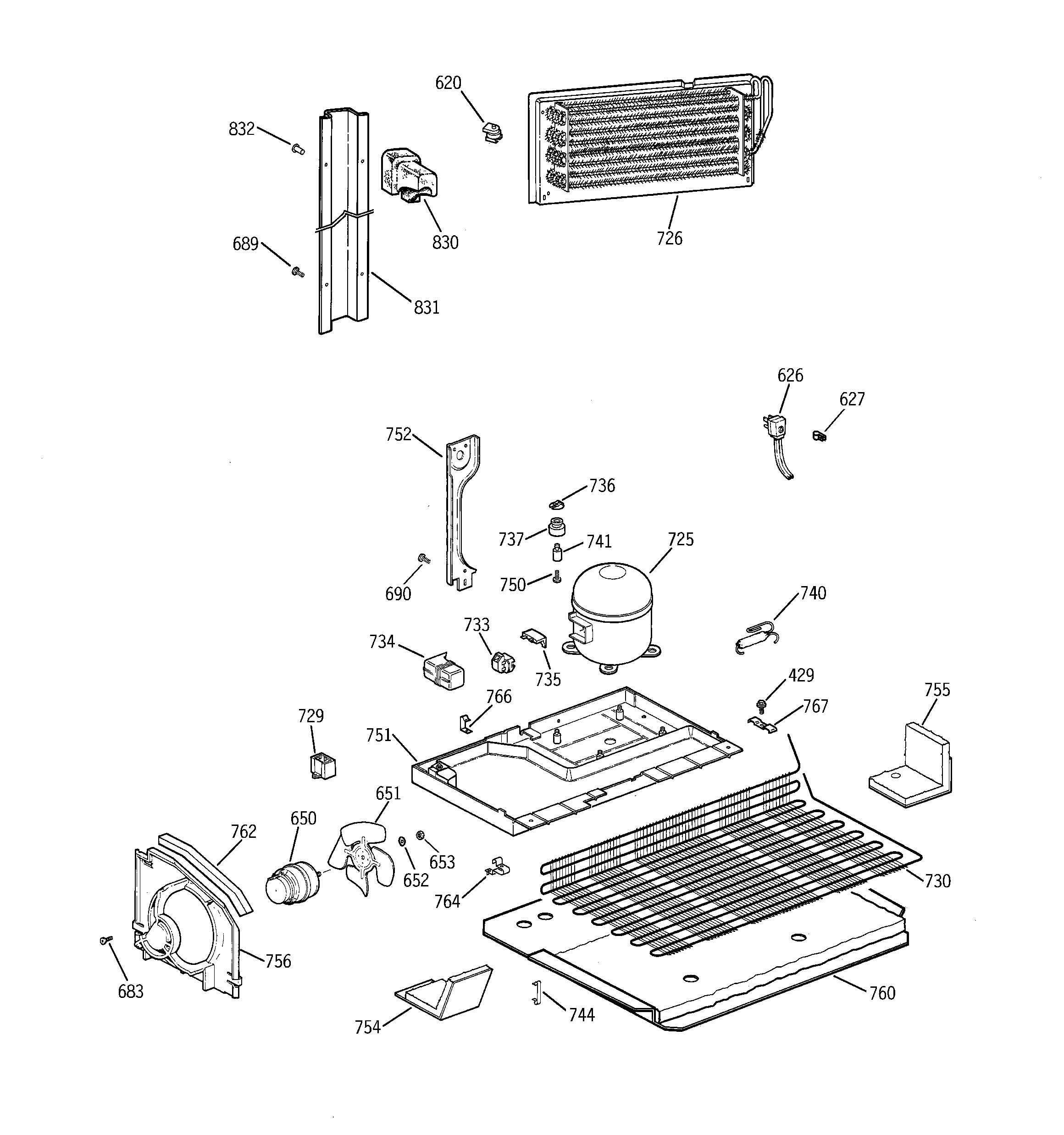

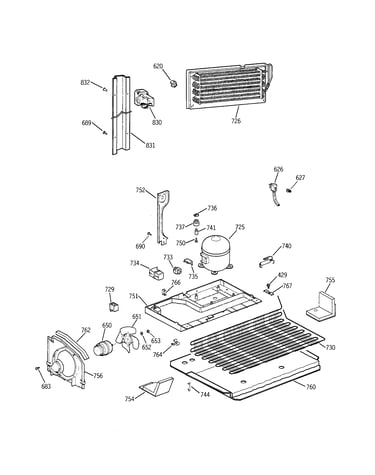

Unit parts diagram
Dryer filter
Part #WR86X0096
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
$78.01 |
7% OFF Phone Price : $84.01
In Stock
#609

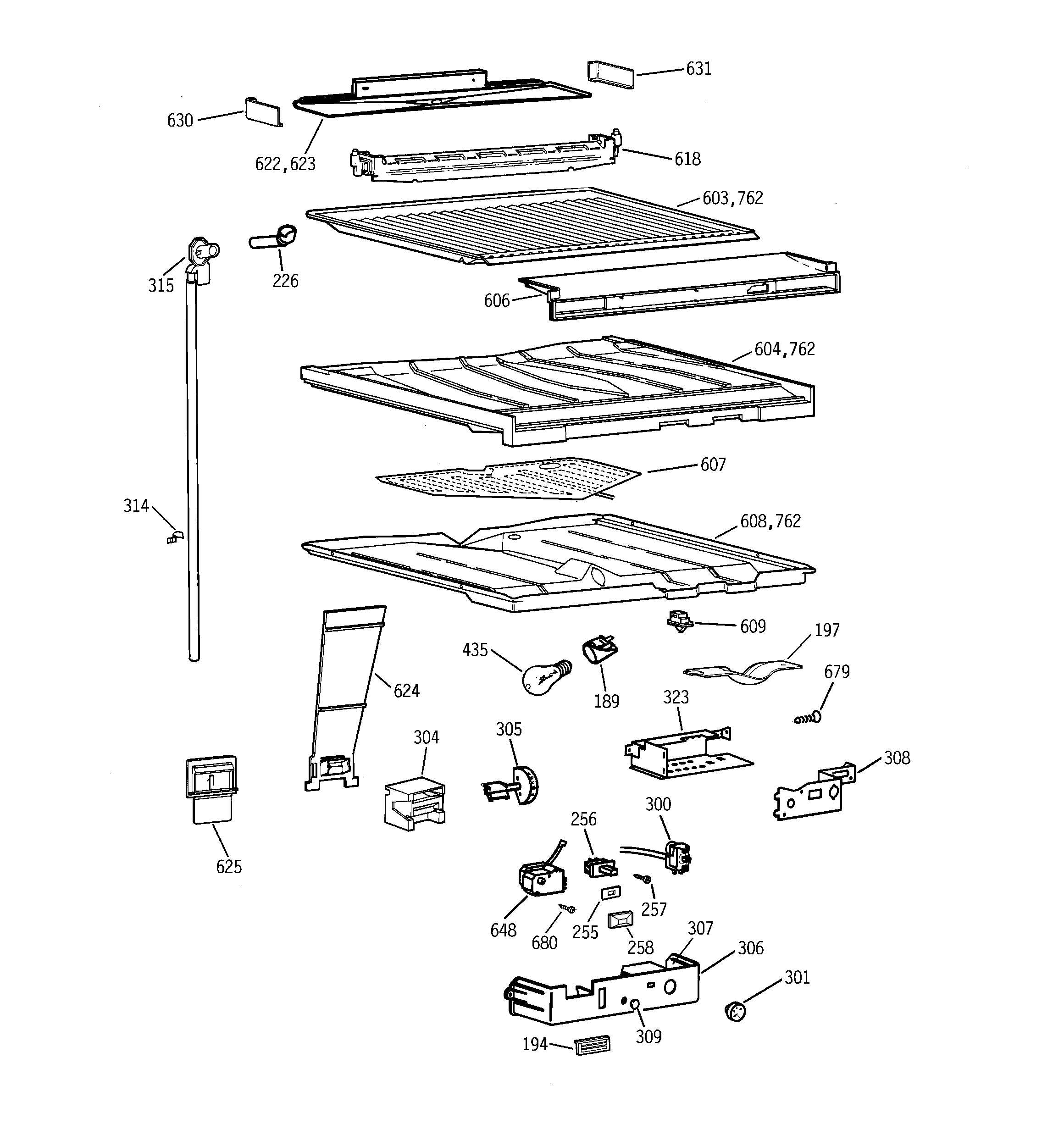

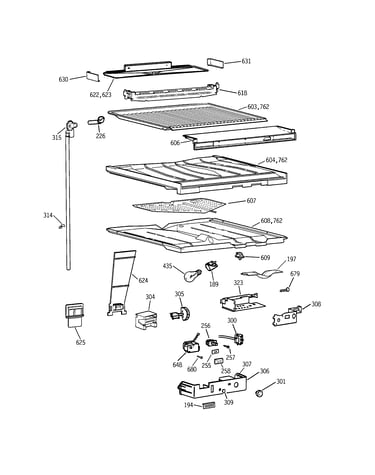

Compartment separator parts diagram
Refrigerator light switch
Part #WR23X0359
Replaced by #WR23X37285
?
Manufacturer substitution
This part replaces WR23X0359. Substitute parts can look different from the original.
$63.20
In Stock
#613

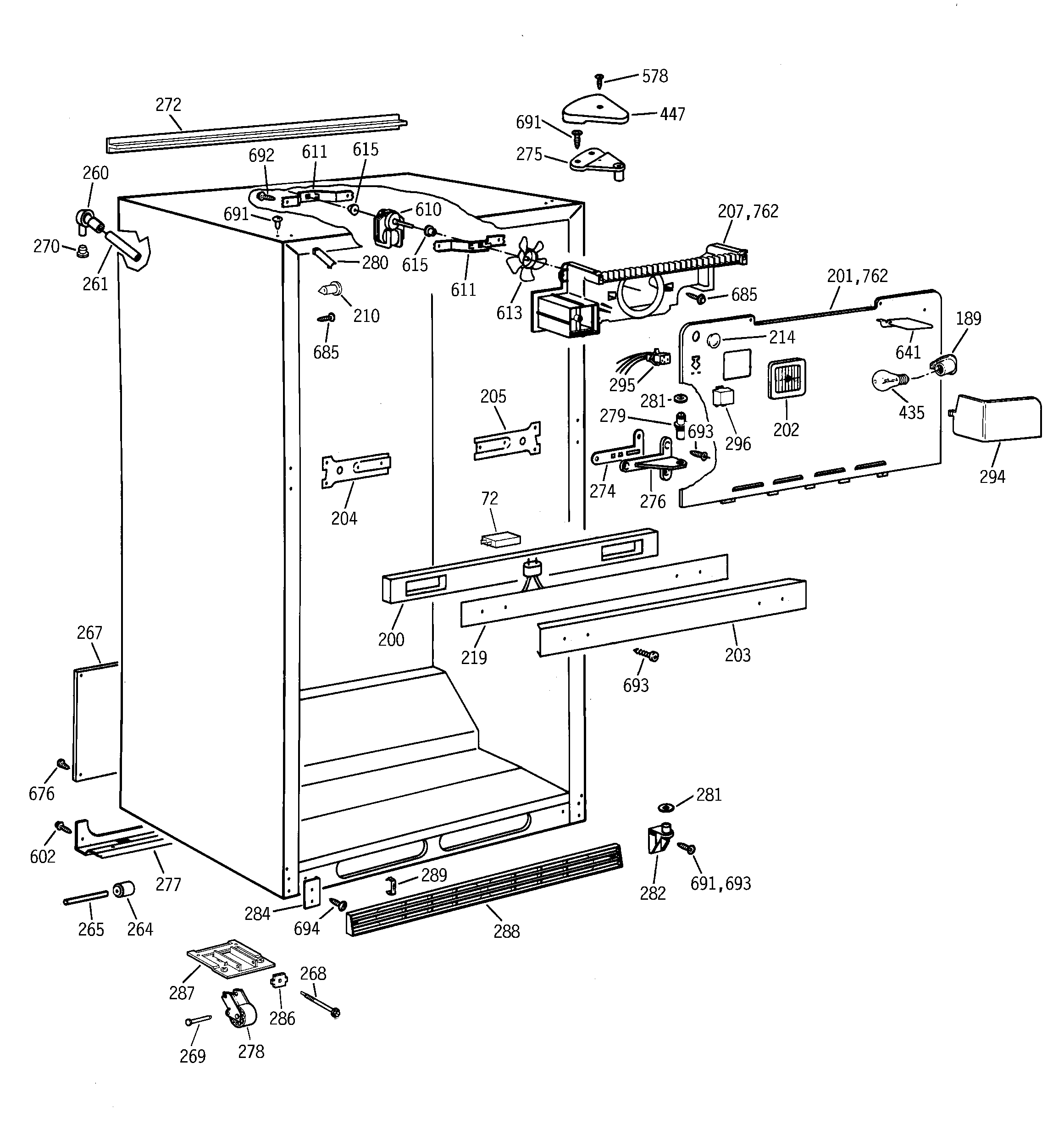

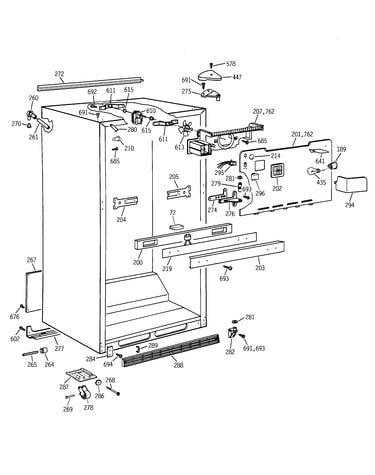

Cabinet parts diagram
Ring/fan bld
Part #WR02X3198
Replaced by #WR60X114
?
Manufacturer substitution
This part replaces WR02X3198. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
22% OFF Phone Price : $26.69
In Stock
#104

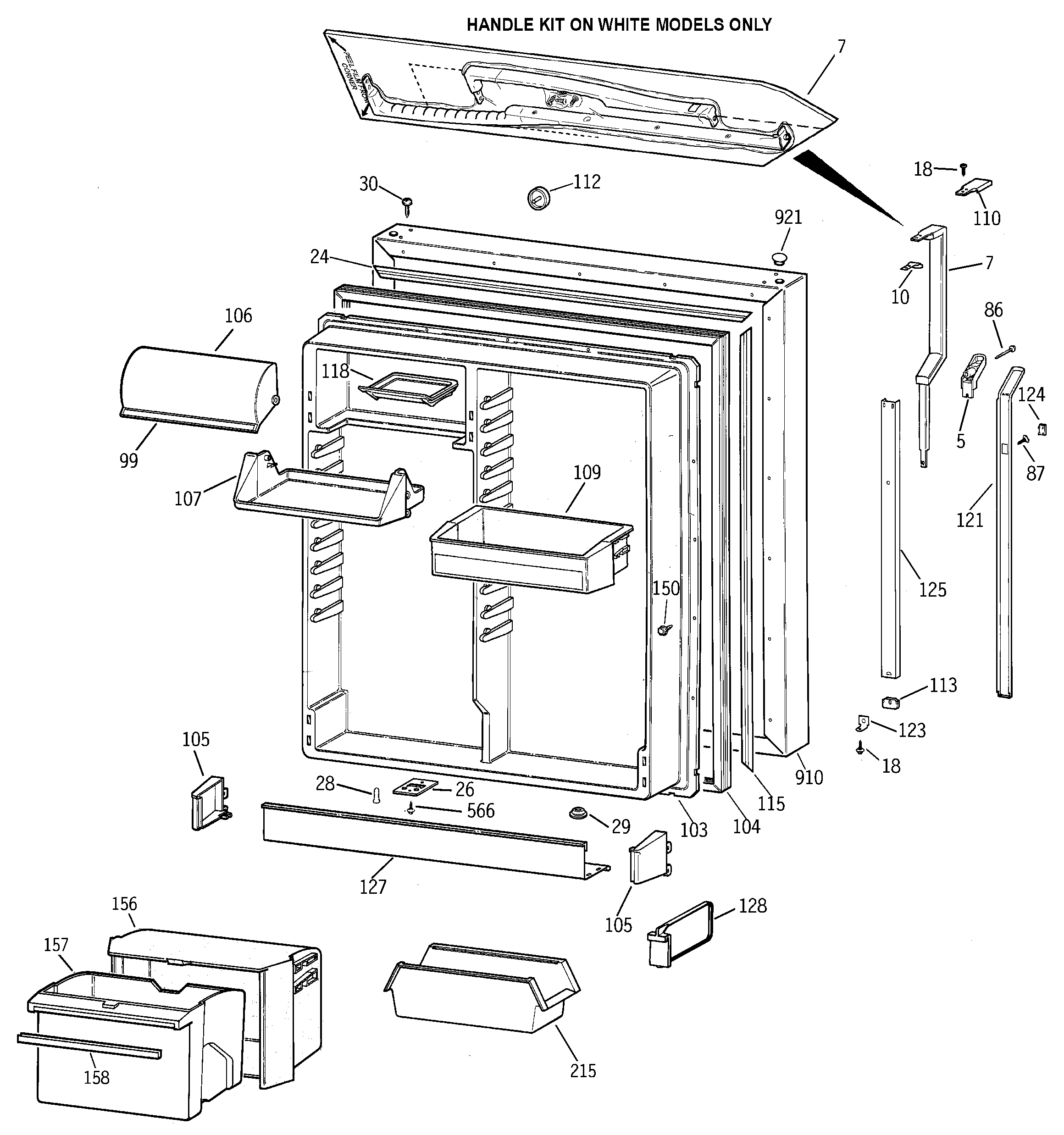

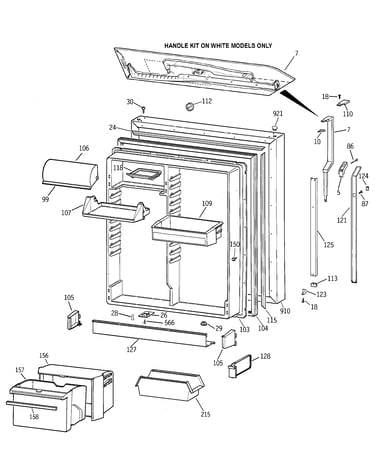

Fresh food door diagram
Refrigerator door gasket
Part #WR24X0437
Replaced by #WR24X437
?
Manufacturer substitution
This part replaces WR24X0437. Substitute parts can look different from the original.
$127.48 |
9% OFF Phone Price : $139.48
In Stock
#257
Compartment separator parts diagram
Refrigerator screw
Part #WR01X1762
Replaced by #WZ5X158D
?
Manufacturer substitution
This part replaces WR01X1762. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
#690
Unit parts diagram
Ground screw
Part #WR01X1466
Replaced by #WZ5X158D
?
Manufacturer substitution
This part replaces WR01X1466. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock

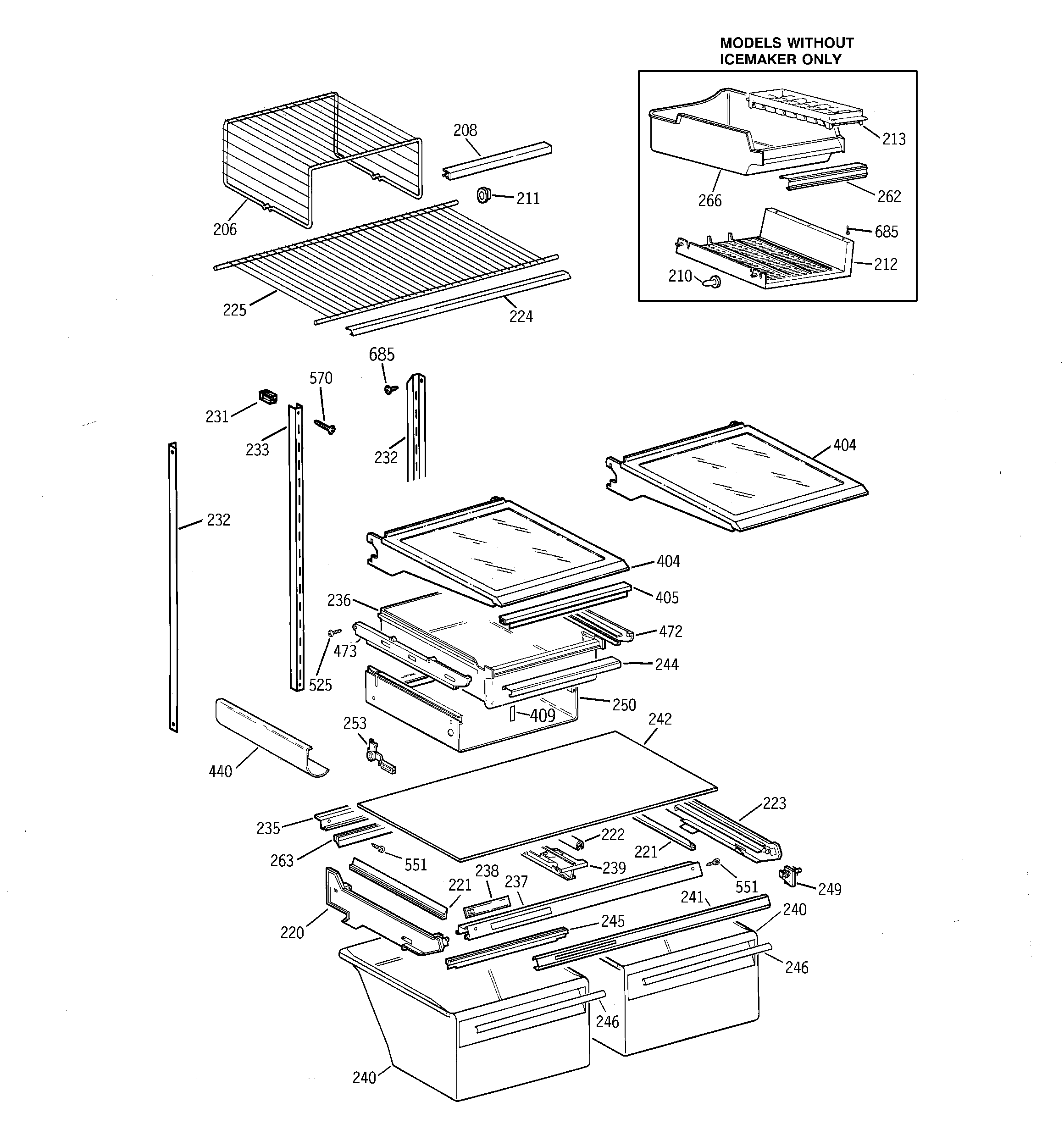

#570

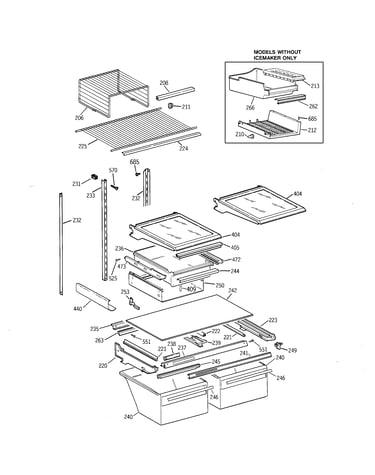

Shelf parts diagram
Scr hxw 11/4
Part #WR01X1757
Replaced by #WR01X10626
?
Manufacturer substitution
This part replaces WR01X1757. Substitute parts can look different from the original.
$7.40 |
12% OFF Phone Price : $8.40
In Stock
#87
Fresh food door diagram
Refrigerator screw
Part #WZ04X0241
Replaced by #WZ04X0241D
?
Manufacturer substitution
This part replaces WZ04X0241. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
#213
Shelf parts diagram
Refrigerator ice tray
Part #WR30X0311
Replaced by #WR30X311
?
Manufacturer substitution
This part replaces WR30X0311. Substitute parts can look different from the original.
This item is not returnable
$8.37 |
11% OFF Phone Price : $9.37
In Stock
#281
Cabinet parts diagram
Hinge washer
Part #WR01X1797
Replaced by #WR1X1797D
?
Manufacturer substitution
This part replaces WR01X1797. Substitute parts can look different from the original.
$33.13 |
15% OFF Phone Price : $39.13
