Model # PLHV42P8KC Official Frigidaire range hood

Here are the diagrams and repair parts for Official Frigidaire PLHV42P8KC range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

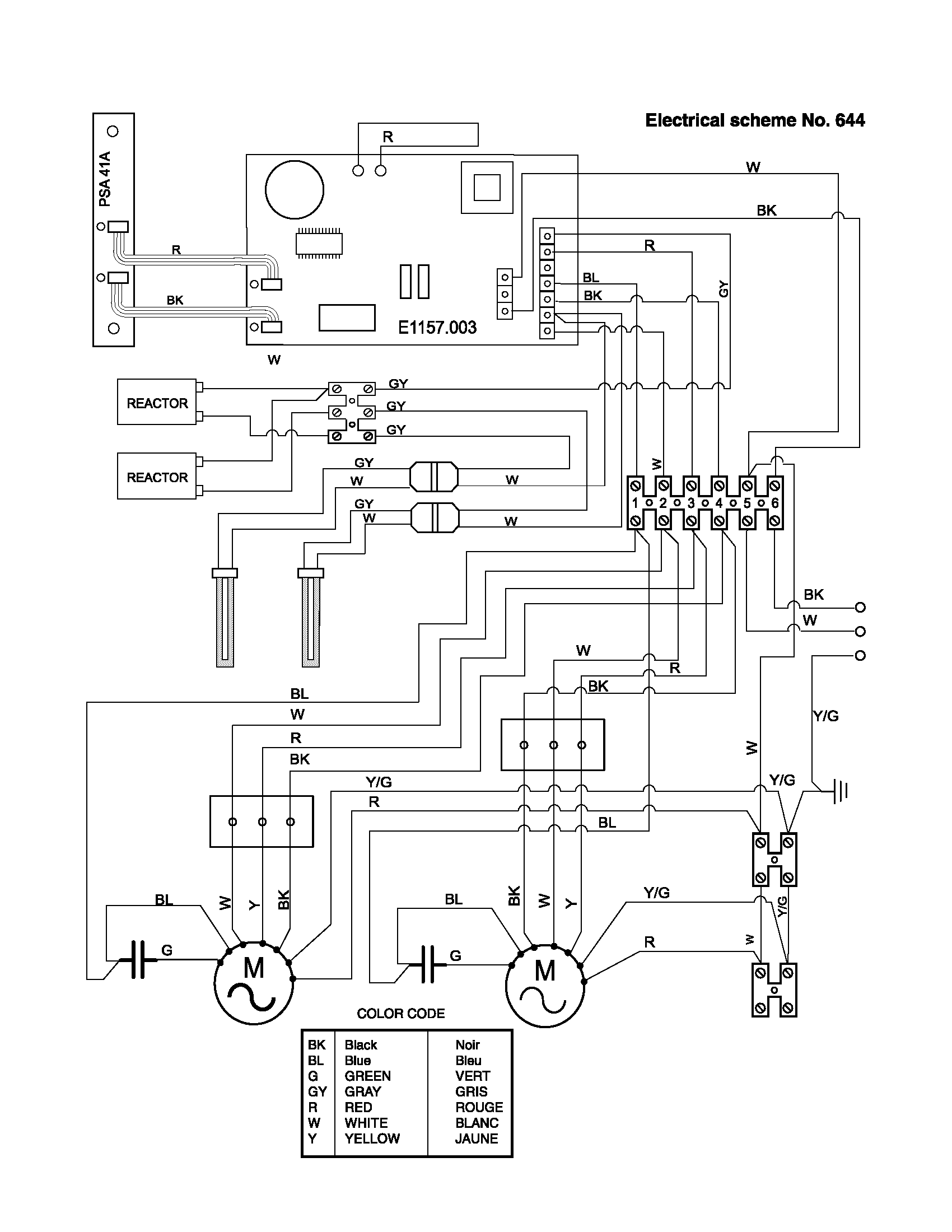

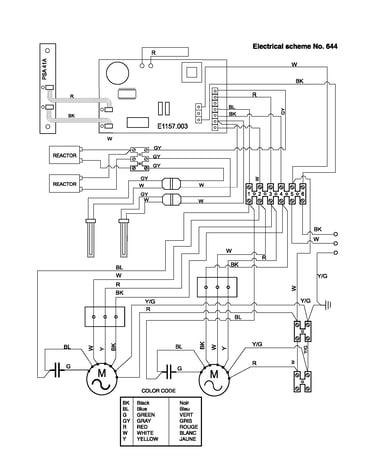

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Electrolux Control Panel 5304425266
#41

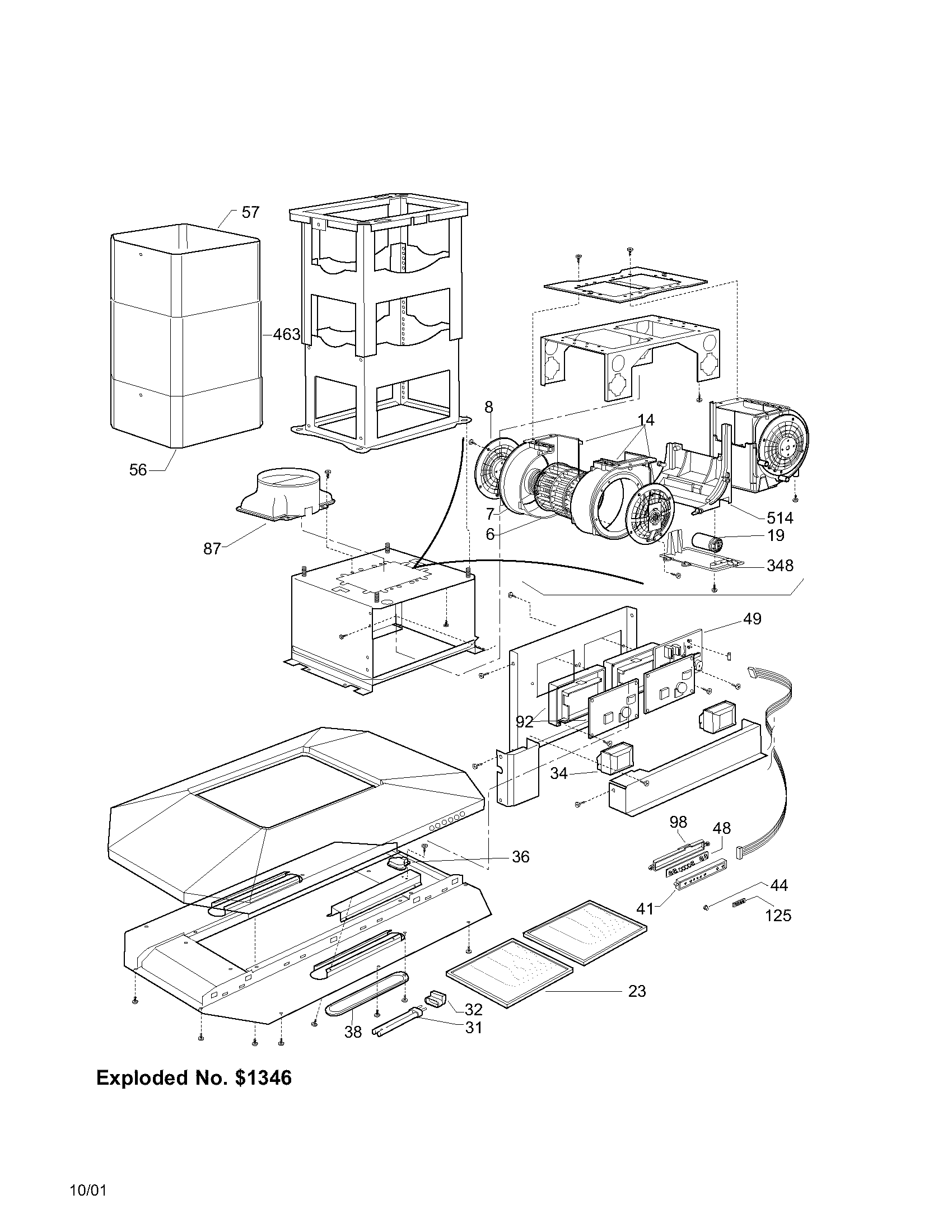

Replacement parts diagram

Electrolux control panel

Part #5304425266

$54.85
In Stock
Control Housing 5304425243
#40

Replacement parts diagram

Control housing

Part #5304425243

The manufacturer no longer makes this part, and there's no substitute part

Circuit Board 5304425268
#48

Replacement parts diagram

Circuit board

Part #5304425268

The manufacturer no longer makes this part, and there's no substitute part

Lamp Holder 5304425151
#32

Replacement parts diagram

Lamp holder

Part #5304425151

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 5304425240
#19

Replacement parts diagram

Capacitor

Part #5304425240

The manufacturer no longer makes this part, and there's no substitute part

Filter 5304425283
#23

Replacement parts diagram

Filter

Part #5304425283

The manufacturer no longer makes this part, and there's no substitute part

Lo Duct Ext 5304425286
#56

Replacement parts diagram

Lo duct ext

Part #5304425286

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wheel 5304425236
#6

Replacement parts diagram

Range hood blower wheel

Part #5304425236

The manufacturer no longer makes this part, and there's no substitute part

Cover 5304425277
#125

Replacement parts diagram

Cover

Part #5304425277

The manufacturer no longer makes this part, and there's no substitute part

Connector 5304425288
#87

Replacement parts diagram

Connector

Part #5304425288

The manufacturer no longer makes this part, and there's no substitute part
