GE
Countertop Microwave

Model # JES1851SB01 Official GE microwave

Here are the diagrams and repair parts for Official GE JES1851SB01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Fuse(250v/20 WB27X10114
#4010

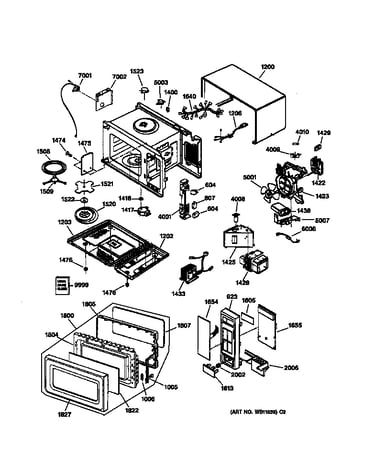

Microwave diagram

Fuse(250v/20

Part #WB27X10114

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10114. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
"capacitor,¢h" WB27X10308
#1438

Microwave diagram

"capacitor,¢h"

Part #WB27X10308

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10308. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Microwave High-voltage Diode (replaces Wb18x10286, Wb27x1033, Wb27x10330) WB27X10037
#6006

Microwave diagram

Microwave high-voltage diode (replaces wb18x10286, wb27x1033, wb27x10330)

Part #WB27X10037

BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Door Interlock Switch WB24X817
#607

Microwave diagram

Microwave door interlock switch

Part #WB24X817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X817. Substitute parts can look different from the original.
BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Rivet WB1X10055
#1474

Microwave diagram

Rivet

Part #WB1X10055

Replaced by #WB01X10055

?
Manufacturer substitution
This part replaces WB1X10055. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Circulating Motor WB26X10057
#1523

Microwave diagram

Circulating motor

Part #WB26X10057

$24.00
In Stock
"switch, P" WB24X815
#604

Microwave diagram

"switch, p"

Part #WB24X815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X815. Substitute parts can look different from the original.
$24.27 |
20% OFF Phone Price : $30.27
In Stock
"holder,al" WB2X10532
#1400

Microwave diagram

"holder,al"

Part #WB2X10532

Replaced by #WB02X10532

?
Manufacturer substitution
This part replaces WB2X10532. Substitute parts can look different from the original.
This item is not returnable
$11.09
In Stock
Magnetron WB27X10309
#1428

Microwave diagram

Magnetron

Part #WB27X10309

The manufacturer no longer makes this part, and there's no substitute part

Water Seal WB6X10204
#1418

Microwave diagram

Water seal

Part #WB6X10204

The manufacturer no longer makes this part, and there's no substitute part
