Model # FRS3HR35KM3 Official Frigidaire refrigerator
Here are the diagrams and repair parts for Official Frigidaire FRS3HR35KM3 refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

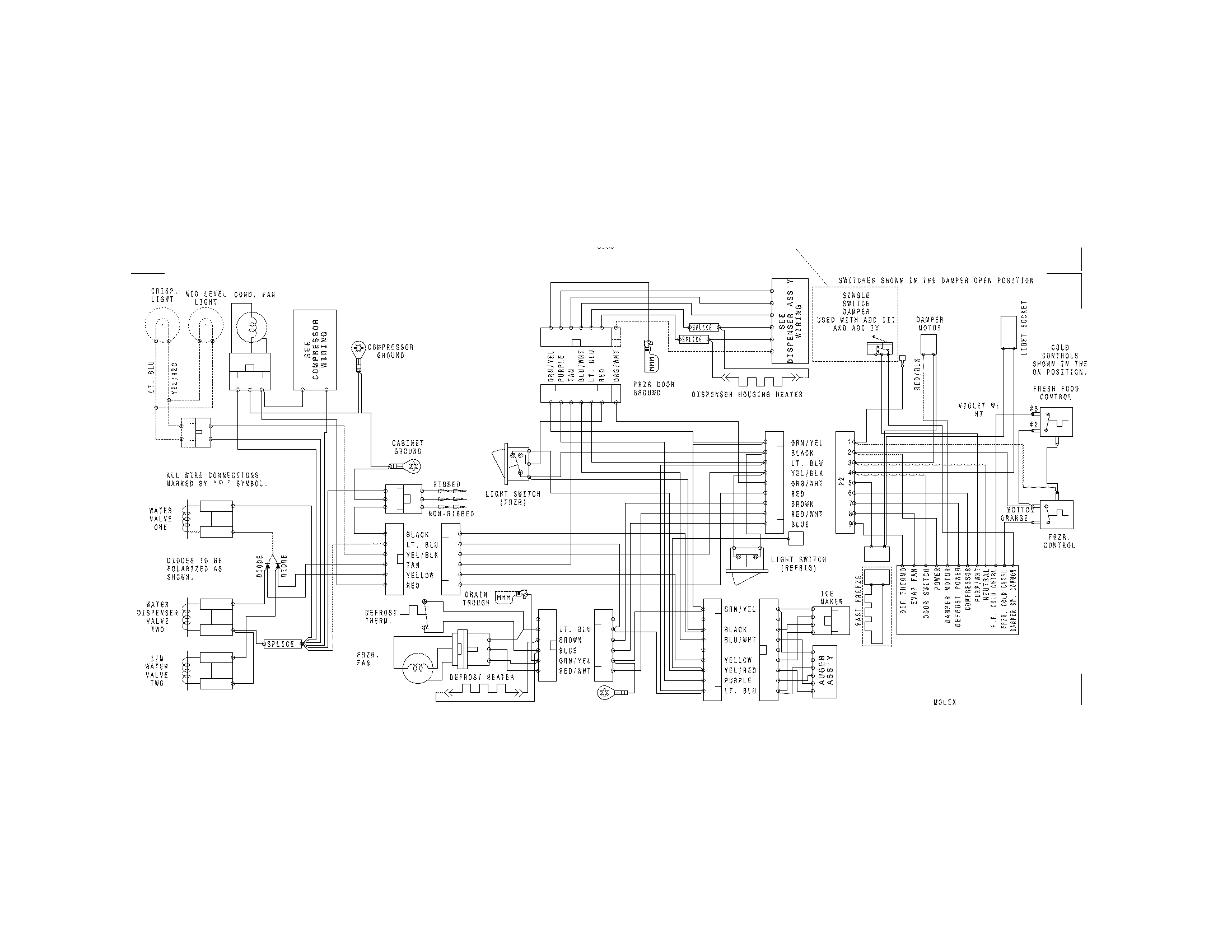

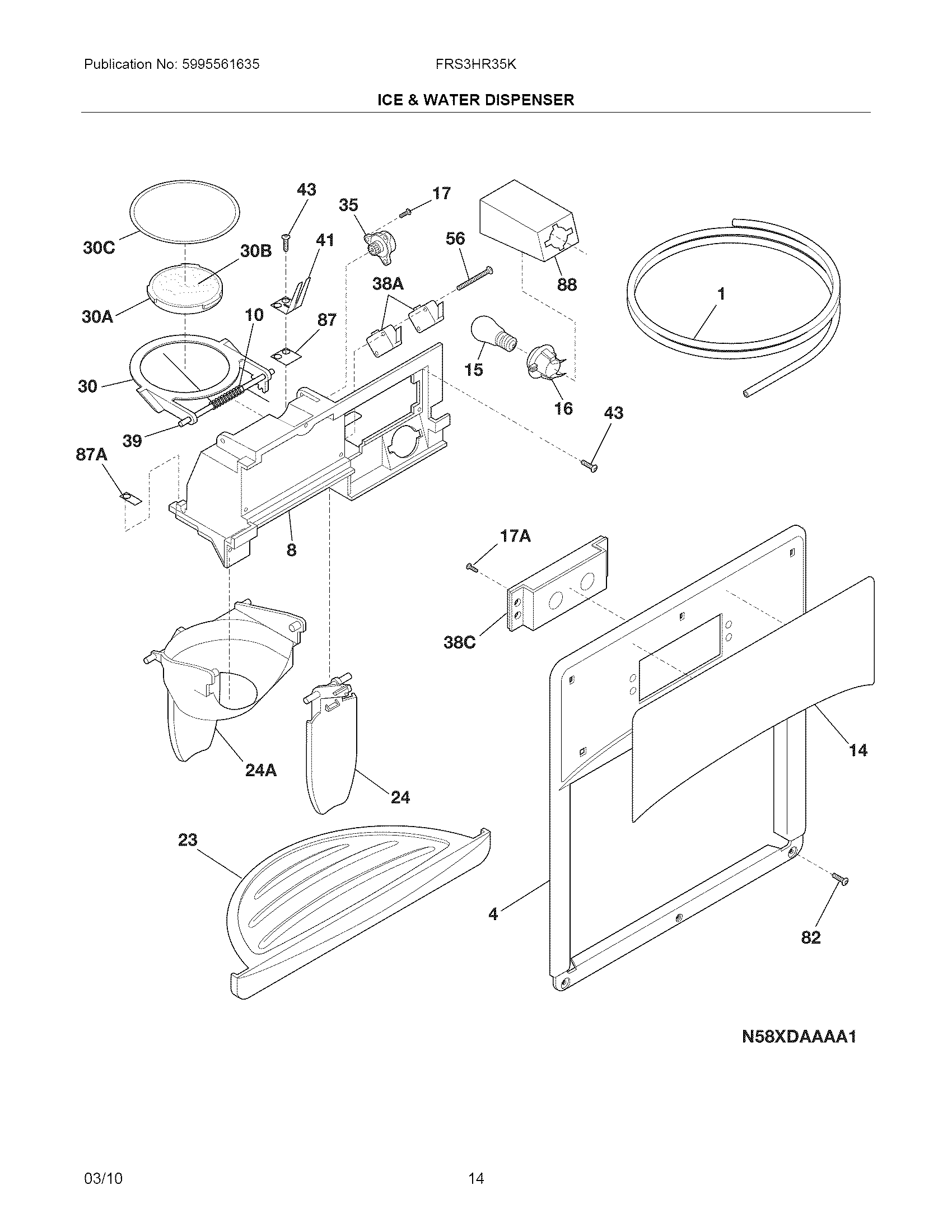

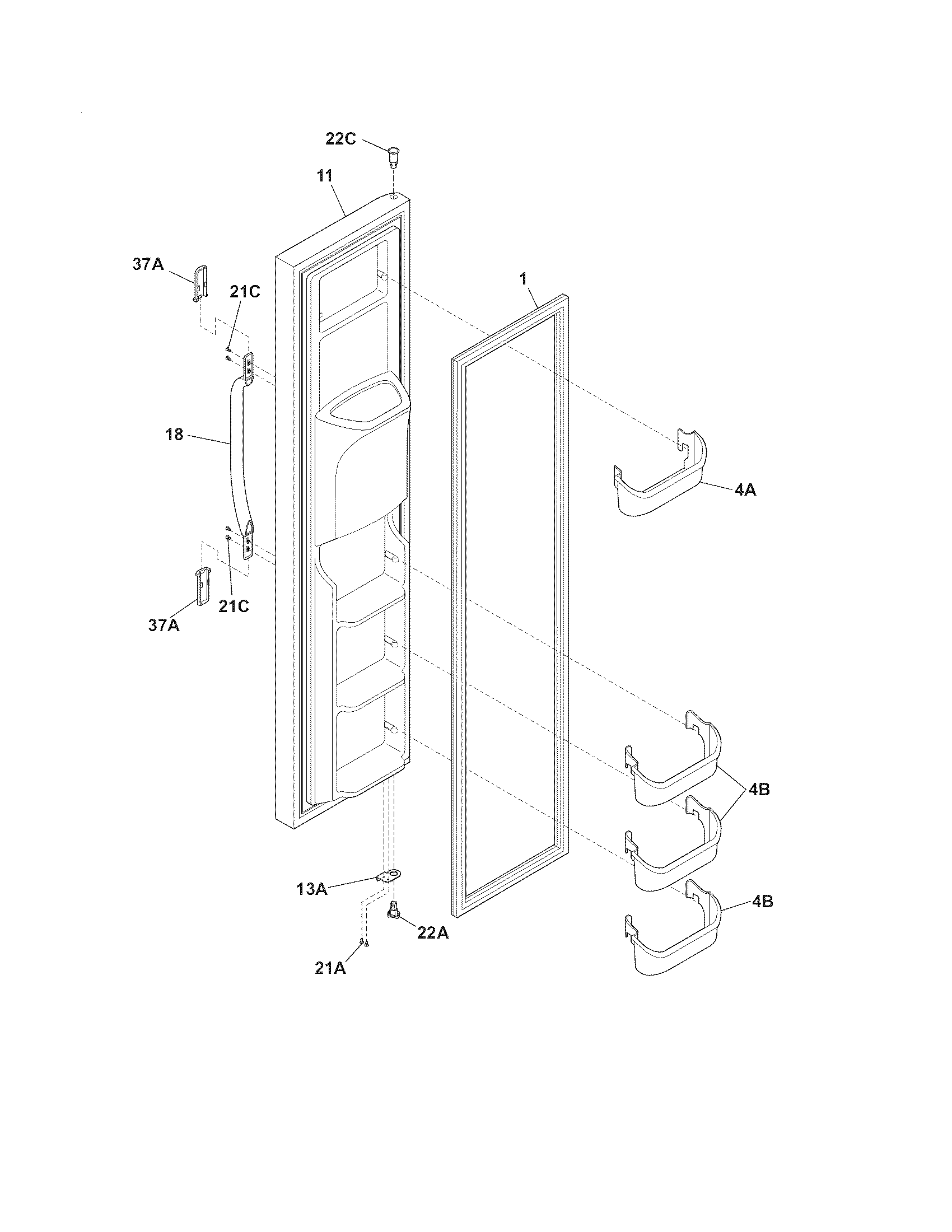

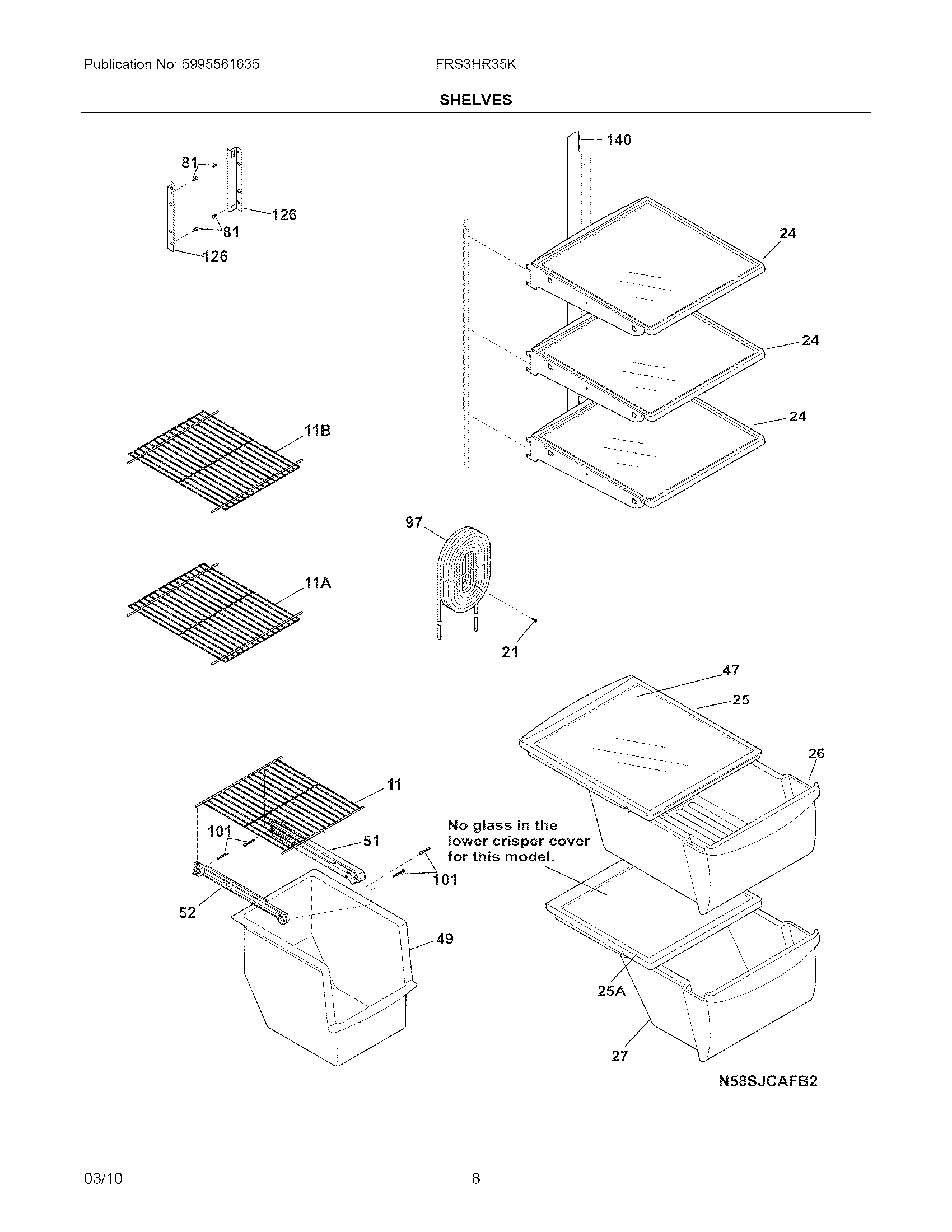

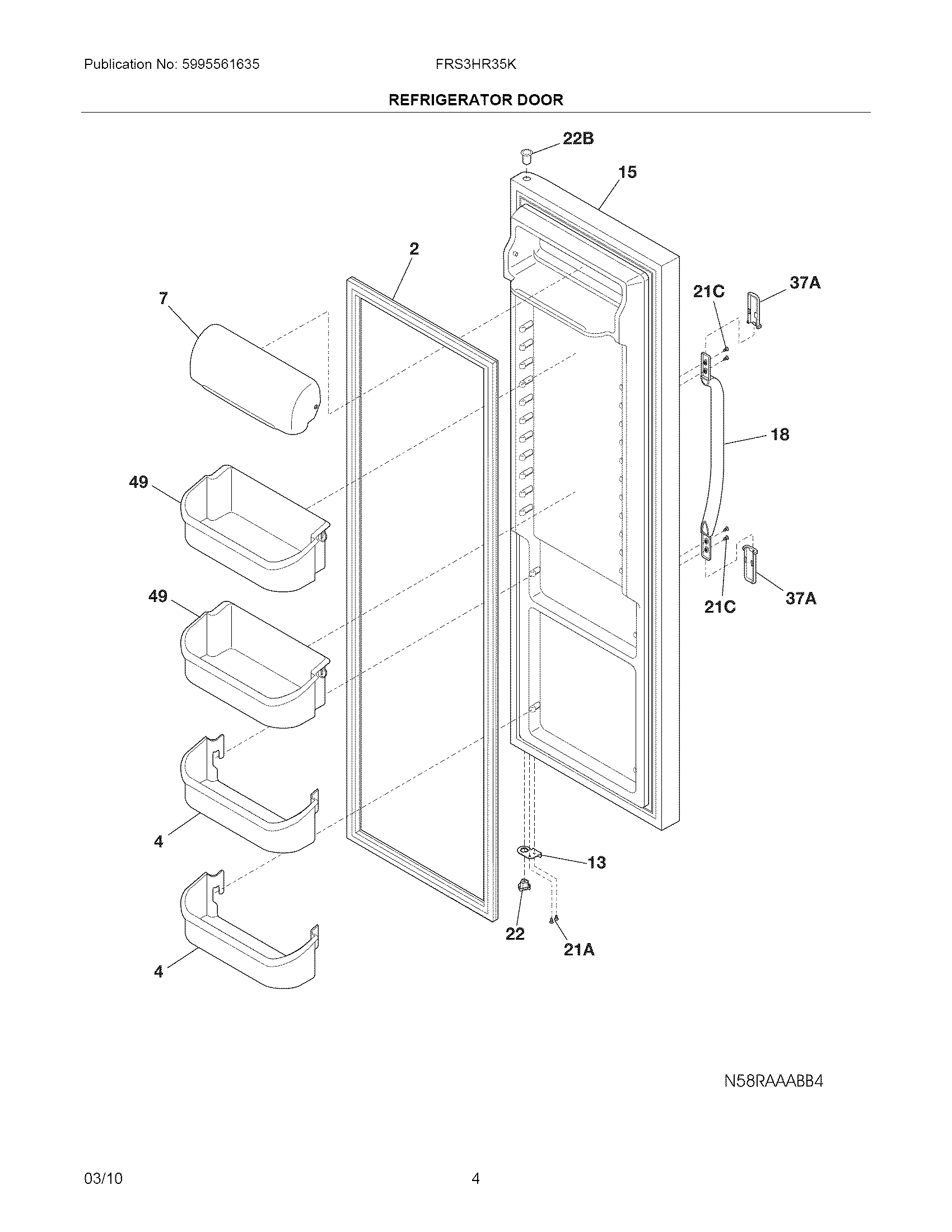

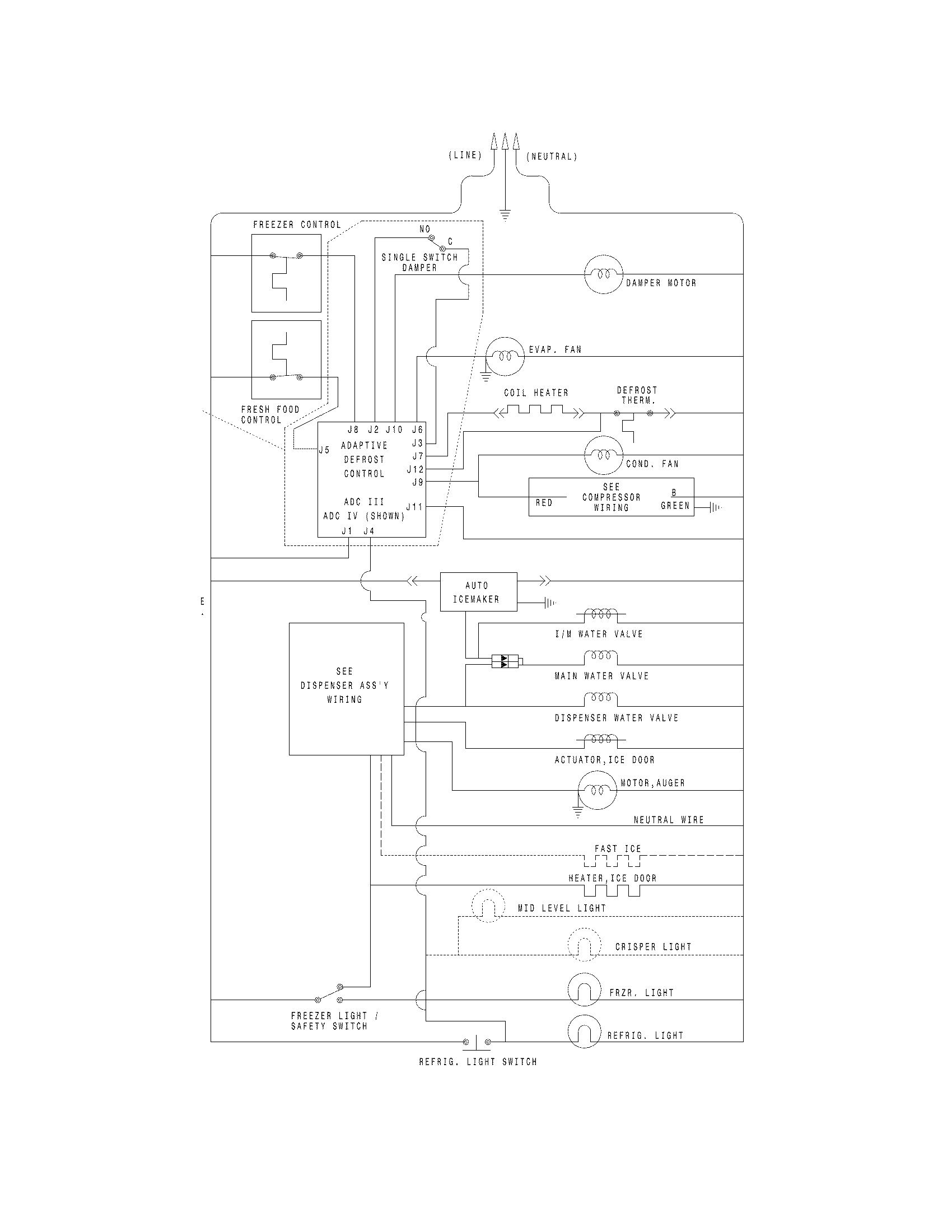

SELECT DIAGRAM
Browse Parts forFRS3HR35KM3 Refrigerators
- #19

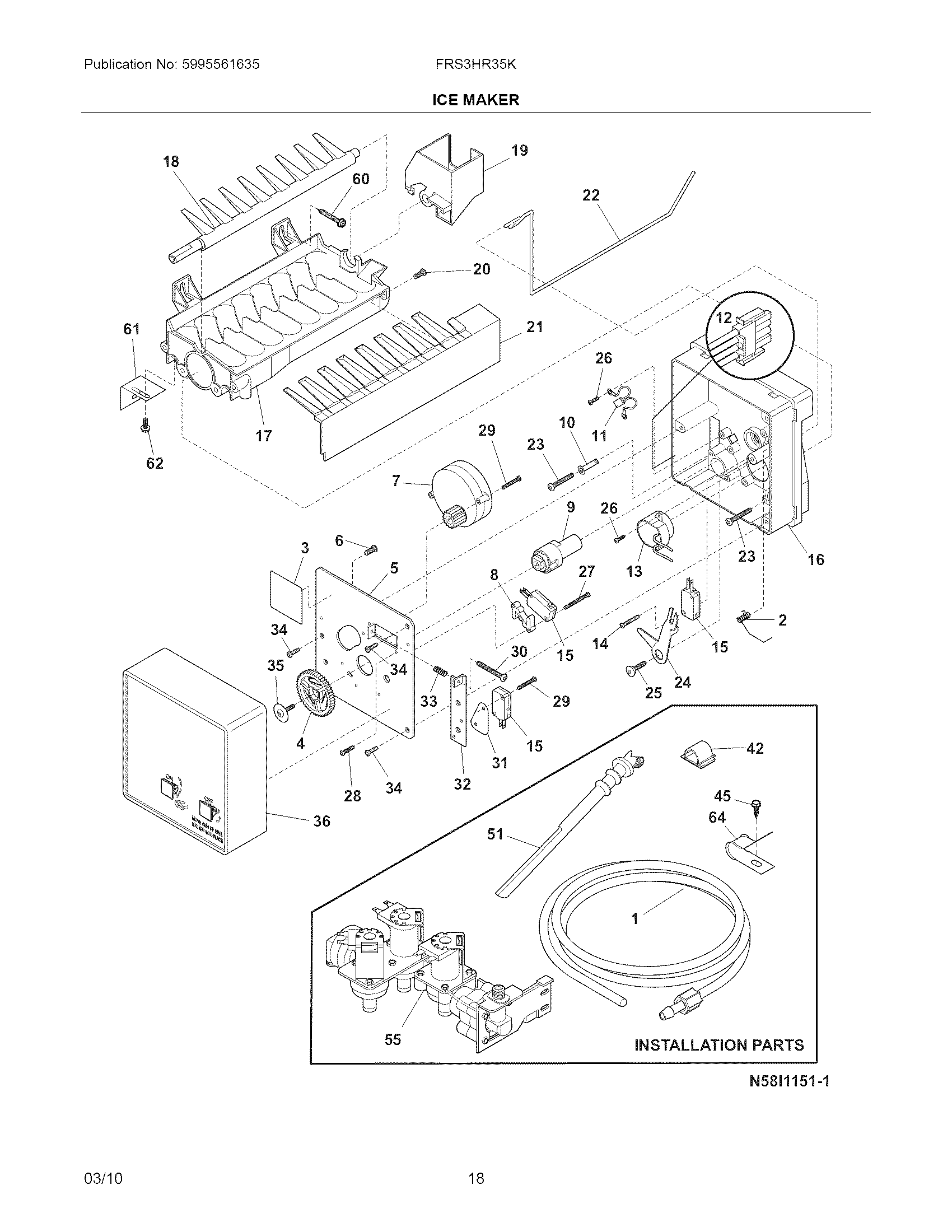

Ice maker diagram
Refrigerator ice maker fill cupPart #5304456671
Replaced by #241798231
?Manufacturer substitutionThis part replaces 5304456671. Substitute parts can look different from the original.$104.97 |10% OFF Phone Price : $116.97In Stock - #4

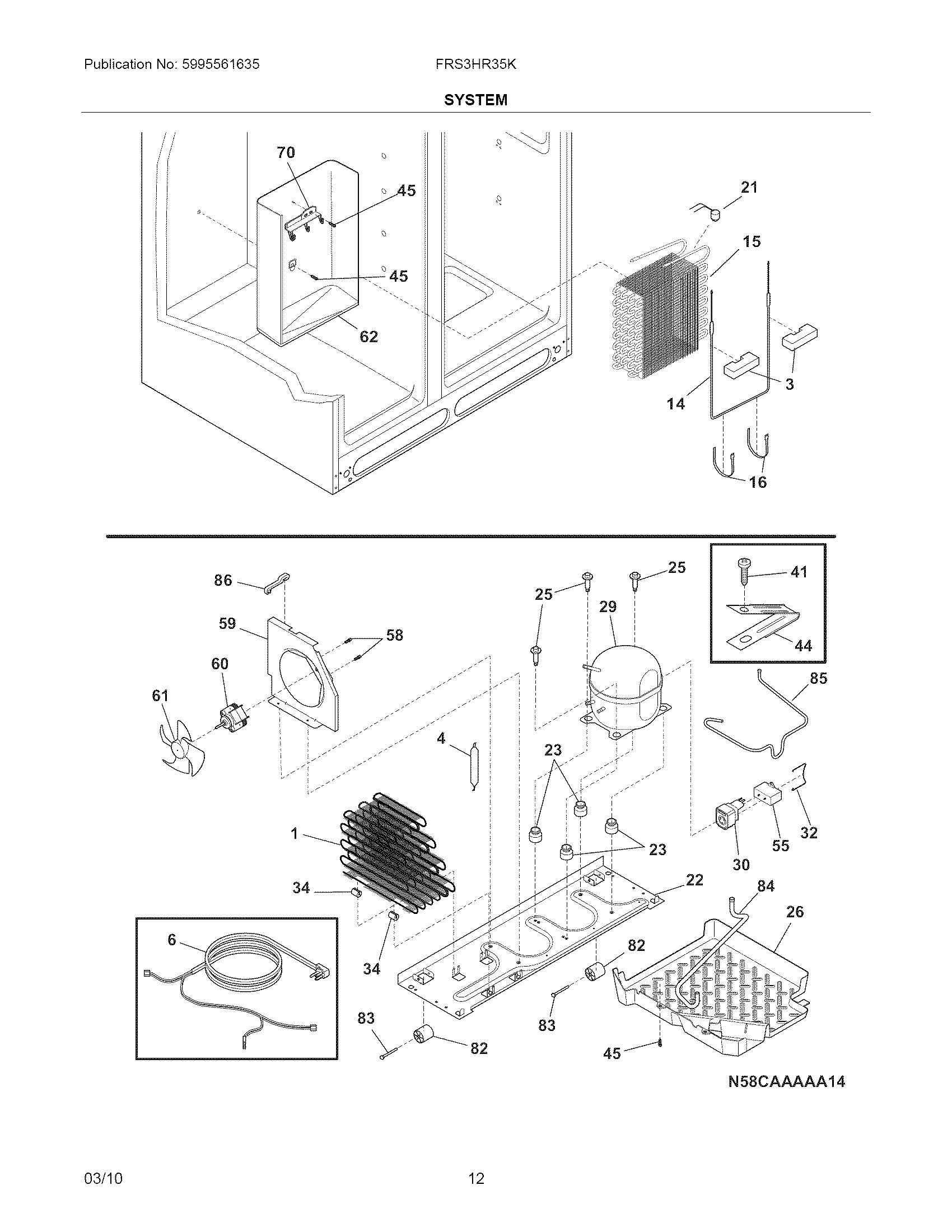

System diagram
Refrigerator filter drierPart #218944001
Replaced by #5303305677
?Manufacturer substitutionThis part replaces 218944001. Substitute parts can look different from the original.$12.47 |14% OFF Phone Price : $14.47In Stock - #55
Ice maker diagram
Refrigerator water inlet valve assemblyPart #241734301
Replaced by #242252702
?Manufacturer substitutionThis part replaces 241734301. Substitute parts can look different from the original.$54.54 |10% OFF Phone Price : $60.54In Stock - #137

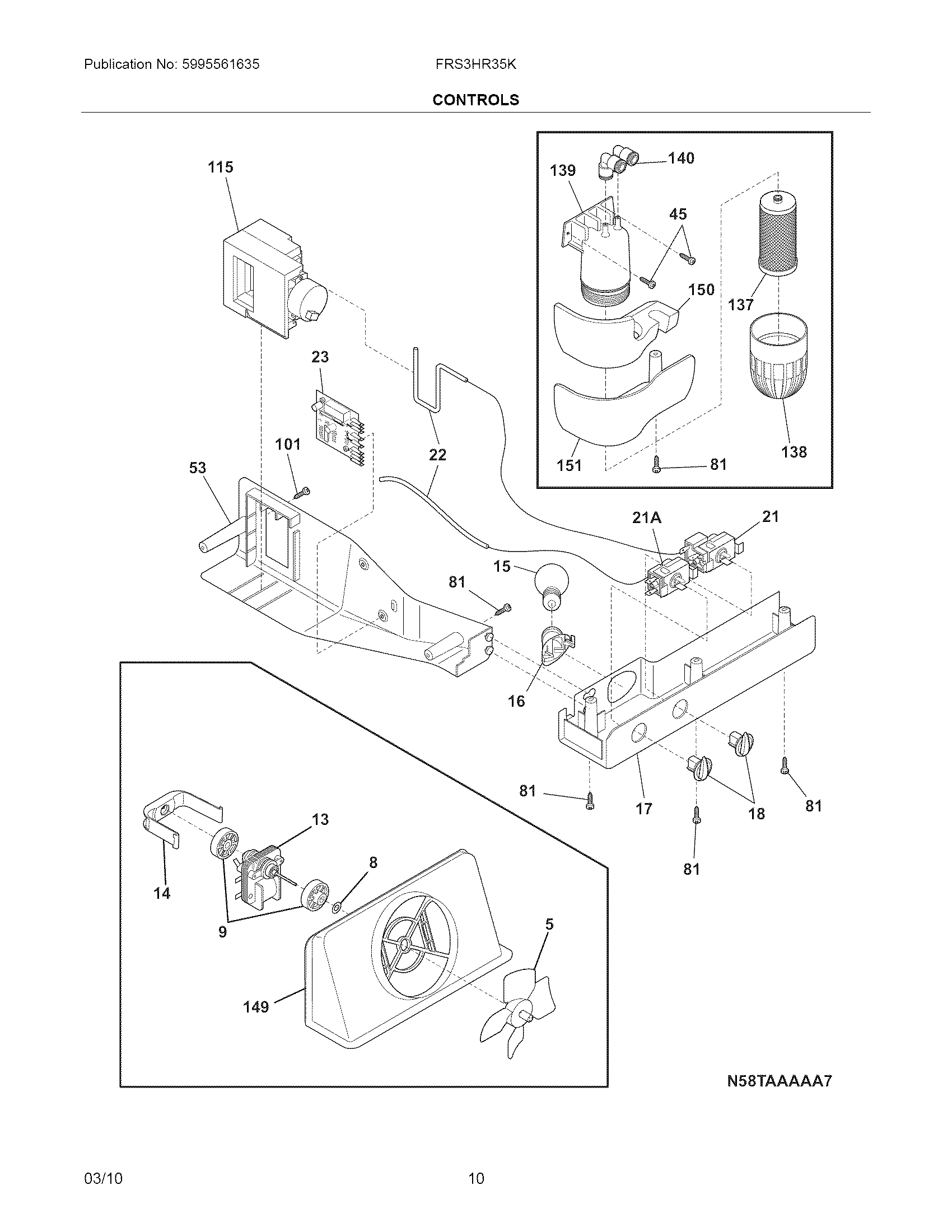

Controls diagram
Refrigerator filterPart #240389102
Replaced by #WFCB
?Manufacturer substitutionThis part replaces 240389102. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$39.25 |13% OFF Phone Price : $45.25In Stock - #21
System diagram
Refrigerator defrost bi-metal thermostatPart #5303918214
$23.34 |20% OFF Phone Price : $29.34In Stock - #5
Controls diagram
Refrigerator evaporator fan bladePart #5308000010
$40.78 |13% OFF Phone Price : $46.78In Stock - #NI

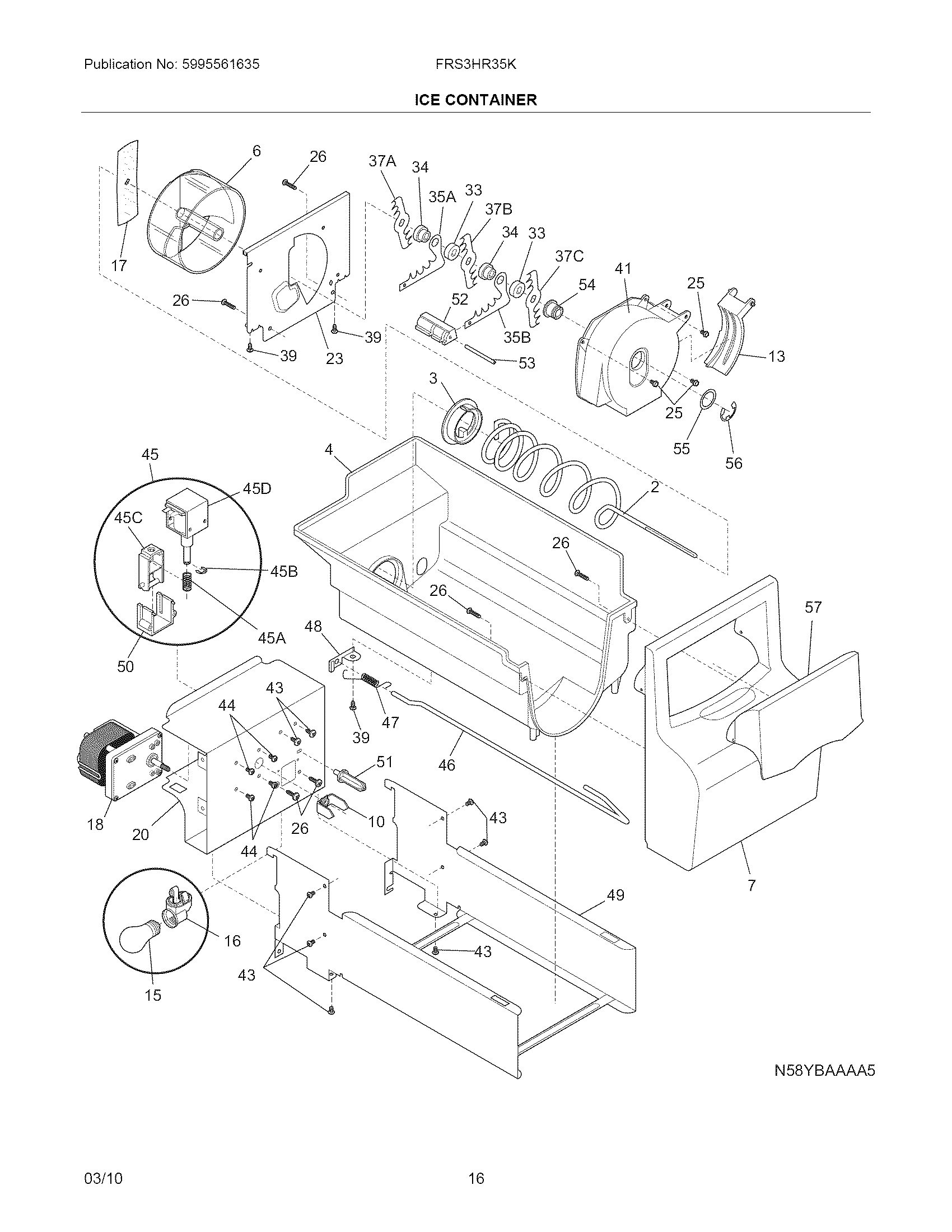

Ice container diagram
Frigidaire refrigerator ice container assemblyPart #241860803
$111.62 |10% OFF Phone Price : $123.62In Stock - #61
System diagram
Refrigerator condenser fan bladePart #241639501
Replaced by #241639502
?Manufacturer substitutionThis part replaces 241639501. Substitute parts can look different from the original.$20.81 |22% OFF Phone Price : $26.81In Stock - #100

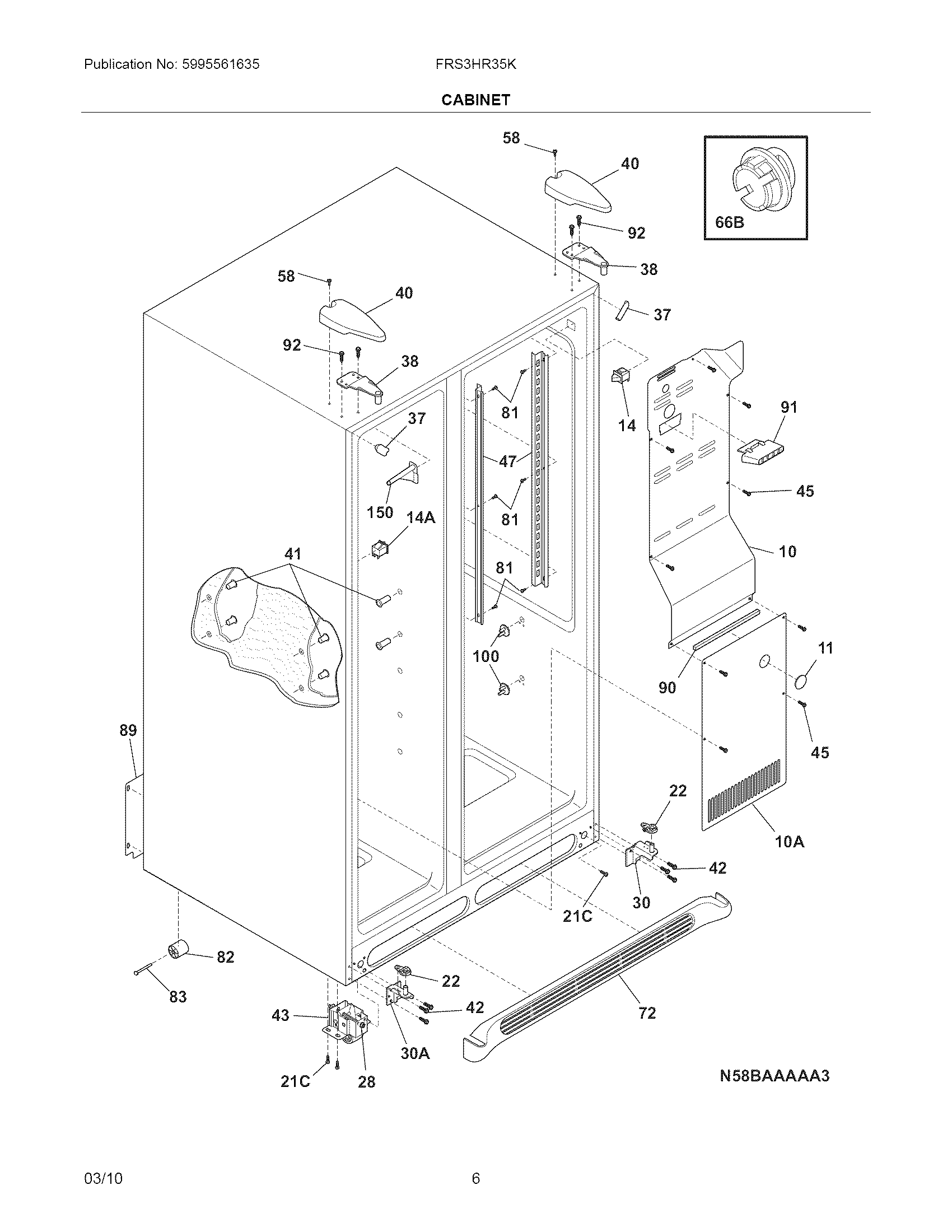

Cabinet diagram
Kenmore pro refrigerator crisper drawer cover support studPart #241993001
$10.03 |17% OFF Phone Price : $12.03In Stock - #14
System diagram
Refrigerator defrost heaterPart #242044113
$67.86 |8% OFF Phone Price : $73.86In Stock
