Model # LFX23961ST/02 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFX23961ST-02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Refrigerator Filter Dryer 5851JA2007E
#317A

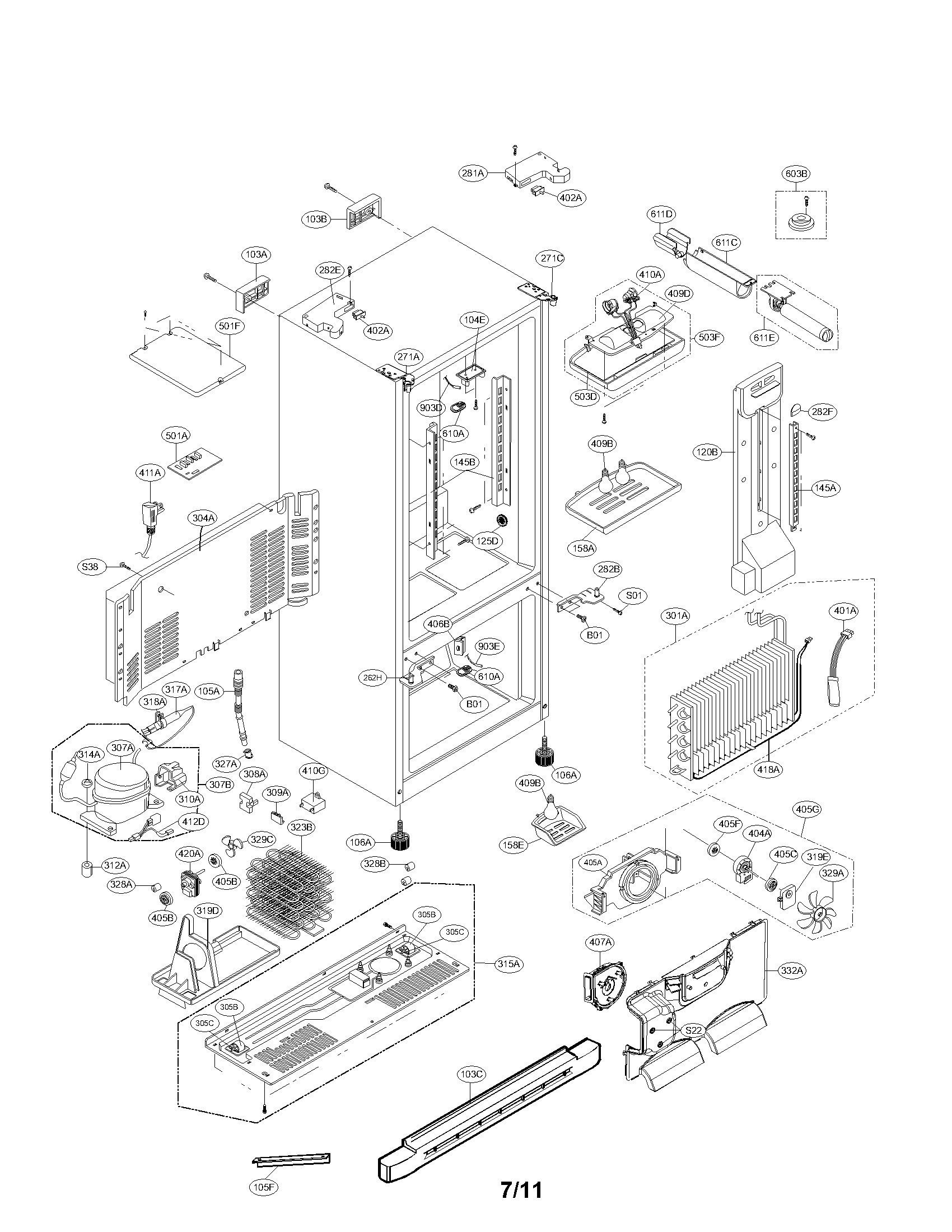

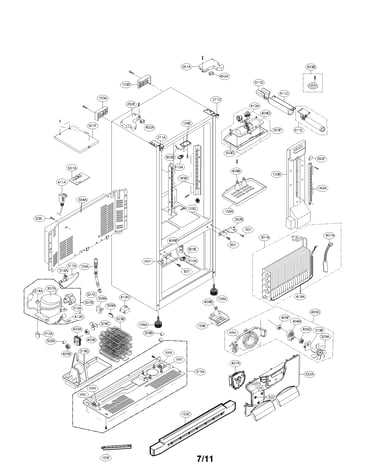

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Kenmore Lg Lt600p Refrigerator Water Filter (replaces 5231ja2006a) 5231JA2006F
#NI

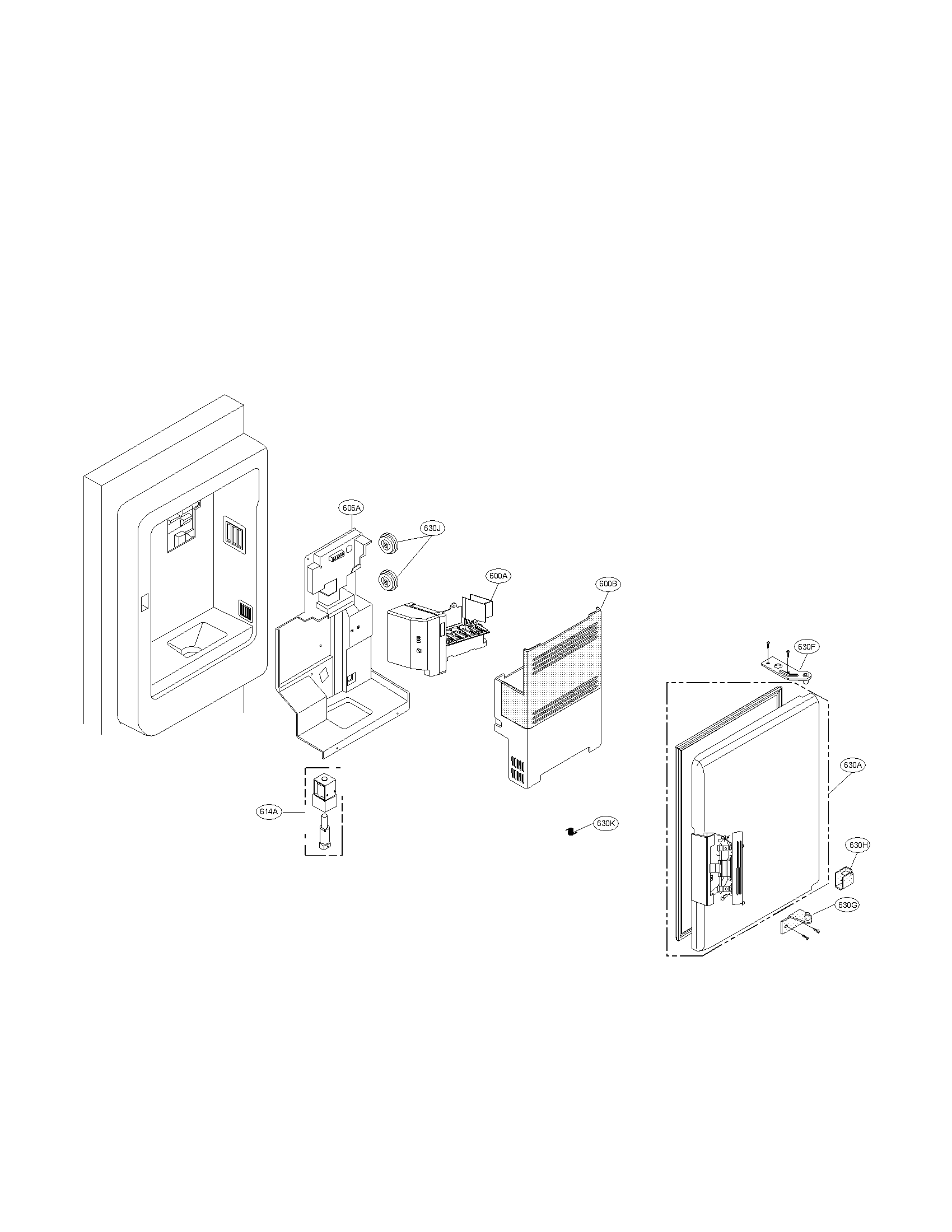

Ice maker and ice bank parats diagram

Kenmore lg lt600p refrigerator water filter (replaces 5231ja2006a)

Part #5231JA2006F

BEST SELLER

Get free shipping with Automatic Reorder

$55.95
In Stock
Lg Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

Case parts diagram

Lg refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$22.36 |
21% OFF Phone Price : $28.36
In Stock
Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C
#402C

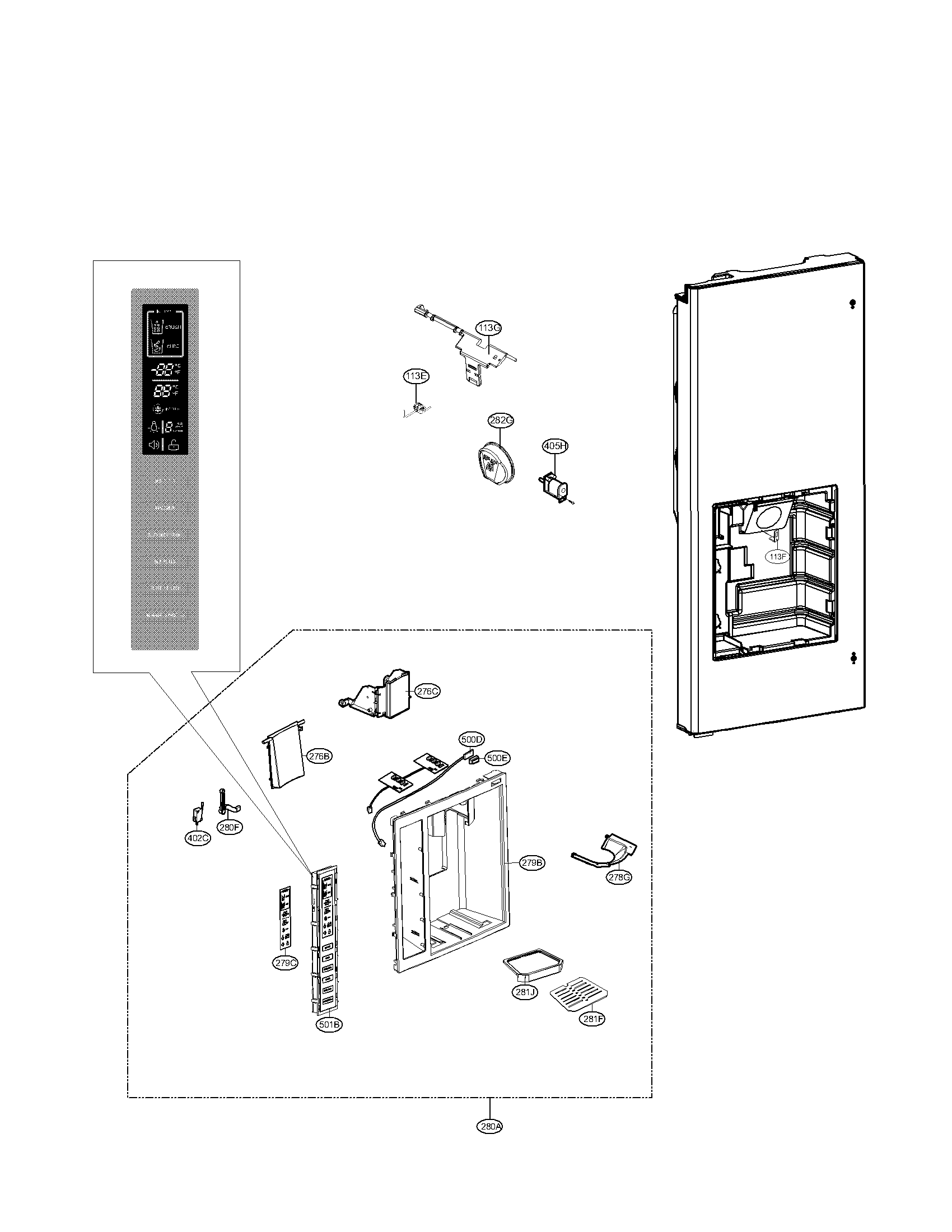

Dispenser parts diagram

Refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

BEST SELLER
$33.22 |
15% OFF Phone Price : $39.22
In Stock
Lg Refrigerator Drawer Track 4975JJ2028D
#145F

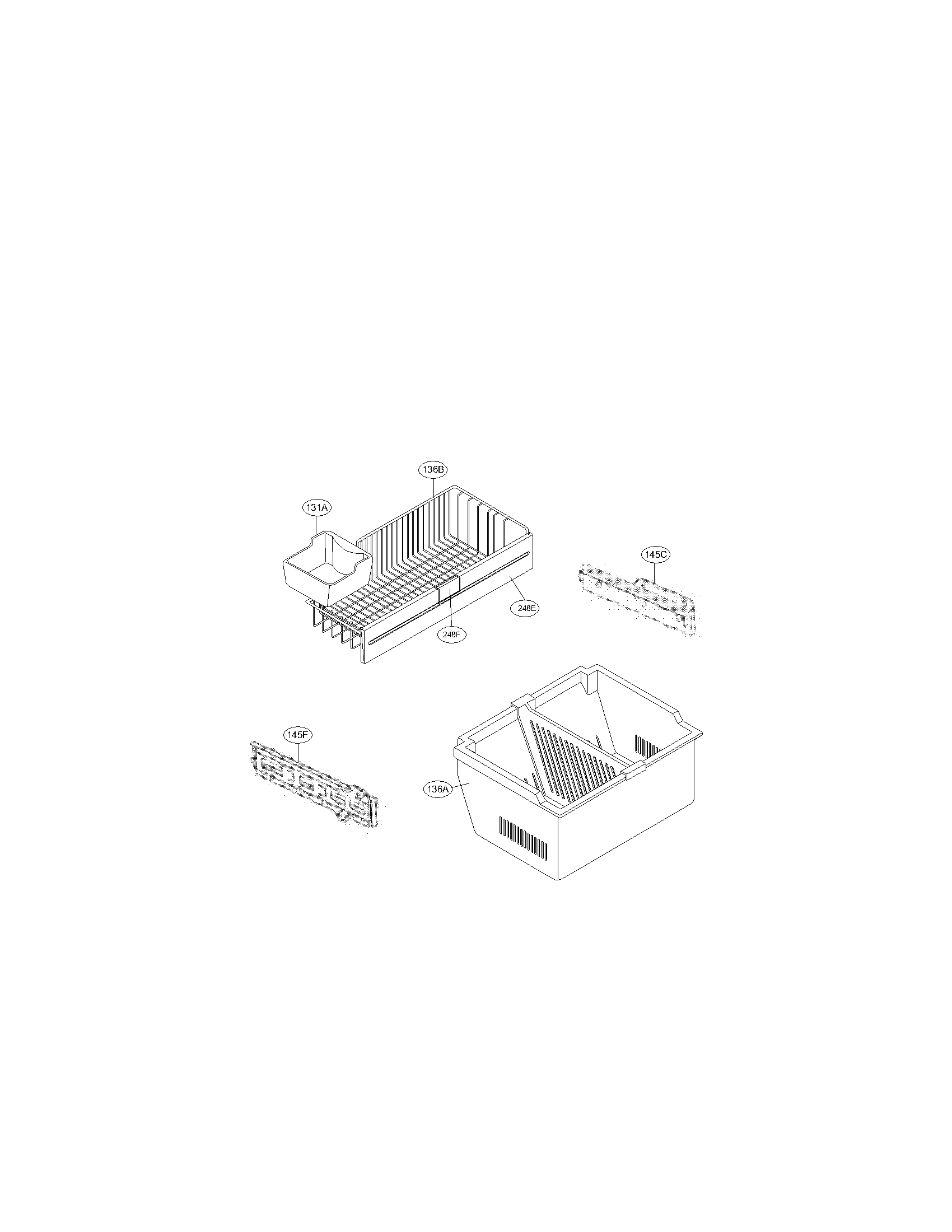

Freezer parts diagram

Lg refrigerator drawer track

Part #4975JJ2028D

BEST SELLER
$87.46 |
6% OFF Phone Price : $93.46
In Stock
Refrigerator Sensor 6500JK1003A
#903E

Case parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Door Stop 4620JJ2009A
#243B

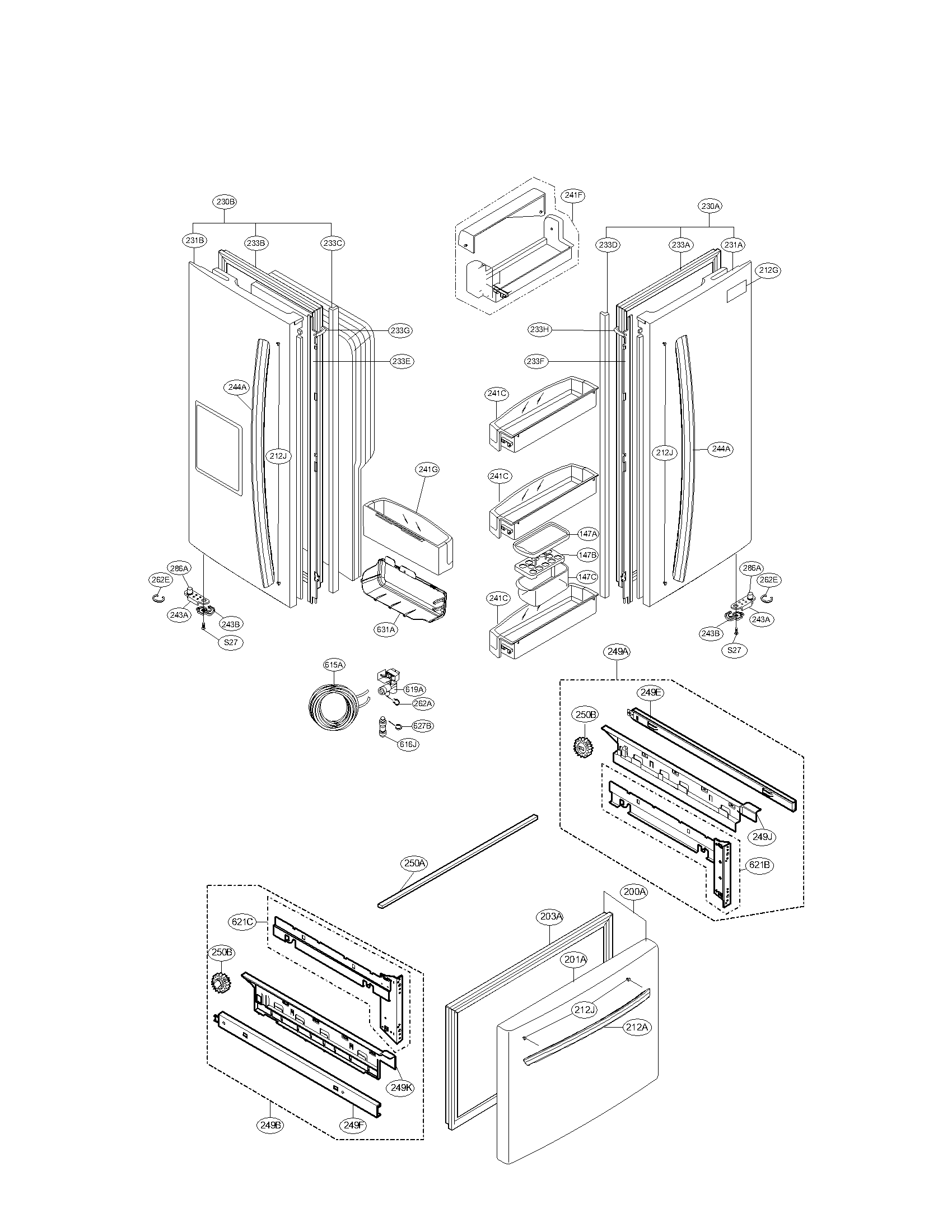

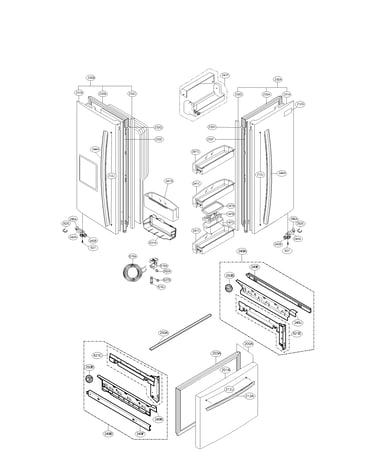

Door parts diagram

Refrigerator door stop

Part #4620JJ2009A

BEST SELLER
$11.06 |
15% OFF Phone Price : $13.06
In Stock
Refrigerator Compressor TCA31748003
#307A

Case parts diagram

Refrigerator compressor

Part #TCA31748003

Replaced by #TCA37091209

?
Manufacturer substitution
This part replaces TCA31748003. Substitute parts can look different from the original.
BEST SELLER
$316.23 |
$12.00 OFF Phone Price : $328.23
In Stock
Refrigerator Water Tubing 5210JA3005G
#616B

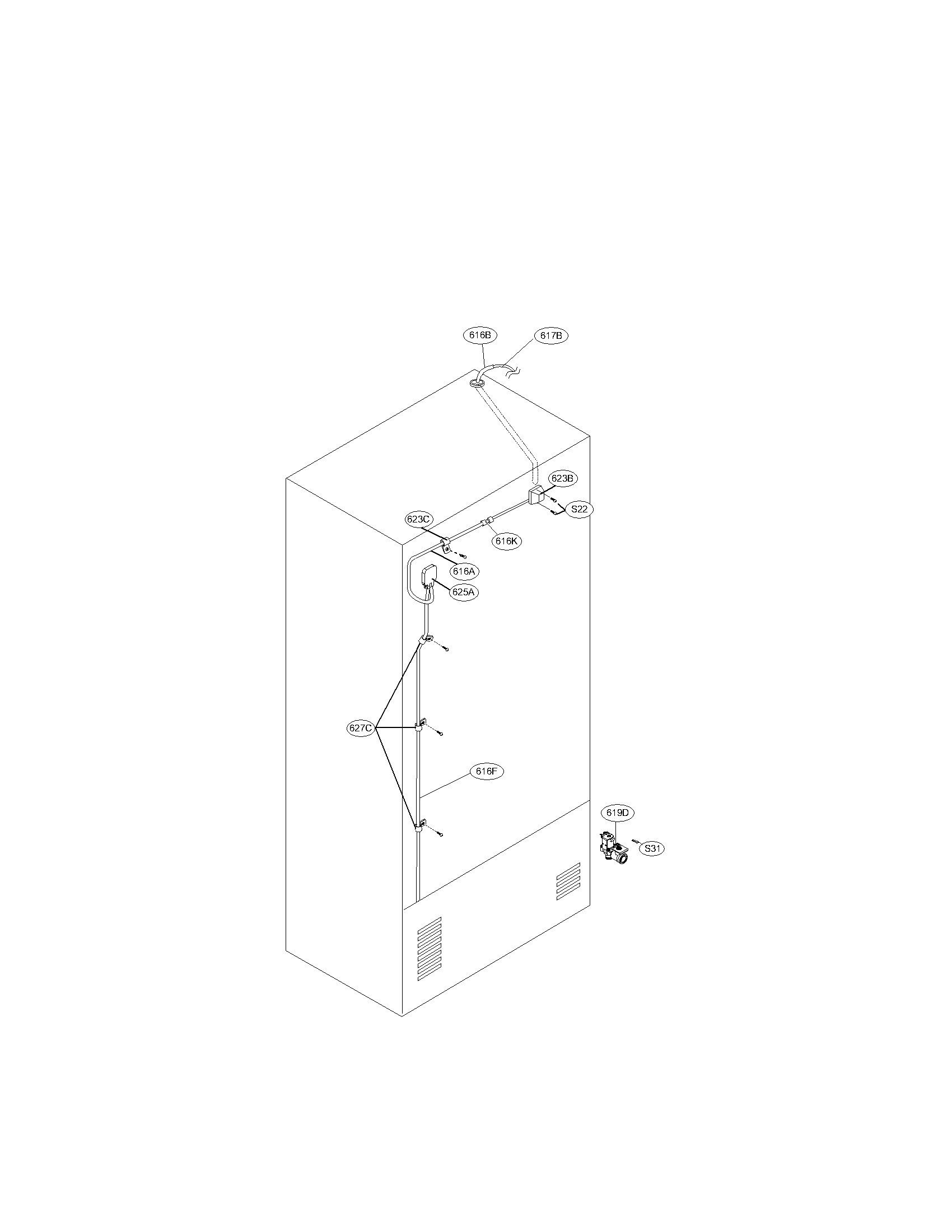

Valve and water tube parts diagram

Refrigerator water tubing

Part #5210JA3005G

Replaced by #5210JA3005E

?
Manufacturer substitution
This part replaces 5210JA3005G. Substitute parts can look different from the original.
BEST SELLER
$16.42 |
11% OFF Phone Price : $18.42
In Stock
Refrigerator Door Cam Latch, Right 4430JJ2005A
#233H

Door parts diagram

Refrigerator door cam latch, right

Part #4430JJ2005A

BEST SELLER
$16.62 |
11% OFF Phone Price : $18.62
In Stock
