Jenn-Air
Range

Model # JDR8880RDW Official Jenn-Air dual-fuel range

Here are the diagrams and repair parts for Official Jenn-Air JDR8880RDW dual-fuel range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Oven Bulb 7407P103-60
#5

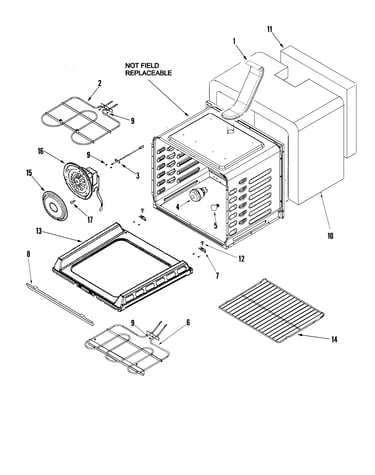

Cavity diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Sealer, Rtv M0275597
#4B

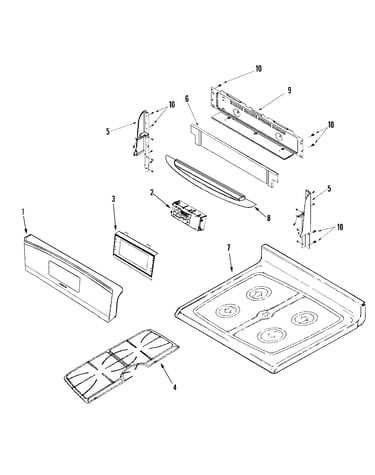

Control panel/top assembly diagram

Sealer, rtv

Part #M0275597

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275597. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Self Screw 74007410
#2C

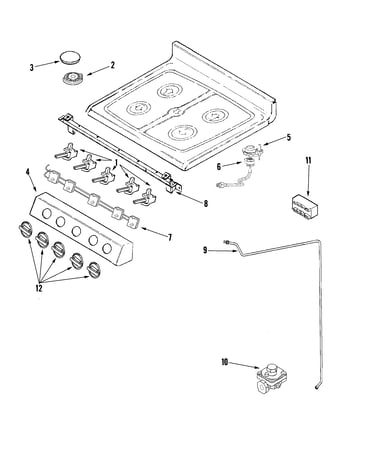

Gas controls diagram

Self screw

Part #74007410

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 74007410. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Terminal Block 7401P039-60
#13

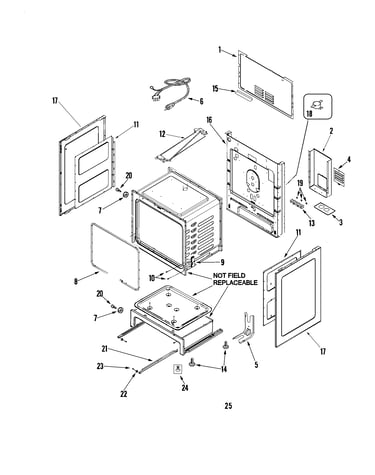

Cabinet diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Range Oven Temperature Sensor (replaces 12001554, 74004471, 74004943, 74005193, 7430p042-60, 8189679, W10127323, Y04000052, Y04100258, Y704657) 12001656
#3

Cavity diagram

Range oven temperature sensor (replaces 12001554, 74004471, 74004943, 74005193, 7430p042-60, 8189679, w10127323, y04000052, y04100258, y704657)

Part #12001656

BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Screw Element 74002979
#21A

Cabinet diagram

Screw element

Part #74002979

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74002979. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Gasket 74008696
#8

Cabinet diagram

Gasket

Part #74008696

Replaced by #W11562931

?
Manufacturer substitution
This part replaces 74008696. Substitute parts can look different from the original.
$45.67
In Stock
Screw 7101P112-60
#10

Cabinet diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P282-60
#16

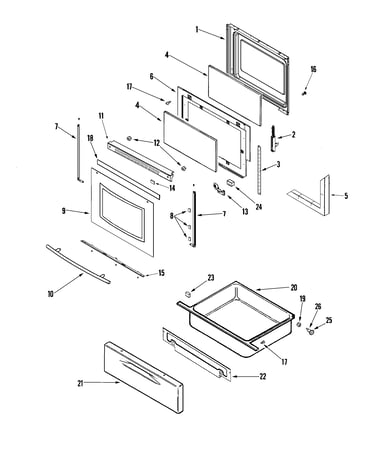

Door/drawer diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
