Craftsman
Front-Engine Lawn Tractor

Model # 917276922 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917276922 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

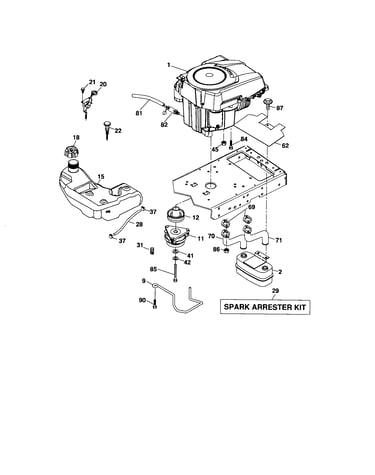

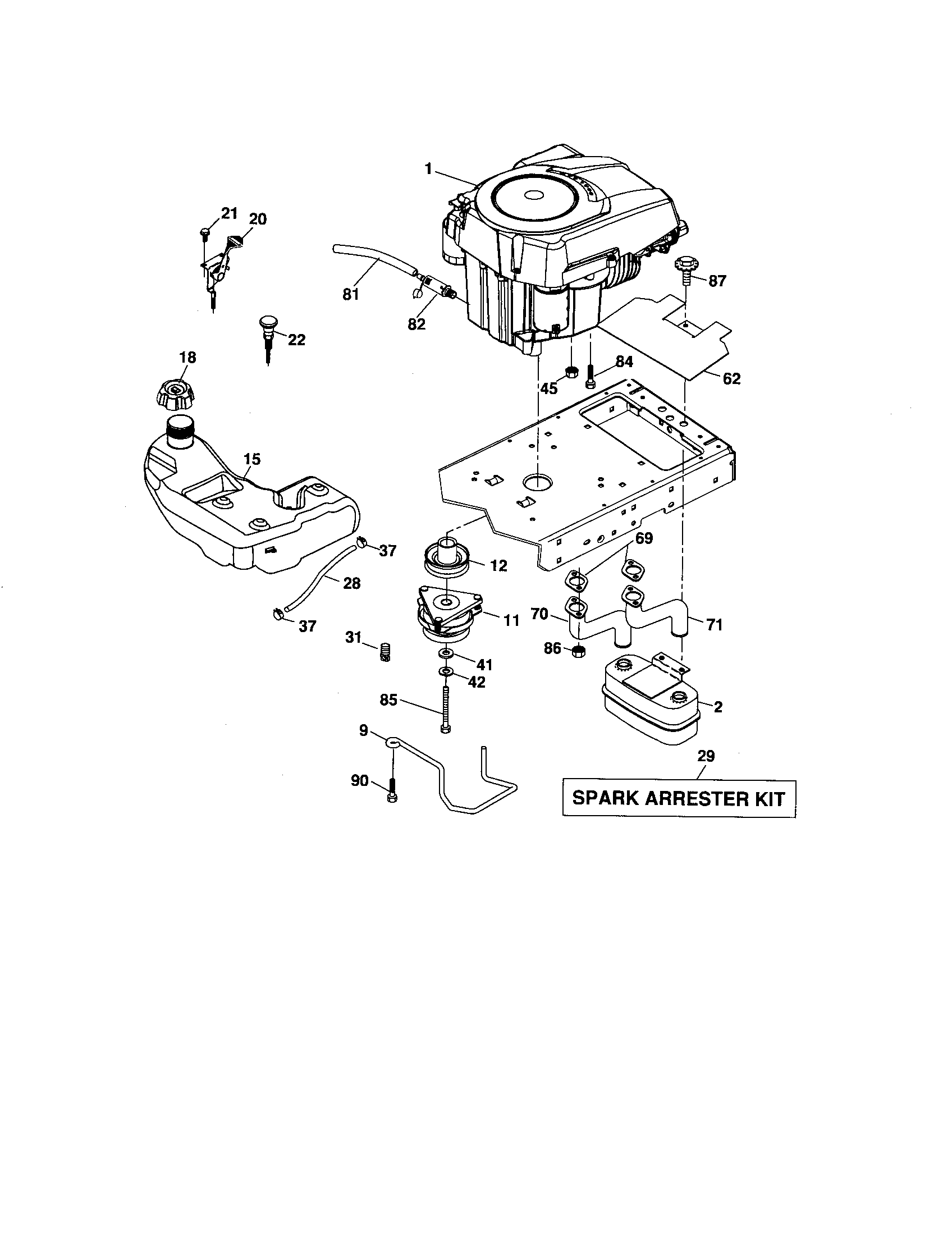

  View engine

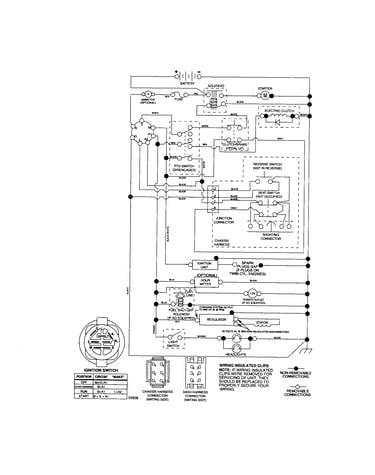

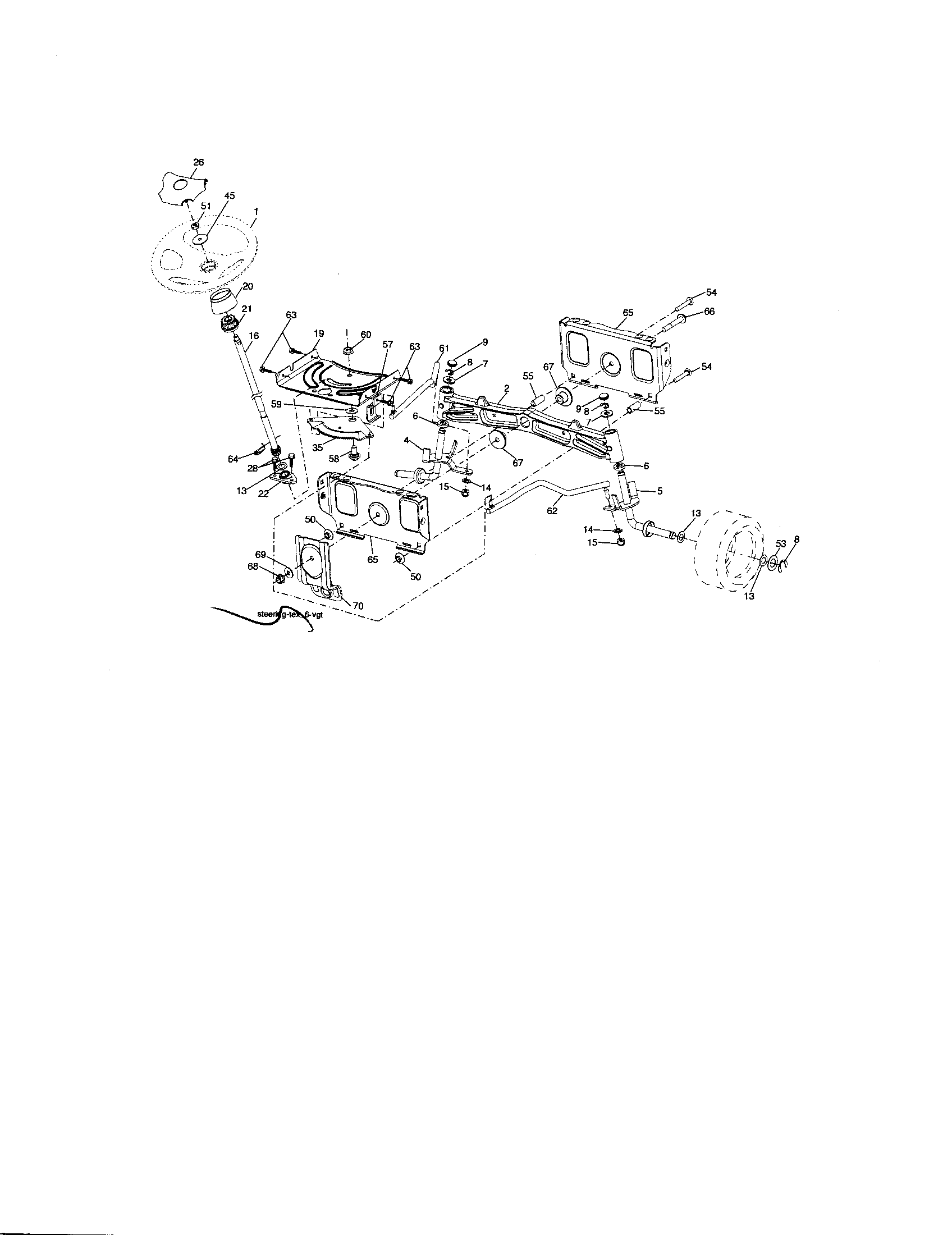

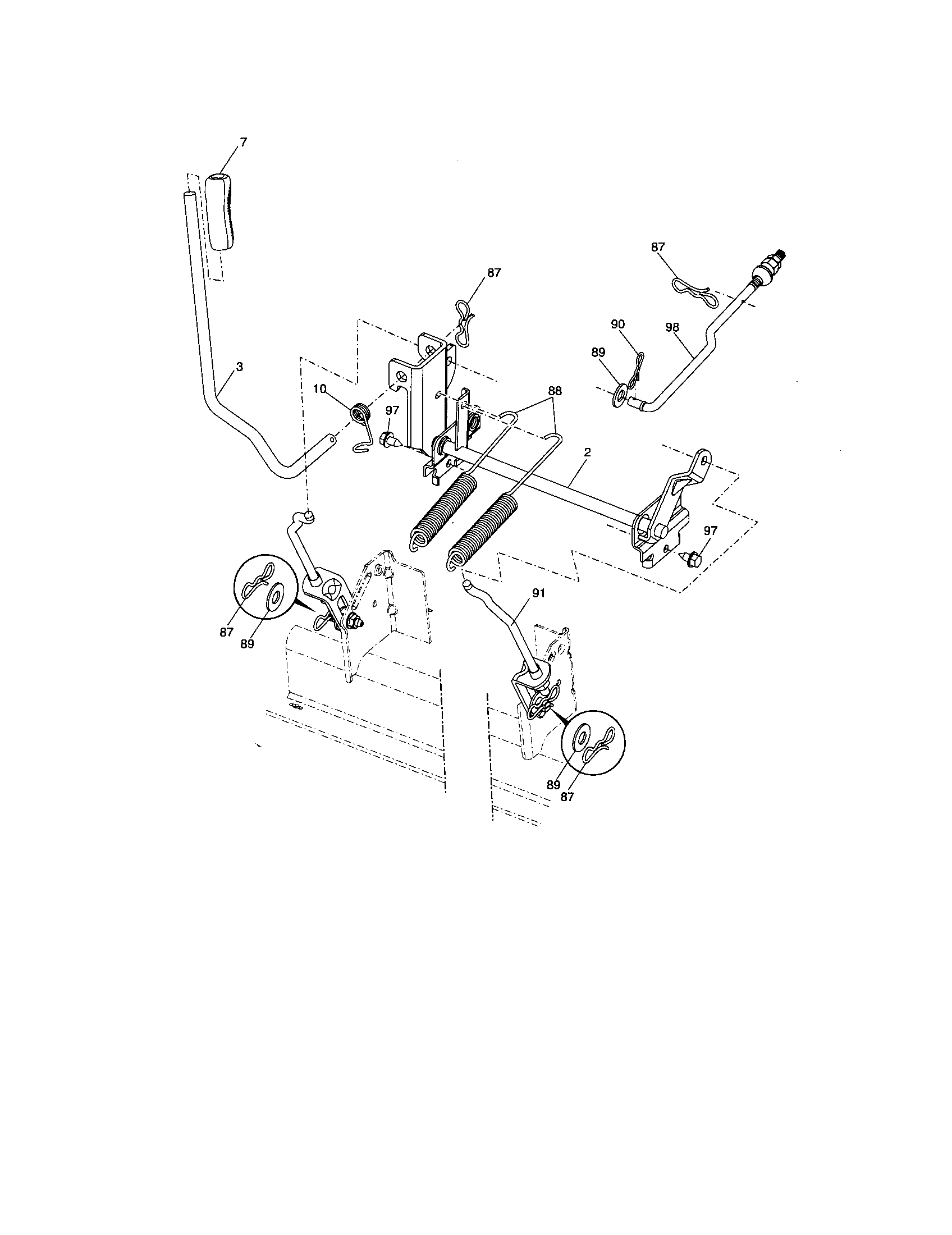

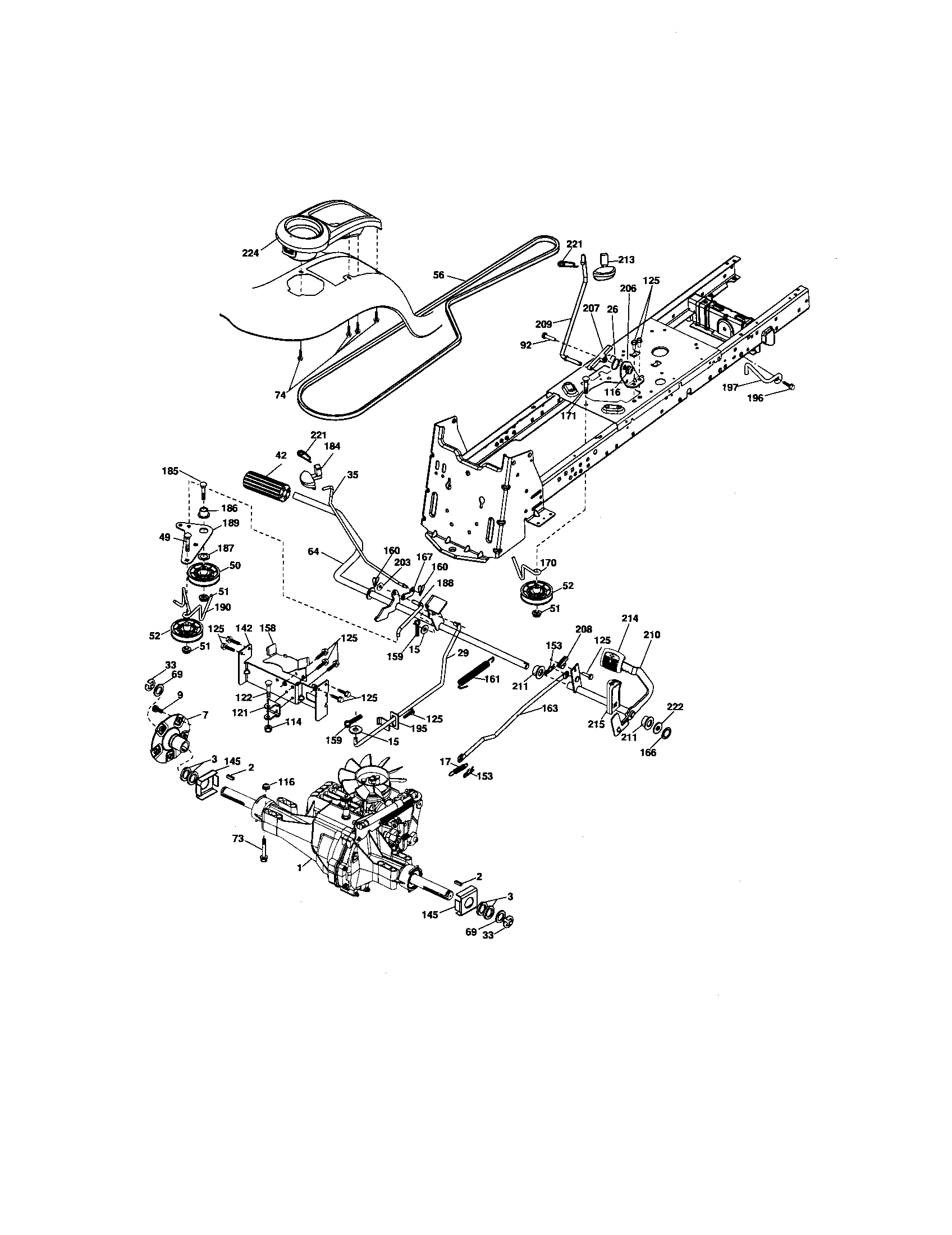

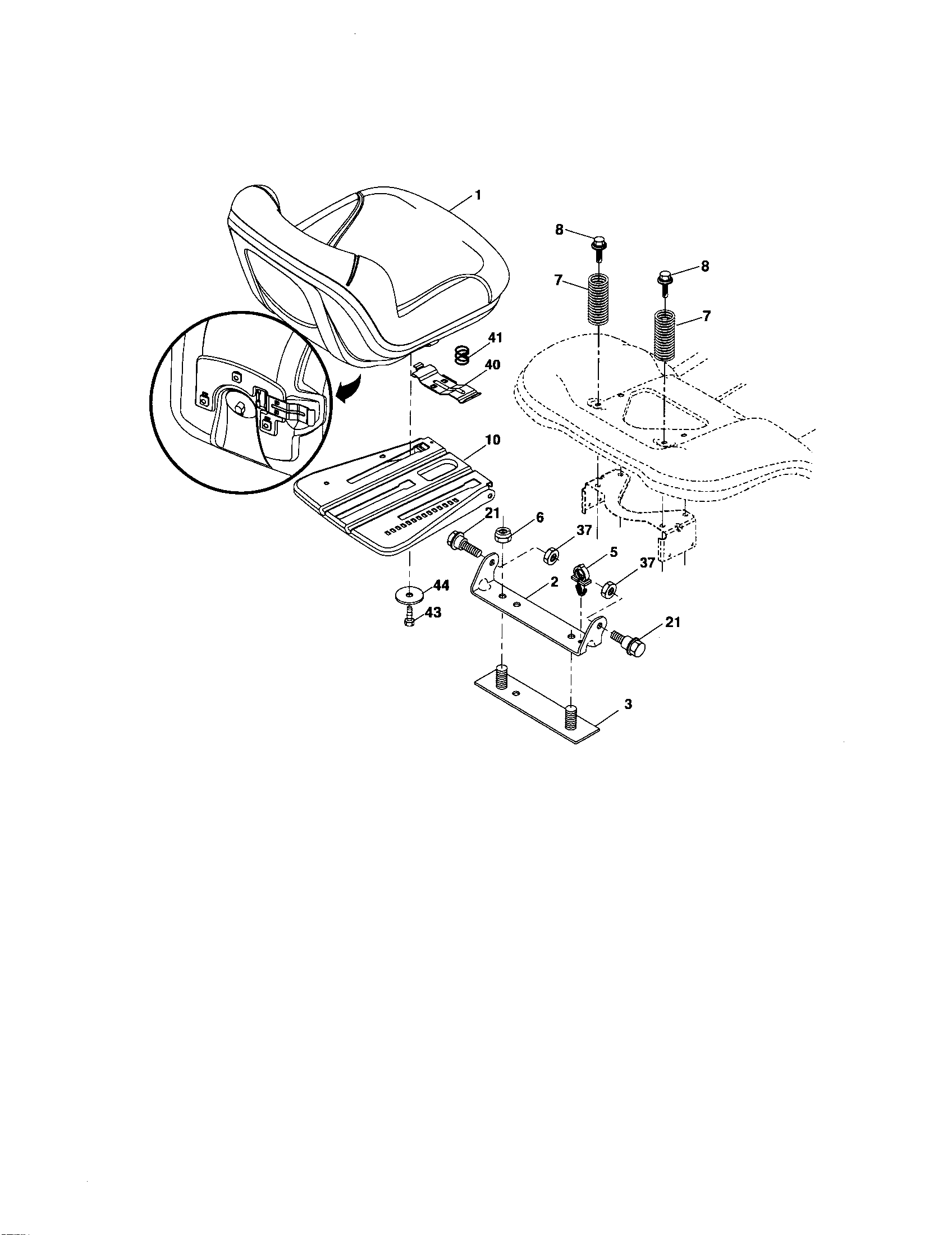

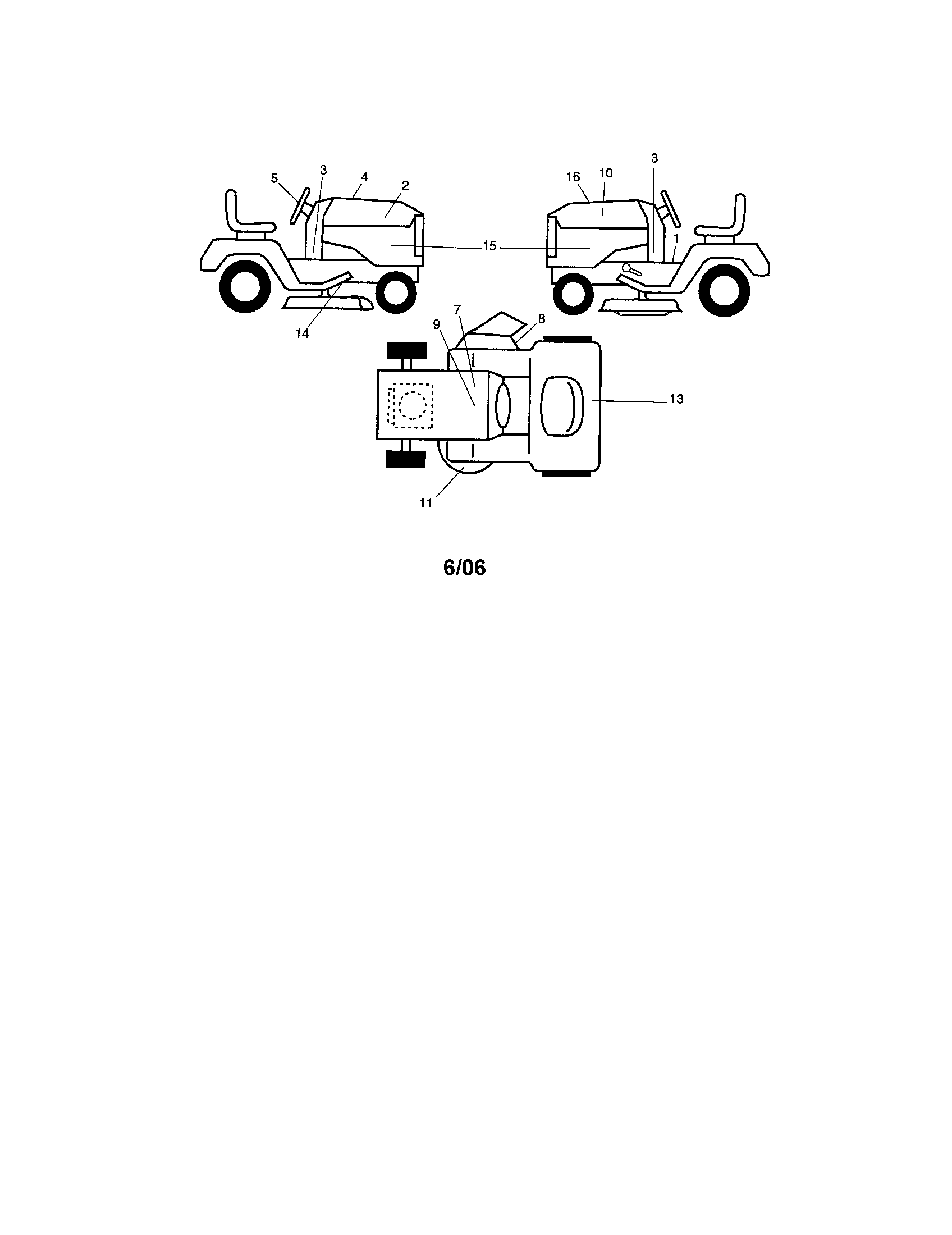

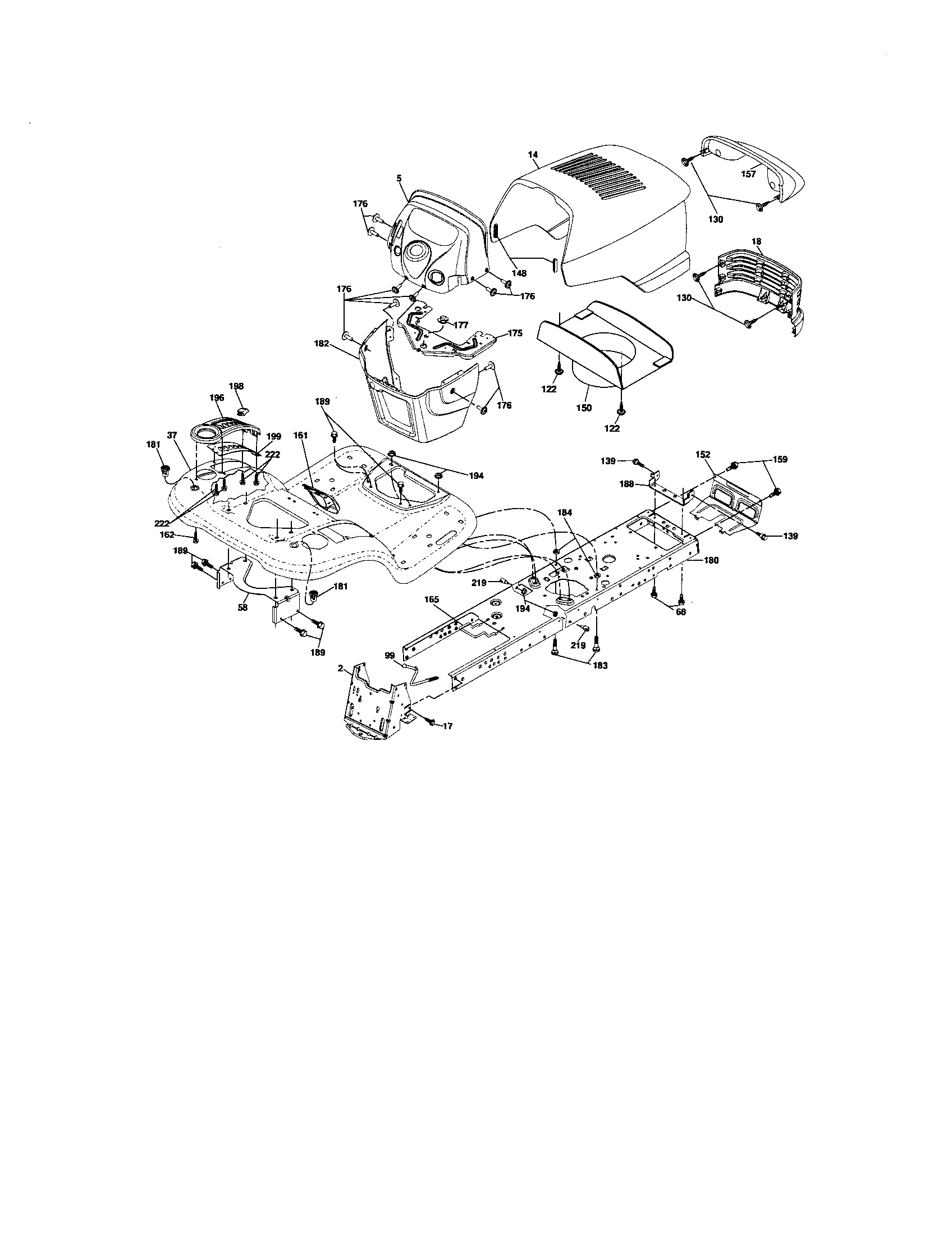

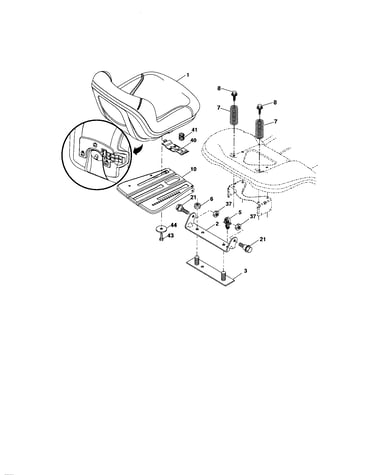

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 516 parts  |
Lawn Tractor Mandrel Housing 187281
#14

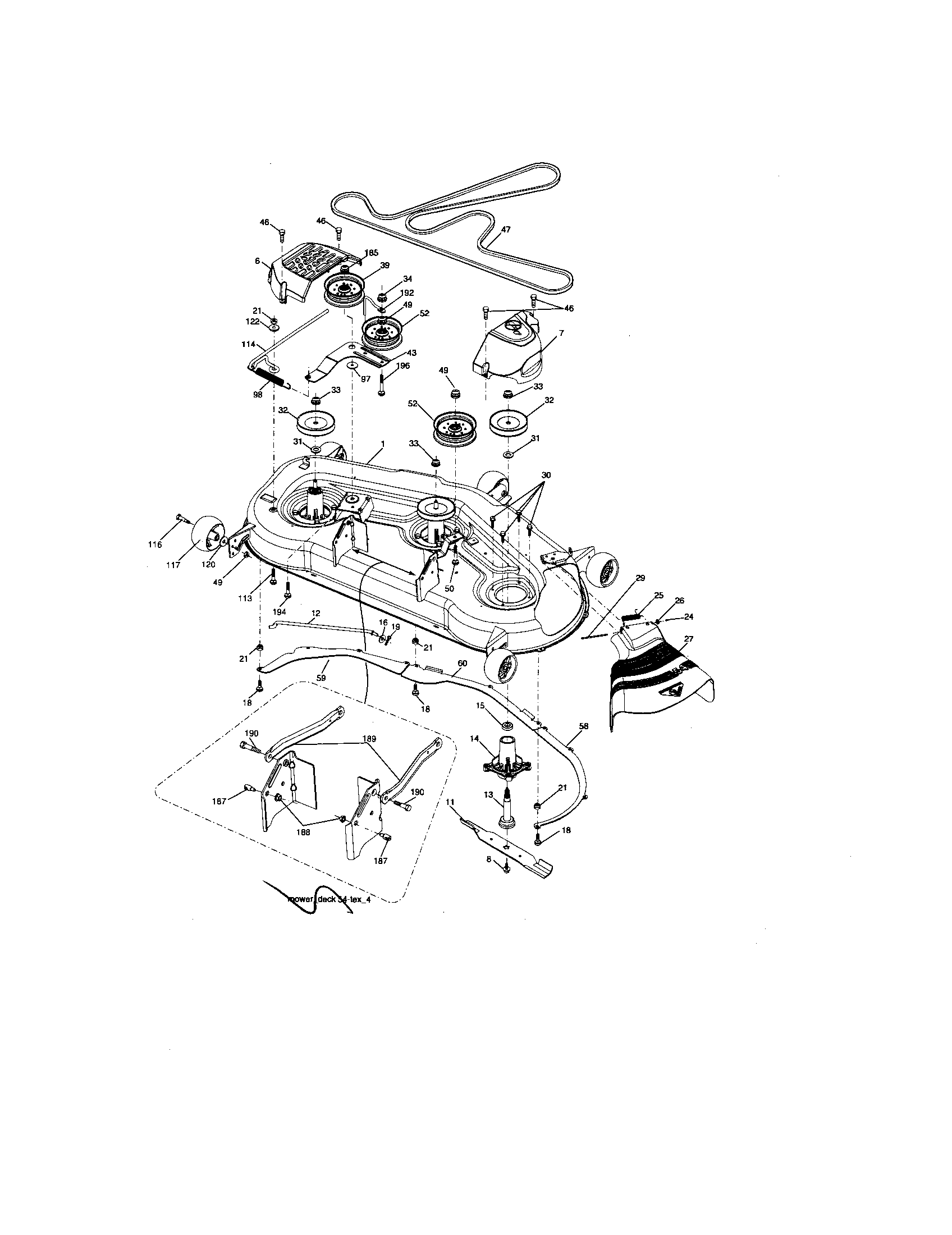

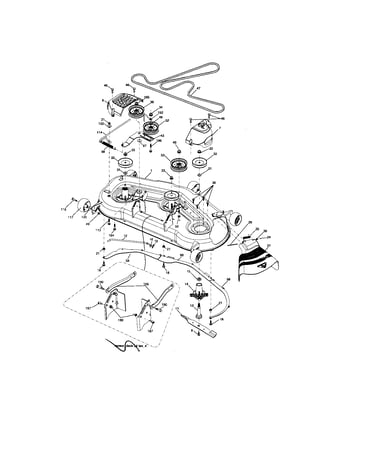

Mower deck diagram

Lawn tractor mandrel housing

Part #187281

Replaced by #587819701

?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
BEST SELLER
$48.44 |
11% OFF Phone Price : $54.44
In Stock
Lawn Tractor Hub Cap 104757X645
#8

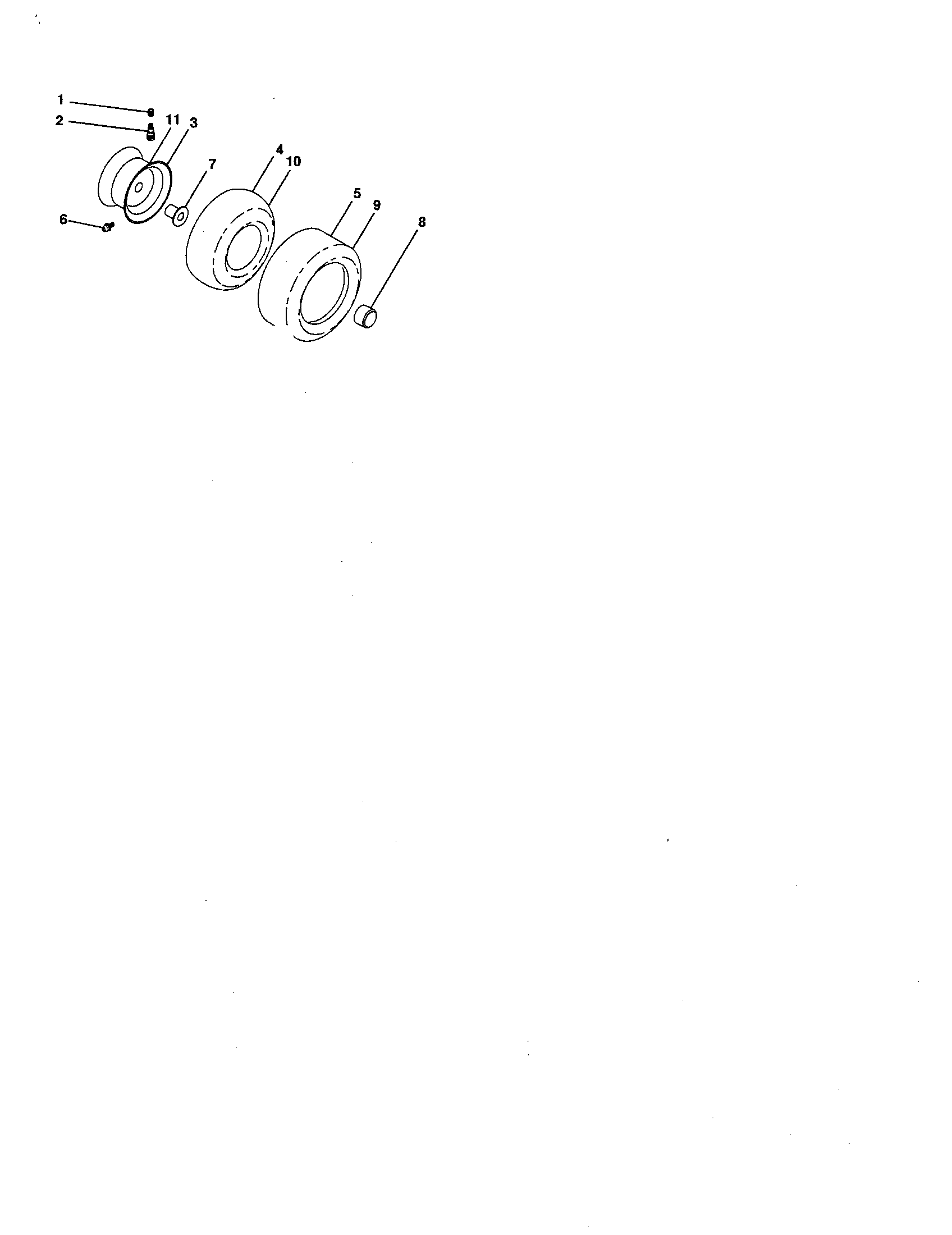

Wheels and tires diagram

Lawn tractor hub cap

Part #104757X645

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X645. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Blade Drive Belt, 5/8 X 148-5/8-in 196103
#47

Mower deck diagram

Lawn tractor blade drive belt, 5/8 x 148-5/8-in

Part #196103

Replaced by #587686701

?
Manufacturer substitution
This part replaces 196103. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$55.53 |
10% OFF Phone Price : $61.53
In Stock
Lock Nut 73900600
Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Starter Solenoid 192507
#43

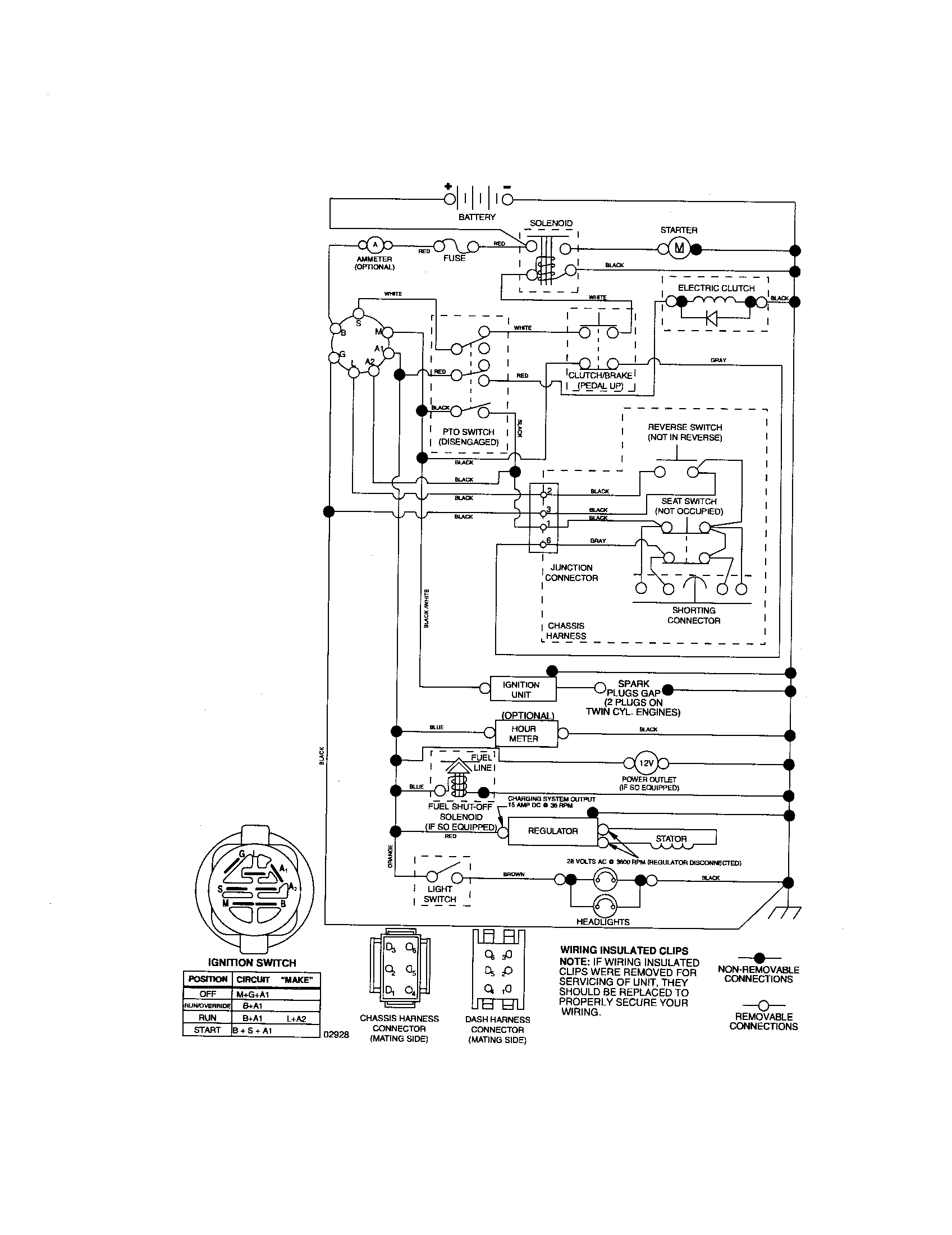

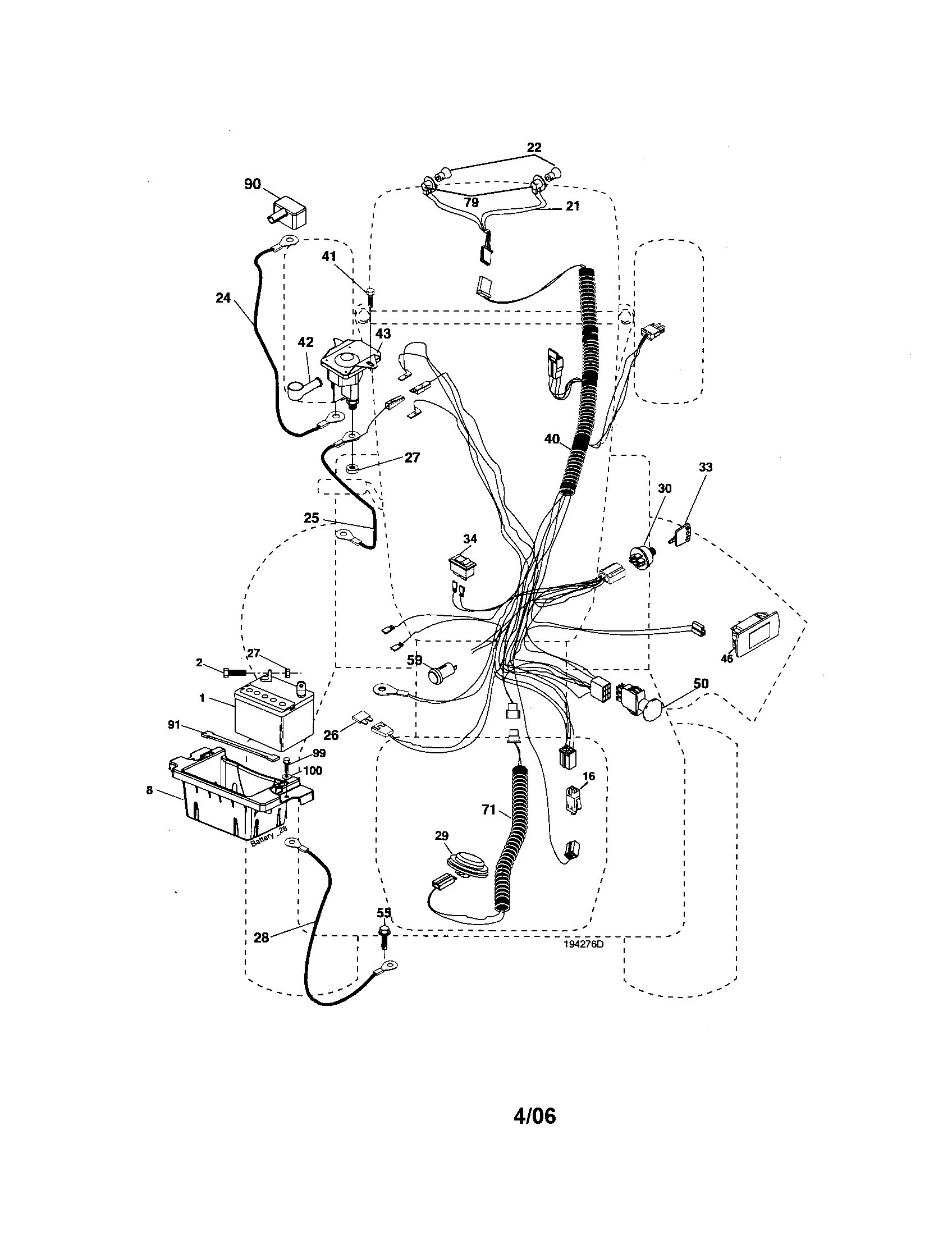

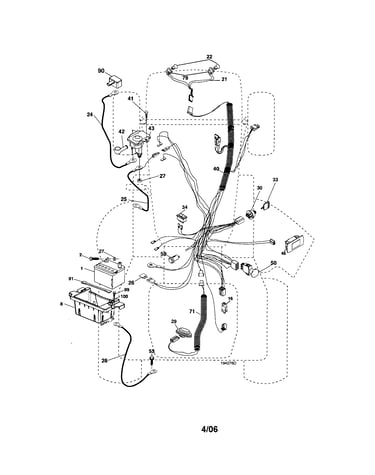

Electrical diagram

Lawn tractor starter solenoid

Part #192507

Replaced by #582042802

?
Manufacturer substitution
This part replaces 192507. Substitute parts can look different from the original.
BEST SELLER
$30.64 |
16% OFF Phone Price : $36.64
In Stock
Lawn Tractor Ignition Switch 193350
#30

Electrical diagram

Lawn tractor ignition switch

Part #193350

Replaced by #532193350

?
Manufacturer substitution
This part replaces 193350. Substitute parts can look different from the original.
BEST SELLER
$25.83 |
19% OFF Phone Price : $31.83
In Stock
Switch.pto 174652
#50

Electrical diagram

Switch.pto

Part #174652

Replaced by #582107601

?
Manufacturer substitution
This part replaces 174652. Substitute parts can look different from the original.
BEST SELLER
$30.76 |
16% OFF Phone Price : $36.76
In Stock
Lawn Tractor Gauge Wheel 174873
#117

Mower deck diagram

Lawn tractor gauge wheel

Part #174873

Replaced by #589527301

?
Manufacturer substitution
This part replaces 174873. Substitute parts can look different from the original.
BEST SELLER
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Molded Ignition Key 140403
#33

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Tractor Shoulder Bolt 193406
#116

Mower deck diagram

Lawn tractor shoulder bolt

Part #193406

Replaced by #596434404

?
Manufacturer substitution
This part replaces 193406. Substitute parts can look different from the original.
BEST SELLER
$6.64 |
13% OFF Phone Price : $7.64
In Stock
