Model # 32017543 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 32017543 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

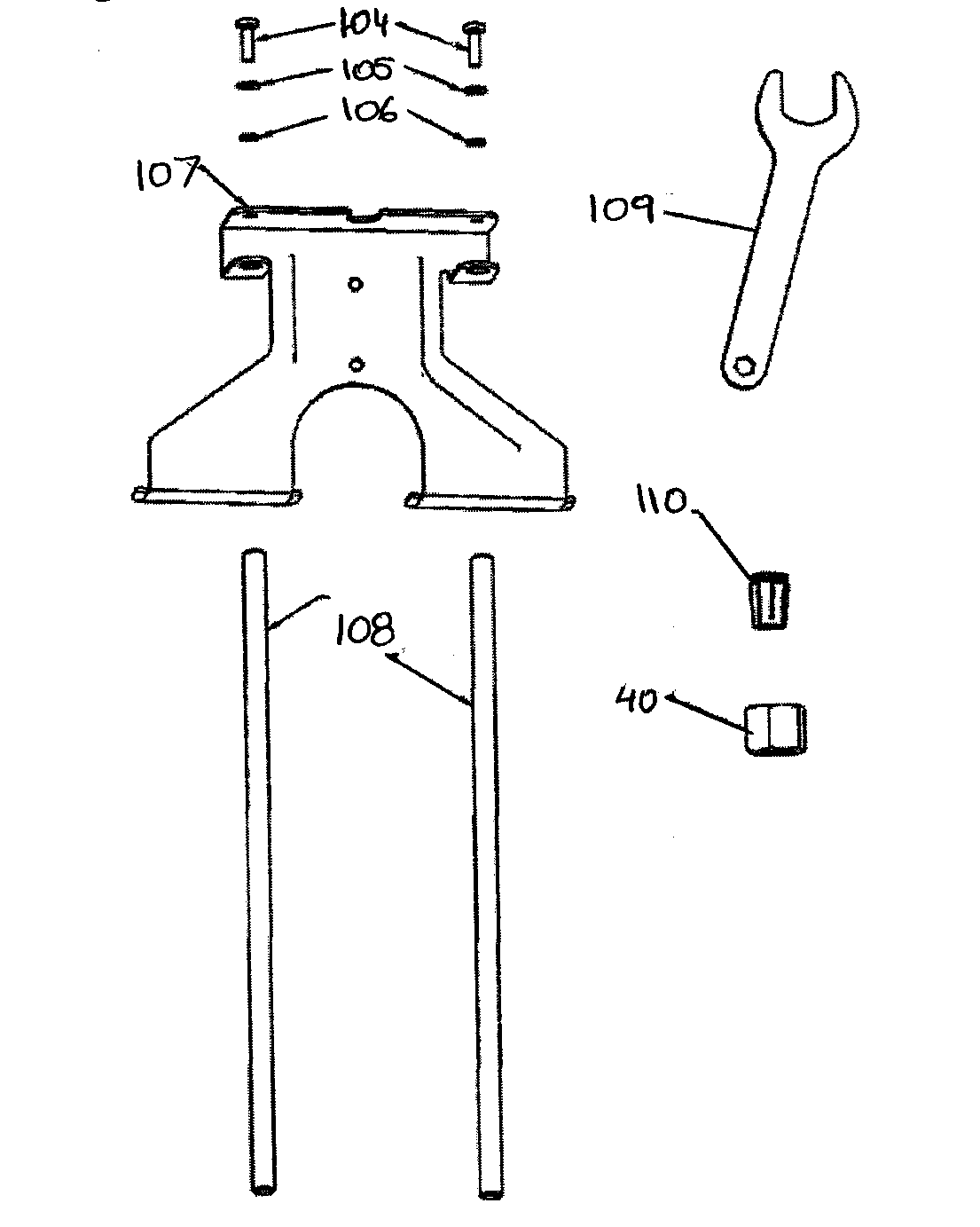

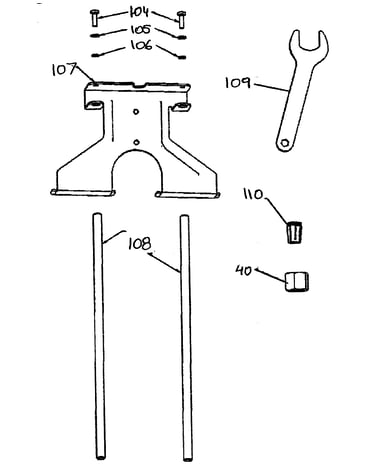

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Router Chip Shield 3121637000
#82

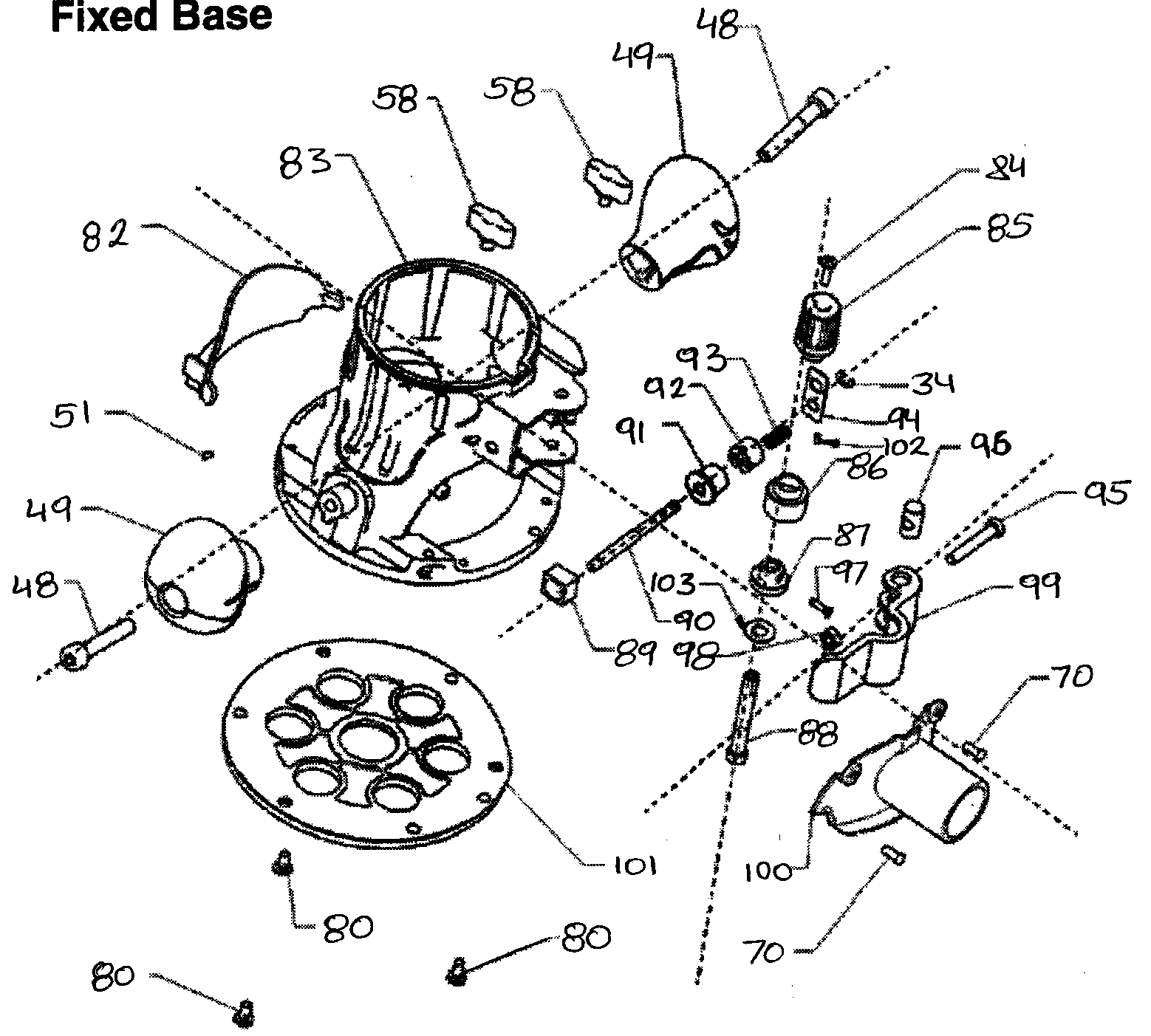

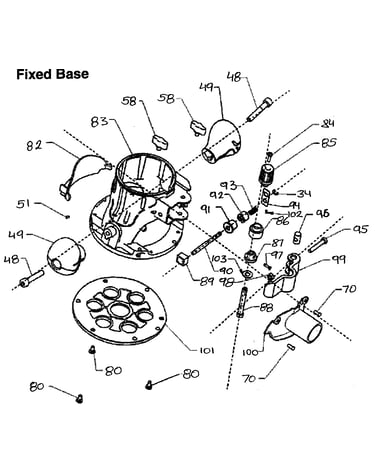

Fixed base diagram

Router chip shield

Part #3121637000

The manufacturer no longer makes this part, and there's no substitute part

Router Motor Brush Cap 3120537000
#14

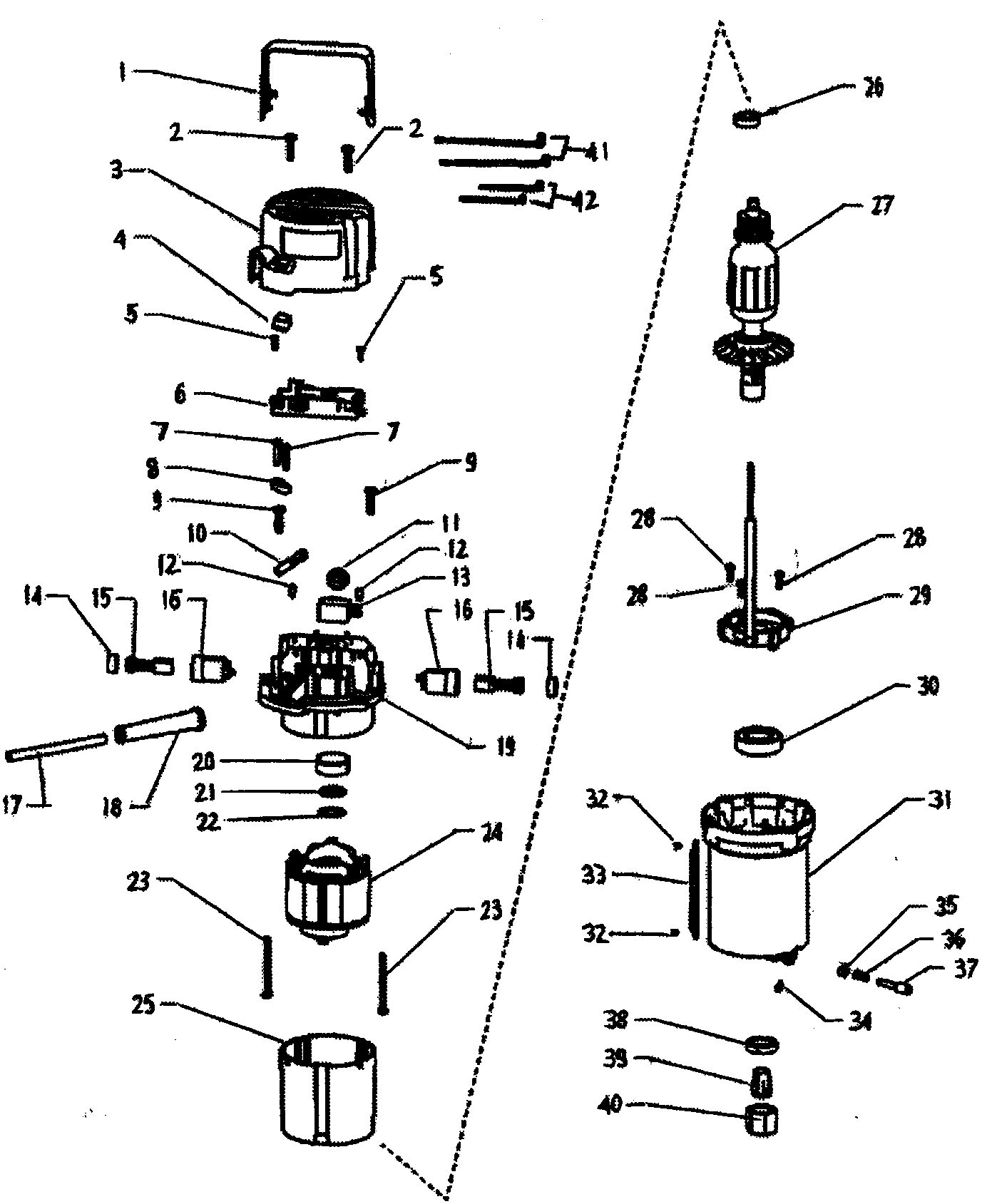

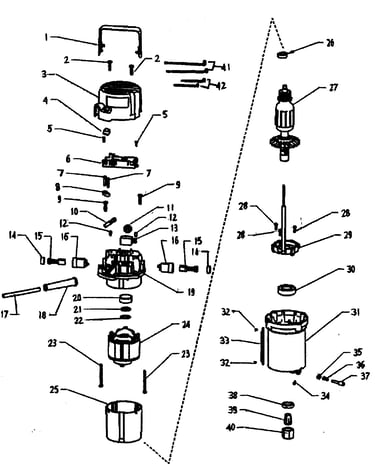

Motor assy diagram

Router motor brush cap

Part #3120537000

The manufacturer no longer makes this part, and there's no substitute part

Router Motor Bearing 5700056000
#30

Motor assy diagram

Router motor bearing

Part #5700056000

The manufacturer no longer makes this part, and there's no substitute part

Router Cooling Fan Baffle 3121495000
#25

Motor assy diagram

Router cooling fan baffle

Part #3121495000

The manufacturer no longer makes this part, and there's no substitute part

Seal Ring 3122851000
#11

Motor assy diagram

Seal ring

Part #3122851000

The manufacturer no longer makes this part, and there's no substitute part

Router Depth Adjusment Cap Screw 5620032000
#43

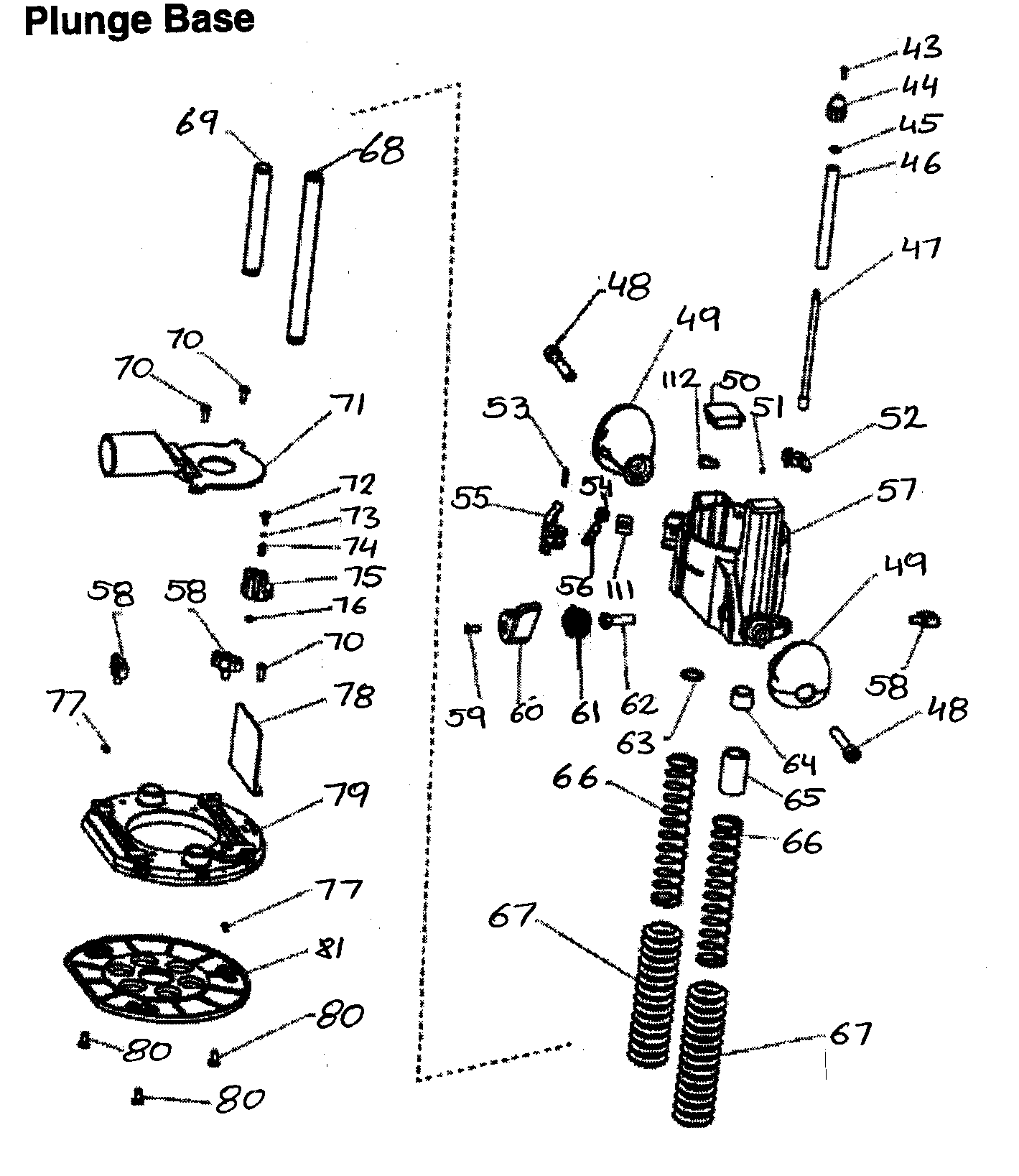

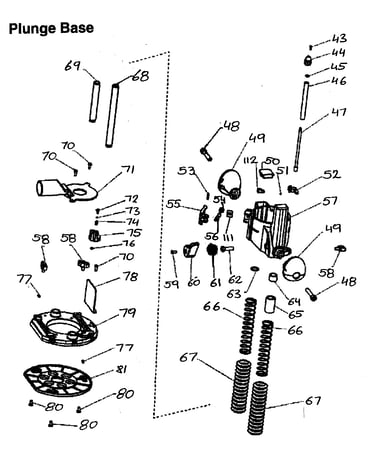

Plunge base diagram

Router depth adjusment cap screw

Part #5620032000

The manufacturer no longer makes this part, and there's no substitute part

Router Depth Adjustment Worm Gear 3550615000
#87

Fixed base diagram

Router depth adjustment worm gear

Part #3550615000

The manufacturer no longer makes this part, and there's no substitute part

Router Motor Housing 3420396000
#83

Fixed base diagram

Router motor housing

Part #3420396000

The manufacturer no longer makes this part, and there's no substitute part

Bearing 5700055000
#64

Plunge base diagram

Bearing

Part #5700055000

The manufacturer no longer makes this part, and there's no substitute part

Router Screw 5620049000
#80

Fixed base diagram

Router screw

Part #5620049000

The manufacturer no longer makes this part, and there's no substitute part
