Model # 580760003 Official Craftsman pressure washer

Here are the diagrams and repair parts for Official Craftsman 580760003 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 106 parts |

#NI

All parts diagram

O-ring kit

Part #71-75116

Replaced by #705001

$26.04 |

19% OFF Phone Price : $32.04

In Stock

Qty

#30

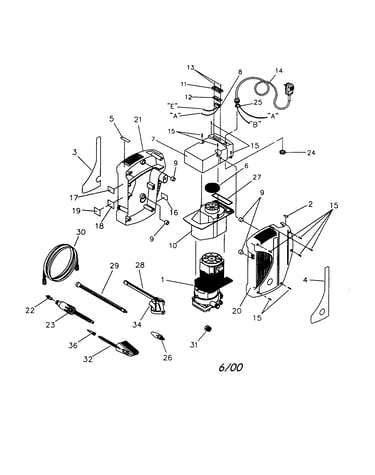

Housings diagram

High hose

Part #B3337

Replaced by #84006753

$86.25 |

7% OFF Phone Price : $92.25

In Stock

Qty

#17

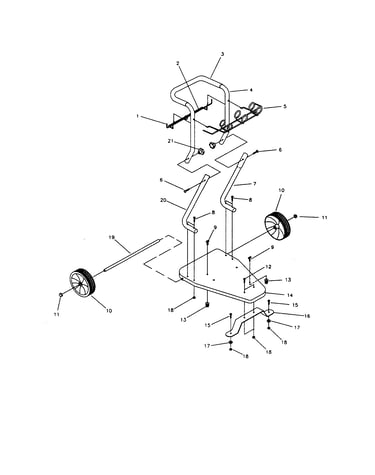

Cart diagram

Shock mount

Part #87841

Replaced by #87841GS

This item is not returnable

$7.14

In Stock

Qty

#31

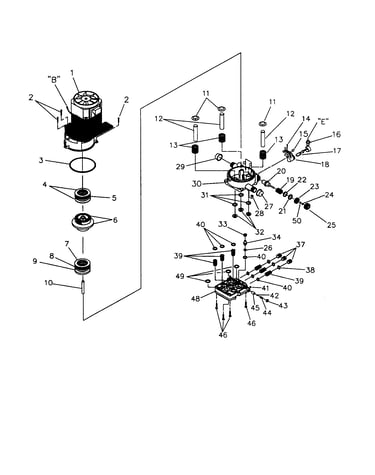

Pump/motor diagram

Piston seal

Part #93680

Replaced by #93680GS

This item is not returnable

$10.88 |

16% OFF Phone Price : $12.88

In Stock

Qty

O-ring

Part #97835

Replaced by #97835GS

This item is not returnable

$6.69 |

13% OFF Phone Price : $7.69

In Stock

Qty

#42

Pump/motor diagram

Ball

Part #97852

Replaced by #97852GS

$8.09

In Stock

Qty

#12

Pump/motor diagram

Piston

Part #97832

Replaced by #97832GS

$56.73

In Stock

Qty

Housings diagram

Rocker switch

Part #20984

Replaced by #20984GS

$17.31

In Stock

Qty

#44

Pump/motor diagram

Spring

Part #A1130

Replaced by #A1130GS

This item is not returnable

$7.40

In Stock

Qty

#21

Pump/motor diagram

Ring

Part #21126

Replaced by #21126GS

This item is not returnable

$7.40

In Stock

Qty

Symptoms for gas pressure washers

Choose a symptom to see related pressure washer repairs.

View all

Why does my pressure washer spray too hard?

Main causes: faulty unloader valve, bad pressure regulator…

Why won't my pressure washer engine start?

Main causes: stale fuel, gummed up carburetor, engine needs tune up, throttle and choke controls need adjustment, bad re…

Why does my pressure washer's engine lose power?

Main causes: dirty air filter, stale fuel, clogged or dirty carburetor, bad unloader valve…

Why won't the pressure washer starter rope retract?

Main causes: broken recoil spring, damaged recoil starter…

Why is smoke coming from the pressure washer's exhaust?

Main causes: overfilling engine with oil, improper fuel/air mixture, choke system problems, dirty carburetor, engine nee…

Why does water spray out of my pressure washer's pressure relief valve?

Main causes: pump running for more than 5 minutes when the spray wand isn't being used, faulty pressure relief valve, ba…

Why is the spray from my pressure washer weak?

Main causes: insufficient water supply, clogged water inlet screen, clogged pressure hose, faulty pump check valves, stu…

Why won't my pressure washer mix in the detergent?

Main causes: using a high-pressure spray tip when applying detergent, clogged siphon tube, chemical injection system fai…

Why doesn't my pressure washer recoil starter work?

Main causes: damaged recoil starter, oil inside cylinder, locked up engine piston…

Repair guides for gas pressure washers

These step-by-step repair guides will help you safely fix what’s broken on your pressure washer.

View all

How to install a pressure washer chemical injection kit

The chemical injection valve draws detergent into the pump. If it’s not drawing detergent, use a repair kit to replace t…

Repair difficulty

Time required

15 minutes or less

How to install a pressure washer O-ring kit

O-rings seal fittings on the pressure washer pump. Damaged seals allow water to leak from the pump. Follow these steps t…

Repair difficulty

Time required

45 minutes or less

How to replace a pressure washer pump

The pump can be damaged by air in the inlet water supply or by chemicals that remain in the pump body after using the ch…

Repair difficulty

Time required

15 minutes or less
