Model # GEH50DEEDSRA Official GE water heater

Here are the diagrams and repair parts for Official GE GEH50DEEDSRA water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Sensor Assembly WS17X10011
#332

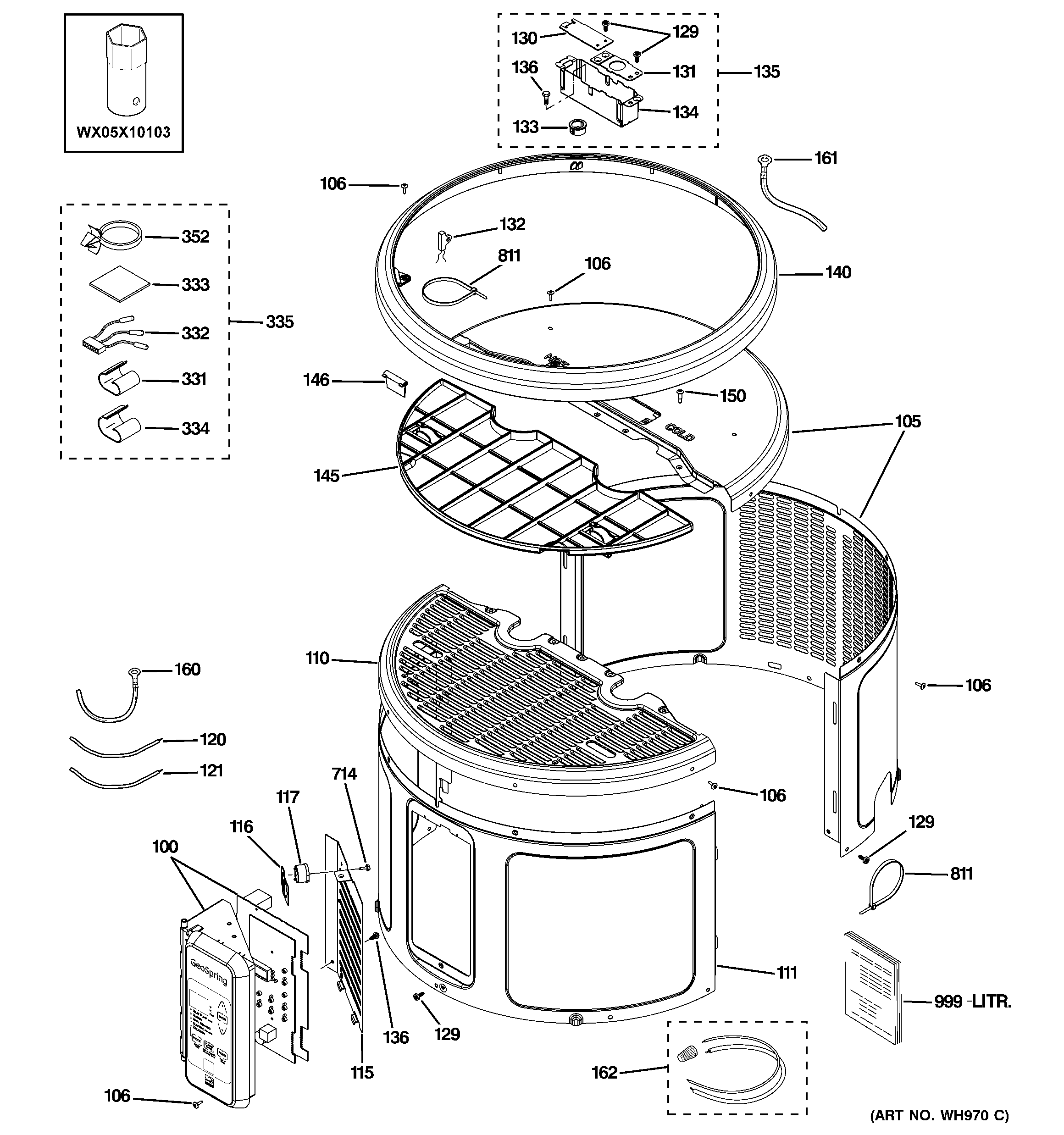

Control panel & shroud diagram

Sensor assembly

Part #WS17X10011

$24.64
In Stock
Dishwasher Hex Screw, #8-18 WD02X10083
#714

Control panel & shroud diagram

Dishwasher hex screw, #8-18

Part #WD02X10083

Replaced by #WD02X10160

?
Manufacturer substitution
This part replaces WD02X10083. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Scr 10-32 Gx WS02X10087
Scr 10-32 gx

Part #WS02X10087

$7.71
In Stock
Thermistor Bracket WS28X10074
#216

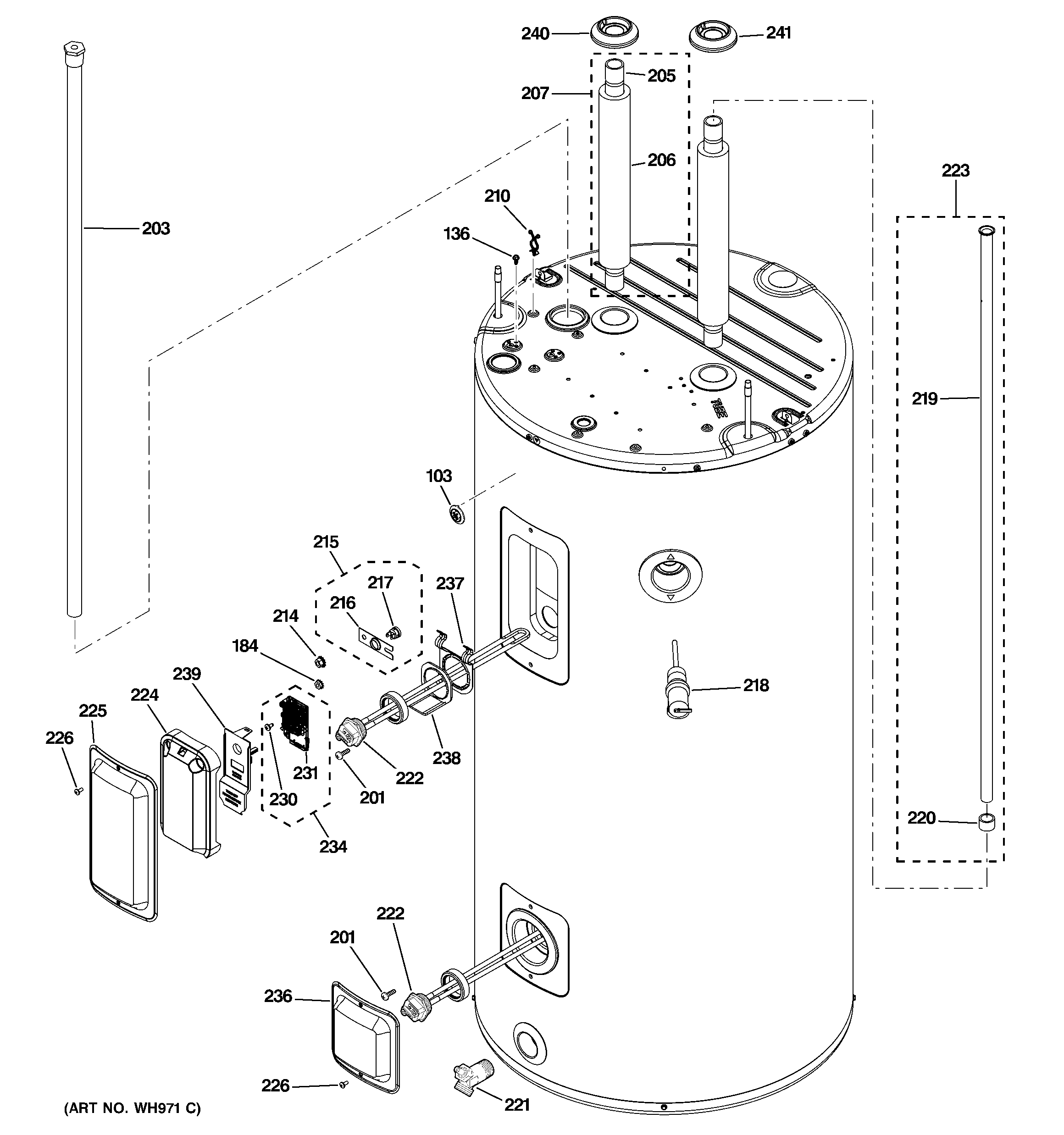

Body parts diagram

Thermistor bracket

Part #WS28X10074

This item is not returnable
$7.49
In Stock
Spring Clip WS03X10074
#237

Body parts diagram

Spring clip

Part #WS03X10074

This item is not returnable
$8.91
In Stock
Scr 8-32 Gx WR01X10757
#367

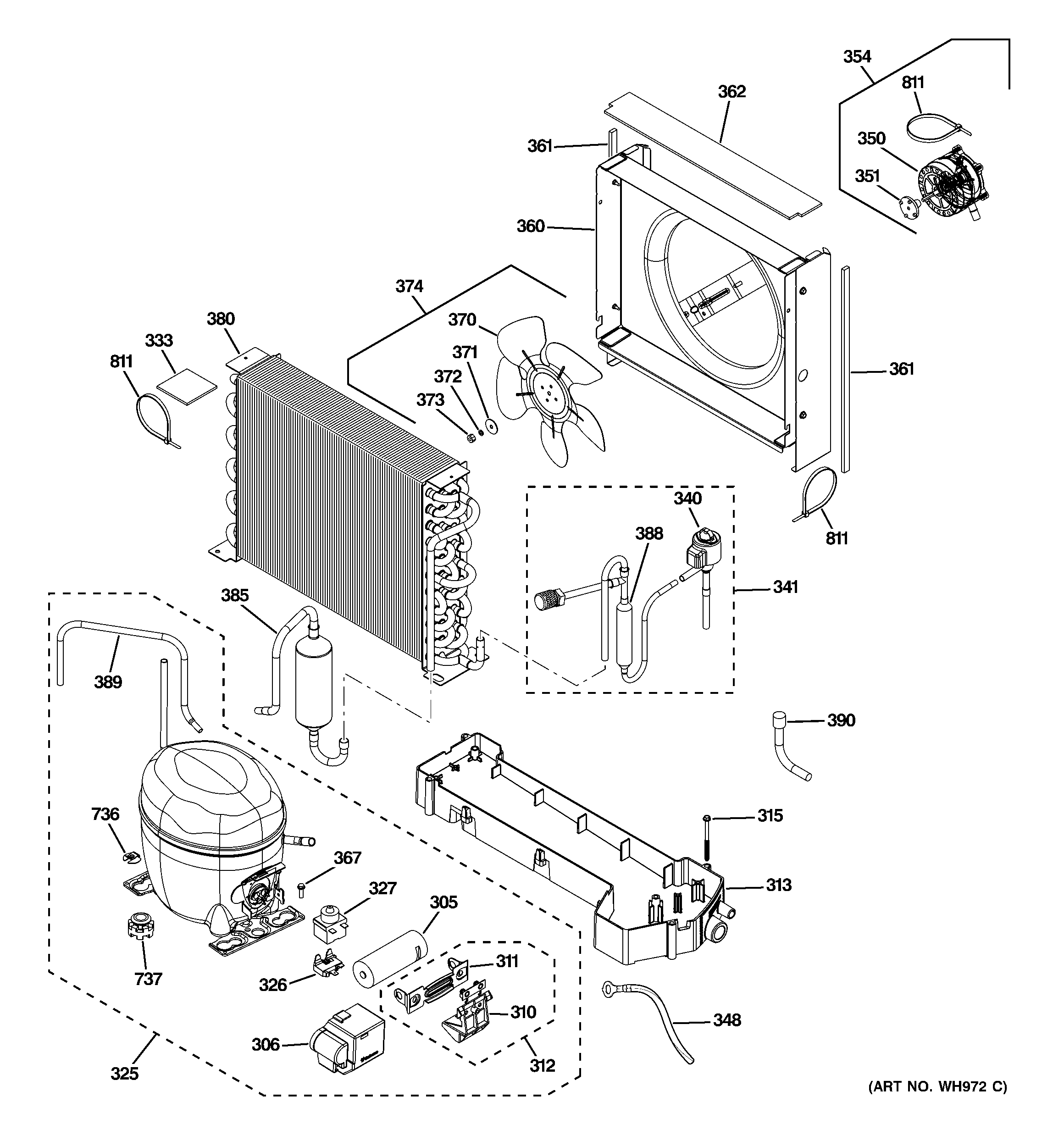

Unit parts diagram

Scr 8-32 gx

Part #WR01X10757

This item is not returnable
$4.35
In Stock
Cover Elmnt Metal L. Red WS31X10056
#236

Body parts diagram

Cover elmnt metal l. red

Part #WS31X10056

$7.86
In Stock
Shroud WS31X10060
#105

Control panel & shroud diagram

Shroud

Part #WS31X10060

$25.42
In Stock
Seal Foam Ba WS16X10003
#361

Unit parts diagram

Seal foam ba

Part #WS16X10003

$7.86
In Stock
Scr 10-32 Pn WS02X10076
#230

Body parts diagram

Scr 10-32 pn

Part #WS02X10076

This item is not returnable
$8.49
In Stock
