Craftsman
Wet/Dry Vacuum

Model # 113179800 Official Craftsman 16-gallon wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179800 16-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

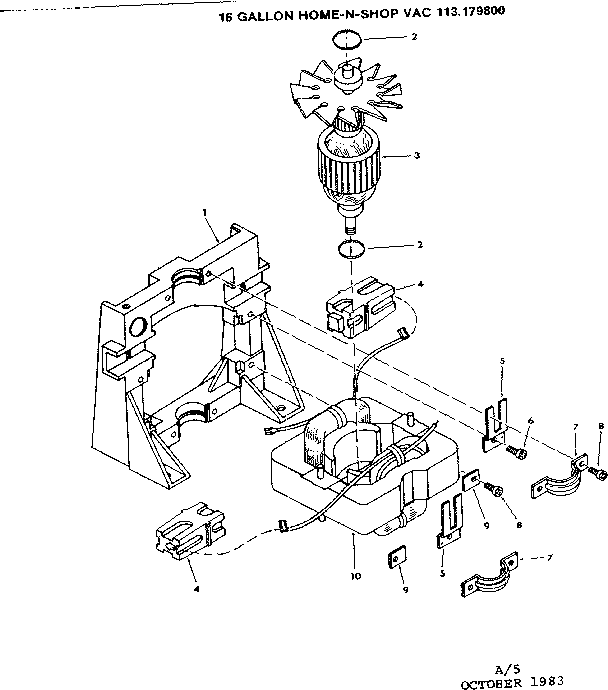

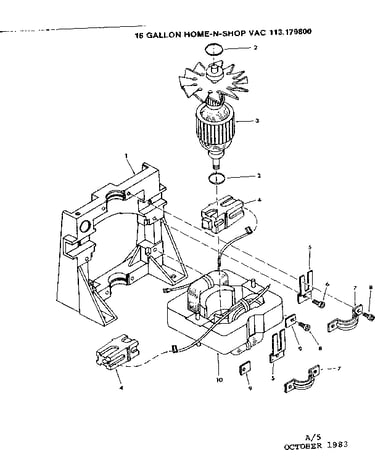

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Shop Vacuum Dome 73155
#4

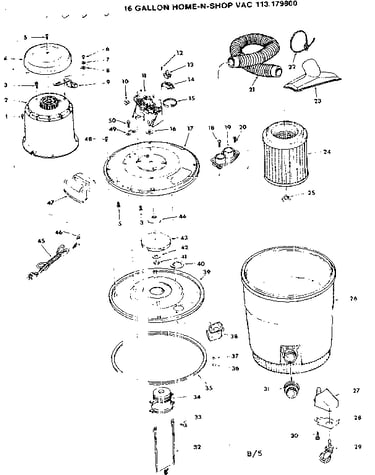

Unit diagram

Shop vacuum dome

Part #73155

The manufacturer no longer makes this part, and there's no substitute part

Gasket (black) 20866
#40

Unit diagram

Gasket (black)

Part #20866

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch 20432
#13

Unit diagram

Shop vacuum on/off switch

Part #20432

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap Retainer Strap 73166
#22

Unit diagram

Shop vacuum drain cap retainer strap

Part #73166

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch Button 22210-01
#9

Unit diagram

Shop vacuum on/off switch button

Part #22210-01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Caster (replaces 29776, 73137) 73102
#29

Unit diagram

Shop vacuum caster (replaces 29776, 73137)

Part #73102

The manufacturer no longer makes this part, and there's no substitute part

Nozzle (black) 28229-01
#38

Unit diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw STD610805
#50

Unit diagram

Machine screw

Part #STD610805

This item is not returnable
In Stock
Nozzle 20557-01
#23

Unit diagram

Nozzle

Part #20557-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster Foot 73164
#27

Unit diagram

Vacuum caster foot

Part #73164

The manufacturer no longer makes this part, and there's no substitute part
