Model # 106153880 Official Craftsman twin-cylinder tank-type air compressor paint sprayer

Here are the diagrams and repair parts for Official Craftsman 106153880 twin-cylinder tank-type air compressor paint sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Drain Cock STD-301
#54

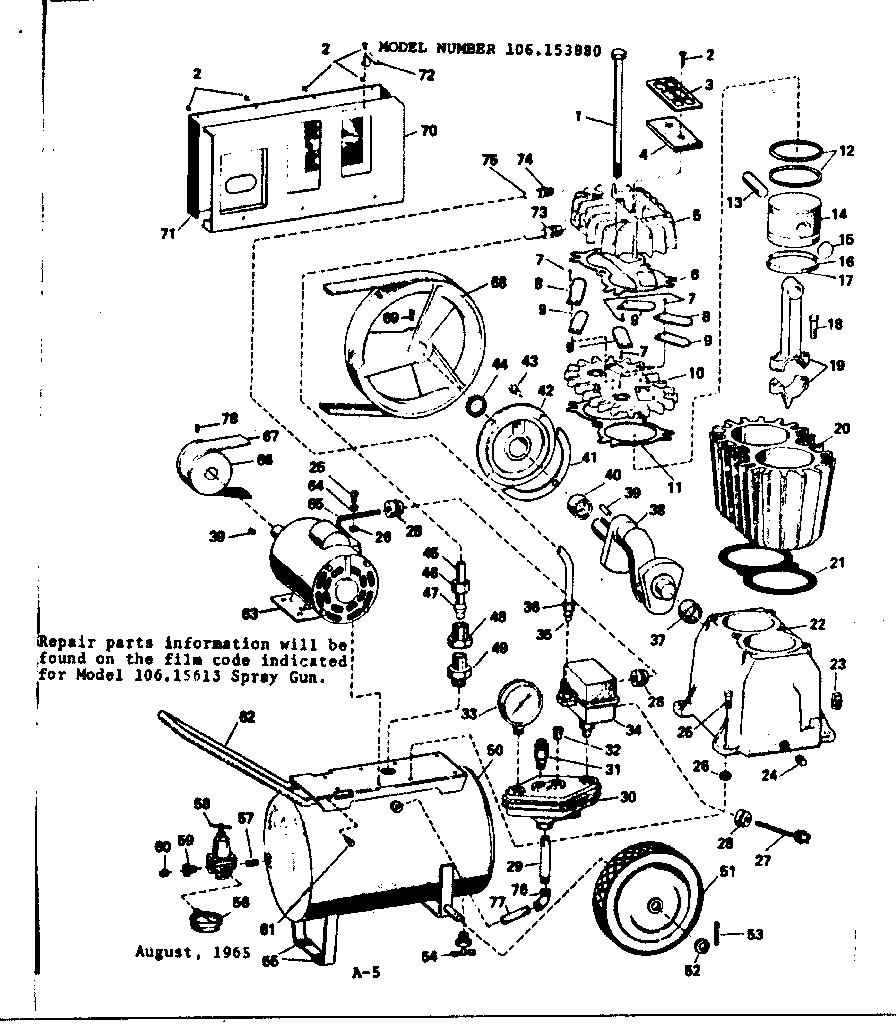

Twin cylinder tankmobiles diagram

Drain cock

Part #STD-301

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw STD-203
#7

Twin cylinder tankmobiles diagram

Machine screw

Part #STD-203

The manufacturer no longer makes this part, and there's no substitute part

Gasket XA-35
#6

Twin cylinder tankmobiles diagram

Gasket

Part #XA-35

The manufacturer no longer makes this part, and there's no substitute part

Comp Conn STD-183
Comp conn

Part #STD-183

The manufacturer no longer makes this part, and there's no substitute part

Pres Gauge GA-301
Pres gauge

Part #GA-301

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal STD-216
#44

Twin cylinder tankmobiles diagram

Oil seal

Part #STD-216

The manufacturer no longer makes this part, and there's no substitute part

Gasket XA-58
#11

Twin cylinder tankmobiles diagram

Gasket

Part #XA-58

The manufacturer no longer makes this part, and there's no substitute part

Pressure Swh CW-2053
#34

Twin cylinder tankmobiles diagram

Pressure swh

Part #CW-2053

The manufacturer no longer makes this part, and there's no substitute part

Cap Gasket XA-32
#41

Twin cylinder tankmobiles diagram

Cap gasket

Part #XA-32

The manufacturer no longer makes this part, and there's no substitute part

Foot STD-416
#55

Twin cylinder tankmobiles diagram

Foot

Part #STD-416

The manufacturer no longer makes this part, and there's no substitute part
